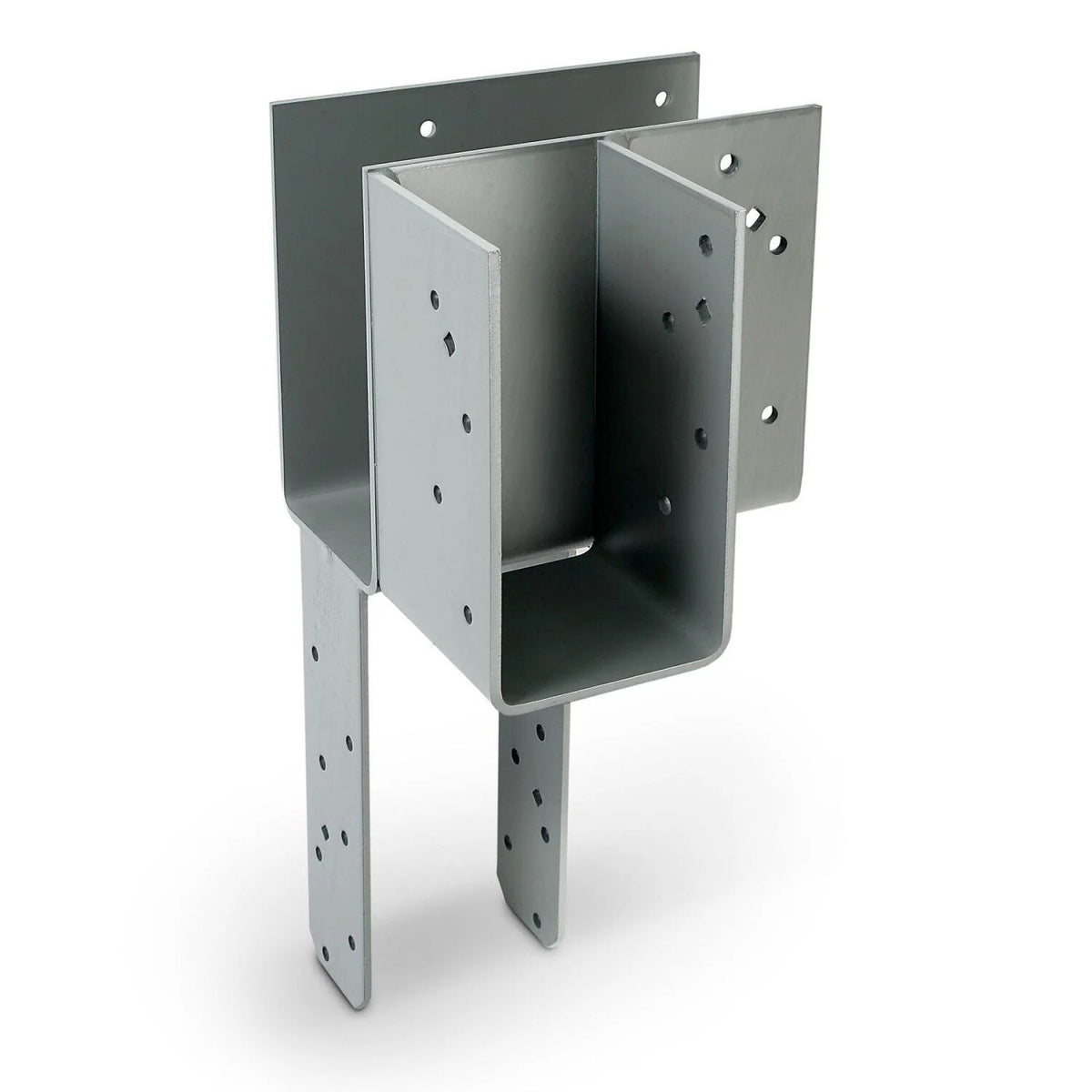

Simpson Strong-Tie ECCLRQ666SDSHDG End Column Cap L-Shaped Right with Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCLRQ666SDSHDG End Column Cap L-Shaped Right wi...
Key Specifications
Description
Description
Simpson Strong-Tie ECCLRQ666SDSHDG Description
The Simpson ECCLRQ666SDSHDG 6x6x6 End Column Cap L-Shaped Right enhances the strength and stability of your construction projects, providing a durable and efficient solution for column-to-beam connections.
Simpson Strong-Tie ECCLRQ666SDSHDG Includes
- (1) End Column Cap L-Shaped Right
- (1) Set of Simpson Strong-Drive SDS connector screws
Simpson Strong-Tie ECCLRQ666SDSHDG Features

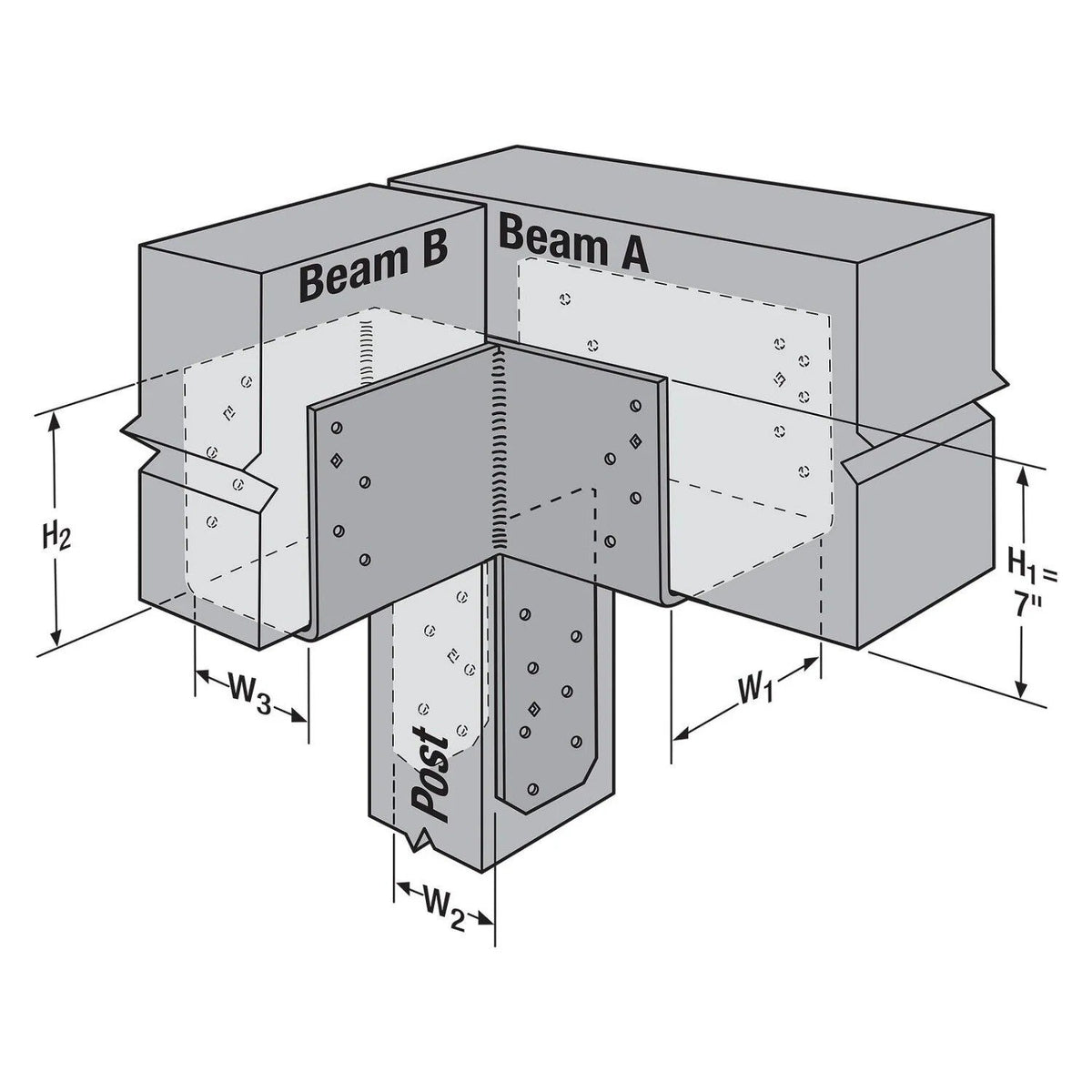

- Provides strong end-of-beam connection for column-to-beams that form an "L"
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Hot Dip Galvanized coating for corrosion resistance
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCLRQ666SDSHDG Applications
- Column-to-beam connections in end-of-beam applications
- Construction projects requiring enhanced load distribution
- Use with 6x posts or columns and 6x beams
Simpson Strong-Tie ECCLRQ666SDSHDG Installation Overview
- Align the column cap with the column and beams
- Secure temporarily using the diamond holes
- Fasten using the included SDS connector screws
- Ensure bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCLRQ666SDSHDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 6x |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 6x |
| Thickness | 7 Gauge |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
