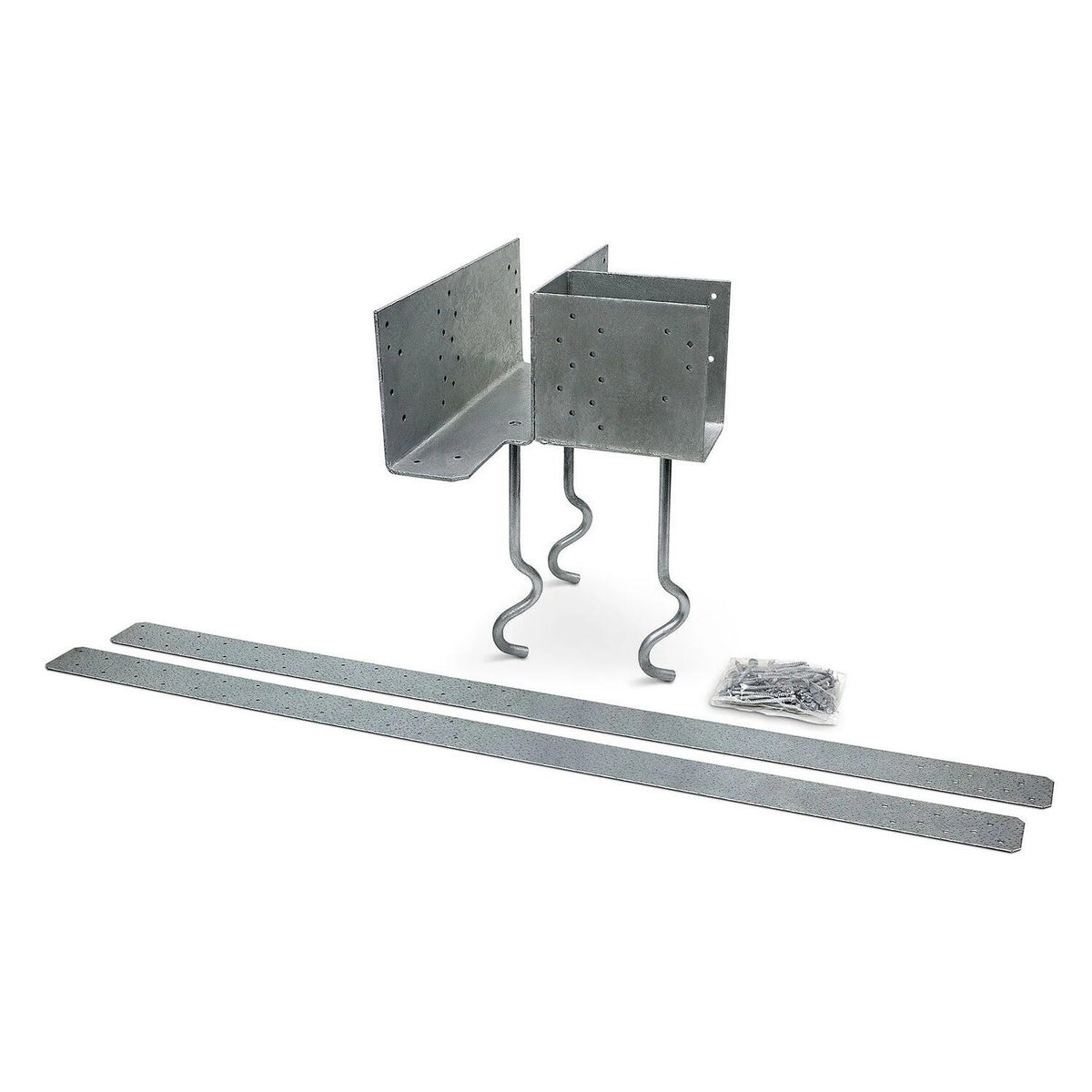

Simpson Strong-Tie ECCLRQMD4.62G-KT End Column Cap L-Shaped for GFCMU and Concrete Piers, Hot-Dip Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCLRQMD4.62G-KT End Column Cap L-Shaped for GFC...
Key Specifications
Description
Description
Simpson Strong-Tie ECCLRQMD4.62G-KT Description
The Simpson ECCLRQMD4.62G-KT End Column Cap is designed for strong and durable column-to-beam connections in end-of-beam applications, suitable for GFCMU and concrete piers.
Simpson Strong-Tie ECCLRQMD4.62G-KT Includes
- (1) End Column Cap
- (32) 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCLRQMD4.62G-KT Features
- Provides strong end-of-beam connection for column-to-beams forming an 'L'
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating for durability
- Certified welds for strength and loading
- Includes necessary screws for fast installation
Simpson Strong-Tie ECCLRQMD4.62G-KT Applications
- Column-to-beam connections in GFCMU and concrete piers
- End-of-beam applications where two beams form an 'L'
Simpson Strong-Tie ECCLRQMD4.62G-KT Installation Overview
- Install 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws in all round holes
- Ensure a minimum of (4) #7 vertical rebar for the pier
- No additional welding is allowed
Simpson Strong-Tie ECCLRQMD4.62G-KT Specifications
| Material | Steel |
| Finish | Gray Paint |
| Thickness | 7 Gauge |
| Beam size | 4-5/8x |
| Fasteners required | Top: (5) 0.148 x 3" Face: (2) 0.148 x 3" Joist: (8) 0.148 x 1-1/2" |
