Simpson Strong-Tie ECCOQ5-SDS2.5 Description
The Simpson ECCOQ5-SDS2.5 End Column Cap is designed for 5x beams, providing strong column-to-beam connections with quick installation and field weldable features.
Simpson Strong-Tie ECCOQ5-SDS2.5 Includes
- (1) Simpson ECCOQ5-SDS2.5 End Column Cap
- (14) 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws
Simpson Strong-Tie ECCOQ5-SDS2.5 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable heavy-gauge steel
- Includes SDS screws for quick installation
- Diamond holes for temporary fastening
Simpson Strong-Tie ECCOQ5-SDS2.5 Applications
- Wood-to-wood fastening for construction projects
- Column-to-beam connections in wood construction
Simpson Strong-Tie ECCOQ5-SDS2.5 Installation Overview
- Fasten with included SDS screws for secure attachment
- Use stainless-steel screws with stainless-steel connectors for specific applications
- May be ordered for field welding to pipe or other columns

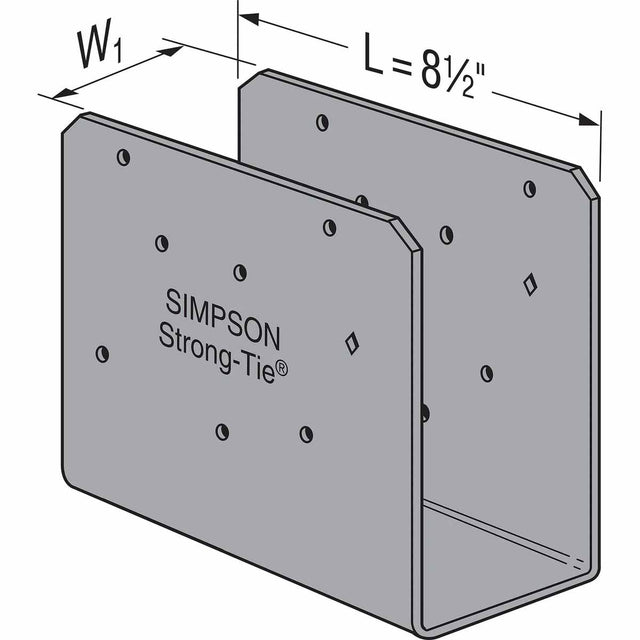

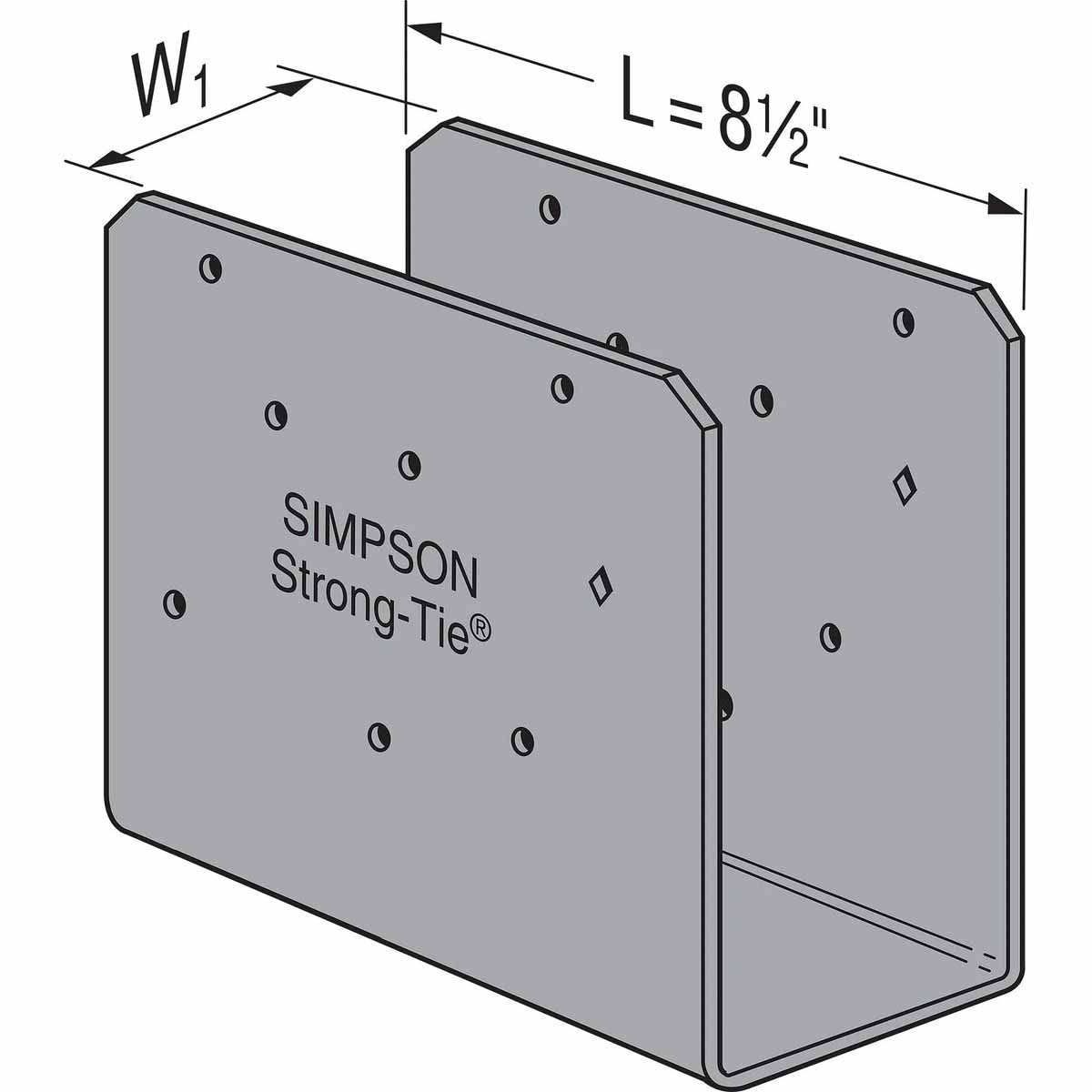

Simpson Strong-Tie ECCOQ5-SDS2.5 Specifications
| Material | Steel |
| Beam size | 5x |
| Fasteners required | 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws (included) |
| Height | 7" |
| Length | 8-1/2" |
| Thickness | 3 Gauge |
