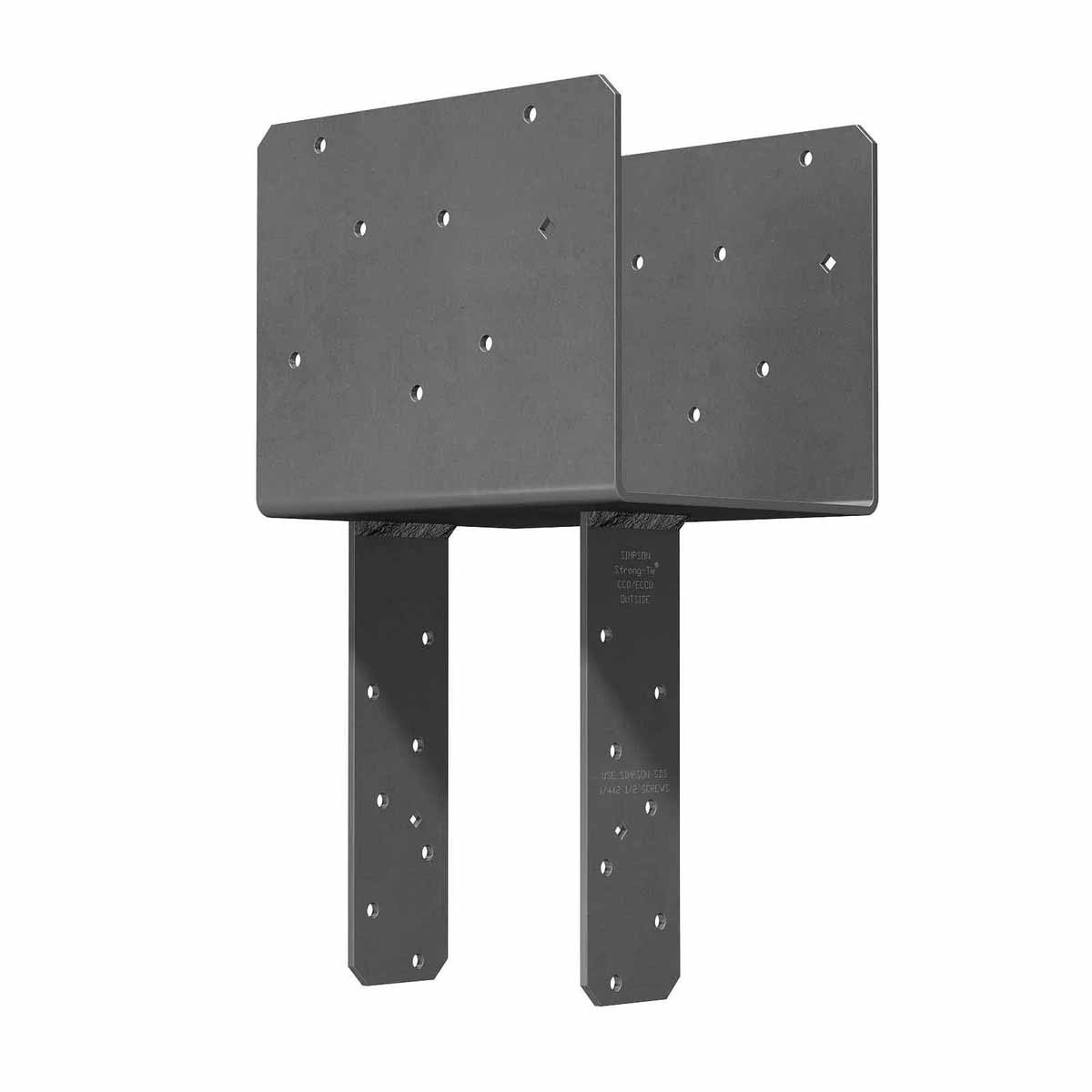

Simpson Strong-Tie ECCQ106SDS2.5 End Column Cap with SDS Screws for 10x Beam to 6x Post Connection
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCQ106SDS2.5 End Column Cap with SDS Screws for...
Key Specifications
Description
Description
Simpson Strong-Tie ECCQ106SDS2.5 Description
The Simpson ECCQ106SDS2.5 End Column Cap with SDS Screws enhances the strength and stability of construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie ECCQ106SDS2.5 Includes
- (1) End Column Cap
- (14) 1/4" x 2-1/2" SDS Screws for Beam
- (14) 1/4" x 2-1/2" SDS Screws for Post
Simpson Strong-Tie ECCQ106SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ106SDS2.5 Applications
- Column-to-beam connections in wood construction
- End-of-beam applications requiring enhanced support
Simpson Strong-Tie ECCQ106SDS2.5 Installation Overview
- Align the column cap with the beam and post as per the design specifications.
- Secure the cap using the provided SDS screws, ensuring proper alignment.
- Verify all screws are tightened to the recommended torque.
Simpson Strong-Tie ECCQ106SDS2.5 Specifications
| Finish | Gray Paint |
| Length | 8-1/2" |
| Material | Steel |
| Beam size | 10x |
| Fasteners required | Beam - (14) 1/4" x 2-1/2" SDS Screws; Post - (14) 1/4" x 2-1/2" SDS Screws |
| For Treated Lumber | No |
| Height | 7" |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
