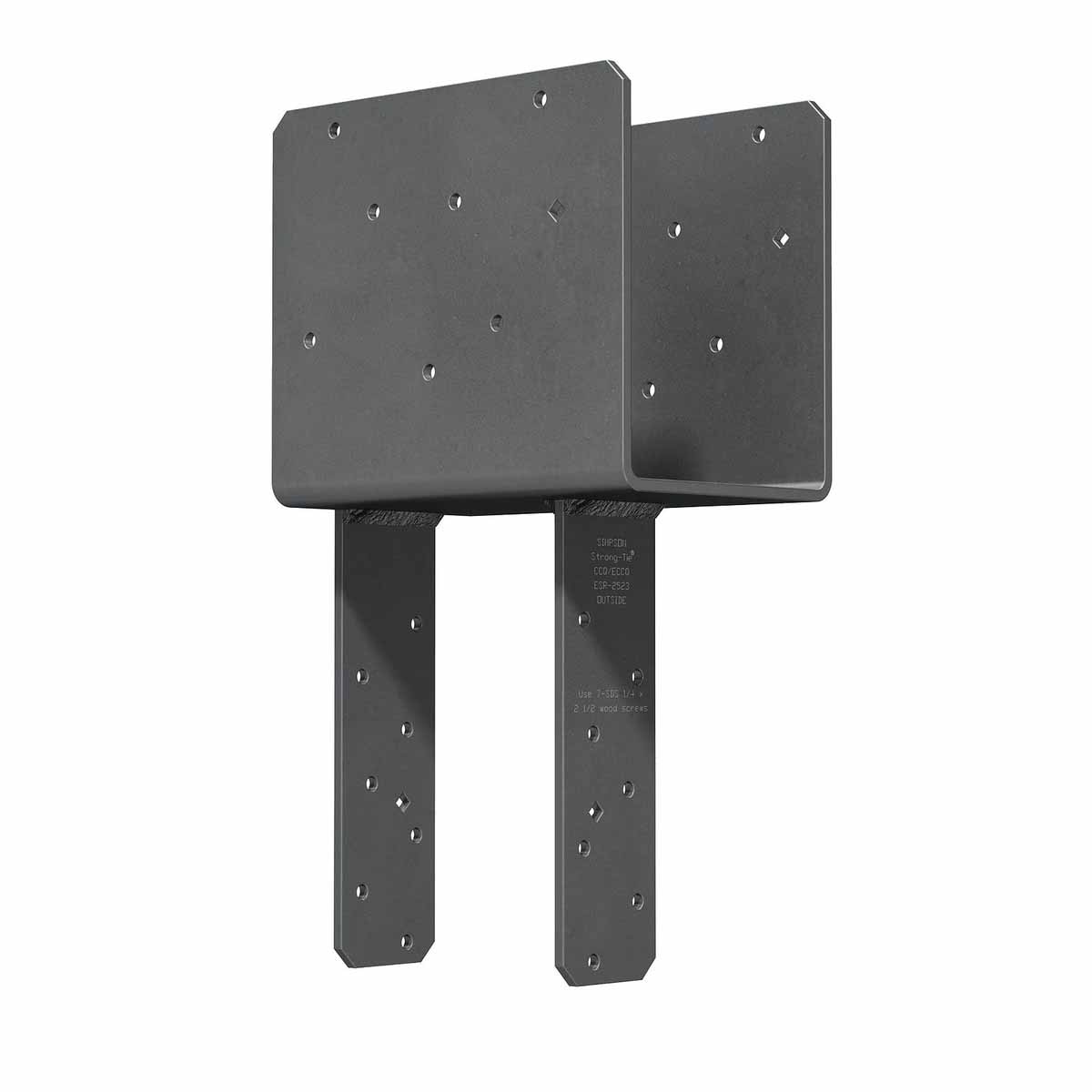

Simpson Strong-Tie ECCQ4.62-5.50HDG (4-1/2" Beam, 4x Post) Quick Install End Column Cap, Hot-Dip Galvanized
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCQ4.62-5.50HDG (4-1/2" Beam, 4x Post) Qui...
Key Specifications
Description
Description
Simpson Strong-Tie ECCQ4.62-5.50HDG Description
The Simpson ECCQ4.62-5.50HDG End Column Cap enhances the strength and stability of wood-to-wood connections, featuring a durable hot-dip galvanized steel construction and certified welds for increased load capacity.
Simpson Strong-Tie ECCQ4.62-5.50HDG Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCQ4.62-5.50HDG Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from steel for durability and finished with hot dip galvanized coating
- Certified welds for strength and loading with increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ4.62-5.50HDG Applications

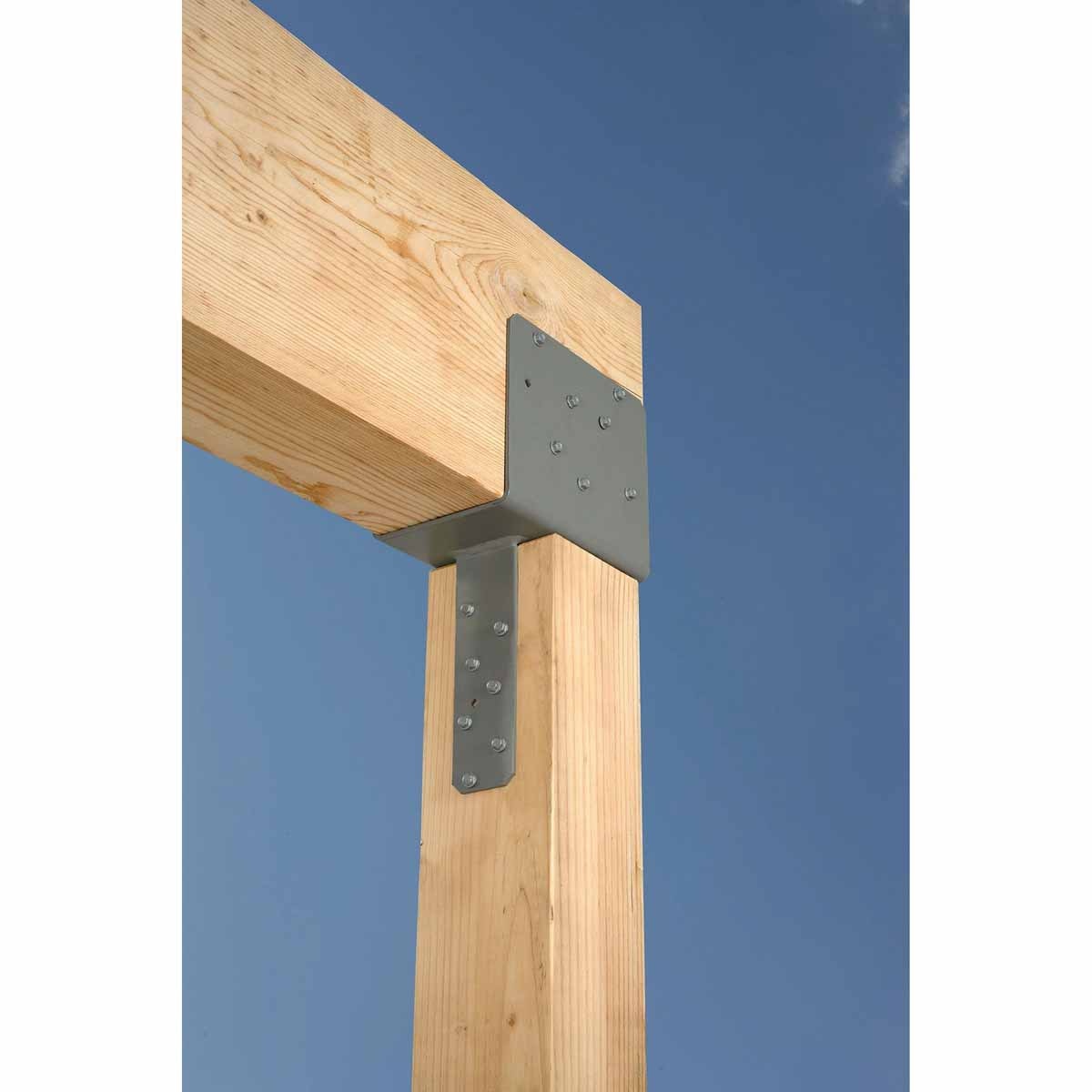

- Column-to-beam connections in wood construction
- End-of-beam applications for enhanced structural support

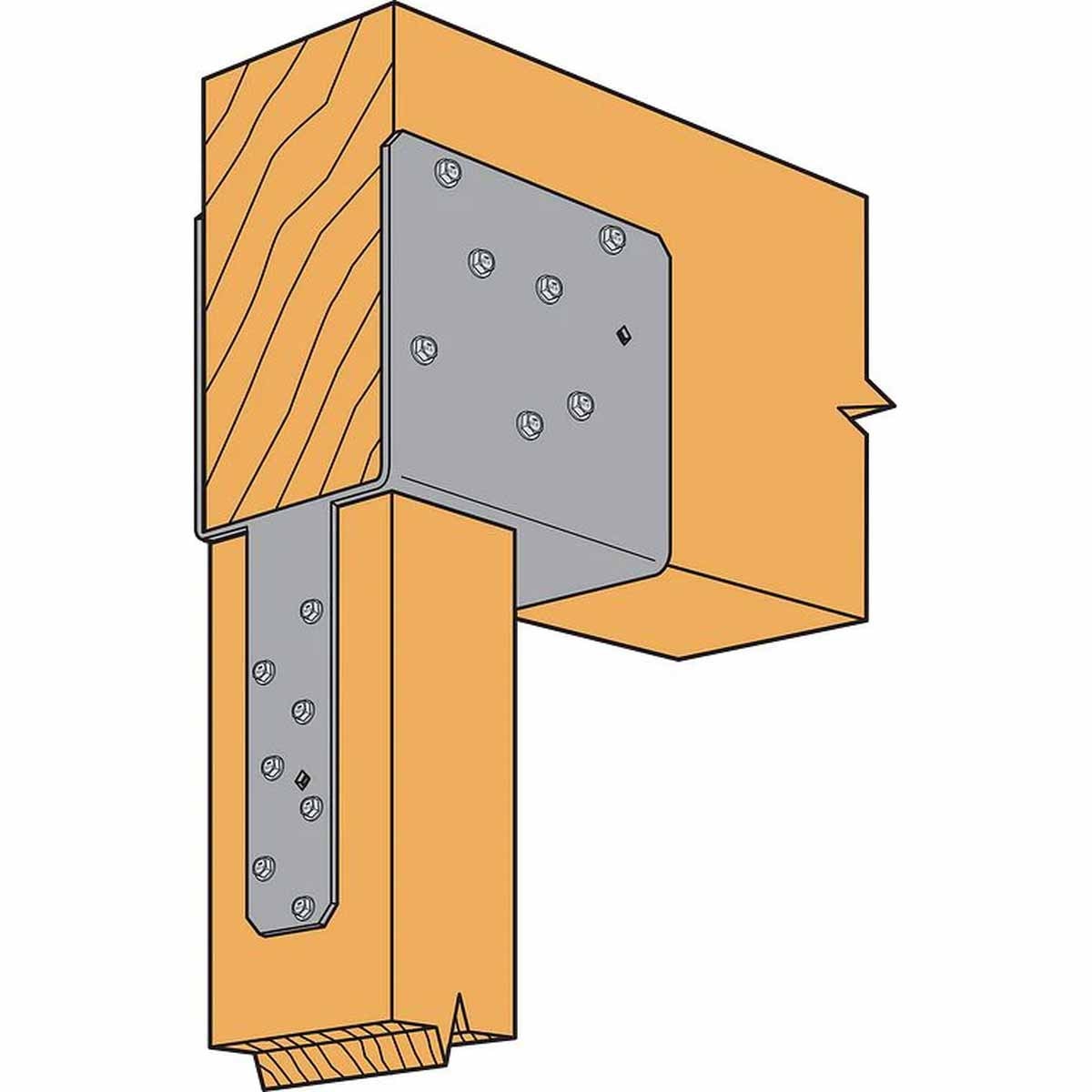

Simpson Strong-Tie ECCQ4.62-5.50HDG Installation Overview
- Align the column cap with the beam and column as per the design specifications.
- Secure the cap using the included SDS screws.
- Ensure bolt spacing adheres to NDS code requirements.
- Verify the connection for stability and proper load distribution.
Simpson Strong-Tie ECCQ4.62-5.50HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Steel |
| Beam size | 4-1/2x |
| Fasteners required | Fasteners Included |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
