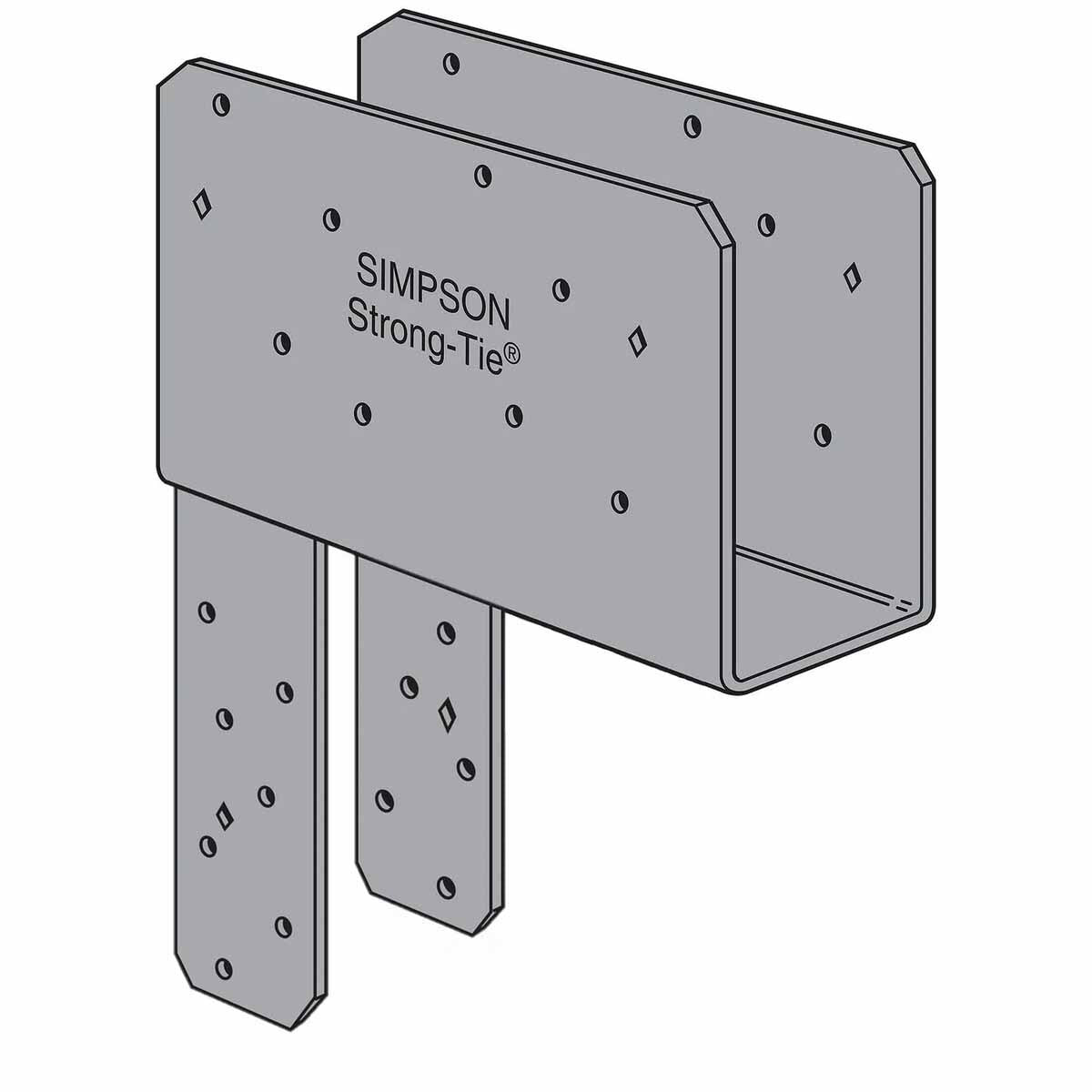

Simpson Strong-Tie ECCQ44SDS2.5ROT (4x Beam x 4x Post) Rotated-Strap End Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCQ44SDS2.5ROT (4x Beam x 4x Post) Rotated-Stra...
Key Specifications
Description
Description
Simpson Strong-Tie ECCQ44SDS2.5ROT Description
The Simpson ECCQ44SDS2.5ROT End Column Cap with SDS Screws features a rotated-strap design for strong column-to-beam connections, crafted from durable steel with a gray paint finish.
Simpson Strong-Tie ECCQ44SDS2.5ROT Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCQ44SDS2.5ROT Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable steel with a gray paint finish
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ44SDS2.5ROT Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for 4x posts or columns
Simpson Strong-Tie ECCQ44SDS2.5ROT Installation Overview
- Align the column cap with the beam and post
- Secure using the included SDS screws
- Ensure bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ44SDS2.5ROT Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 4x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 7 Gauge |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
