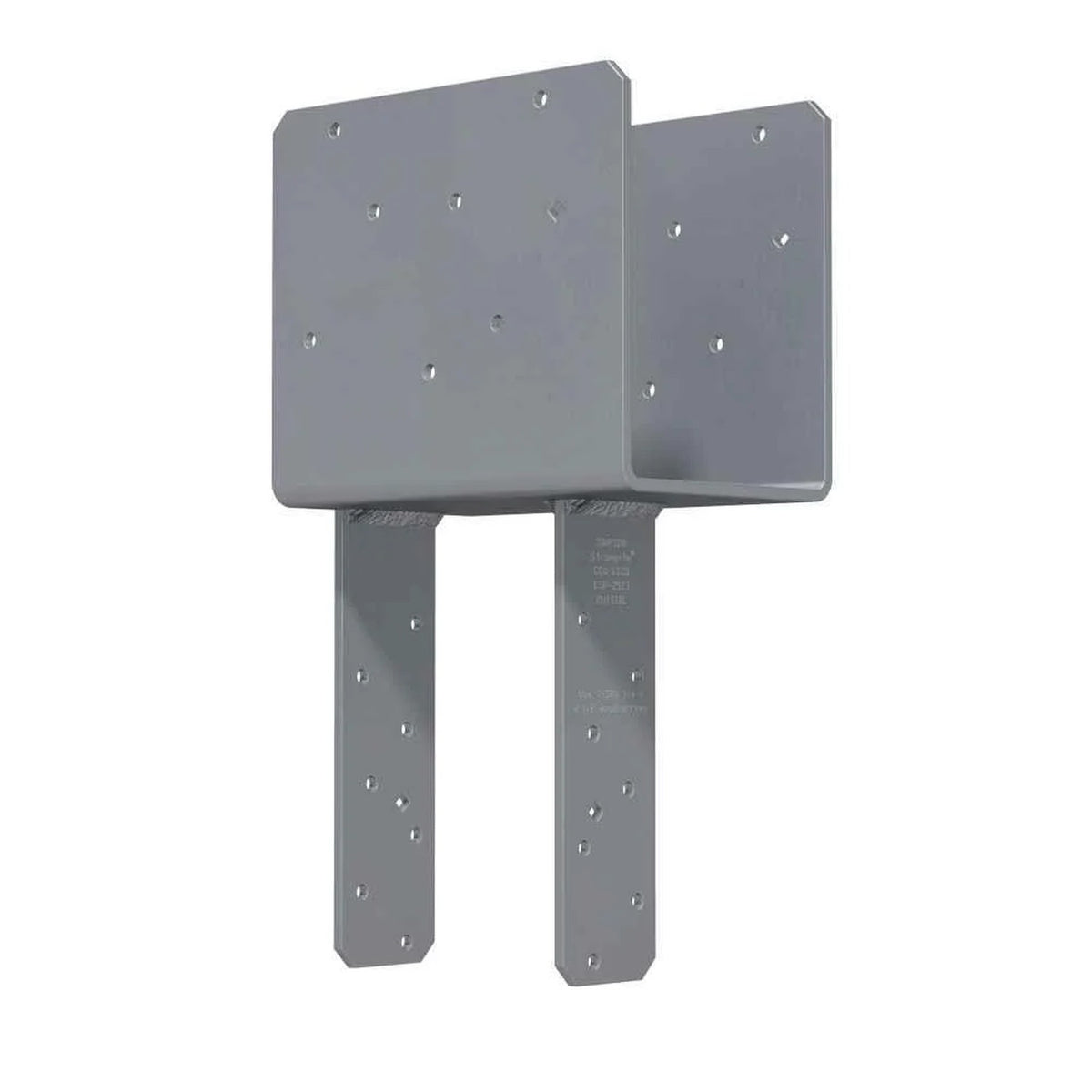

Simpson Strong-Tie ECCQ5-4SDS2.5 (5-1/8" Beam x 4x Post) Quick Install End Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCQ5-4SDS2.5 (5-1/8" Beam x 4x Post) Quick...
Key Specifications
Description
Description
Simpson Strong-Tie ECCQ5-4SDS2.5 Description
The Simpson ECCQ5-4SDS2.5 End Column Cap enhances the strength and stability of construction projects, providing a durable column-to-beam connection for wood construction.
Simpson Strong-Tie ECCQ5-4SDS2.5 Includes
- (1) End Column Cap
- (14) 1/4" x 2-1/2" SDS Heavy-Duty Connector Screws
Simpson Strong-Tie ECCQ5-4SDS2.5 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from heavy-gauge steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCQ5-4SDS2.5 Applications

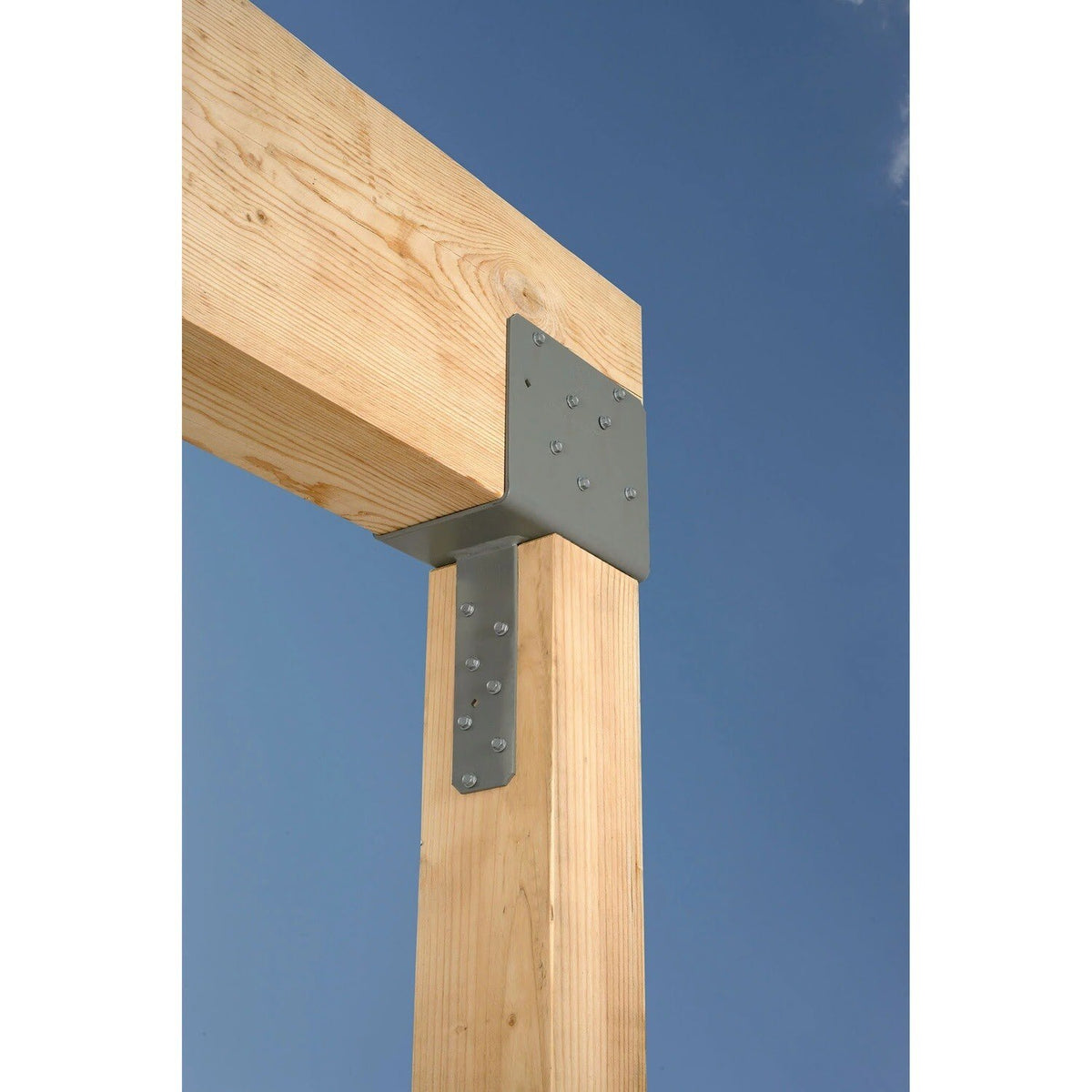

- Wood-to-wood column-to-beam connections
- End-of-beam applications in wood construction
Simpson Strong-Tie ECCQ5-4SDS2.5 Installation Overview
- Fasten with 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided with the column cap
- Use stainless-steel Strong-Drive screws with stainless-steel connectors for specific applications
- For rough-cut lumber sizes, provide dimensions
Simpson Strong-Tie ECCQ5-4SDS2.5 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
