Simpson Strong-Tie ECCQ64HDG-SDS (6x Beam, 4x Post) Quick Install HDG End Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCQ64HDG-SDS (6x Beam, 4x Post) Quick Install H...
Key Specifications
Description
Description

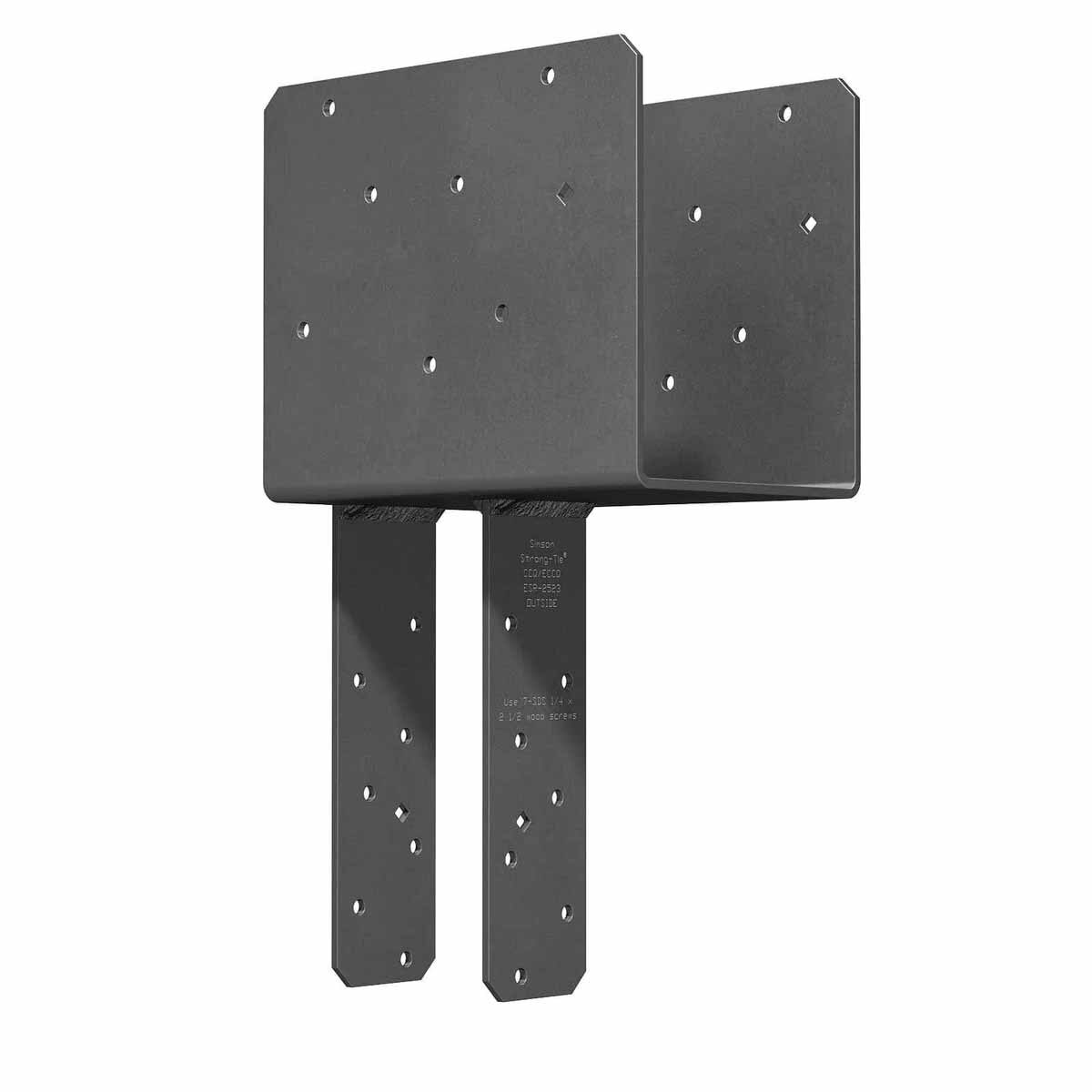

Simpson Strong-Tie ECCQ64HDG-SDS Description
The Simpson ECCQ64HDG-SDS End Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie ECCQ64HDG-SDS Includes
- (1) End Column Cap
- (14) 1/4" x 2-1/2" SDS Screws
Simpson Strong-Tie ECCQ64HDG-SDS Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Hot Dip Galvanized coating for corrosion resistance
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Diamond holes for temporary fastening during installation
Simpson Strong-Tie ECCQ64HDG-SDS Applications

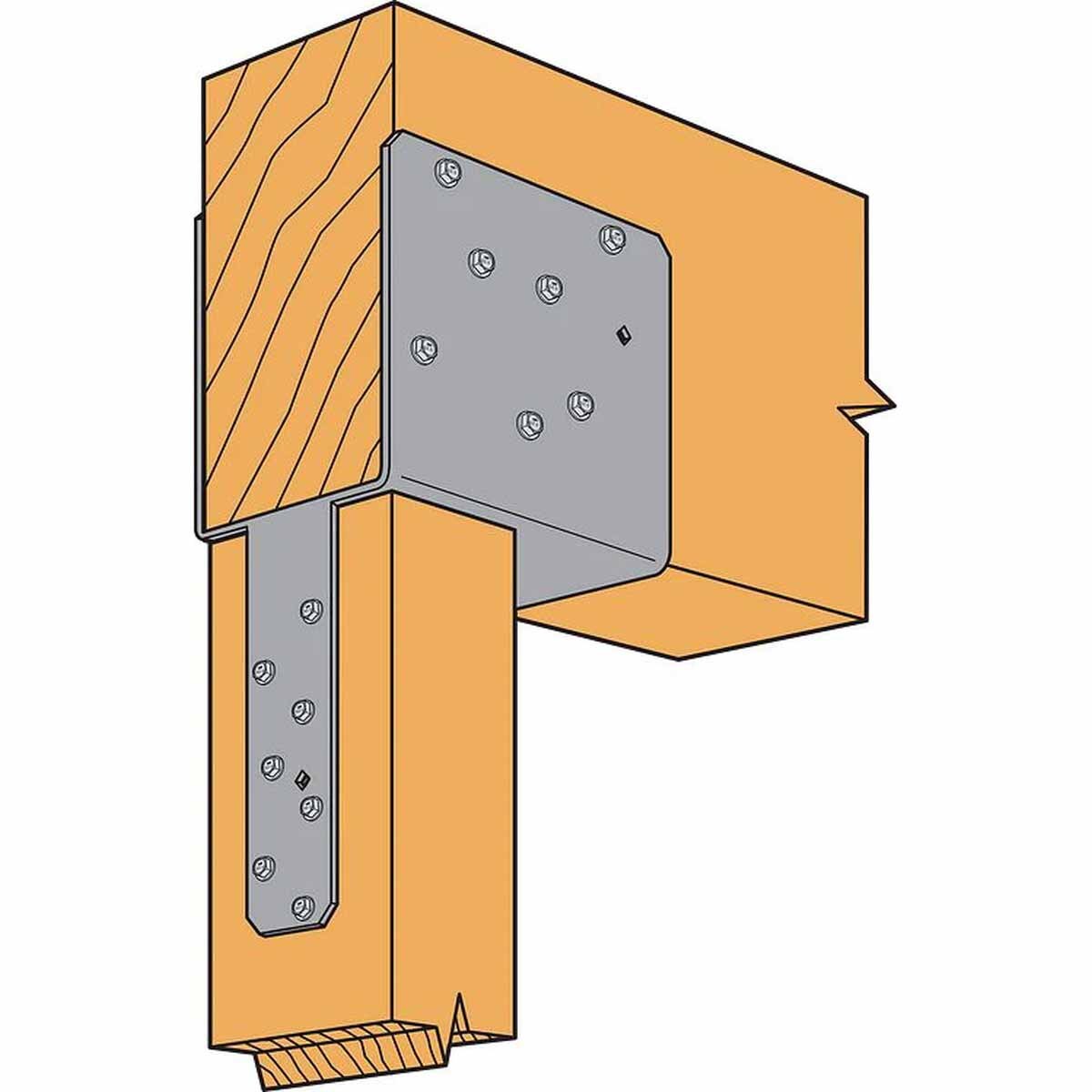

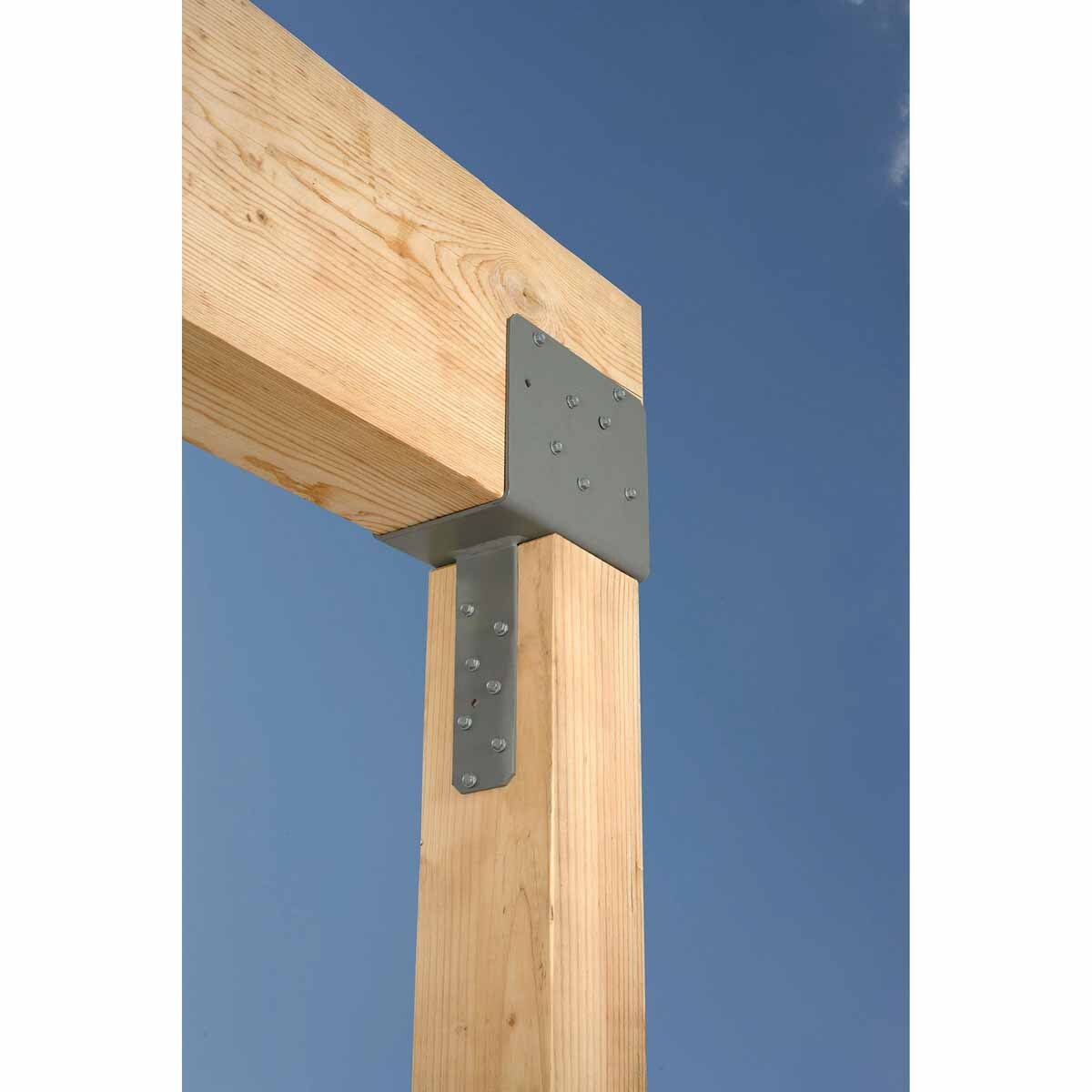

- Column-to-beam connections in wood construction
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECCQ64HDG-SDS Installation Overview
- Fasten with 1/4" x 2-1/2" Strong-Drive SDS Heavy-Duty Connector screws provided with the column cap
- Ensure proper alignment and secure fastening to achieve optimal load distribution
Simpson Strong-Tie ECCQ64HDG-SDS Specifications
| Finish | Hot Dip Galvanized |
| Material | Steel |
| Length | 8-1/2" |
| Width (1) | 5-1/2" |
| Width (2) | 3-5/8" |
| Height | 7" |
| Thickness | 3 Gauge |
| Beam size | 5-1/4X, 5-1/2X |
| Post size | 4x |
| Fasteners required | Beam - (14) 1/4" x 2-1/2" SDS Screws; Post - (14) 1/4" x 2-1/2" SDS Screws |
NOTE: This item is made to order and is non-returnable.
