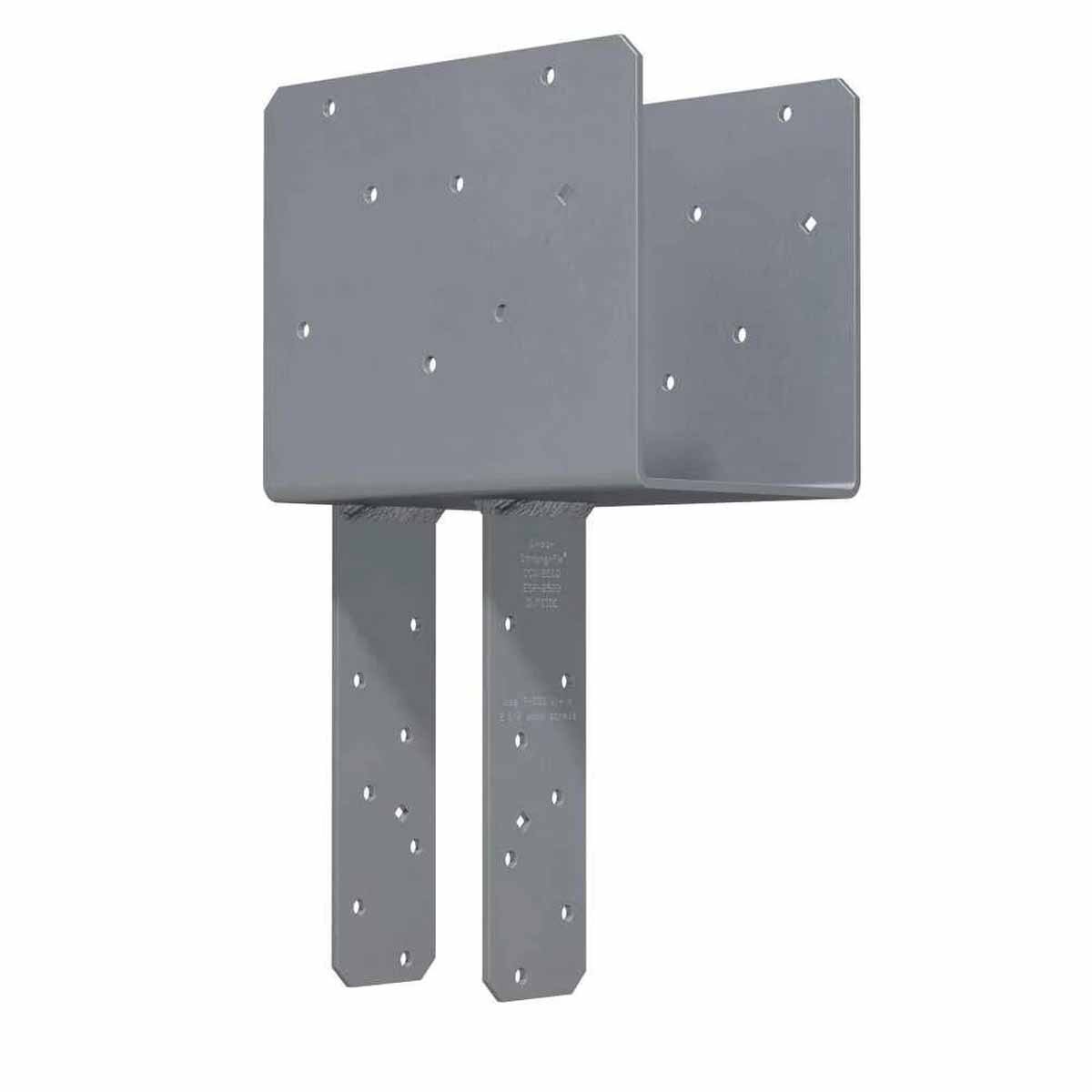

Simpson Strong-Tie ECCQ66-SDS2.5HDG (6x Beam, 6x Post) Quick Install HDG End Column Cap with SDS Screws
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCQ66-SDS2.5HDG (6x Beam, 6x Post) Quick Instal...
Key Specifications
Description
Description
Simpson Strong-Tie ECCQ66-SDS2.5HDG Description

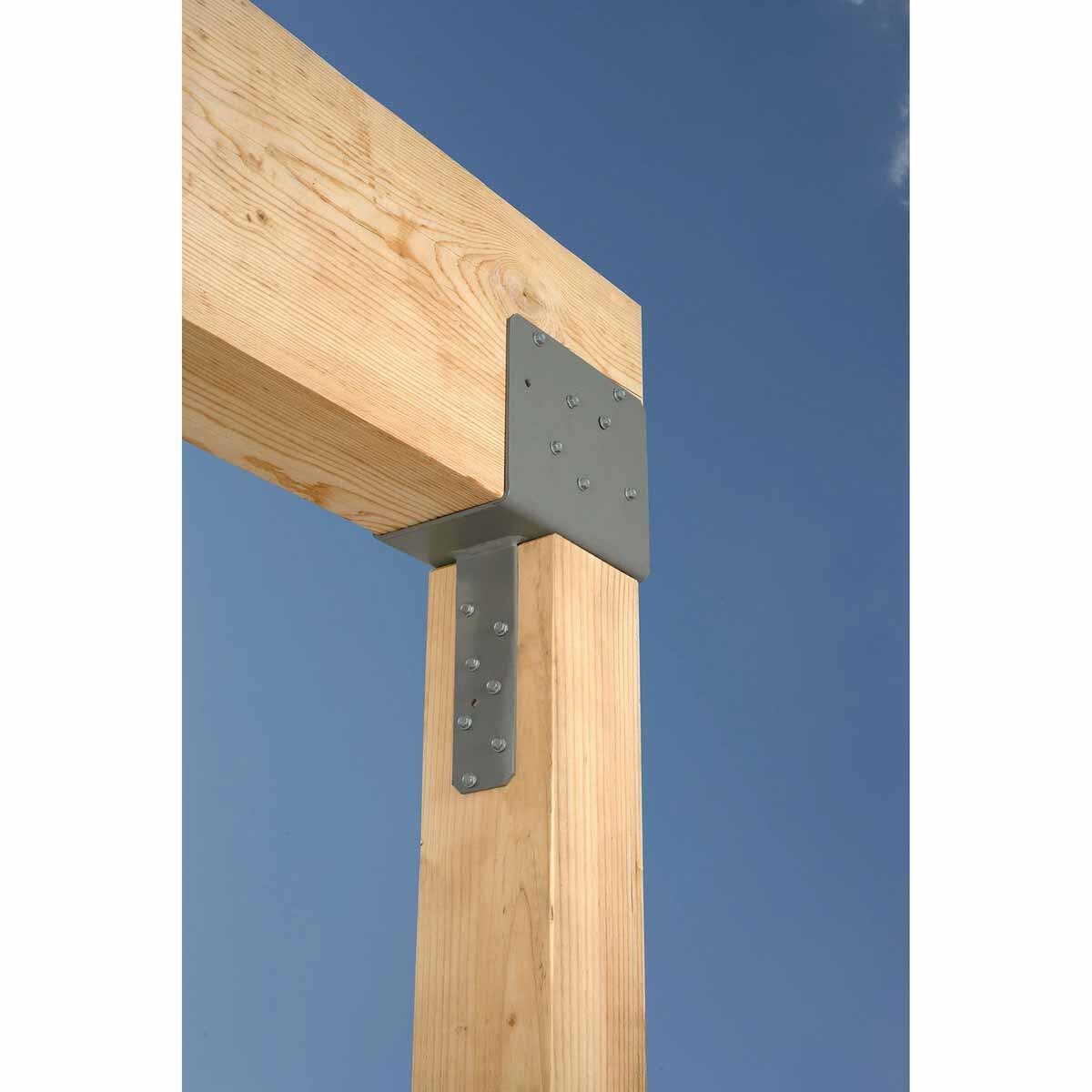

The Simpson ECCQ66-SDS2.5HDG End Column Cap enhances the strength and stability of your construction projects, providing strong column-to-beam connections for wood construction.
Simpson Strong-Tie ECCQ66-SDS2.5HDG Includes
- (1) End Column Cap
- (1) Set of SDS Screws
Simpson Strong-Tie ECCQ66-SDS2.5HDG Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from durable heavy-gauge steel
- Finished with Hot Dip Galvanized coating for corrosion resistance
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCQ66-SDS2.5HDG Applications
- Column-to-beam connections in wood construction
- End-of-beam applications for 6x posts or columns

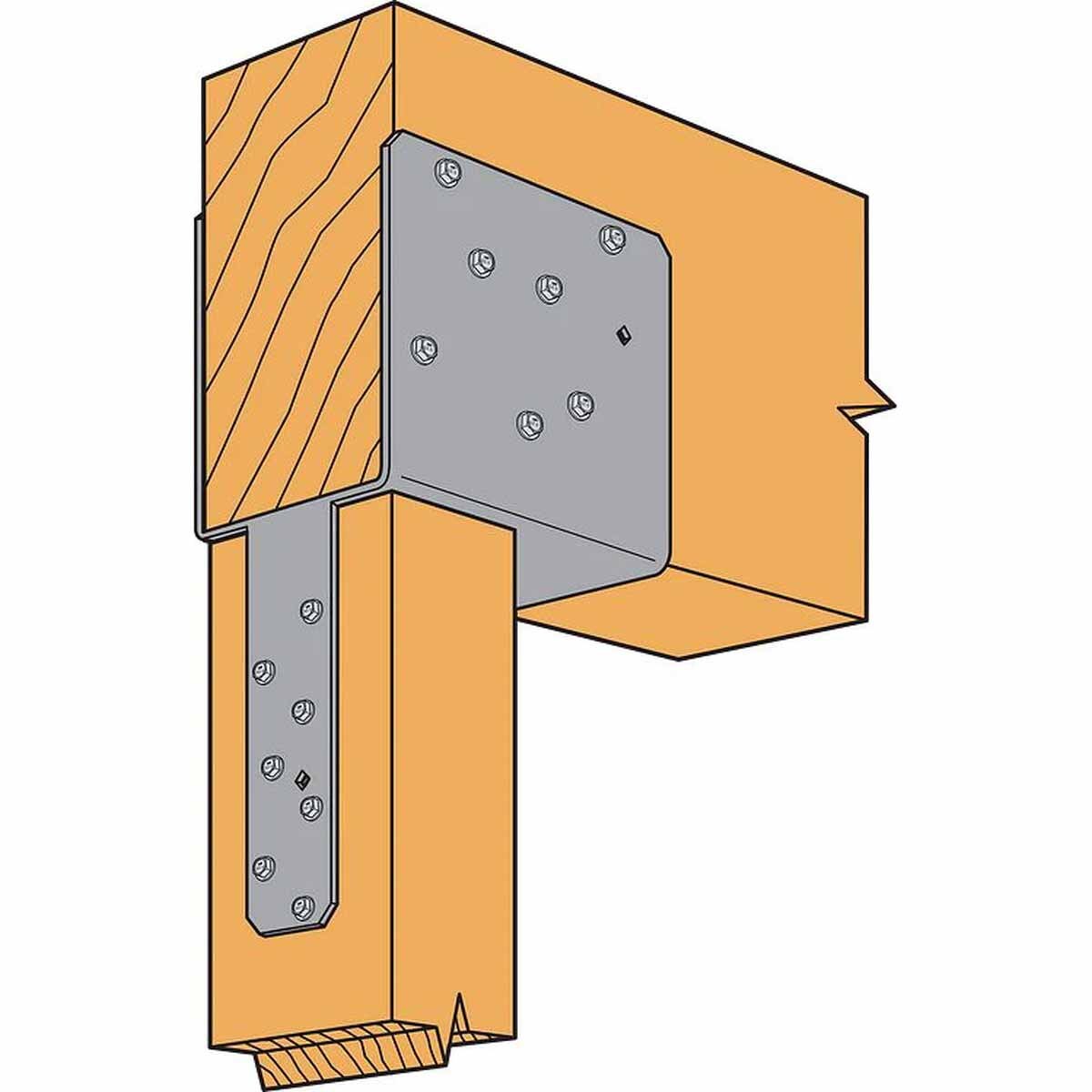

Simpson Strong-Tie ECCQ66-SDS2.5HDG Installation Overview
- Align the column cap with the beam and post
- Secure the cap using the included SDS screws
- Ensure proper alignment and fastening for optimal load distribution
Simpson Strong-Tie ECCQ66-SDS2.5HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Galvanized Steel |
| Beam size | 6x |
| Fasteners required | All Fasteners Included |
| For Treated Lumber | Yes |
| Post size | 6x |
| Thickness | 7 Gauge |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
