Simpson Strong-Tie HCSTR4 (3 Gauge) Hinge Connector Strap, Gray Paint for Engineered Wood Applications
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HCSTR4 (3 Gauge) Hinge Connector Strap, Gray Pai...
Key Specifications
Description
Description
Simpson Strong-Tie HCSTR4 Description
The HCSTR4 Hinge Connector Strap by Simpson Strong-Tie is designed for engineered wood applications, providing robust support and durability.
Simpson Strong-Tie HCSTR4 Includes
- (1) HCSTR4 Hinge Connector Strap
Simpson Strong-Tie HCSTR4 Features
- 3-gauge thickness for enhanced strength
- Gray paint finish for corrosion resistance

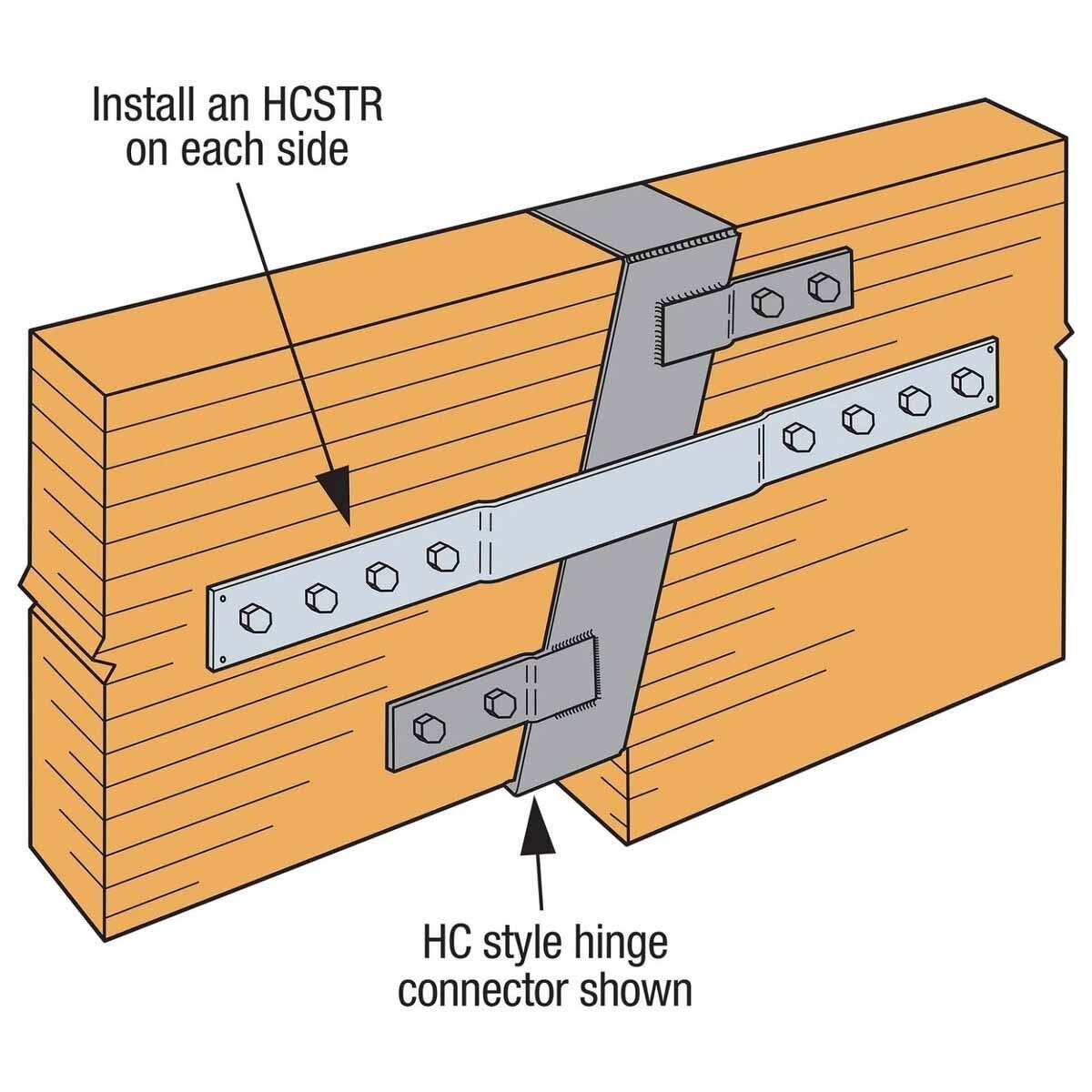

- Designed for use with Simpson Strong-Tie HC hinge connectors
- Suitable for engineered wood applications
Simpson Strong-Tie HCSTR4 Applications
- Engineered wood applications requiring hinge connector straps
- Retrofit applications to strap horizontal wood members together
Simpson Strong-Tie HCSTR4 Installation Overview
- Ensure all bolt holes are 1/32" (minimum) and 1/16" (maximum) larger than the bolt diameter
- Use all specified fasteners for secure installation
Simpson Strong-Tie HCSTR4 Specifications
| Material | 3 Gauge Steel |
| Finish | Gray Paint |

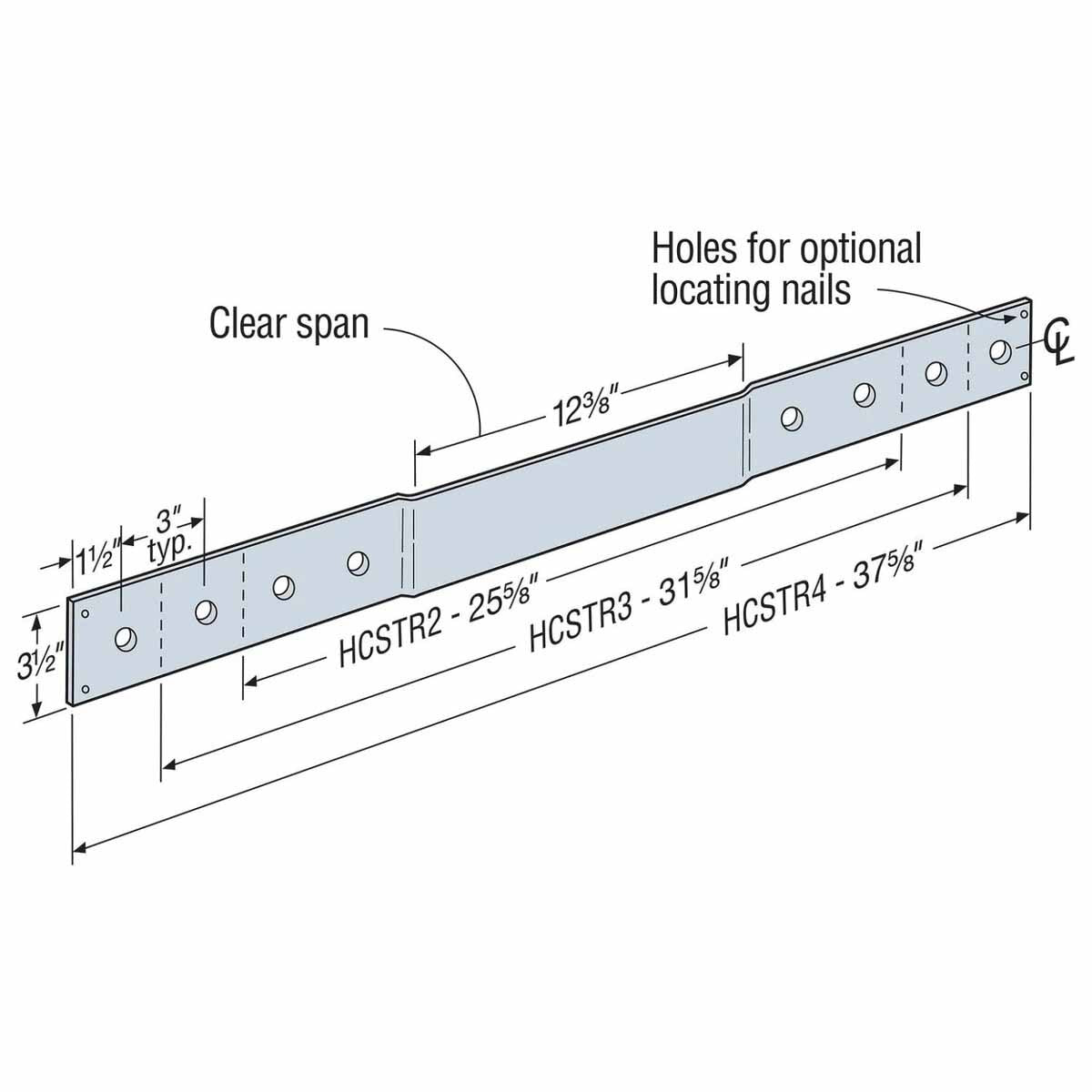

| Length | 37-5/8" |
| Width | 3-1/2" |
| Fasteners Required | (8) 3/4" Diameter |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
