Simpson Strong-Tie HETA24 (20") Embedded Truss Anchor for Concrete and Masonry Walls
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HETA24 (20") Embedded Truss Anchor for Conc...
Key Specifications
Description
Description
Simpson Strong-Tie HETA24 Description
The HHETA embedded truss anchor series provides an engineered method to properly attach roof trusses to concrete and masonry walls.
Simpson Strong-Tie HETA24 Includes
- (10) 0.148" x 1-1/2" Fasteners
Simpson Strong-Tie HETA24 Features
- Engineered method for attaching roof trusses to concrete and masonry walls
- Staggered nail patterns for greater uplift resistance
- Designed for use with single- and multi-ply trusses

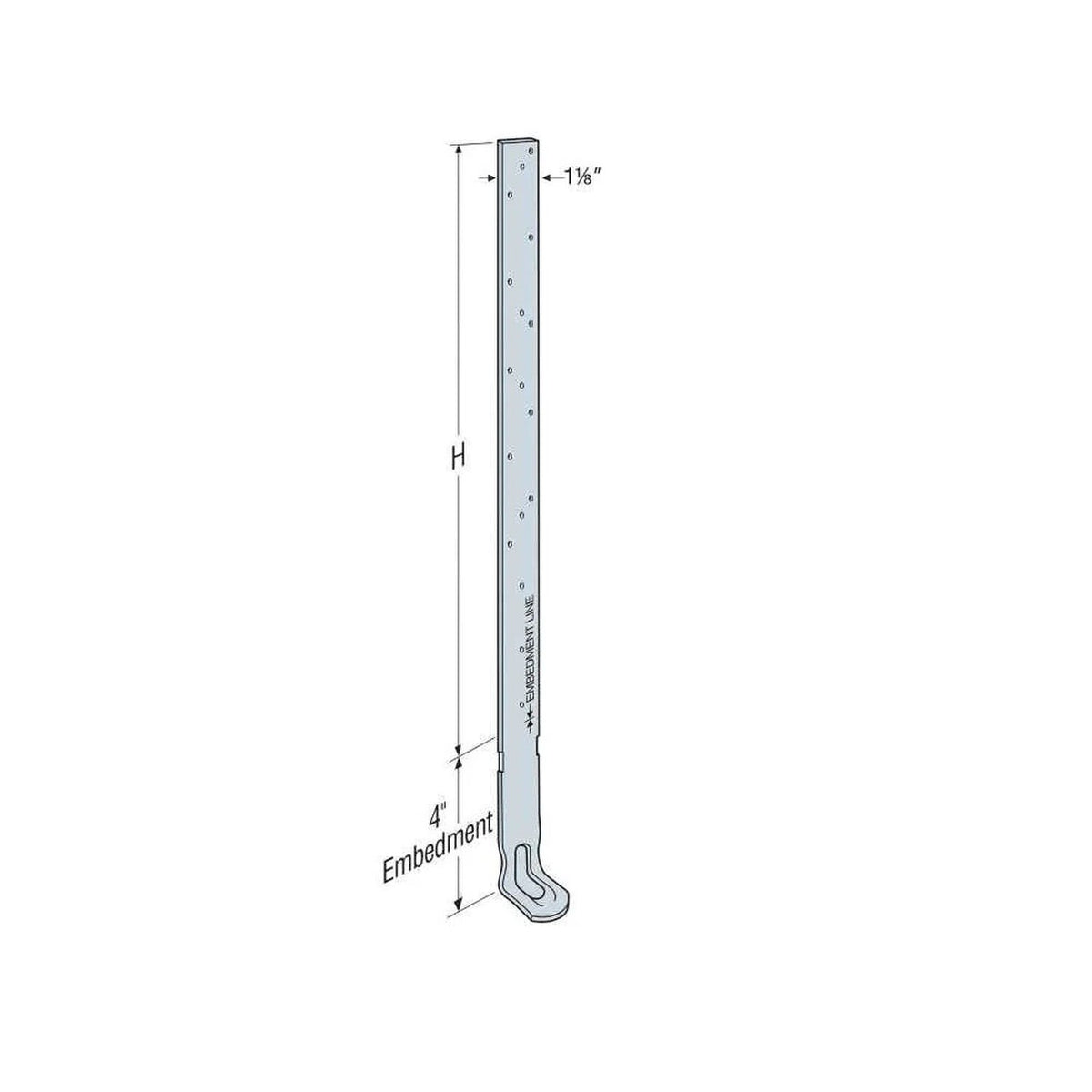

- Embedded 4" into a 6" minimum concrete beam or 8" nominal grouted block wall
Simpson Strong-Tie HETA24 Applications
- Roof truss attachment to concrete and masonry walls
- Structural reinforcement in construction projects
Simpson Strong-Tie HETA24 Installation Overview
- Embed the anchor 4" into a 6" minimum concrete beam or 8" nominal grouted block wall
- Ensure proper alignment and use specified fasteners
- For mislocated anchors, provide a shim designed by a Truss Engineer if the gap is between 1/8" and 1 1/2"
- Install new anchors if the gap exceeds 1 1/2"
- Avoid installing fasteners where straps overlap in double embedded anchor installations
Simpson Strong-Tie HETA24 Specifications
| Fasteners required | (10) 0.148" x 1-1/2" |
| For Treated Lumber | No |
| Height | 20" |
| Manufacturer name | Simpson Strong-Tie |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
