Simpson Strong-Tie HGLTV5.512 (5-1/4 in x 12 in) Heavy Top-Flange I-Joist Hanger for Engineered Lumber, Gray Paint
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HGLTV5.512 (5-1/4 in x 12 in) Heavy Top-Flange I...
Key Specifications
Description
Description
Simpson Strong-Tie HGLTV5.512 Description
The Simpson Strong-Tie HGLTV5.512 is a heavy-duty top-flange hanger designed for engineered lumber, providing exceptional strength and stability for demanding structural applications.
Simpson Strong-Tie HGLTV5.512 Includes
- (1) Heavy Top-Flange I-Joist Hanger
Simpson Strong-Tie HGLTV5.512 Features
- High load capacity for demanding structural applications
- Compatible with engineered lumber such as LVL, PSL, and LSL
- Heavy-gauge steel construction for durability
- Precision-formed top flange for a secure fit
- Reduces joist rotation under load
Simpson Strong-Tie HGLTV5.512 Applications
- Floor Joists: Provides stable, load-bearing support for SCL joists in residential and commercial flooring systems.
- Deck Framing: Reinforces beam-to-joist connections for heavy-duty decks with engineered lumber.
- Multi-Ply Beams: Connects SCL or LVL headers and girders in beam construction.
- Commercial Wood Construction: Supports large spans and engineered wood framing in commercial projects.

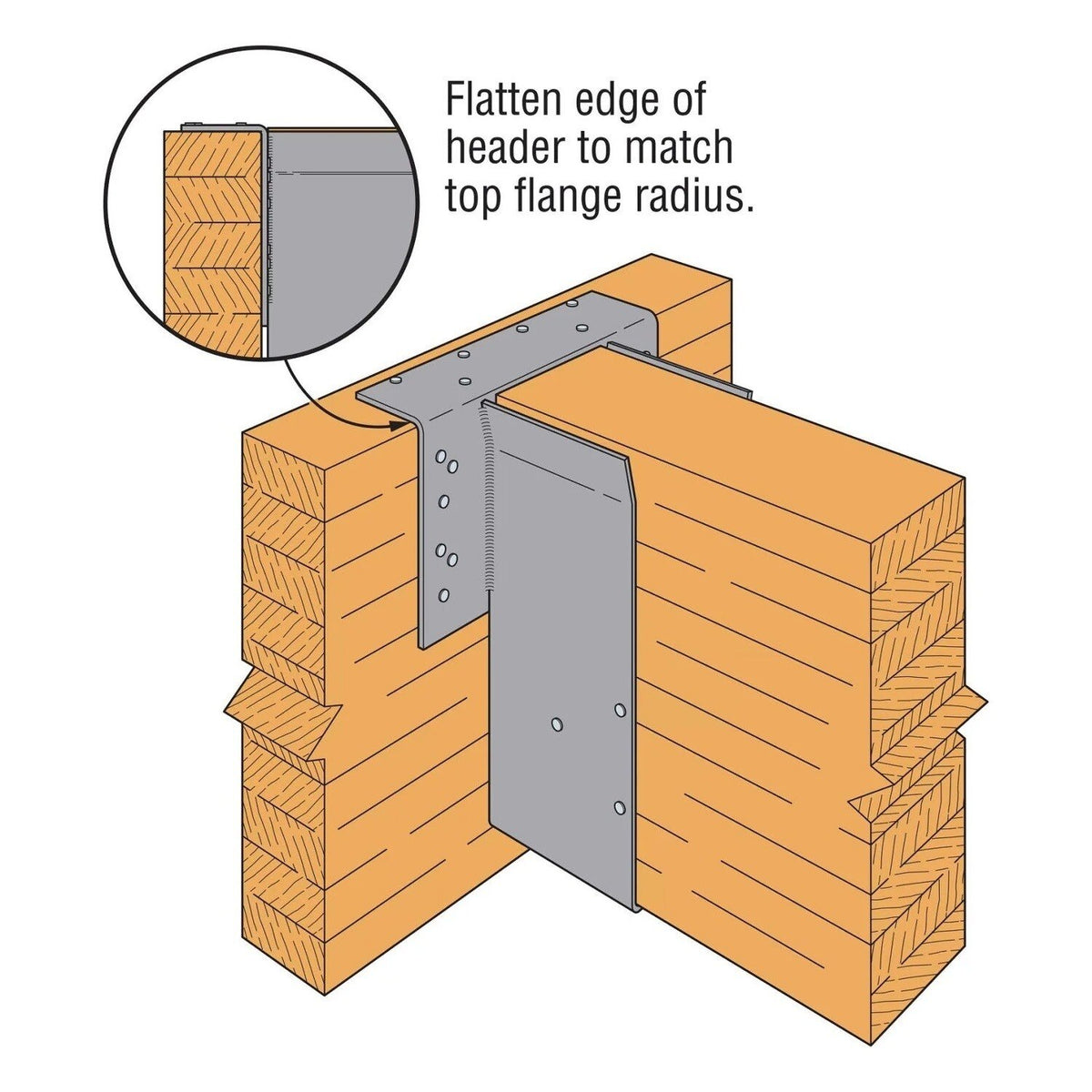

Simpson Strong-Tie HGLTV5.512 Installation Overview
- Use all specified fasteners and ensure the header can accommodate them.
- Install flush with the header for proper bearing and alignment.
- Fasteners must be installed into all designated holes for full load capacity.
- Verify all installations meet applicable building codes and engineered plans.
- Not designed for skewed or sloped applications.

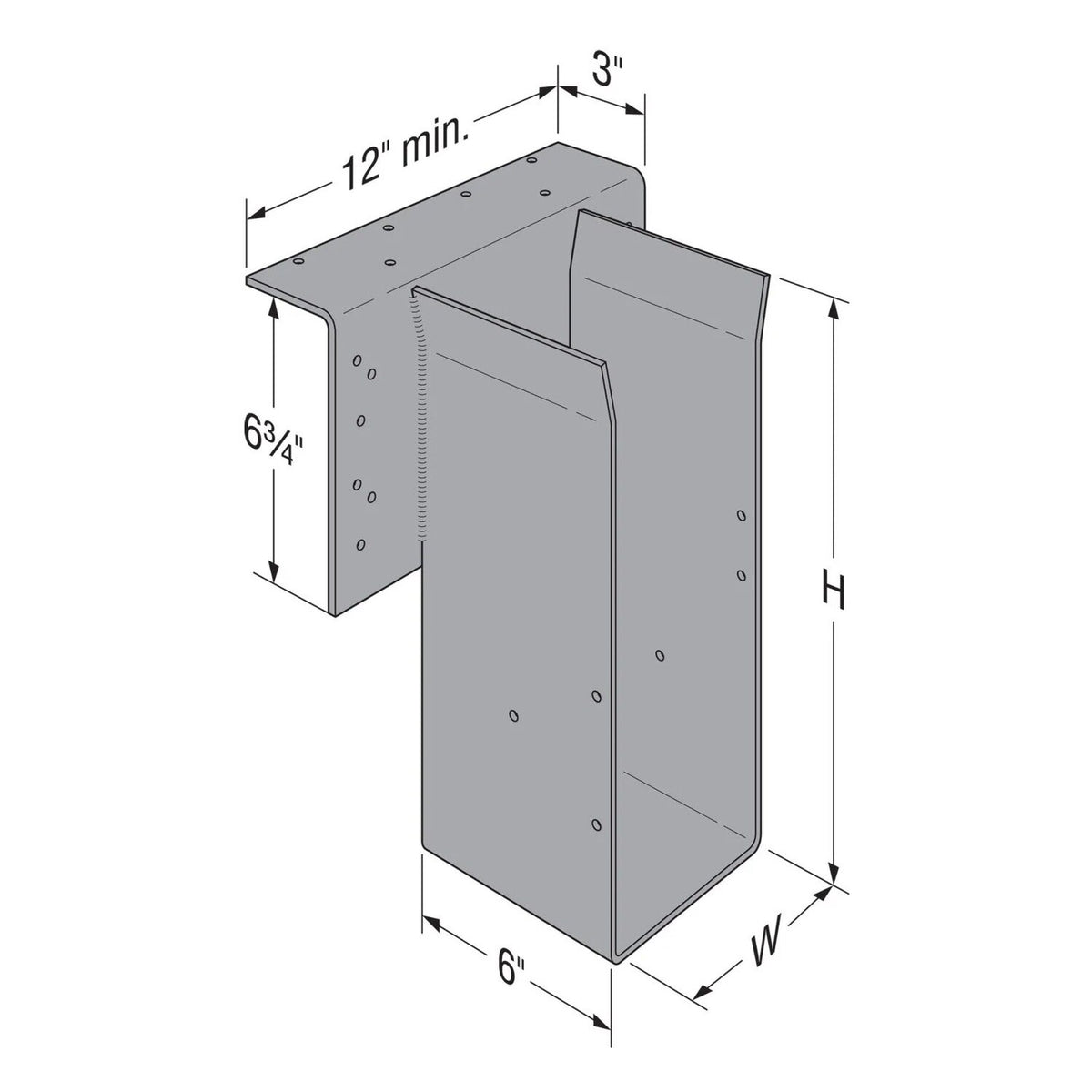

Simpson Strong-Tie HGLTV5.512 Specifications
| Finish | Gray Paint |
| Material | Painted Steel |
| Fasteners required | Top: (6) 0.162 x 3-1/2 Face: (12) 0.162 x 3-1/2 Joist: (6) 0.162 x 3-1/2 |
| For Treated Lumber | No |
| Height | 12" |
| Joist size | 5-1/4" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | Top Flange: 3 Gauge; Stirrup: 7 Gauge |
| Width | 5-1/4" |
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
