Simpson Strong-Tie HUC612Z Description

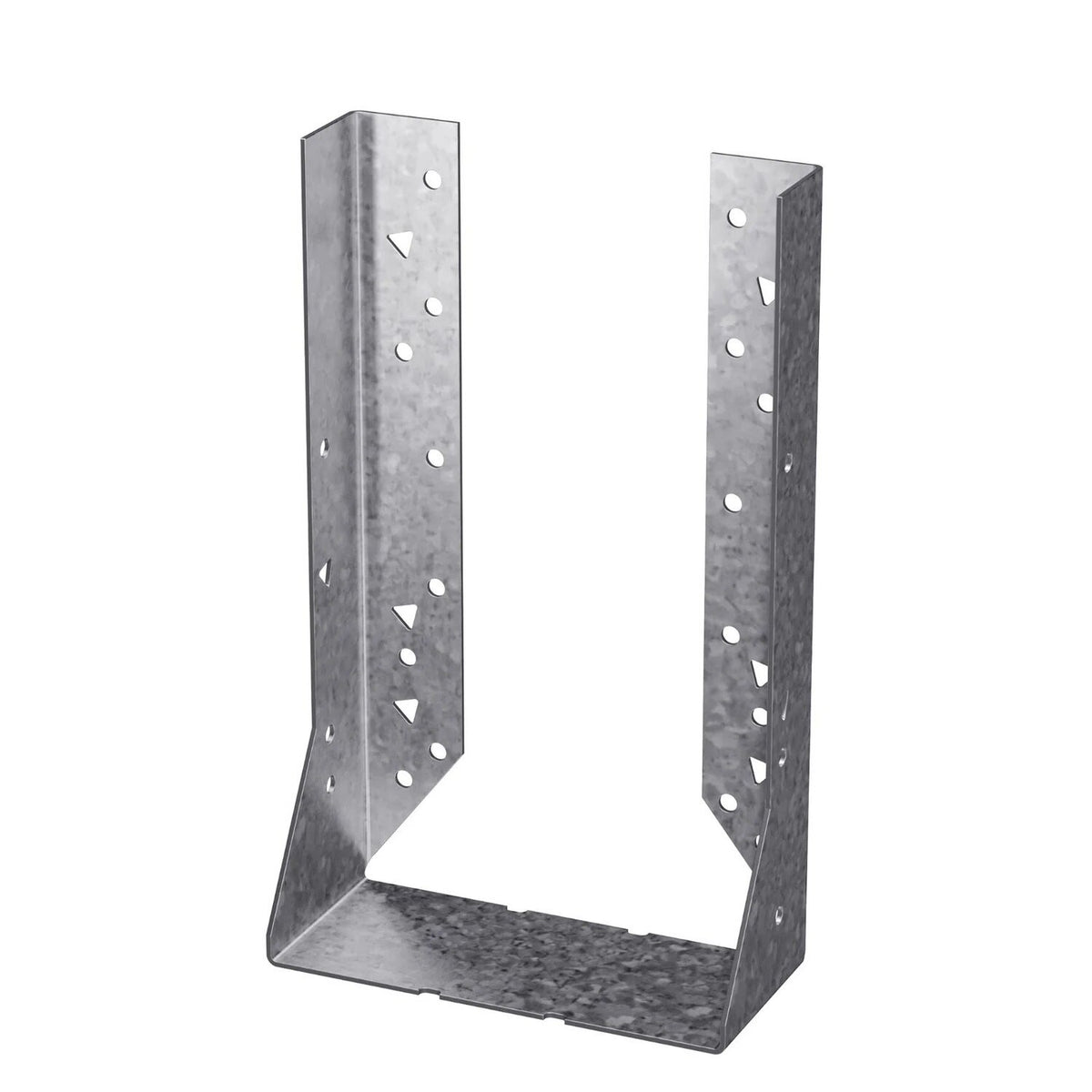

The Simpson Strong-Tie HUC612Z is a concealed-flange face-mount joist hanger designed for robust support and enhanced aesthetics, featuring a ZMAX galvanized coating for increased corrosion resistance.
Simpson Strong-Tie HUC612Z Includes
- (1) Concealed-Flange Joist Hanger
Simpson Strong-Tie HUC612Z Features
- Concealed-Flange Design for clean lines and close installation to beam ends
- ZMAX Galvanized Coating for enhanced corrosion resistance

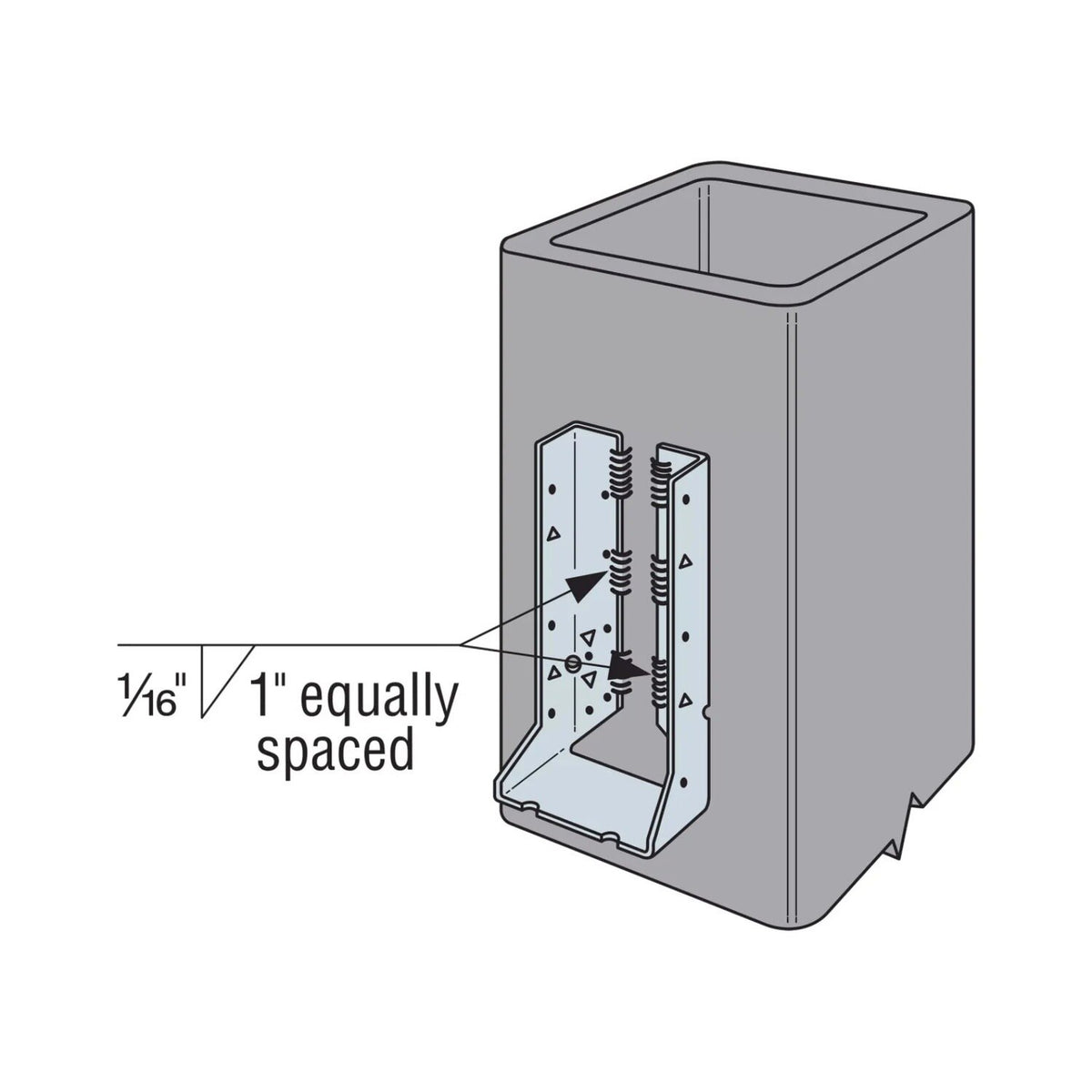

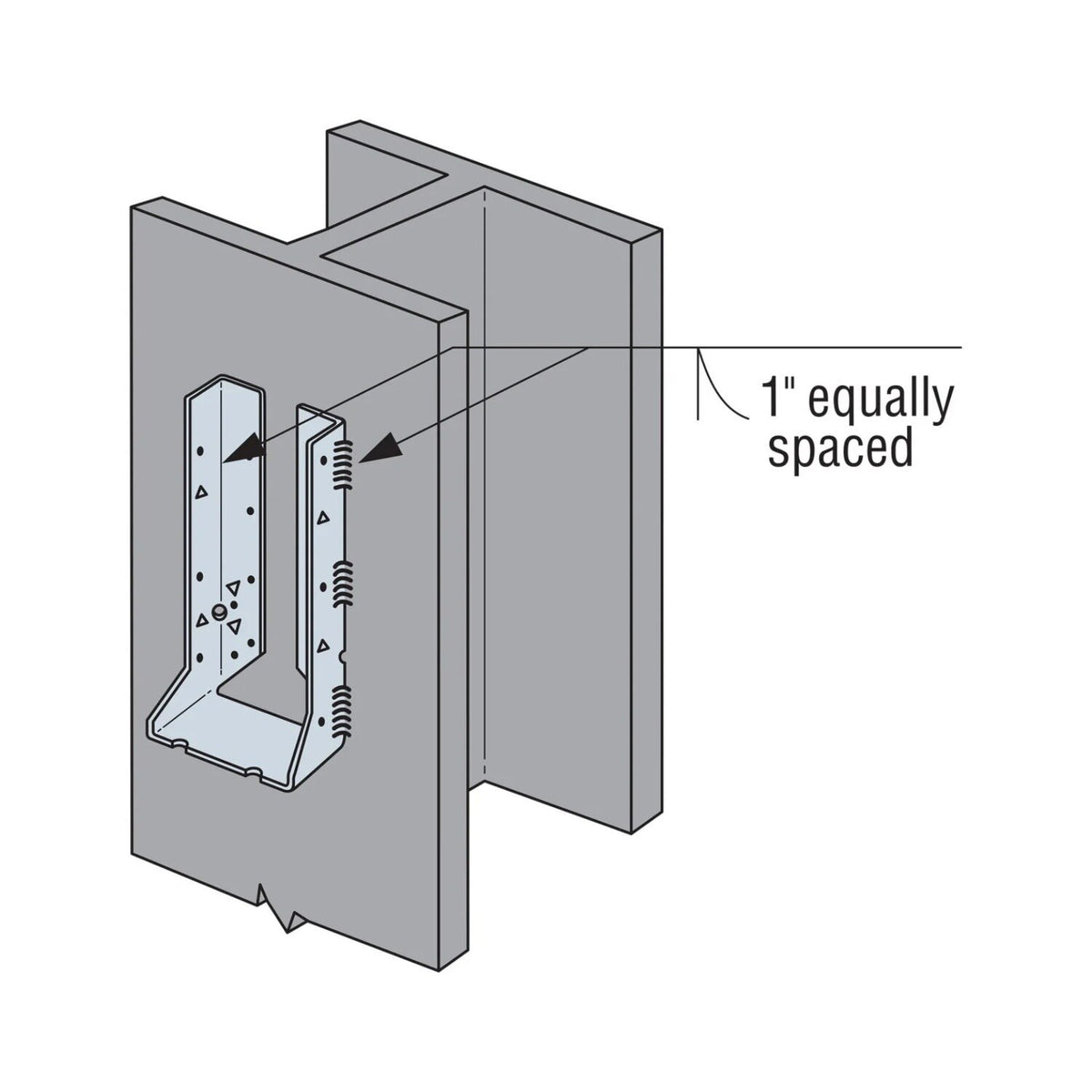

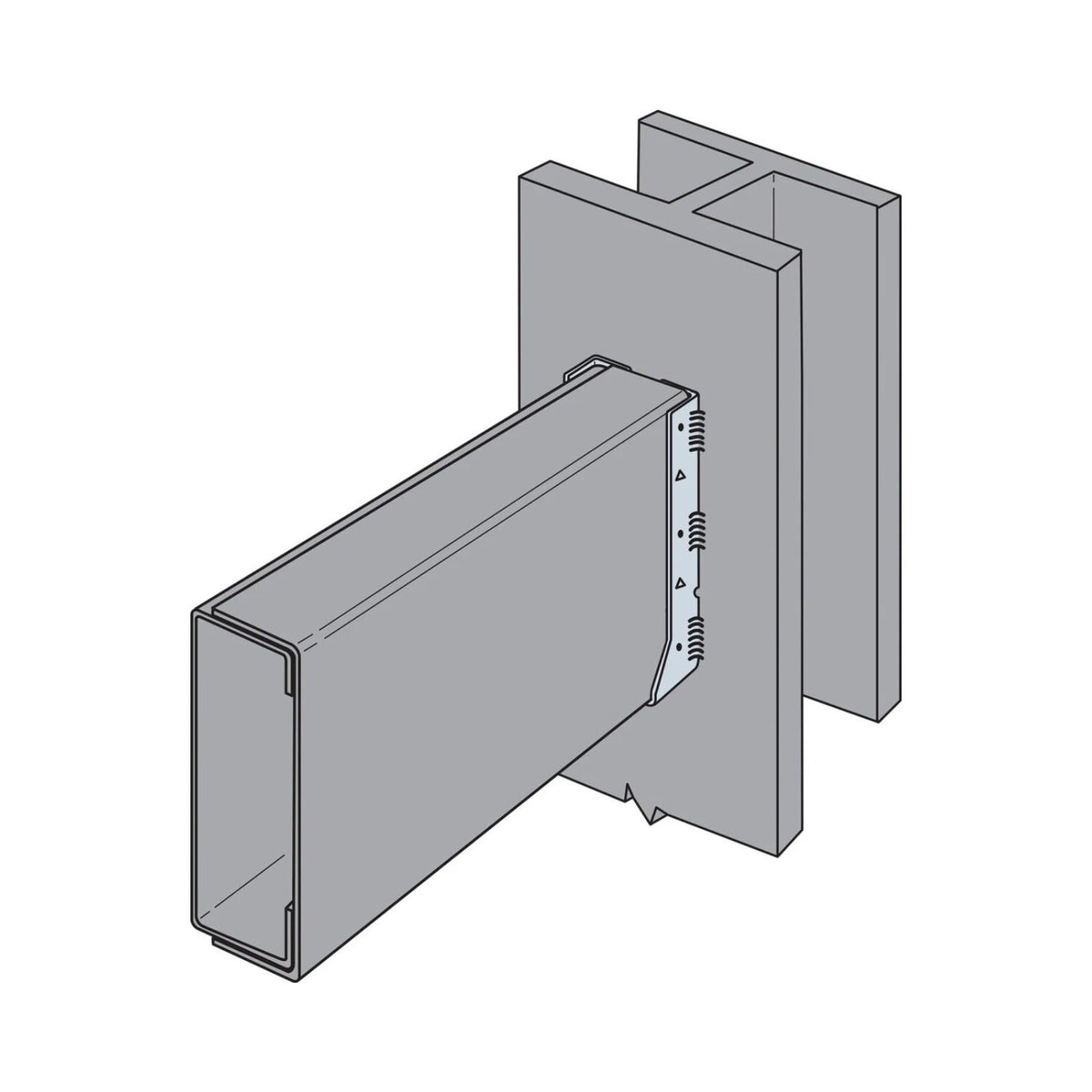

- Versatile Applications for wood, masonry, and concrete connections
- Code Compliance ensuring reliable structural performance
Simpson Strong-Tie HUC612Z Applications
- Decks and outdoor structures such as pergolas and gazebos

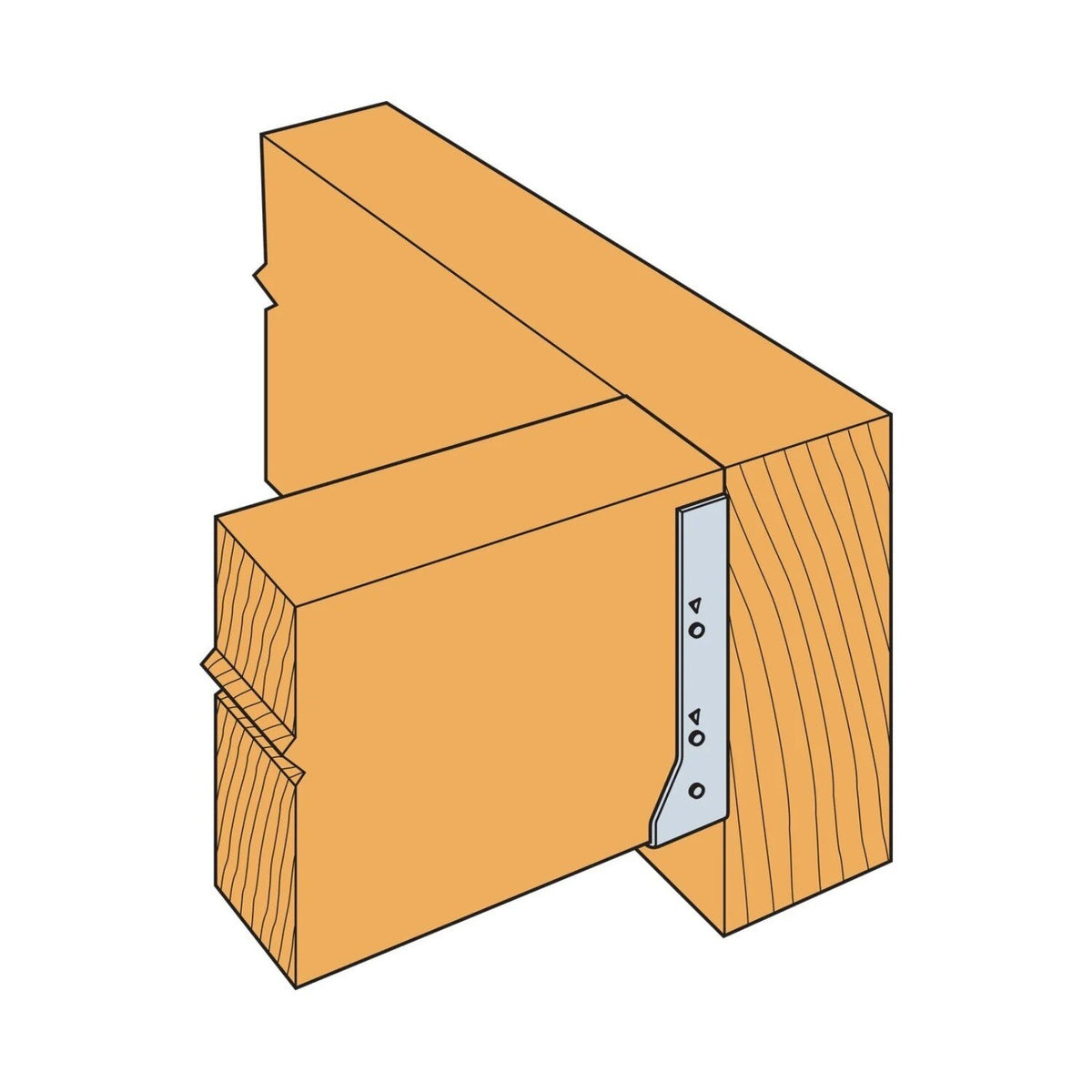

- Timber framing for architectural and decorative wood connections
- Treated wood and exterior construction exposed to moisture
- Masonry and concrete connections for robust support
Simpson Strong-Tie HUC612Z Installation Overview
- Use hot-dip galvanized nails for ZMAX hangers
- Fill both round and triangle holes with common nails for maximum load capacity
- Special order options available for skewable and sloped seats
Simpson Strong-Tie HUC612Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (22) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | Yes |
| Height | 9-3/8" |
| Joist size | 6" X 12" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 5-1/2" |
NOTE: Ensure the correct fasteners are installed in the specified positions to achieve published load values.
