Simpson Strong-Tie HUC810 Description

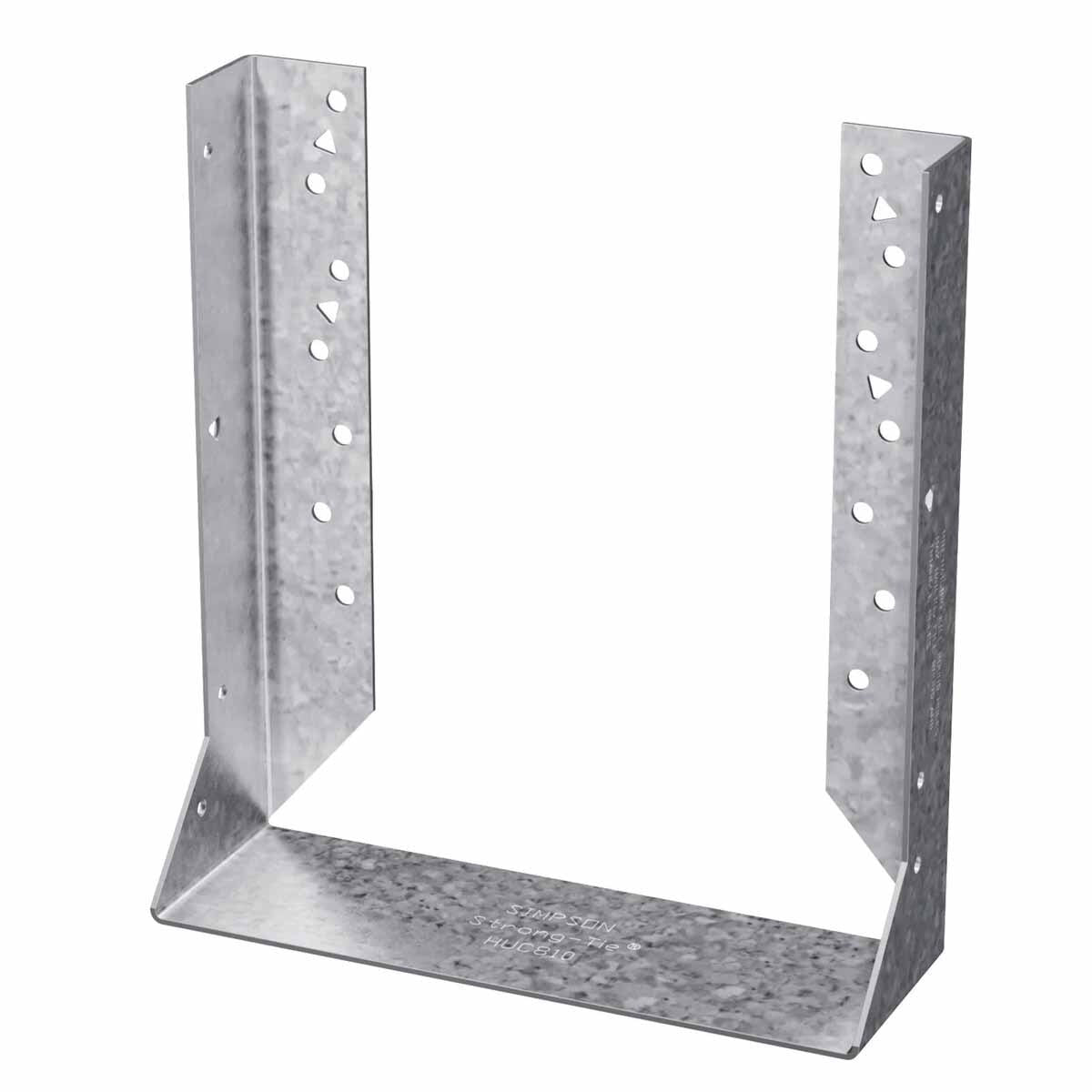

The Simpson Strong-Tie HUC810 is a heavy-duty concealed flange face-mount joist hanger designed for 8x10 joists, featuring a G90 galvanized finish for durability and corrosion resistance.
Simpson Strong-Tie HUC810 Includes
- (1) Heavy-Duty Concealed Flange Face-Mount Joist Hanger for 8x10
Simpson Strong-Tie HUC810 Features
- Concealed flange design for a clean appearance
- G90 galvanized finish for corrosion resistance
- Heavy-duty construction for enhanced strength
- Compatible with 8x10 joists
- Tested and code compliant
Simpson Strong-Tie HUC810 Applications

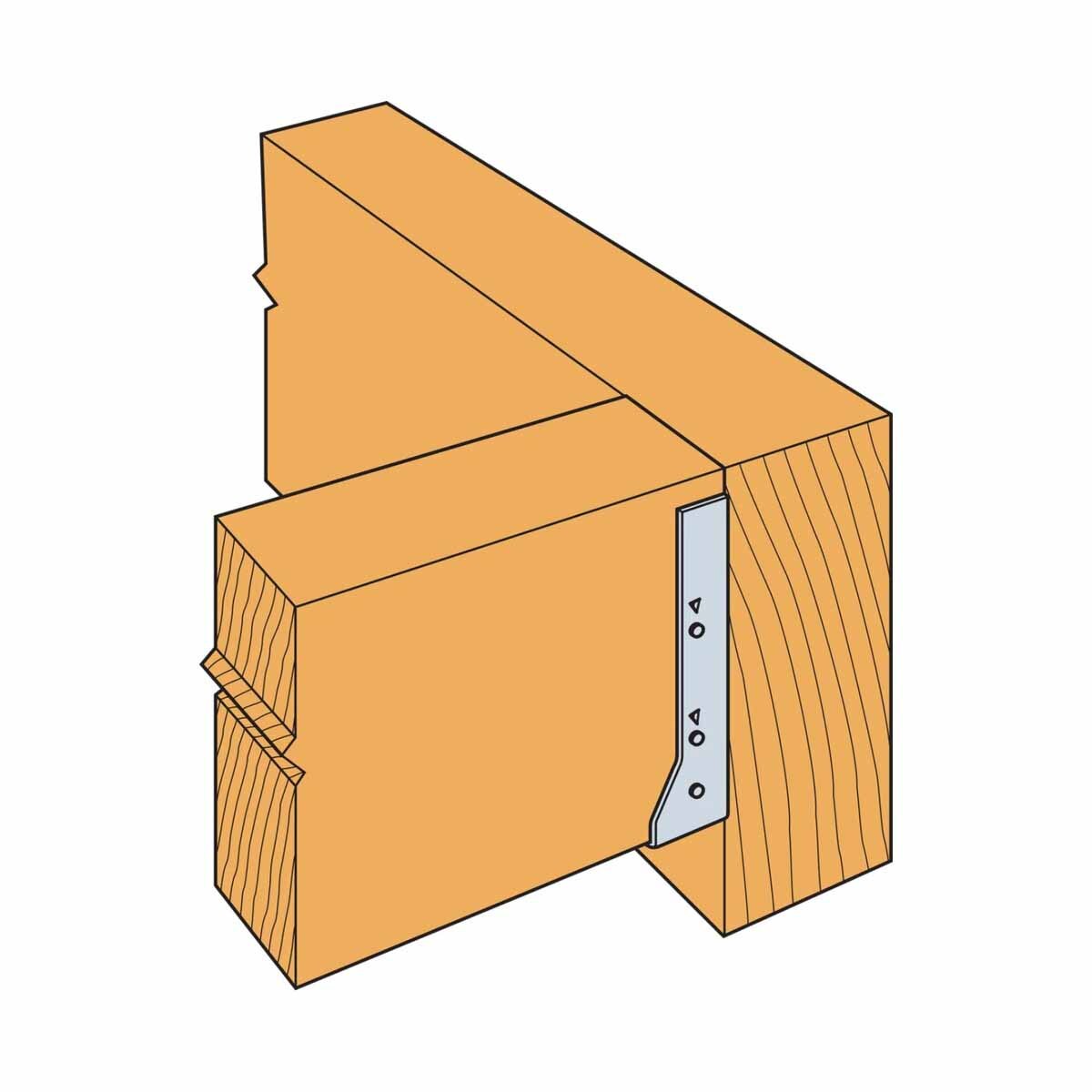

- Structural framing requiring concealed flange hangers
- Schools and buildings needing additional strength and safety
- Wood construction with engineered wood joists
Simpson Strong-Tie HUC810 Installation Overview
- Use all specified fasteners
- Can be installed filling round holes only, or filling round and triangle holes for maximum values
- Joists sloped up to 1/4:12 achieve table loads

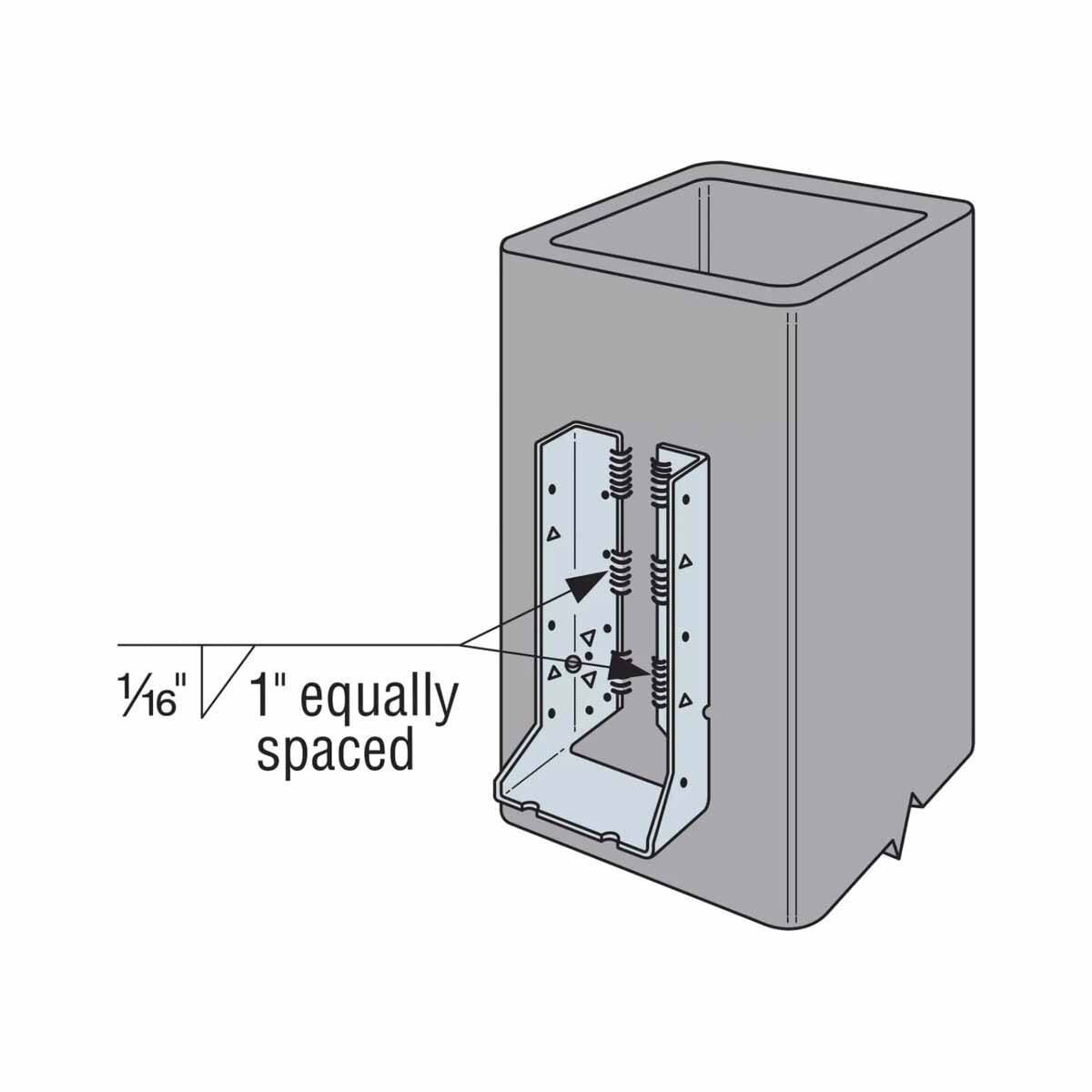

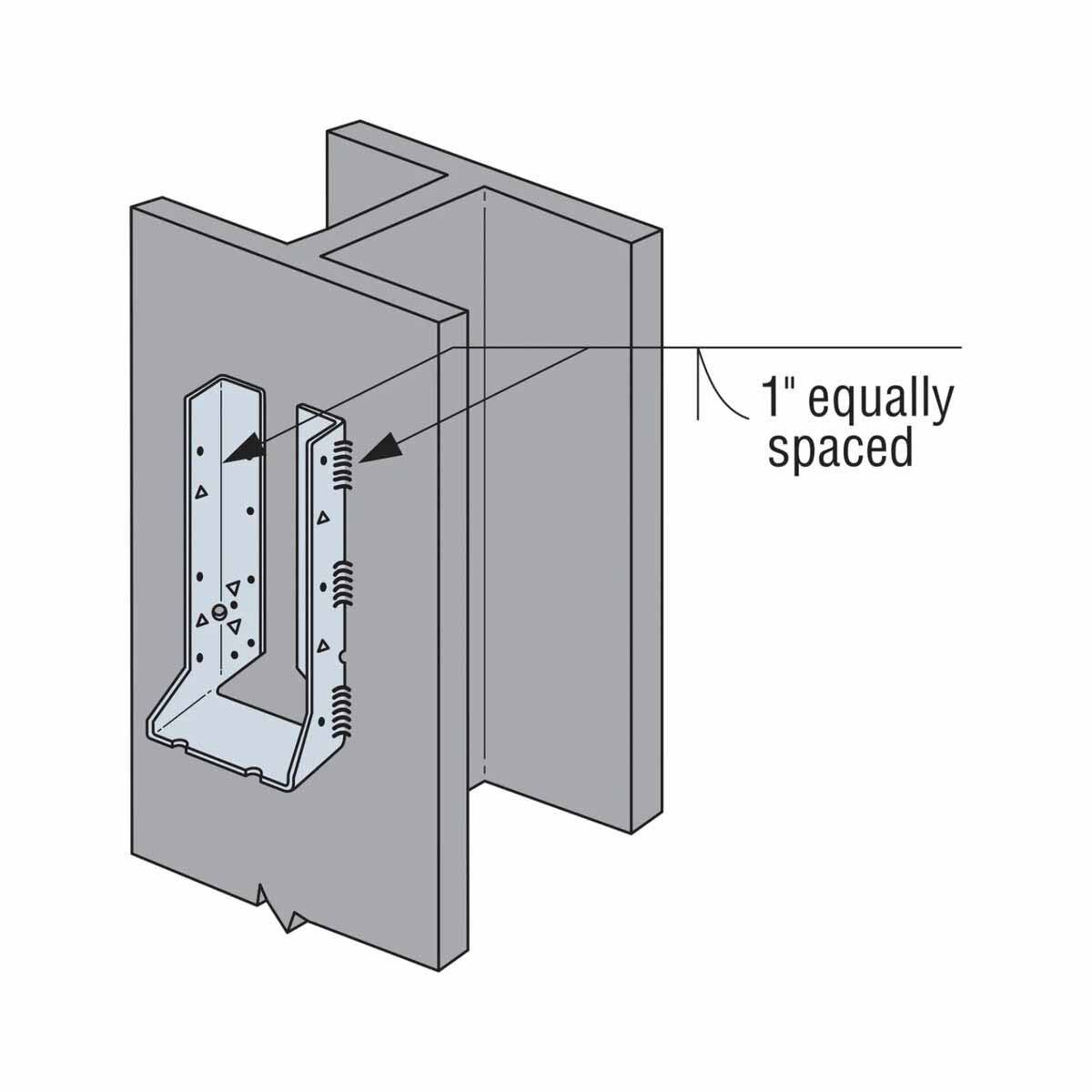

- Can be welded to a steel member

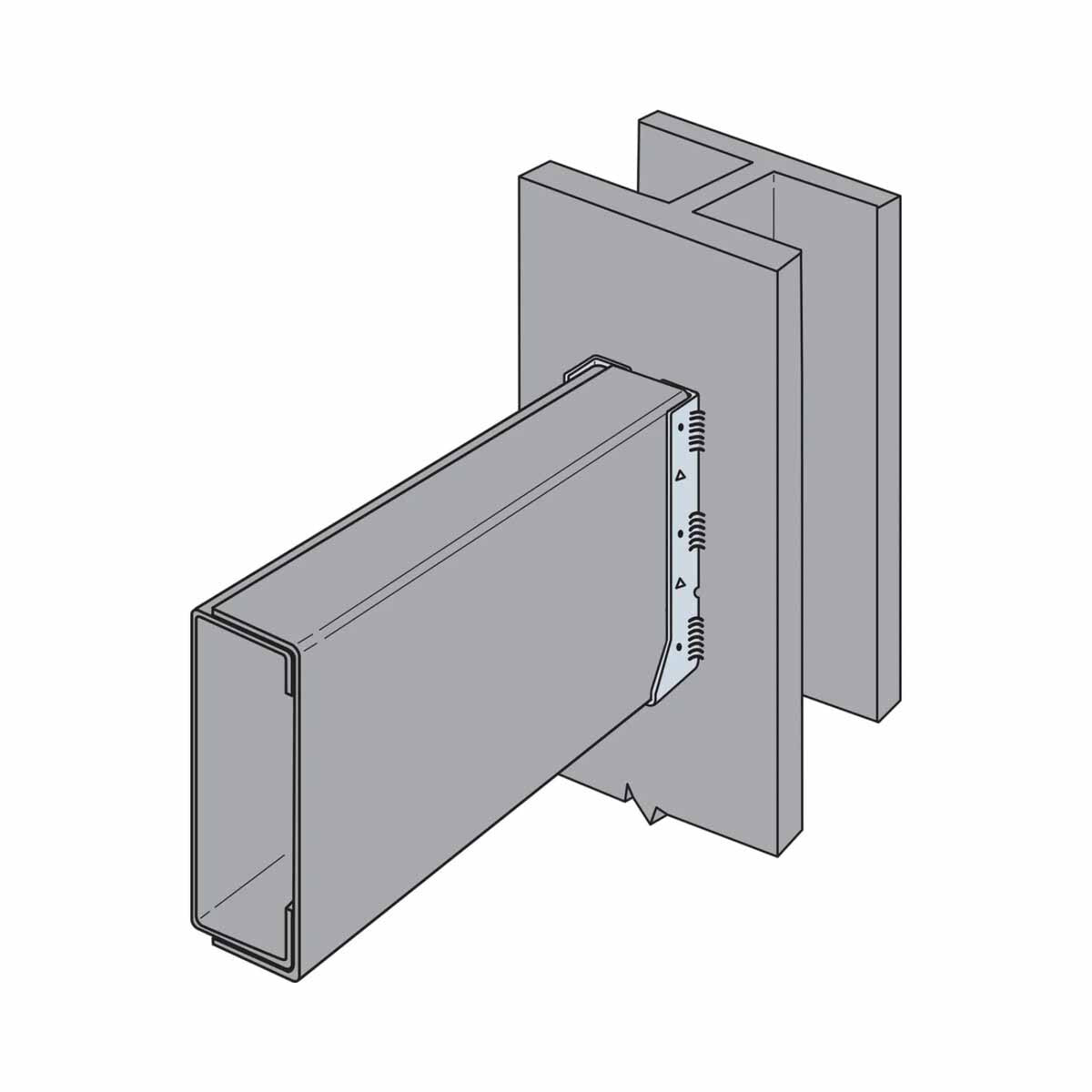

- Web stiffeners required for I-joist applications
Simpson Strong-Tie HUC810 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Thickness | 14 Gauge |
| Width | 7-1/2" |
| Height | 8-3/8" |
| Joist size | 8" X 10" |
| Fasteners required | Face - (18) 0.162" x 3-1/2" Nails, Joist - (8) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
