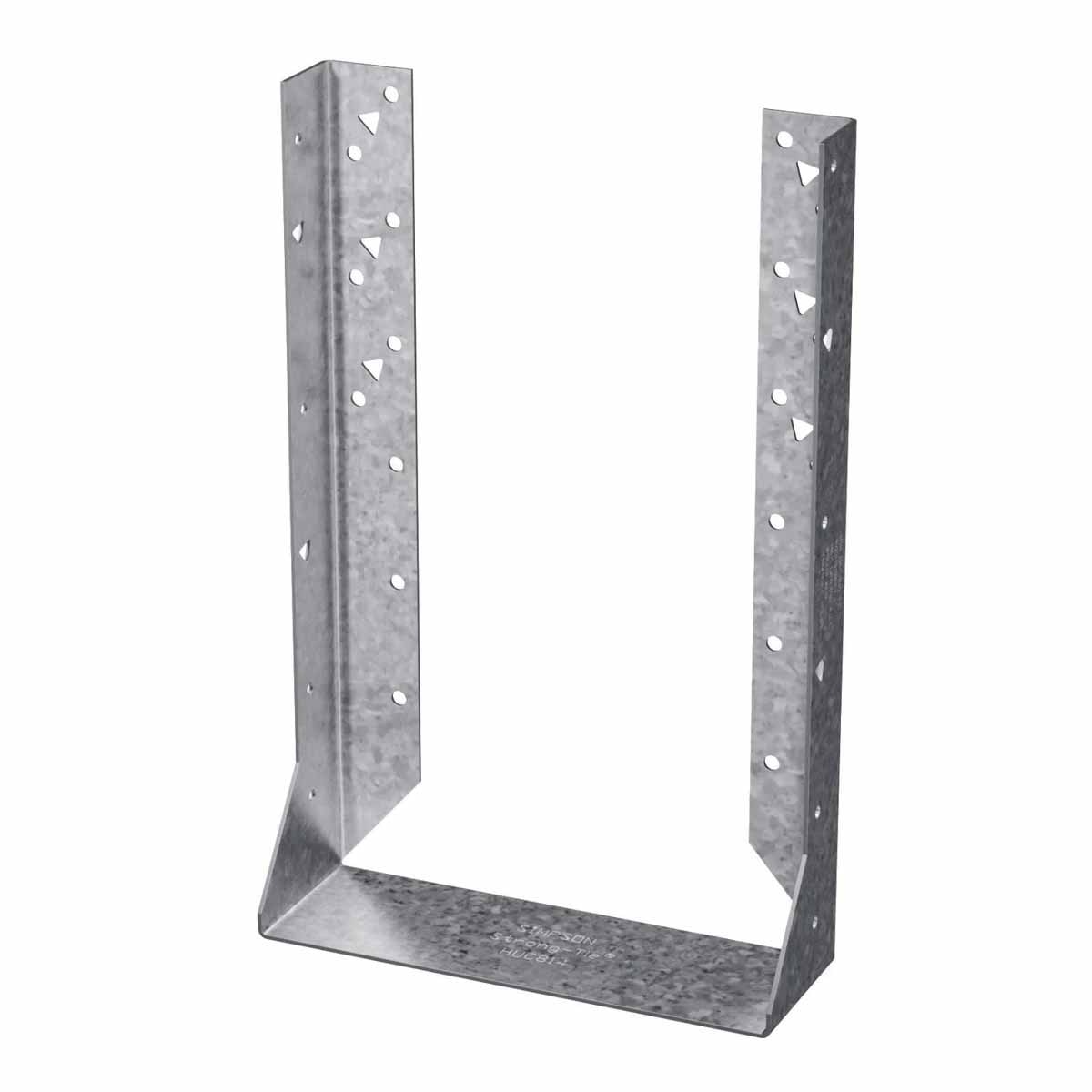

Simpson Strong-Tie HUC814 (8x14) 14Ga Heavy Galvanized Concealed-Flange Face-Mount Joist Hanger
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUC814 (8x14) 14Ga Heavy Galvanized Concealed-Fl...
Key Specifications
Description
Description
Simpson Strong-Tie HUC814 Description
The Simpson Strong-Tie HUC814 is a heavy-duty concealed-flange face-mount joist hanger designed for engineered wood applications, offering clean visible lines and robust load capacity.
Simpson Strong-Tie HUC814 Includes
- (1) Heavy Concealed-Flange Face-Mount Joist Hanger
Simpson Strong-Tie HUC814 Features
- Concealed flange design for cleaner visible lines
- Tested and load-rated for code compliance
- Optional triangle holes for additional load capacity
- Made from durable 14-gauge galvanized steel
Simpson Strong-Tie HUC814 Applications

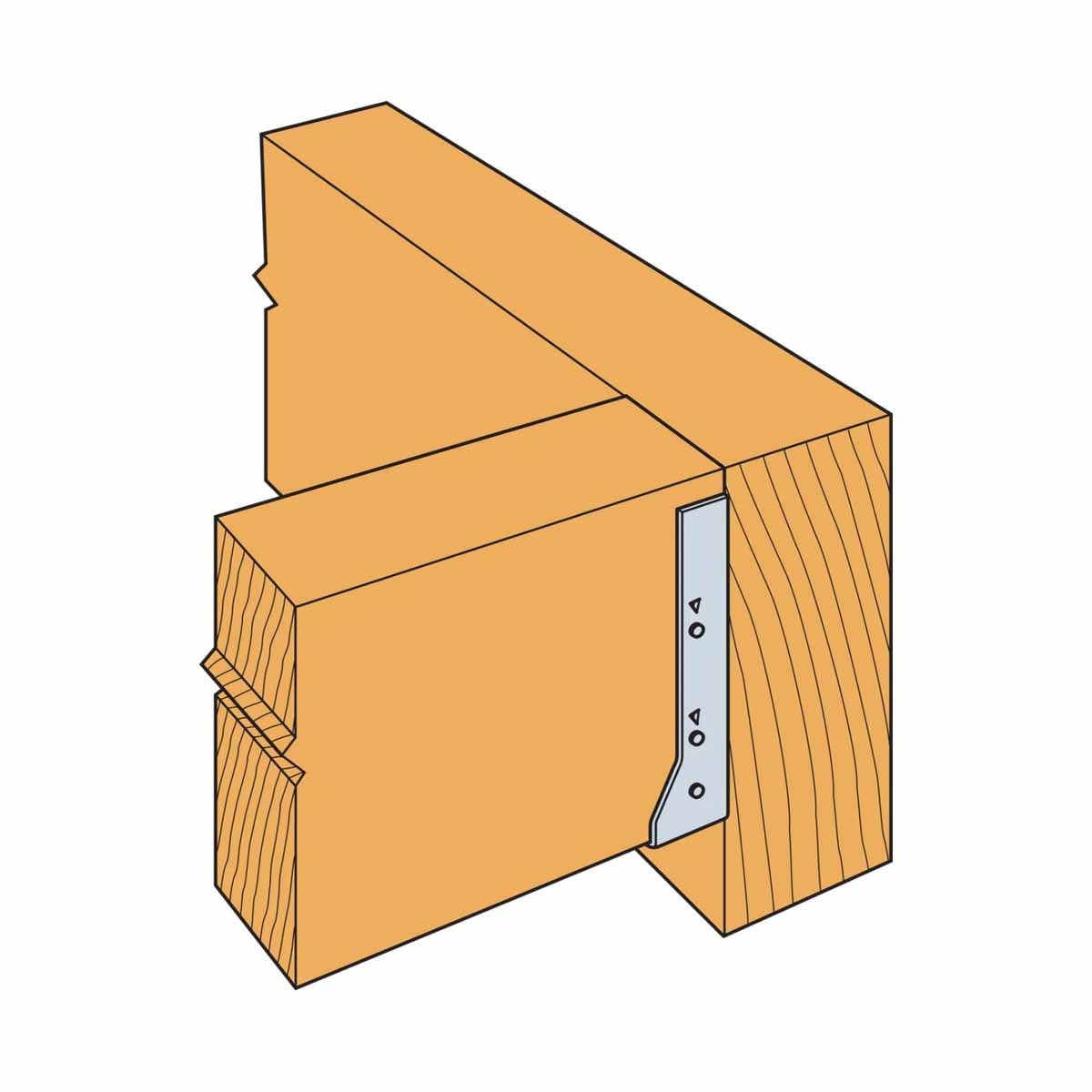

- Engineered wood construction requiring concealed flange support
- Exposed conditions where clean visible lines are desired
- General framing applications with robust load requirements
Simpson Strong-Tie HUC814 Installation Overview
- Use all specified fasteners
- Fill both round and triangle holes for maximum load capacity

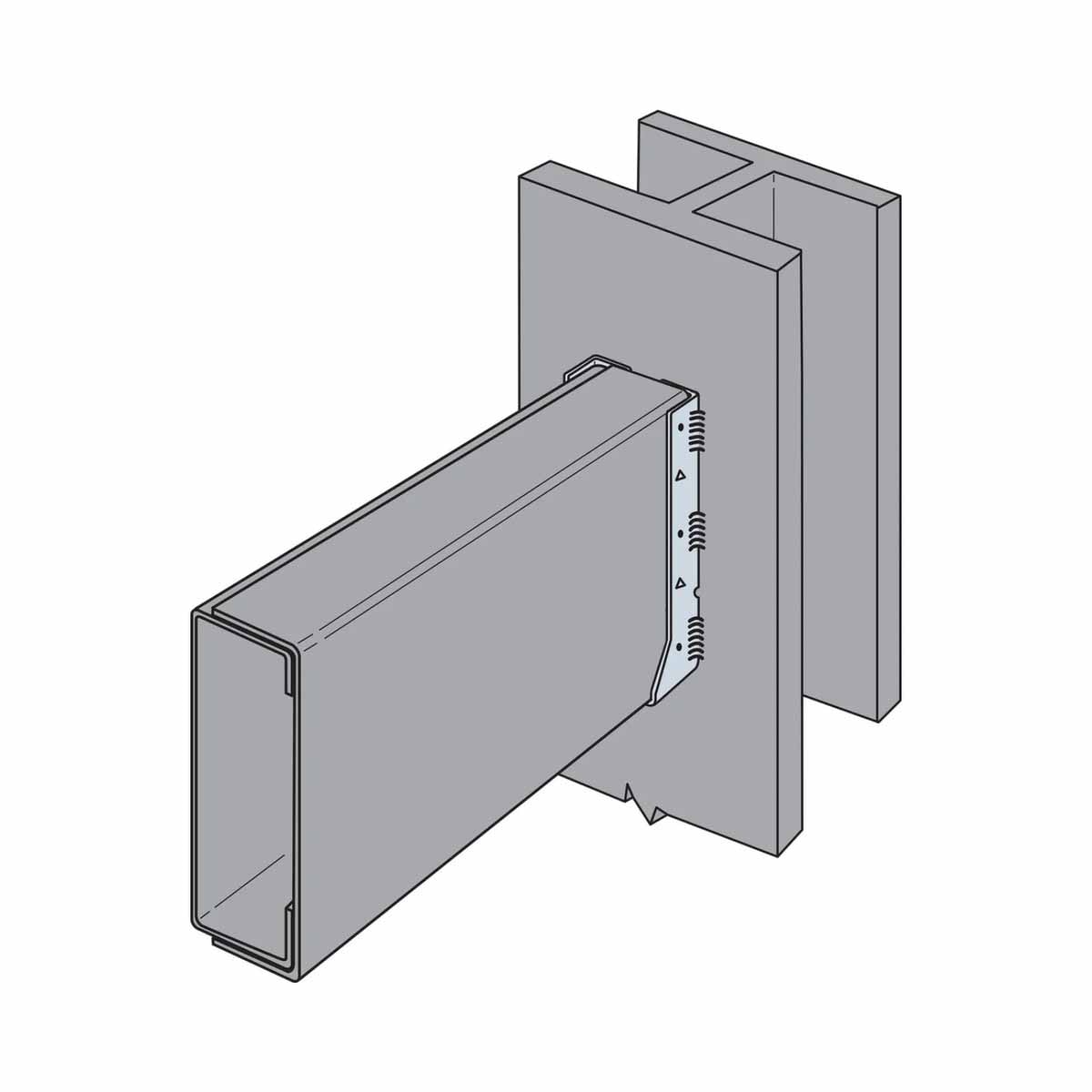

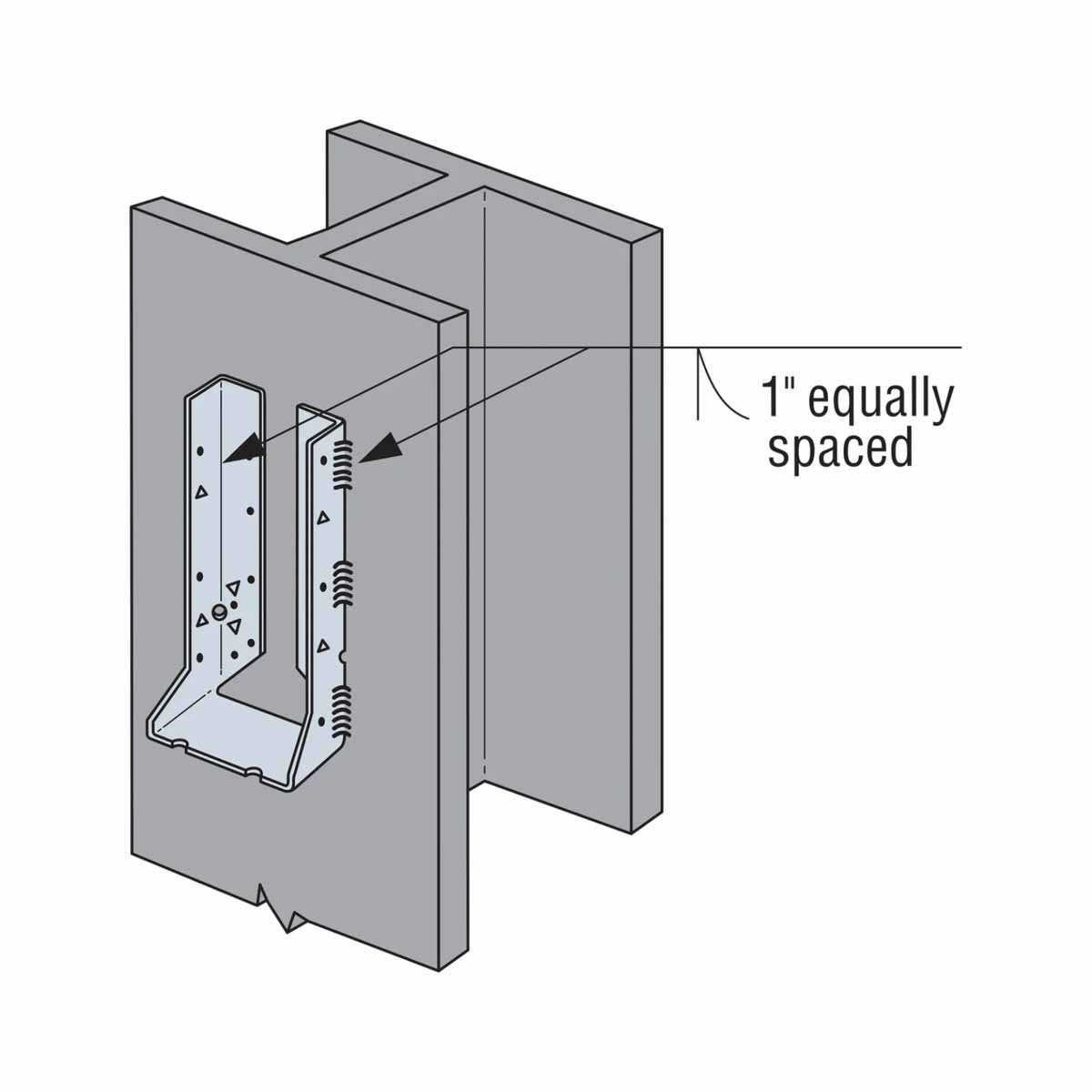

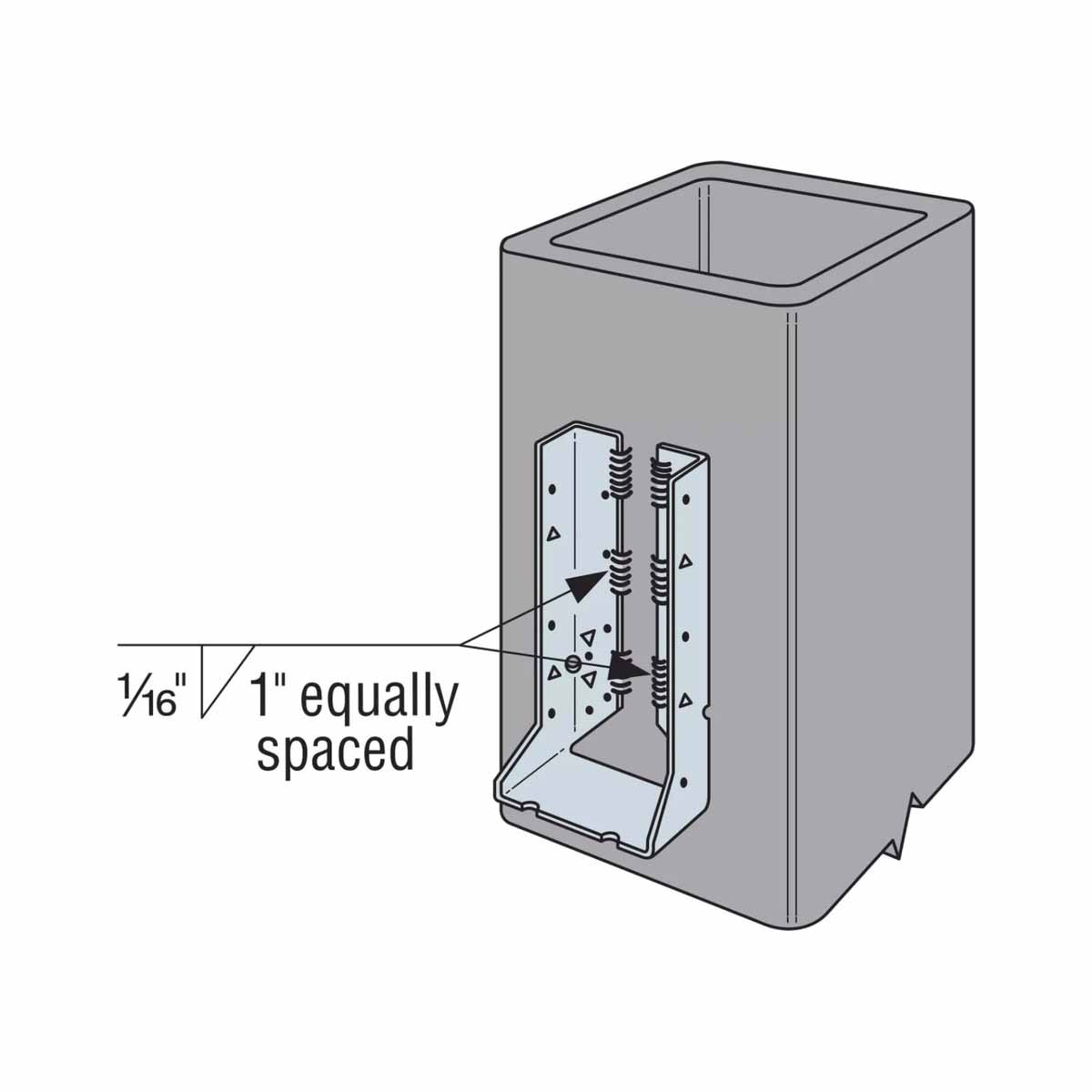

- Can be welded to steel members with load adjustments
- Joists sloped up to 1/4:12 achieve table loads
- Web stiffeners required for I-joist applications
Simpson Strong-Tie HUC814 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 7-1/2" |
| Height | 11-7/8" |
| Joist size | 8 X 14 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
