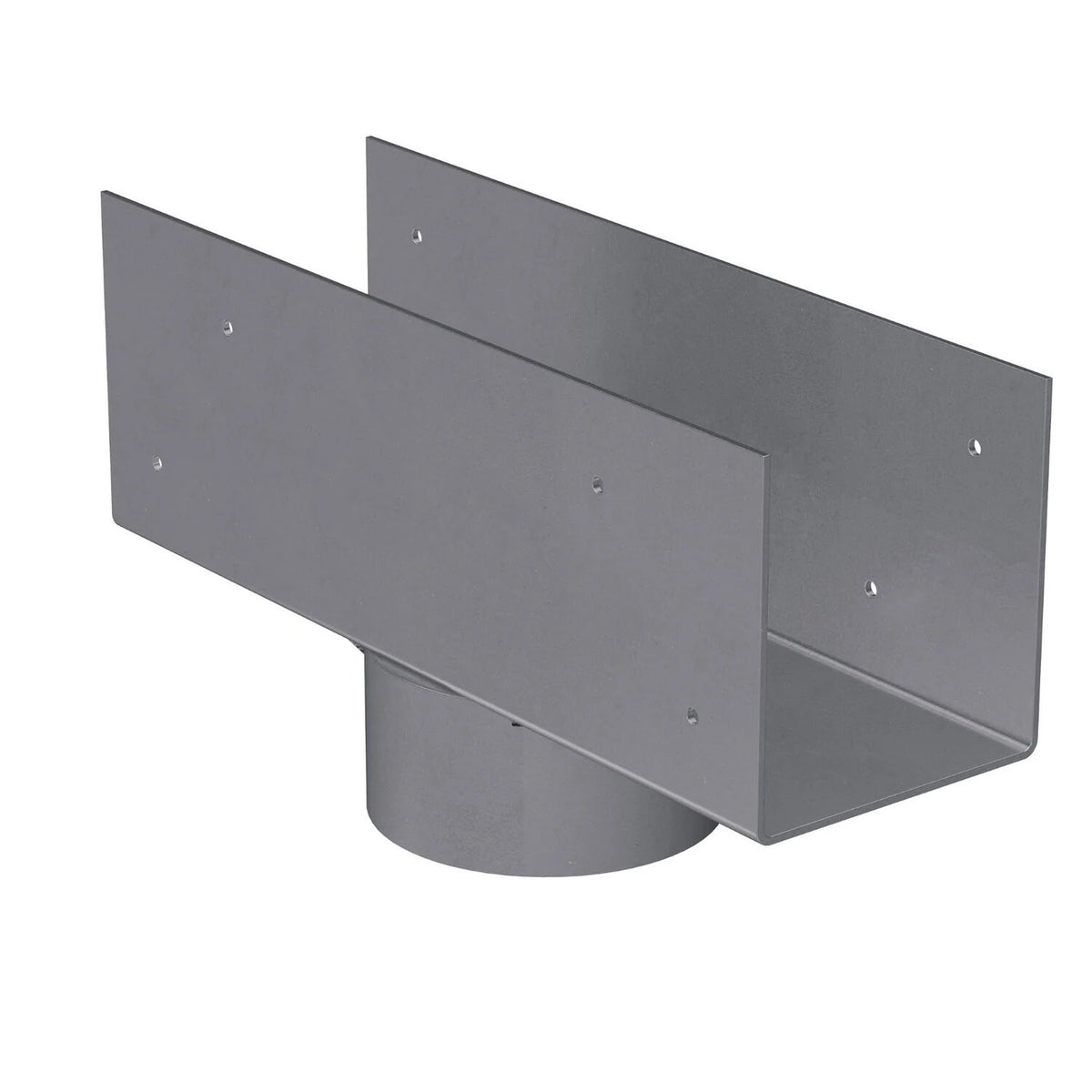

Simpson Strong-Tie LCC7-4 (7-1/8") Column Cap for 4" Outside Diameter Lally Column
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie LCC7-4 (7-1/8") Column Cap for 4" Outs...
Key Specifications
Description
Description
Simpson Strong-Tie LCC7-4 Description

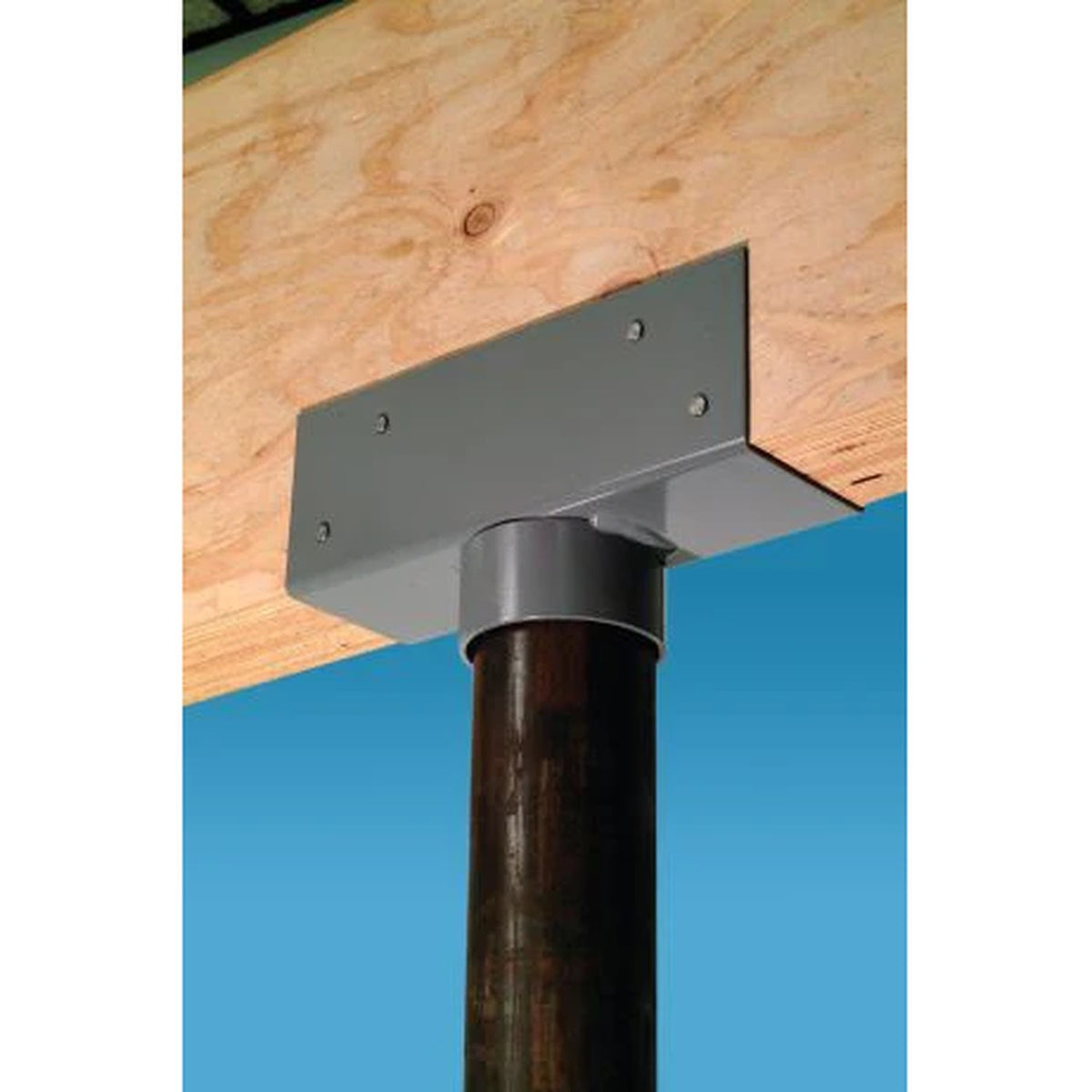

The Simpson LCC7-4 Column Cap is designed for 4-inch diameter lally columns, providing a strong column-to-beam connection with a durable steel construction and gray paint finish.
Simpson Strong-Tie LCC7-4 Includes
- (1) Column Cap
Simpson Strong-Tie LCC7-4 Features
- Provides strong column-to-beam connection
- Designed for 4-inch diameter lally columns
- Made from durable steel
- Finished with gray paint for corrosion resistance
- Features diamond holes for temporary fastening during installation
Simpson Strong-Tie LCC7-4 Applications
- Column-to-beam connections in construction
- Use with 4-inch diameter lally columns
- Suitable for 7 LVL/PSL/LSL girders
Simpson Strong-Tie LCC7-4 Installation Overview
- Fit the column cap over the lally column
- Attach the cap to the girder using specified fasteners
- Ensure proper welding for optimal load distribution
Simpson Strong-Tie LCC7-4 Specifications
| Material | Steel |
| Finish | Gray Paint |
| Gauge | 12 |
| Width | 7 1/8" |
| Depth | 4" |
| Fasteners Required | (8) 0.162" x 3-1/2" Nails |
NOTE: Ensure all specified fasteners are used and the cap is properly welded to achieve optimal load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
