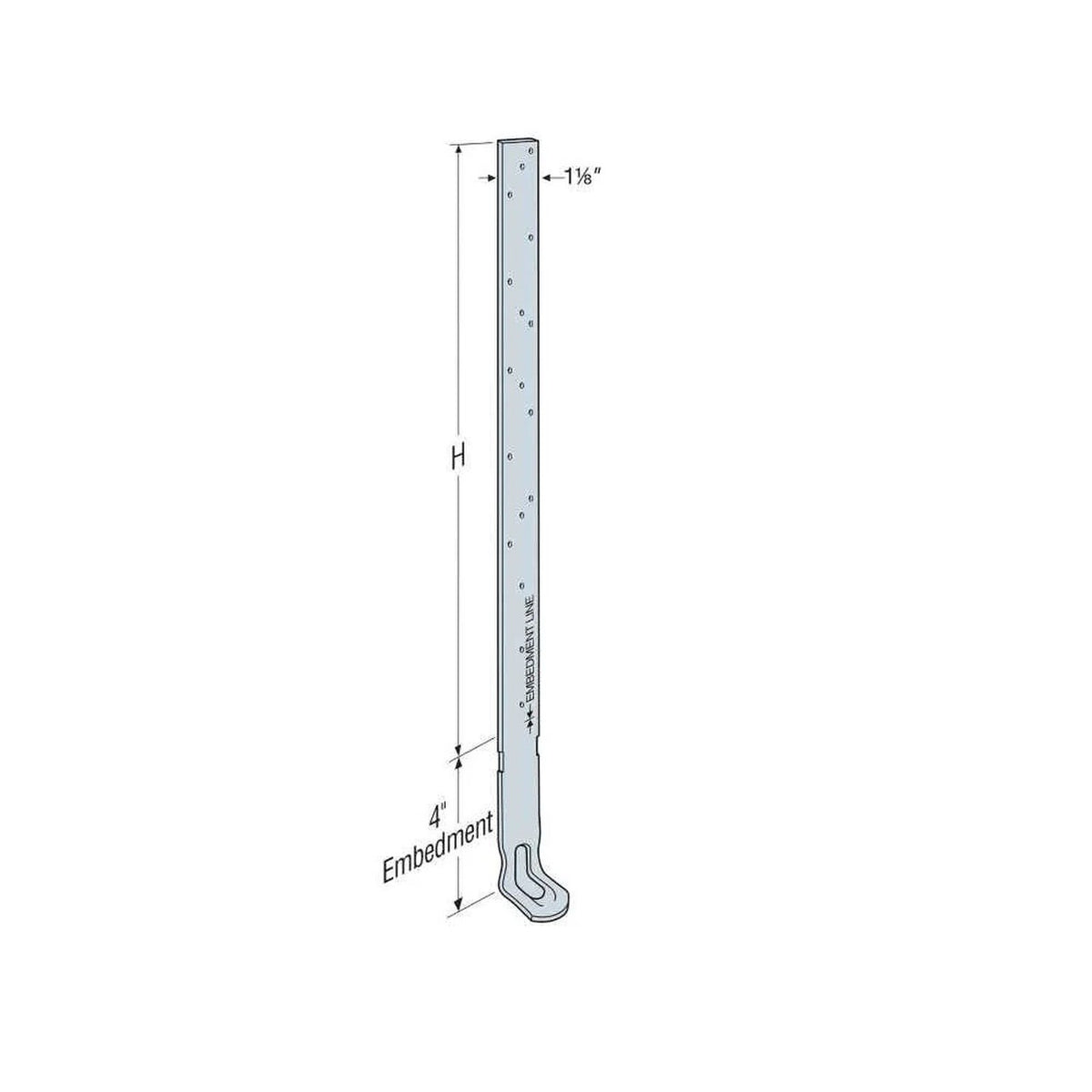

Simpson Strong-Tie META40 (36") 18 Gauge Embedded Truss Anchor for Concrete and Masonry Walls
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie META40 (36") 18 Gauge Embedded Truss Anchor...
Key Specifications
Description
Description
Simpson Strong-Tie META40 Description
The META40 Embedded Truss Anchor provides a reliable solution for securing roof trusses to concrete and masonry walls, designed for high-wind construction and seismic forces.
Simpson Strong-Tie META40 Includes
- (1) META40 Embedded Truss Anchor
Simpson Strong-Tie META40 Features
- Indented embedment line ensures accurate embedment depth
- Compatible with the Simpson Strong-Tie TSS and TBP8 moisture barrier plate
- Load rated for wind and seismic forces
Simpson Strong-Tie META40 Applications
- High-wind construction
- Seismic force resistance
Simpson Strong-Tie META40 Installation Overview
- Use all specified fasteners as per guidelines.
- Embed 4 inches into a 6-inch minimum concrete beam or 8-inch nominal grouted block wall.
- For mislocated truss anchors, provide a shim designed by a Truss Engineer if the gap is between 1/8 inch and 1 1/2 inches.
- Install anchors with spoons facing outward and straps spaced no more than 1/8 inch wider than the rafter/truss width in double anchor installations.
- Ensure lateral loads are limited to 54 mil (16ga.) CFS members.
Simpson Strong-Tie META40 Specifications
| Material | 18 gauge |
| Finish | Galvanized |
| Height | 36 in. |
| Weight | 0.7 lb |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
