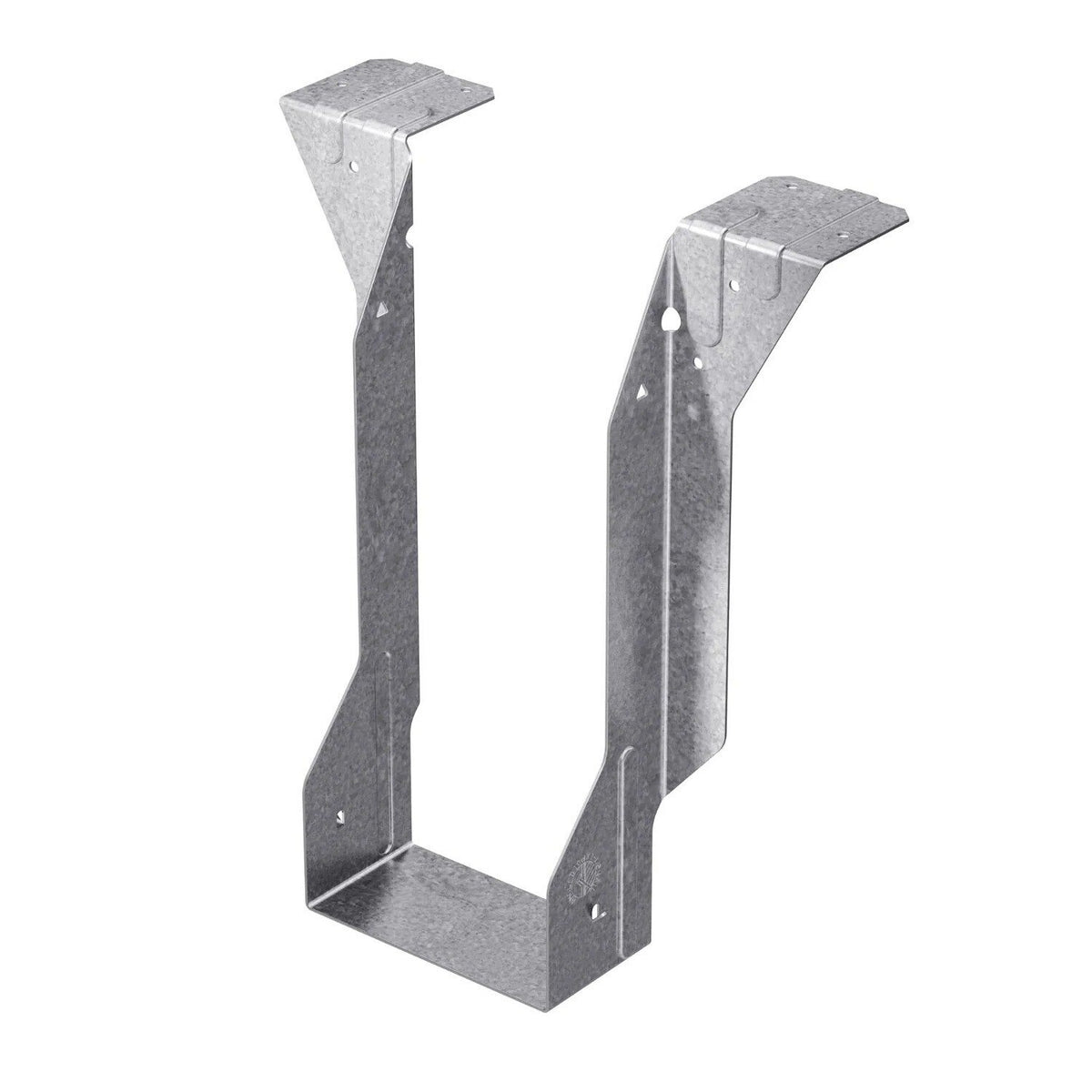

Simpson Strong-Tie MIT3511.88-2 (2-5/16" x 11-7/8") Top-Flange Joist Hanger for Engineered Wood
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie MIT3511.88-2 (2-5/16" x 11-7/8") Top-F...
Key Specifications
Description
Description
Simpson Strong-Tie MIT3511.88-2 Description
The Simpson Strong-Tie MIT Top-Flange Hanger offers a reliable, concealed connection for supporting engineered wood I-joists in a wide variety of framing applications.
Simpson Strong-Tie MIT3511.88-2 Includes
- (1) Top-Flange Joist Hanger
Simpson Strong-Tie MIT3511.88-2 Features
- Features additional triangle holes for additional uplift
- Optional fastening with PAT for steel applications/header
- Cost-effective solution for standard 90° connections compared to welded hangers

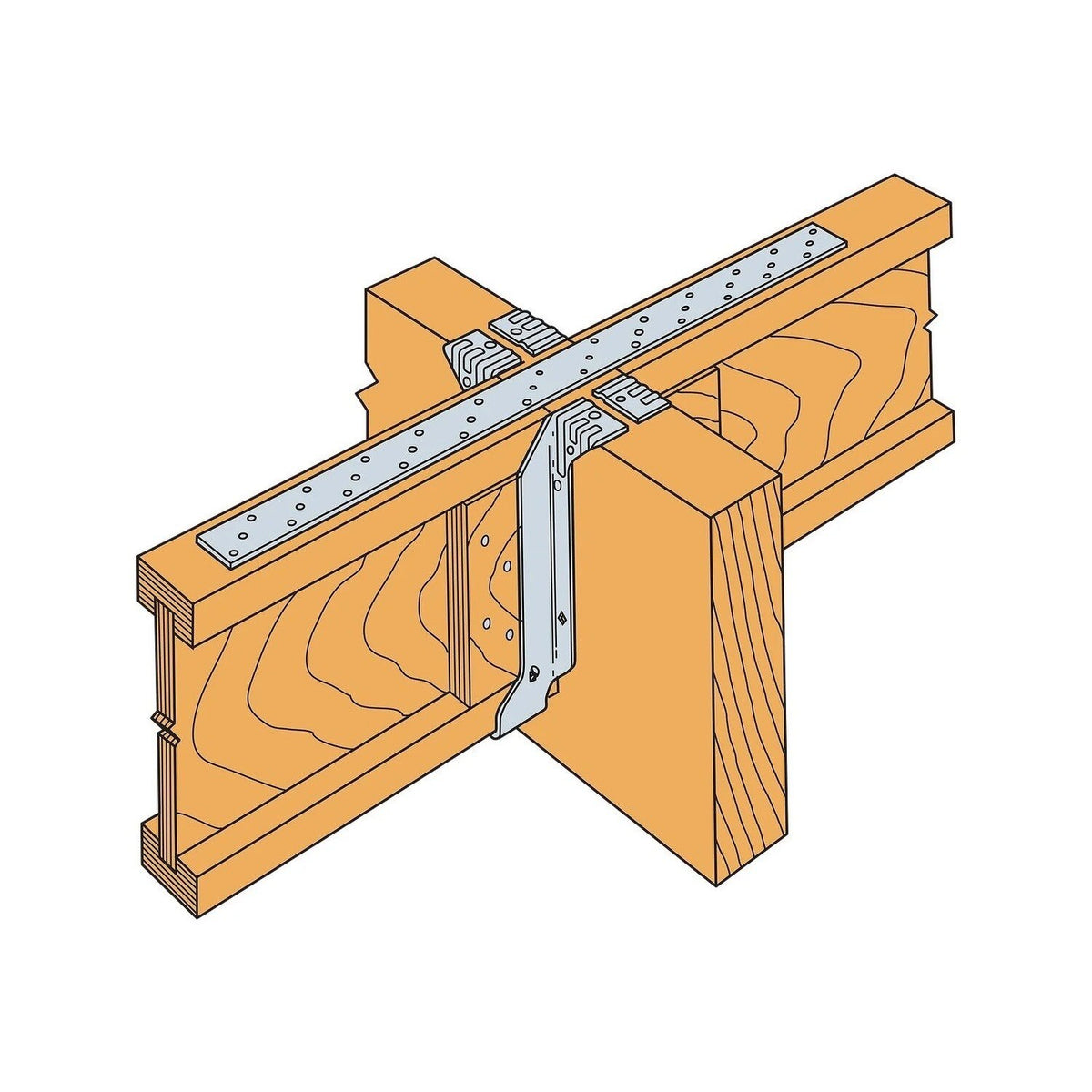

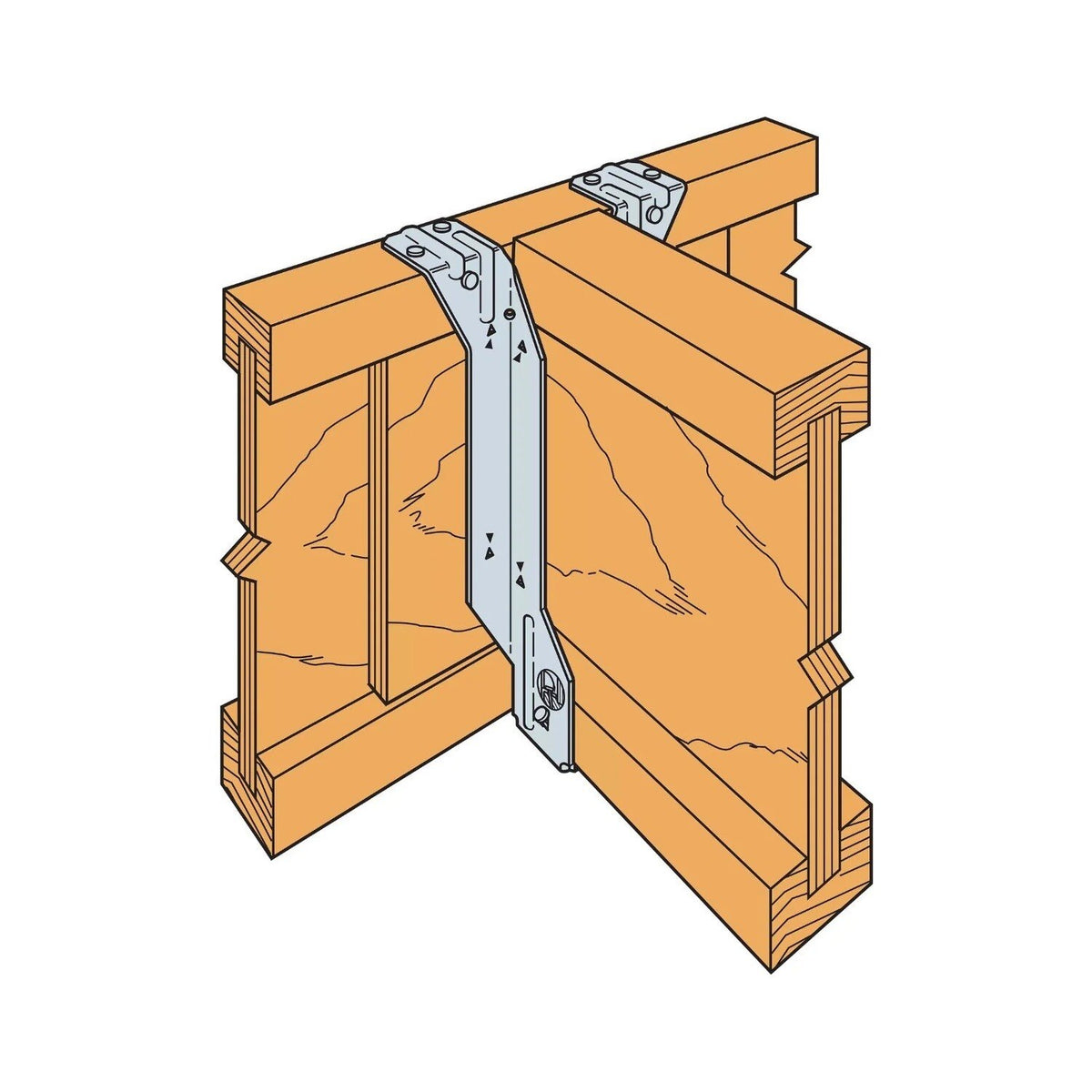

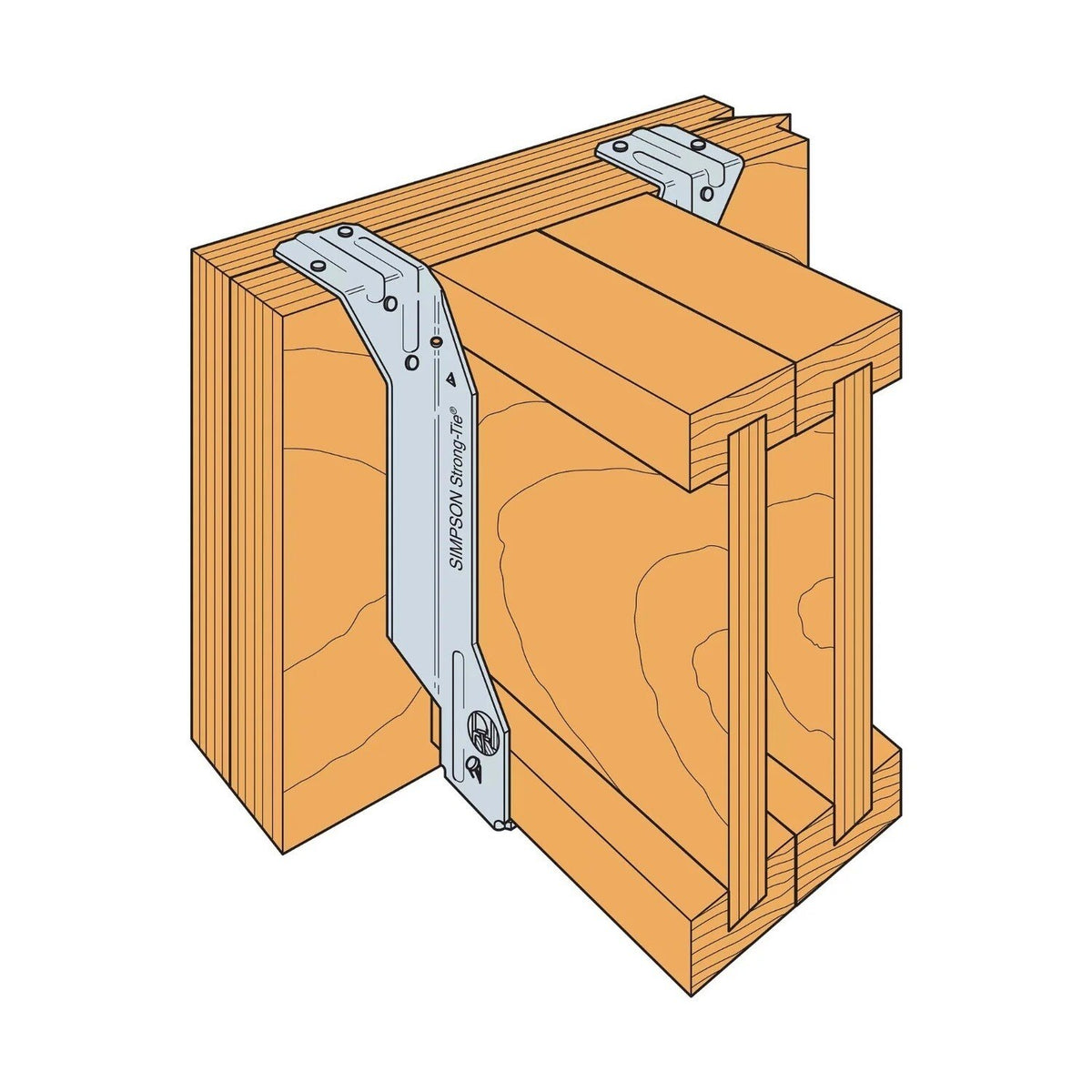

Simpson Strong-Tie MIT3511.88-2 Applications

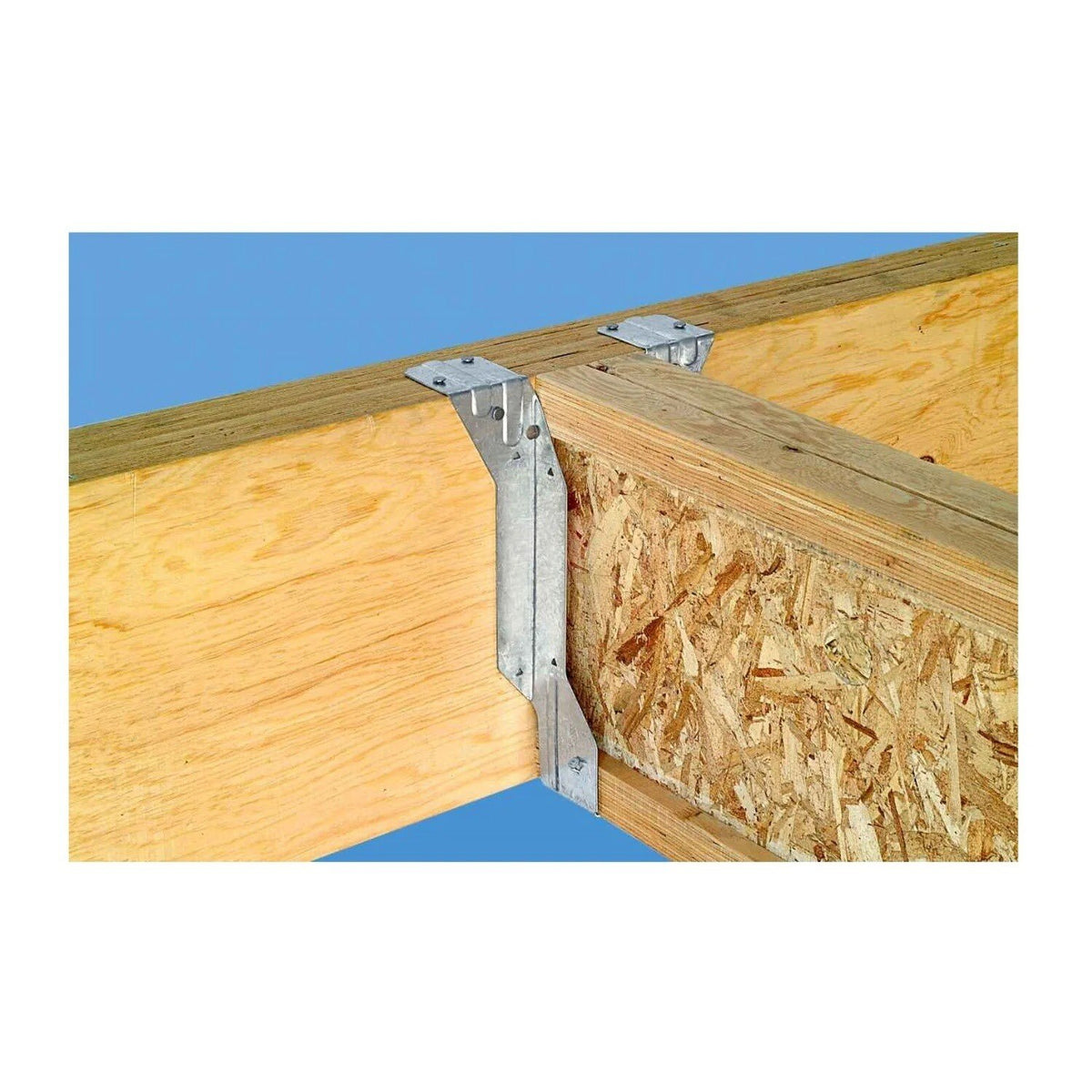

- Floor Joist Connections: Securely connects I-joists to supporting beams in wood floor systems.
- Multi-Family Framing: Ideal for repetitive framing layouts and tight spacing in apartment and condo construction.
- Commercial Wood Construction: Provides high-load capacity for larger wood framing projects.
- Flush Beam Systems: Top-flange profile allows for flush installation with minimal height buildup.
- Offset Joist Conditions: Compatible with applications requiring minor adjustments in joist alignment.
Simpson Strong-Tie MIT3511.88-2 Installation Overview
- Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
- Optional triangle nail holes may be used for increased uplift capacity.
- For sloped joists up to 1/4:12, there’s no reduction; from 1/4:12 up to 1/2:12, tests show a 10% reduction in ultimate hanger strength.
- Always install hangers flush with the header or beam surface.
- Do not bend or modify the hanger.

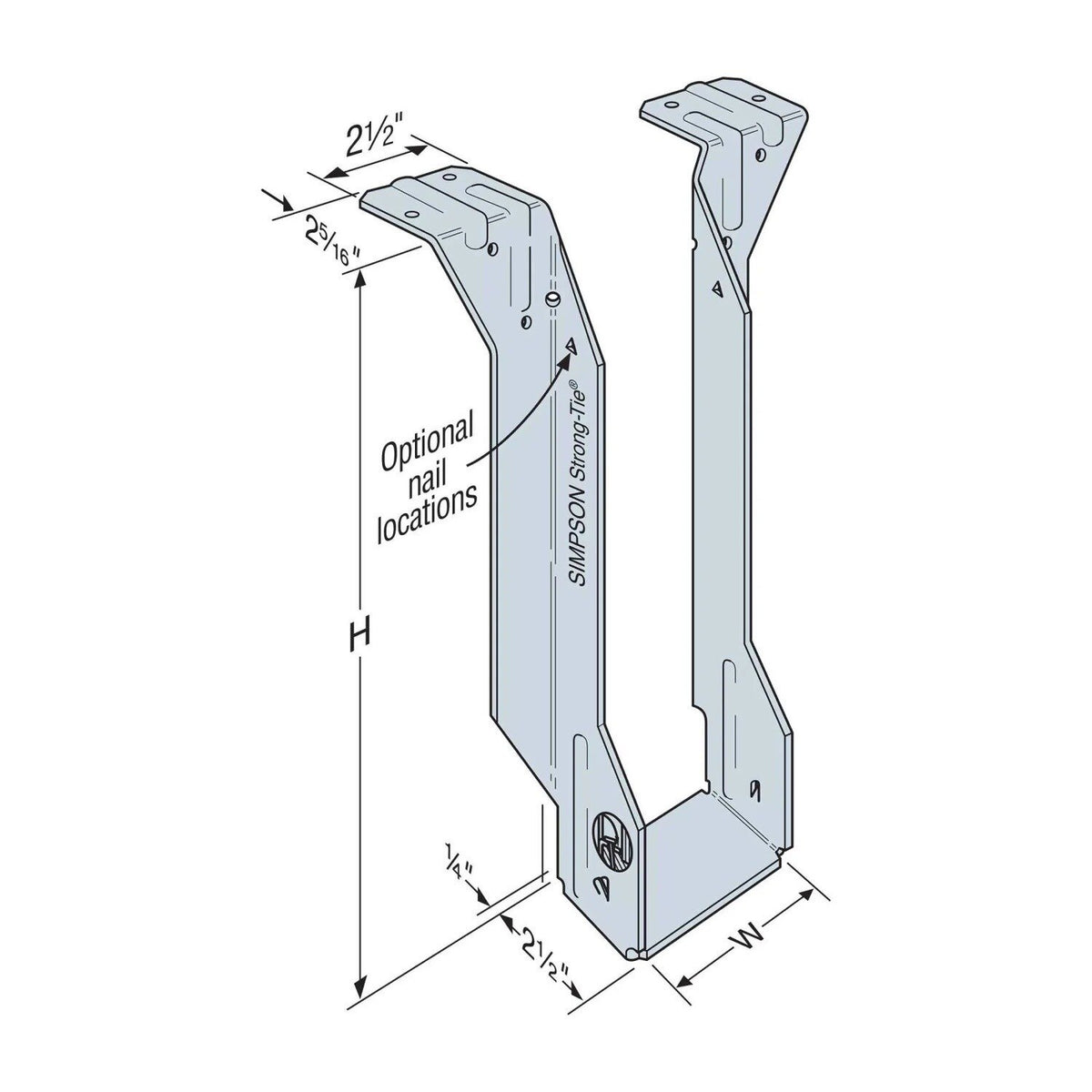

Simpson Strong-Tie MIT3511.88-2 Specifications
| Material | 16 Gauge |
| Finish | G90 Galvanized |
| Joist Size | Double 2-5/16" x 11-7/8" |
| Width | 4-3/4" |
| Height | 11-7/8" |
| Thickness | 16 Gauge |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
