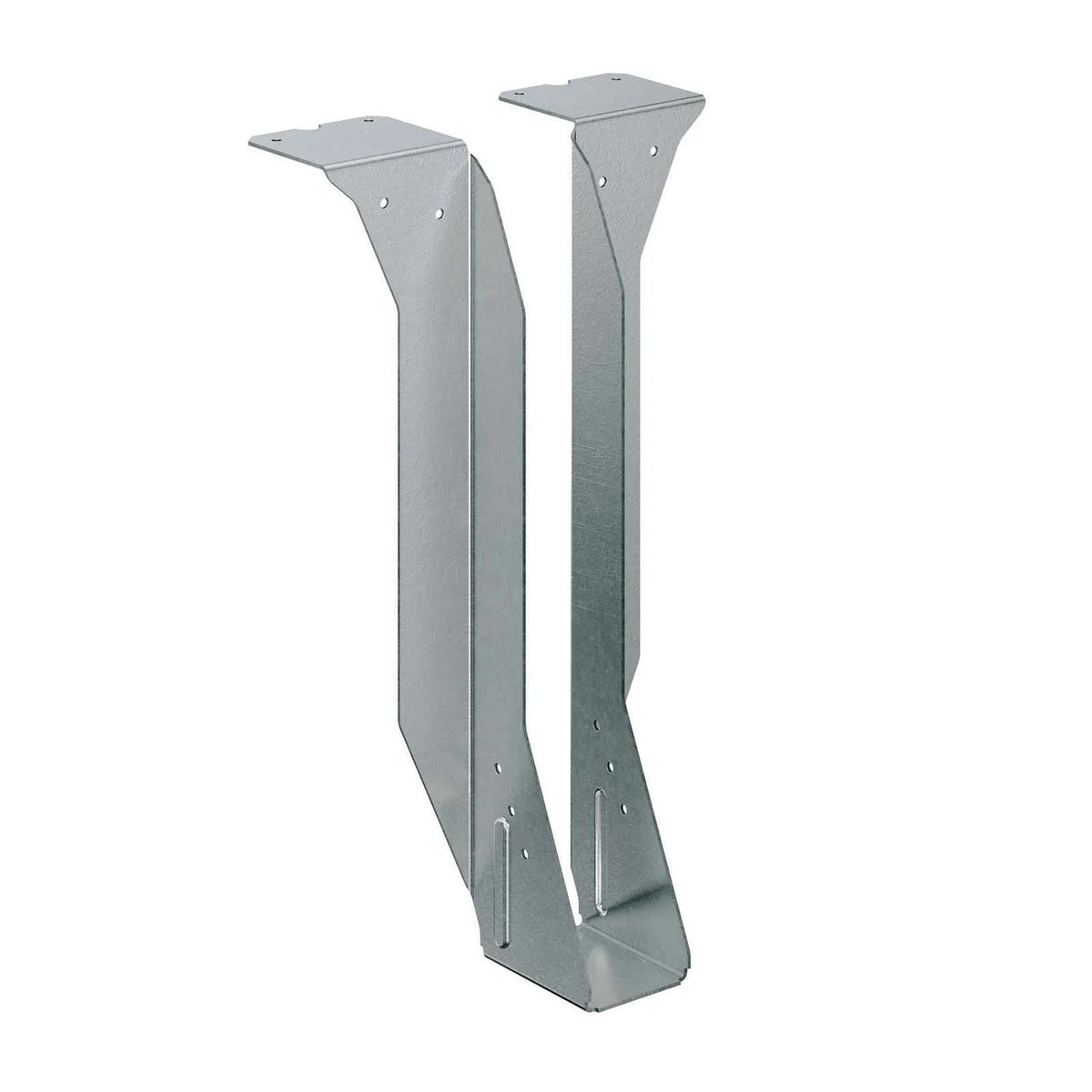

Simpson Strong-Tie S/LBV2.12/14 (2x14) Galvanized Light Gauge Hanger for Steel Joist Framing
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie S/LBV2.12/14 (2x14) Galvanized Light Gauge Hange...
Key Specifications
Description
Description
Simpson Strong-Tie S/LBV2.12/14 Description
The Simpson Strong-Tie S/LBV2.12/14 Light Gauge Hanger is designed for high-capacity joist support in structural steel or cold-formed steel members, featuring a G90 Galvanized finish for corrosion resistance.
Simpson Strong-Tie S/LBV2.12/14 Includes
- (1) Light Gauge Hanger G90 Galvanized
Simpson Strong-Tie S/LBV2.12/14 Features
- High-capacity joist hanger for structural steel or cold-formed steel members
- Modifiable top-flange hanger with skewing capability up to 45 degrees
- G90 Galvanized finish for enhanced corrosion resistance
- Dimensional accuracy ensures proper bearing area and connection
Simpson Strong-Tie S/LBV2.12/14 Applications

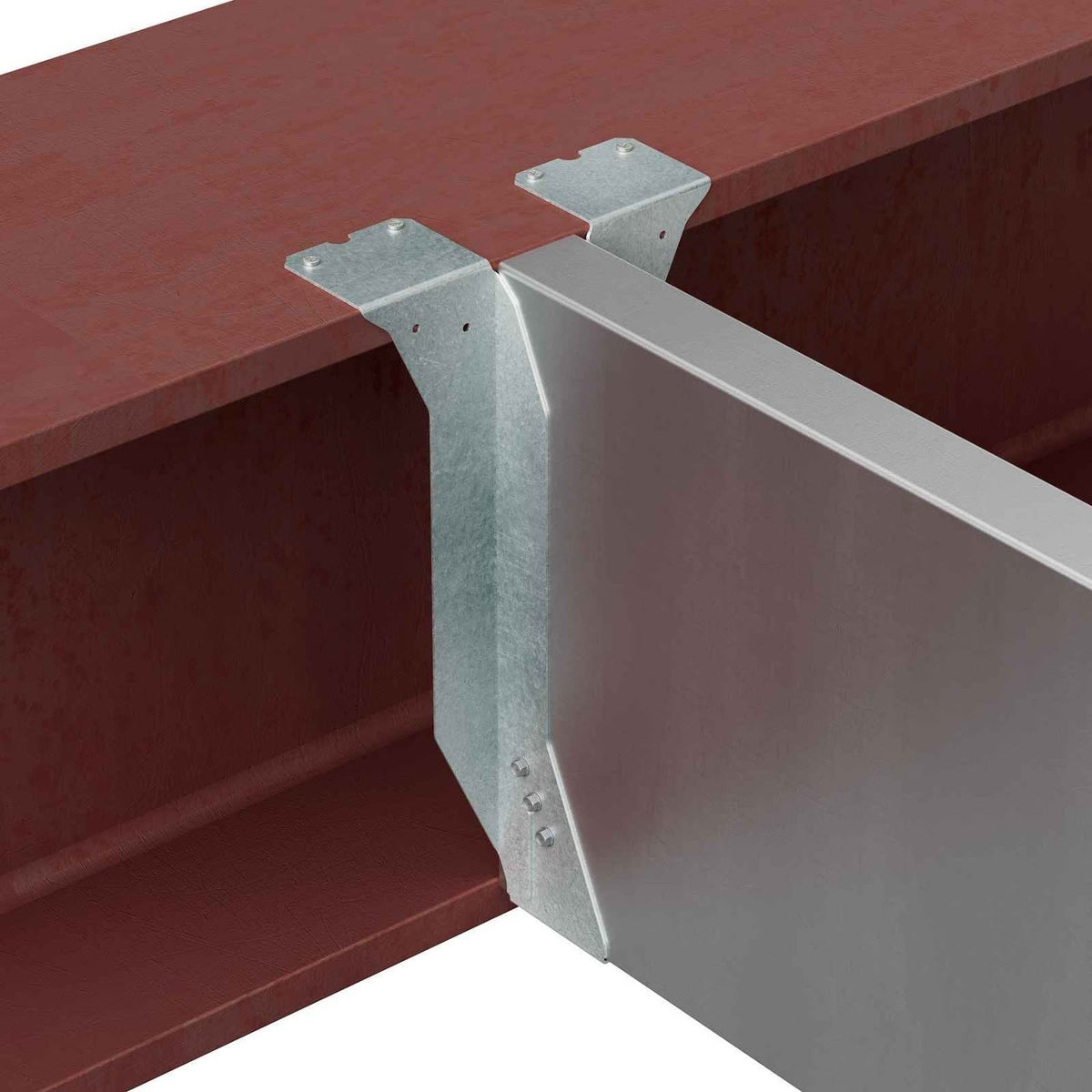

- Cold-formed steel joist support
- Structural steel joist installations
- Construction requiring corrosion-resistant connectors
Simpson Strong-Tie S/LBV2.12/14 Installation Overview
- Verify dimensions and alignment of joists and steel members.
- Position the hanger according to the required skew angle.
- Secure the hanger using appropriate fasteners.
- Ensure proper bearing area and connection.
Simpson Strong-Tie S/LBV2.12/14 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Height | 14" |
| Joist size | 2" X 14" |
| Thickness | 14 Gauge |
| Width | 2-1/8" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
