Simpson Strong-Tie SCBH3X15.37W-KT Description
The SCBH3X15.37W-KT from Simpson Strong-Tie is a concealed beam hanger kit designed for structural applications that demand clean aesthetics and uncompromising strength.

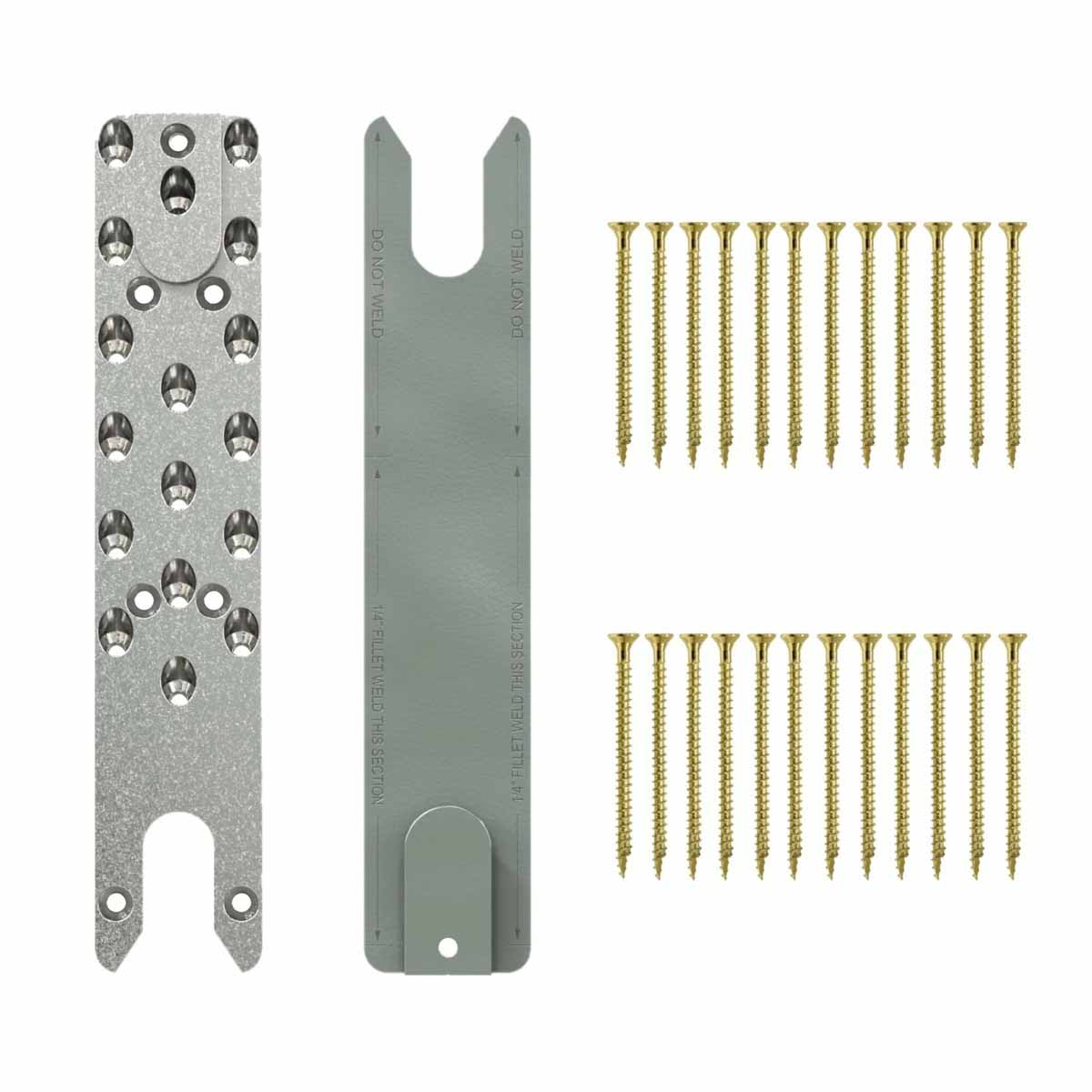

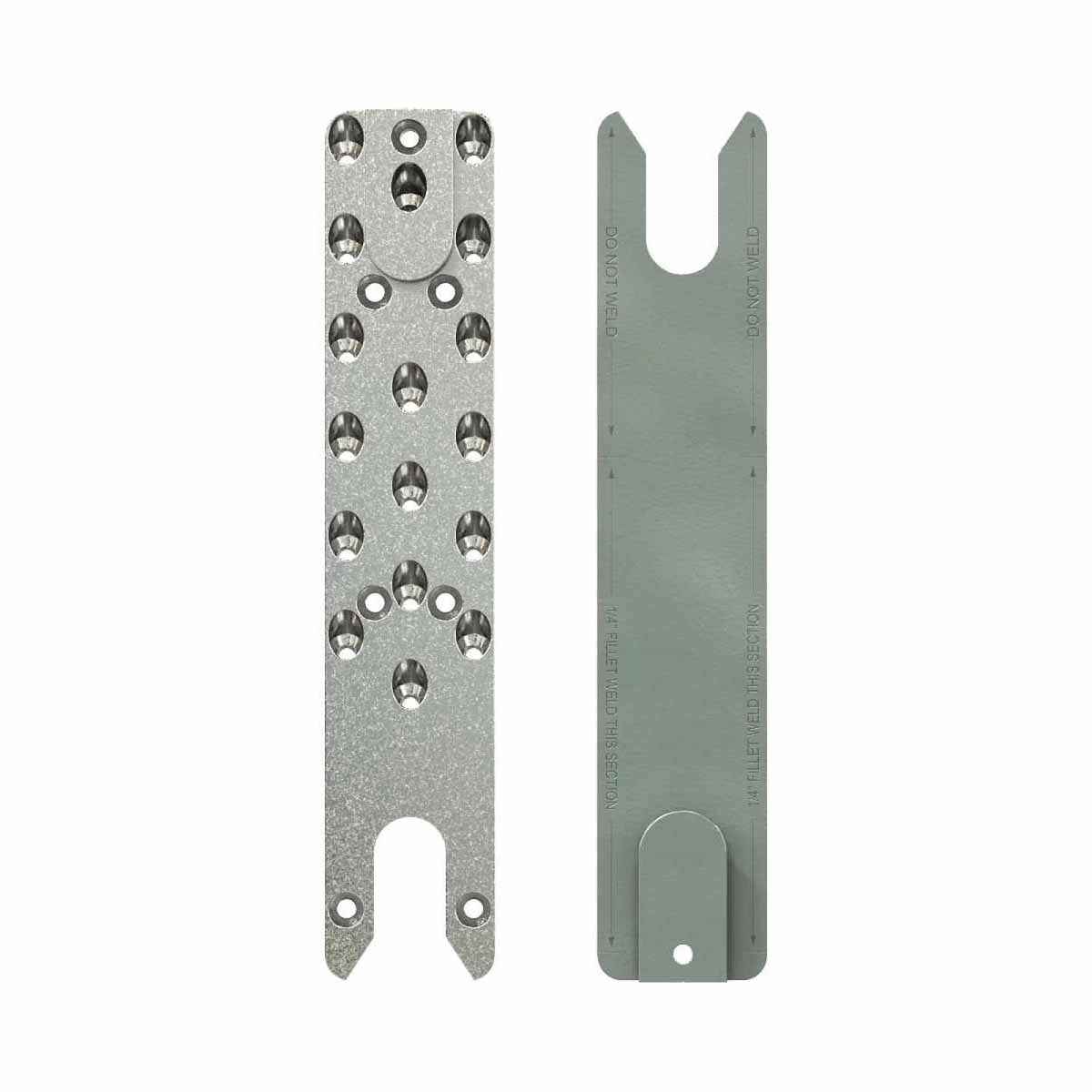

Simpson Strong-Tie SCBH3X15.37W-KT Includes
- (1) SCBH 3x15.37 Concealed Beam Hanger Backplate
- (1) SCBH 3x15.37W Concealed Beam Hanger Backplate
- (24) SDCF22614 screws
Simpson Strong-Tie SCBH3X15.37W-KT Features
- Concealed Connection: Keeps structural hardware hidden for a sleek, architectural finish
- High Load Capacity: Built for demanding engineered wood applications
- Durable Build: Crafted from high-quality materials for long-term performance
- Seismic deformation compatibility
- One- and two-hour fire resistance ratings per ASTM E119 for wood-to-wood connection
Simpson Strong-Tie SCBH3X15.37W-KT Applications

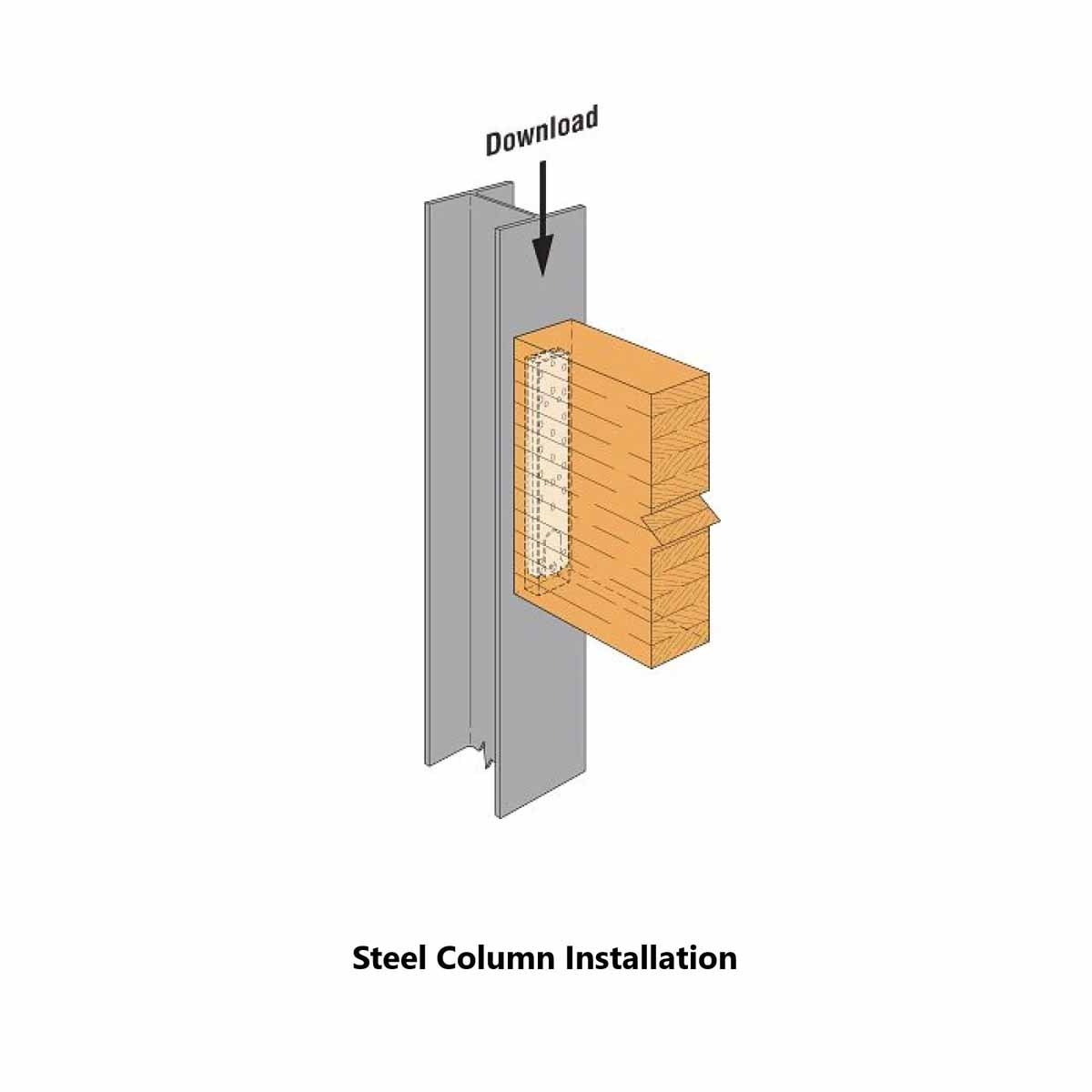

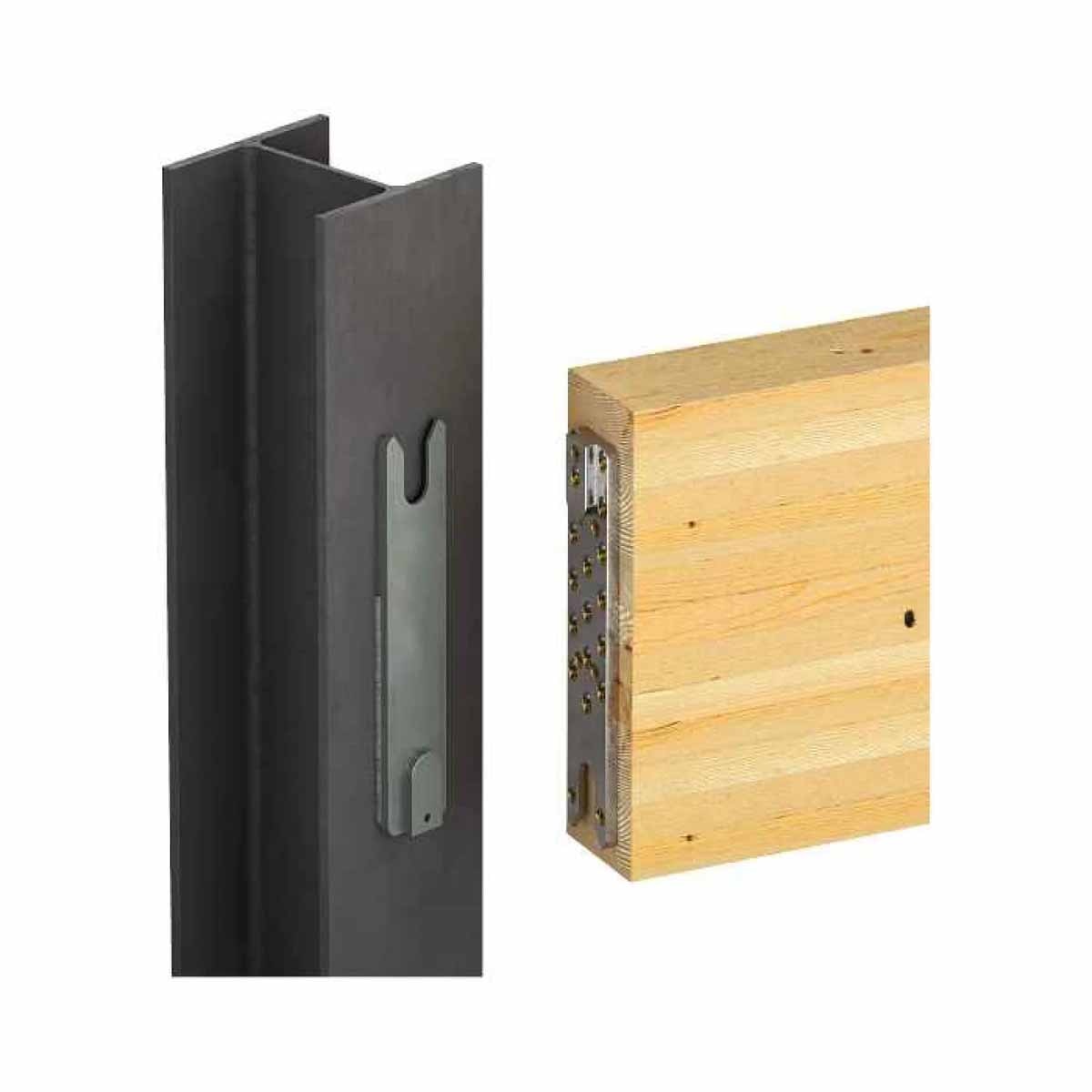

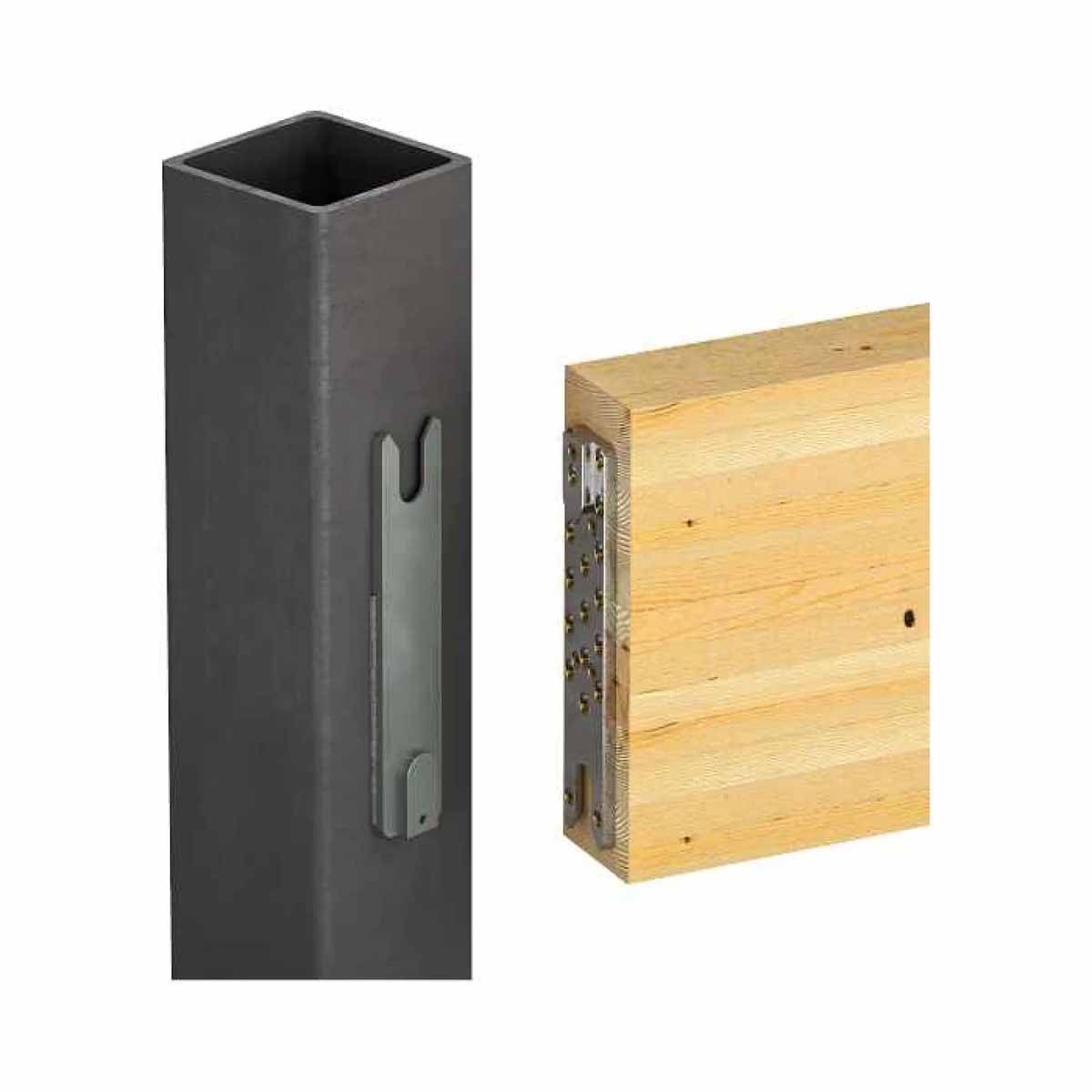

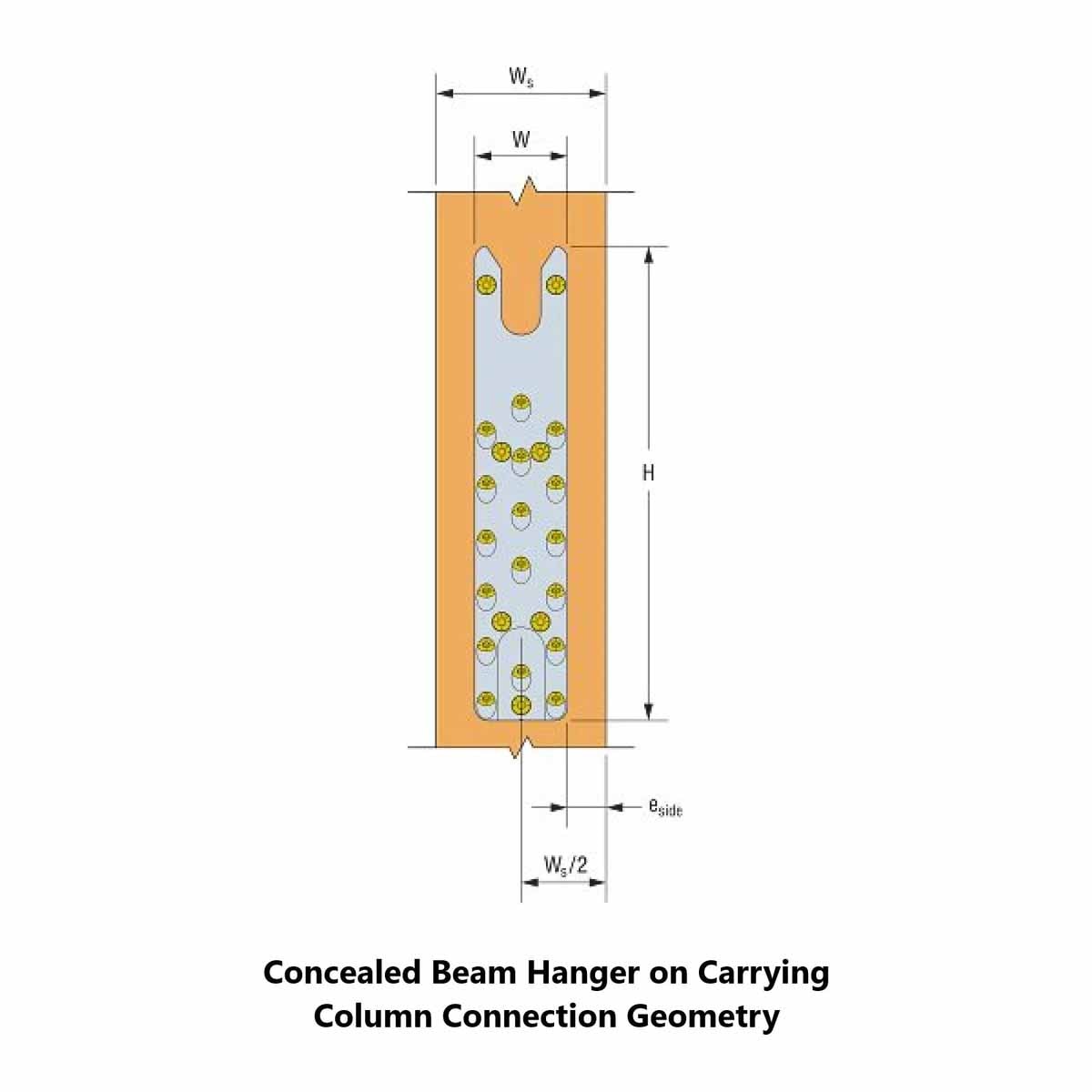

- Engineered wood beam-to-column connections
- Architectural framing where hidden hardware is preferred
- Residential, commercial, or timber frame structures with exposed beams
Simpson Strong-Tie SCBH3X15.37W-KT Installation Overview
- Preparation: Ensure beam and support surfaces are clean, aligned, and defect-free.
- Positioning: Align the SCBH hanger per design specs at the designated connection point.
- Fastening: Install the provided Strong-Drive SDCF Timber-CF Screws at specified angles and depths.
- Beam Seating: Carefully place the beam into the hanger pocket for full seating and alignment.
- Final Check: Verify all fasteners are tight and the connection meets structural requirements.
Simpson Strong-Tie SCBH3X15.37W-KT Specifications
| Material | Carbon Steel |
| Finish | Electrogalvanized - Gray Paint |
| Height | 15-3/8" |
| Width | 3" |
| Weight | 13.2 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
