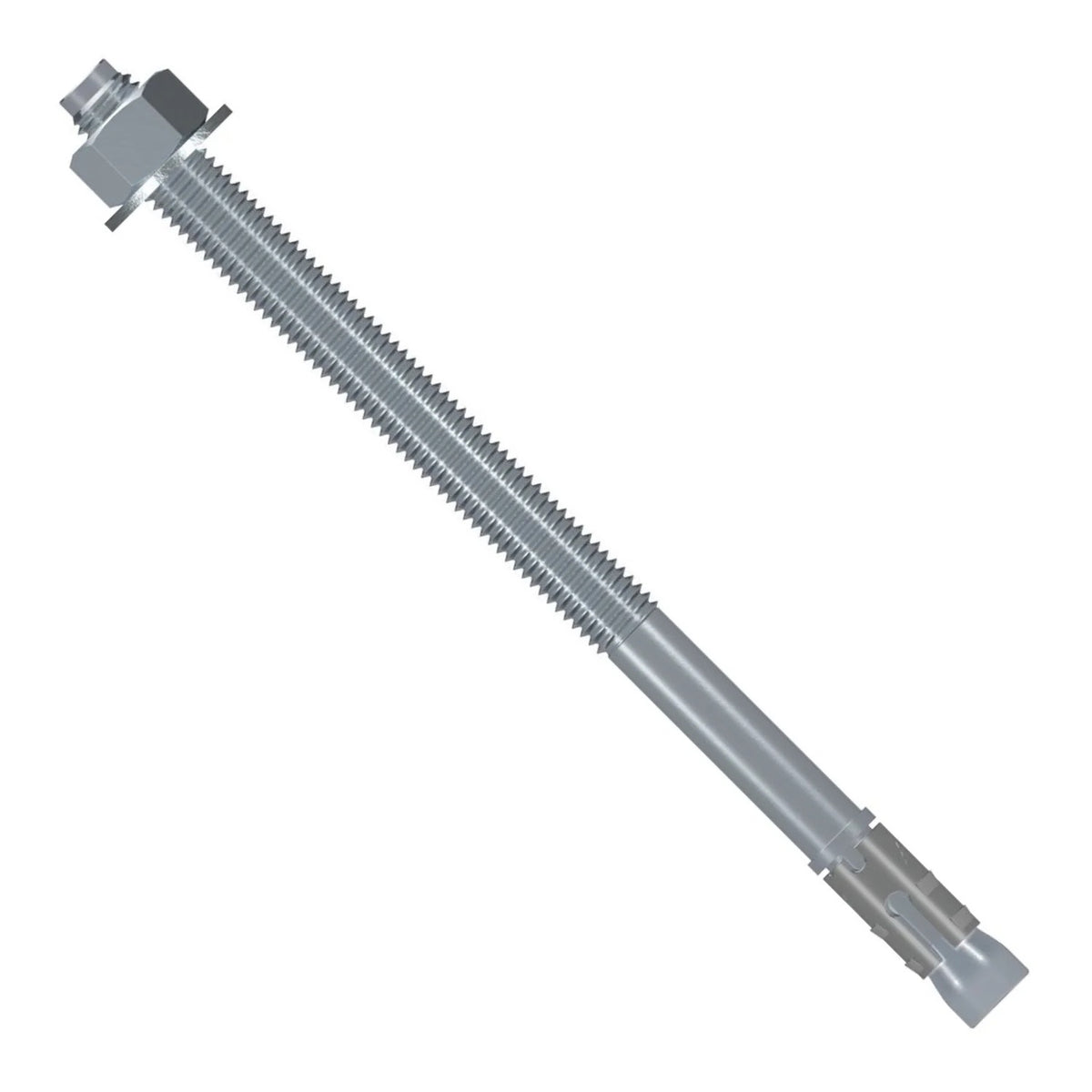

Simpson Strong-Tie STB2-621200R10 Strong Bolt(5/8" x 12") Wedge Anchor, Zinc-Plated Carbon Steel (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-621200R10 Strong Bolt(5/8" x 12")...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-621200R10 Description
Simpson Strong-Bolt 2 anchors are non-bottom-bearing, ICC-ES code compliant anchors made to be installed in cracked or uncracked concrete. They are qualified for both static and seismic loading and suitable for horizontal, vertical, and overhead applications.
Simpson Strong-Tie STB2-621200R10 Includes
- (10) 5/8" x 12" Strong-Bolt 2 Wedge Anchor
Simpson Strong-Tie STB2-621200R10 Features
- Non-bottom-bearing design for versatile installation
- ICC-ES code compliant for cracked and uncracked concrete
- Qualified for static and seismic loading
- Suitable for horizontal, vertical, and overhead applications
- Zinc-plated for corrosion resistance
Simpson Strong-Tie STB2-621200R10 Applications
- Concrete anchoring in cracked or uncracked surfaces
- Seismic and static load applications
- Horizontal, vertical, and overhead installations
Simpson Strong-Tie STB2-621200R10 Installation Overview
- Drill a hole using a 5/8" drill bit to the specified depth.
- Insert the anchor into the hole.
- Tighten the anchor using a torque wrench to 90 ft. lbs.
Simpson Strong-Tie STB2-621200R10 Specifications
| Diameter | 5/8" |
| Finish | Zinc Plated |
| Length | 12" |
| Material | Carbon Steel |
| Drill bit size | 5/8" |
| Installation torque | 90 ft. lbs |
| Quantity | 10 |
NOTE: Do not use an impact wrench to set or tighten anchors. Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor’s load capacity.
