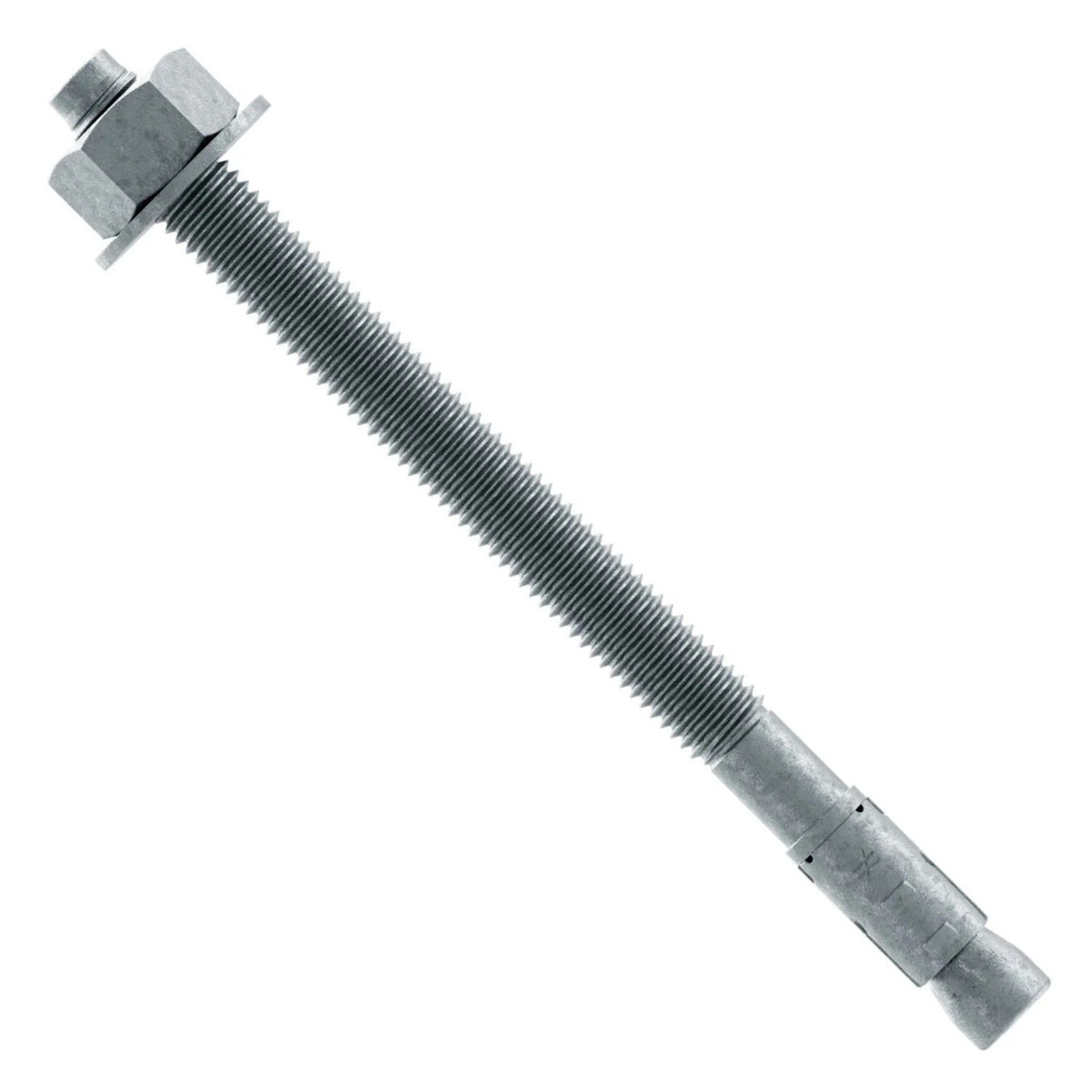

Simpson Strong-Tie STB2-75512MGF10 Strong-Bolt (3/4" x 5-1/2") Mechanically Galvanized Wedge Anchor (10 Pack)
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie STB2-75512MGF10 Strong-Bolt (3/4" x 5-1/2&q...
Key Specifications
Description
Description
Simpson Strong-Tie STB2-75512MGF10 Description
The Simpson Strong-Tie Fully Assembled Strong-Bolt 2 Wedge Anchors are designed for reliable tension and shear loads in cracked and uncracked concrete, featuring a pre-assembled design for ease of use.
Simpson Strong-Tie STB2-75512MGF10 Includes
- (10) 3/4 in. x 5-1/2 in. Mechanically Galvanized Wedge Anchor
Simpson Strong-Tie STB2-75512MGF10 Features
- ICC-ES Code Approved for cracked and uncracked concrete applications
- Pre-Assembled Design: Includes nut and washer to simplify installation and save time on-site
- Mechanically Galvanized Finish: Enhances corrosion resistance for interior and select exterior conditions
- High Load Performance: Optimized for tension and shear in static and seismic environments (Categories A–F)
- Multiple Sizes Available: Select the best fit for your concrete anchoring needs
Simpson Strong-Tie STB2-75512MGF10 Applications
- Anchoring structural columns in concrete
- Securing racking systems
- Installing machinery
- Fastening heavy-duty fixtures
- General construction projects requiring reliable concrete anchoring
Simpson Strong-Tie STB2-75512MGF10 Specifications
| Diameter | 3/4" |
| Finish | Mechanically Galvanized |
| Length | 5-1/2" |
| Material | Carbon Steel |
| Drill bit size | 3/4" |
| Fixture hole size | 7/8" |
| Installation torque | 90 ft. lbf. |
| Thread length | 3-3/16" |
| Wrench size | 1-1/8" |
