Simpson SW-BBS Description

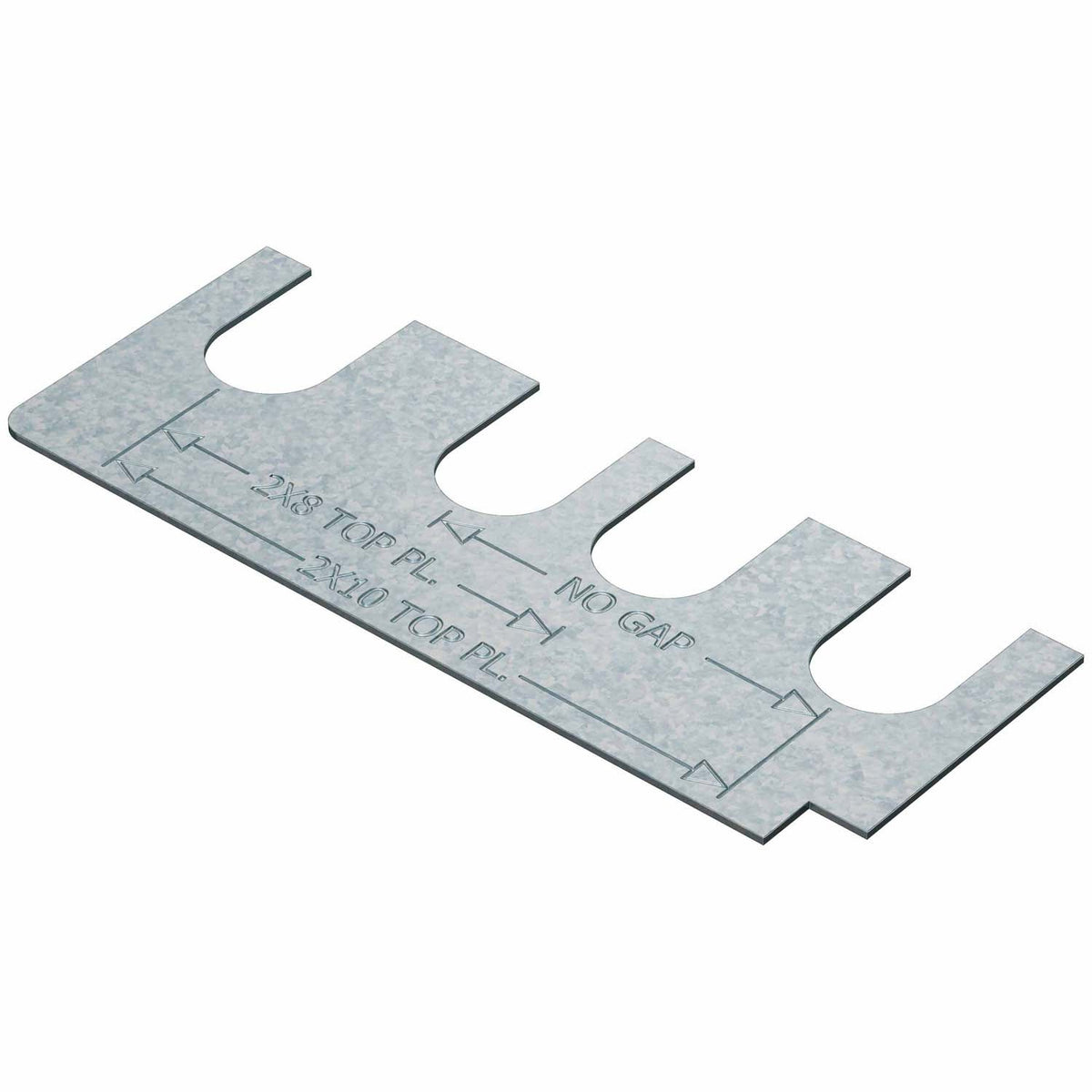

The Simpson Strong-Tie SW-BBS Strong-Wall Back-to-Back Spacer is designed to quickly and accurately position anchorage templates with the correct offset when installing Strong-Wall panels back to back. Compatible with all Strong-Wall anchor bolt templates using 1-in. diameter anchor bolts, this reusable spacer ensures precise alignment and efficient installation.
Simpson SW-BBS Includes
- (1) Strong-Wall Back-to-Back Spacer
Simpson SW-BBS Features
- Quickly locates anchorage templates for back-to-back Strong-Wall panel installation
- Compatible with all Strong-Wall anchor bolt templates using 1-in. diameter anchor bolts
- Reusable for multiple installations
- Made from 14-gauge zinc galvanized (G90) steel for durability and corrosion resistance
- Ensures accurate offset dimension for proper panel alignment
Simpson SW-BBS Applications
- Locates anchorage templates for Strong-Wall panels installed back to back
- Ensures correct offset dimension for anchor bolt templates using 1-in. diameter anchor bolts
- Reusable for multiple installations
Simpson SW-BBS Installation Overview
- Determine the required offset for your Strong-Wall panel installation.
- Place the SW-BBS spacer between the panels to align the anchorage templates.
- Ensure the spacer is positioned for the correct offset dimension as indicated.
- Install the anchor bolts using the aligned templates.
- Remove and reuse the spacer as needed for additional installations.
Simpson SW-BBS Specifications
| Gauge | 14 |
| Finish | Zinc Galvanized, G90 |
| Coating | Zinc Galvanized, G90 |
| Material | Steel |
| Weight | 0.4 lb |
| Width | 7.8125 in. |
| Height | 0.07 in. |
| Length | 3 in. |
| Compatible Anchor Bolt Diameter | 1 in. |
| Country of Origin | US |
