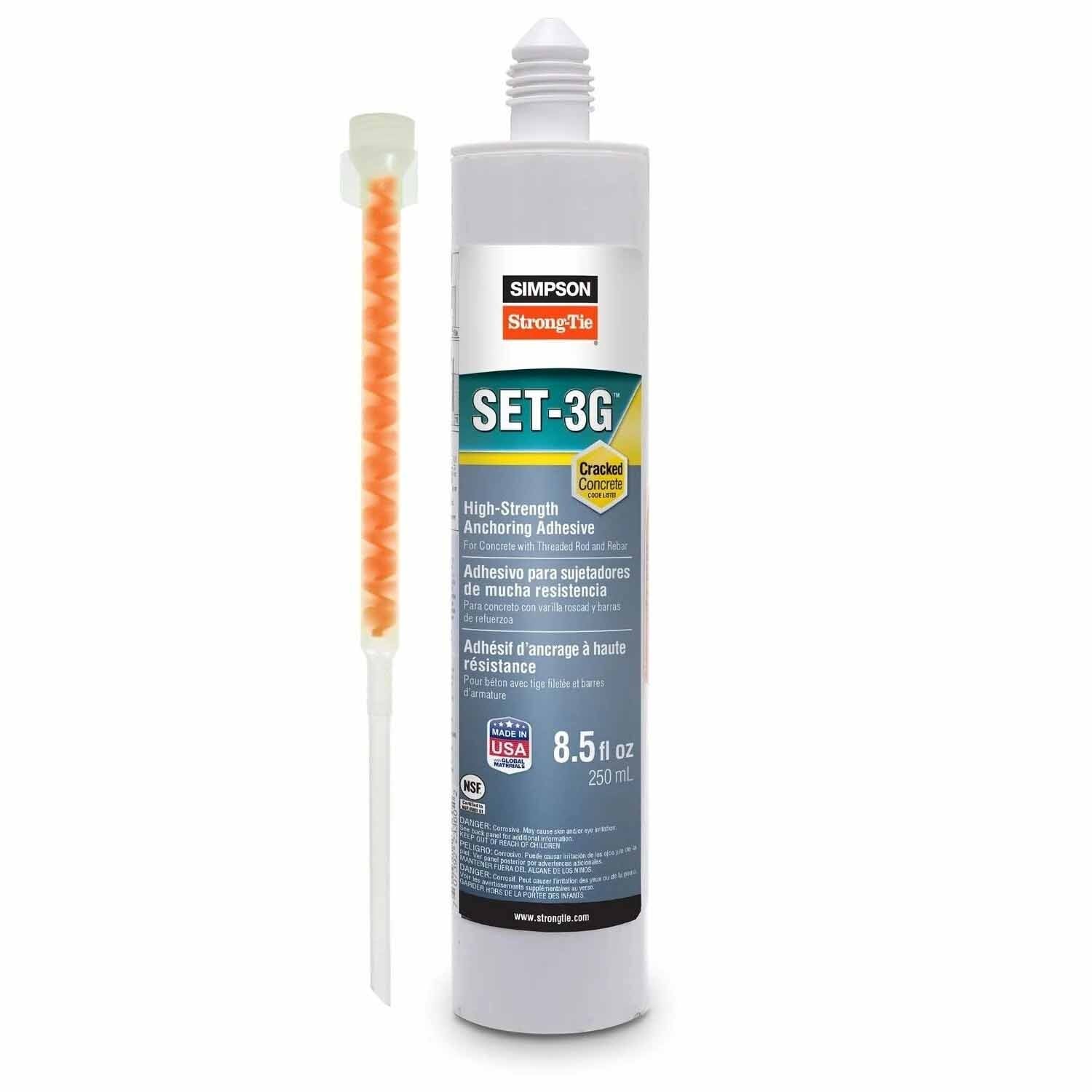

Simpson Strong-Tie SET3G10 (8.5 oz) High-Strength Epoxy Adhesive Cartridge with Nozzle and Extension (1 Piece)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SET3G10 (8.5 oz) High-Strength Epoxy Adhesive Ca...
Key Specifications
Description
Description
Simpson SET3G10 Description
Simpson SET-3G is a high-strength epoxy adhesive designed for anchoring threaded rod and rebar doweling in cracked and uncracked concrete.
Simpson SET3G10 Includes
- (1) 8.5-oz. Coaxial Cartridge
- (1) EMN22i Mixing Nozzle
- (1) Extension
Simpson SET3G10 Features
- Exceptional performance with superior bond strengths for ductile solutions in high seismic areas.
- Improved sustained load performance at elevated temperatures.
- Versatile for all base material conditions with in-service temperatures from -40°F to 176°F.
- Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
- Approved for installation with multiple vacuum-drill bit systems without further hole cleaning.
- Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method.
- Low-odor formulation.
- Manufactured in the USA using global materials.
- Compatible with potable water applications.
Simpson SET3G10 Applications
- Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete under various environmental conditions.
- Installation in downward, horizontal, and upwardly inclined orientations, including overhead.
- Qualified for use in structures assigned to Seismic Design Categories A through F.
Simpson SET3G10 Installation Overview
- Ensure surfaces to receive epoxy are clean per approved hole cleaning method.
- Base-material temperatures must be 40°F or above during installation.
- Condition adhesive to a temperature between 70°F and 80°F for optimal results.
- Store cartridges in a warm, uniformly heated area to warm cold adhesive.
- Mixed material can harden in the dispensing nozzle within 30 minutes at 70°F.
- Use only Simpson Strong-Tie mixing nozzles as per instructions.
- Refer to the Adhesive Anchoring Installation Instructions for full details.
Simpson SET3G10 Specifications
| Mix Ratio/Type | 1:1 epoxy |
| Mixed Color | Gray |
| Base Materials | Concrete and masonry - cracked and uncracked |
| Base Material Conditions | Dry, water-saturated, water-filled, and submerged |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 40°F (4°C) to 100°F (38°C) |
| In-Service Temperature Range | -40°F (-40°C) to 176°F (80°C) |
| Storage Temperature | 45°F (7°C) to 90°F (32°C) |
| Shelf Life | 24 months |
| Volatile Organic Compound (VOC) | 2 g/L |
NOTE: This item is NOT eligible for express shipping, and must ship via Ground only.
