Simpson Strong-Tie ABL10-1-OST Anchor Bolt Locator for 1-1/4" Anchor Bolt
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ABL10-1-OST Anchor Bolt Locator for 1-1/4" ...
Key Specifications
Description
Description
Simpson Strong-Tie ABL10-1-OST Description

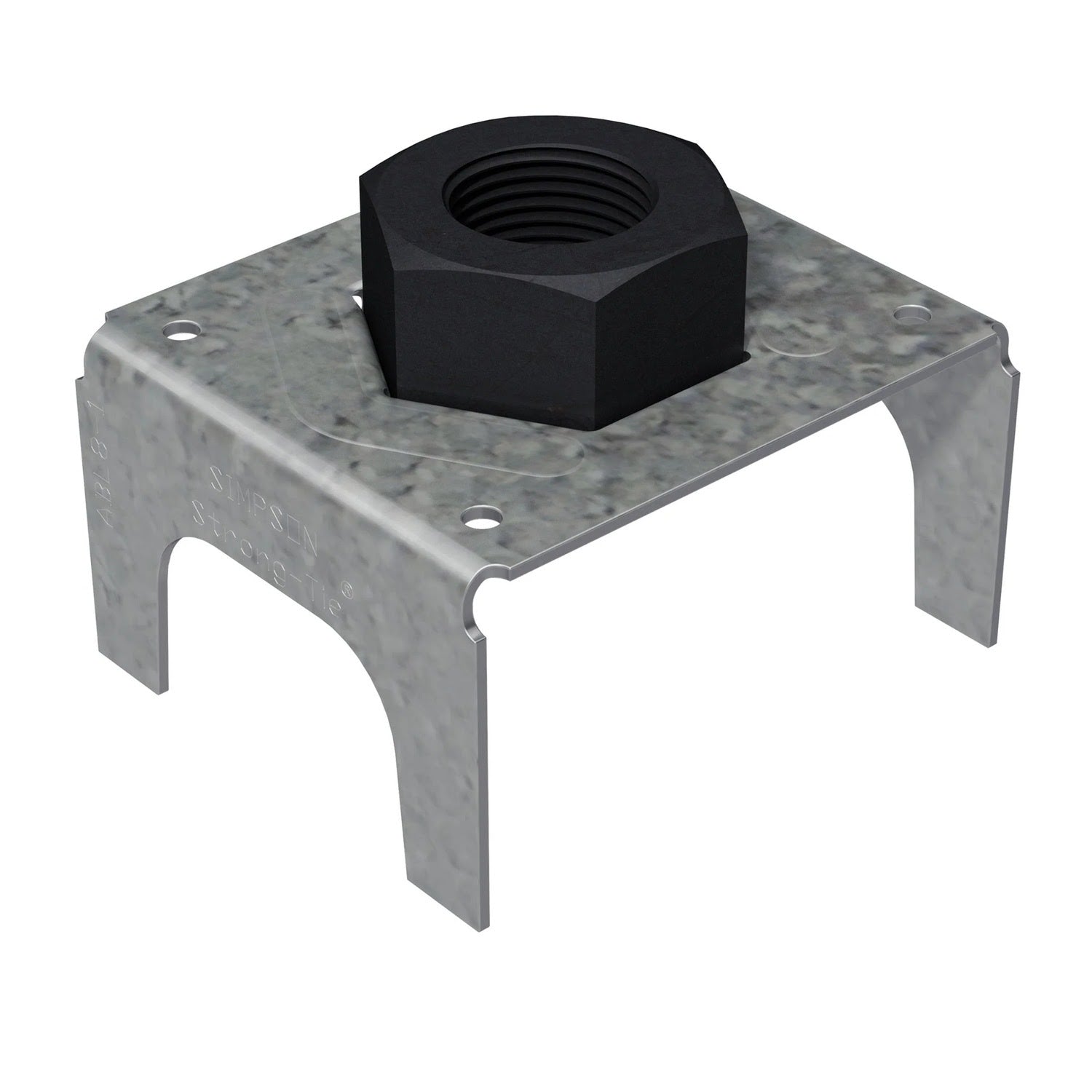

The Simpson Strong-Tie ABL10-1-OST Anchor Bolt Locator simplifies the placement of 1-1/4" diameter anchor bolts in concrete deck forms, ensuring consistent positioning and compliance with code requirements.
Simpson Strong-Tie ABL10-1-OST Includes
- (1) Anchor Bolt Locator
Simpson Strong-Tie ABL10-1-OST Features

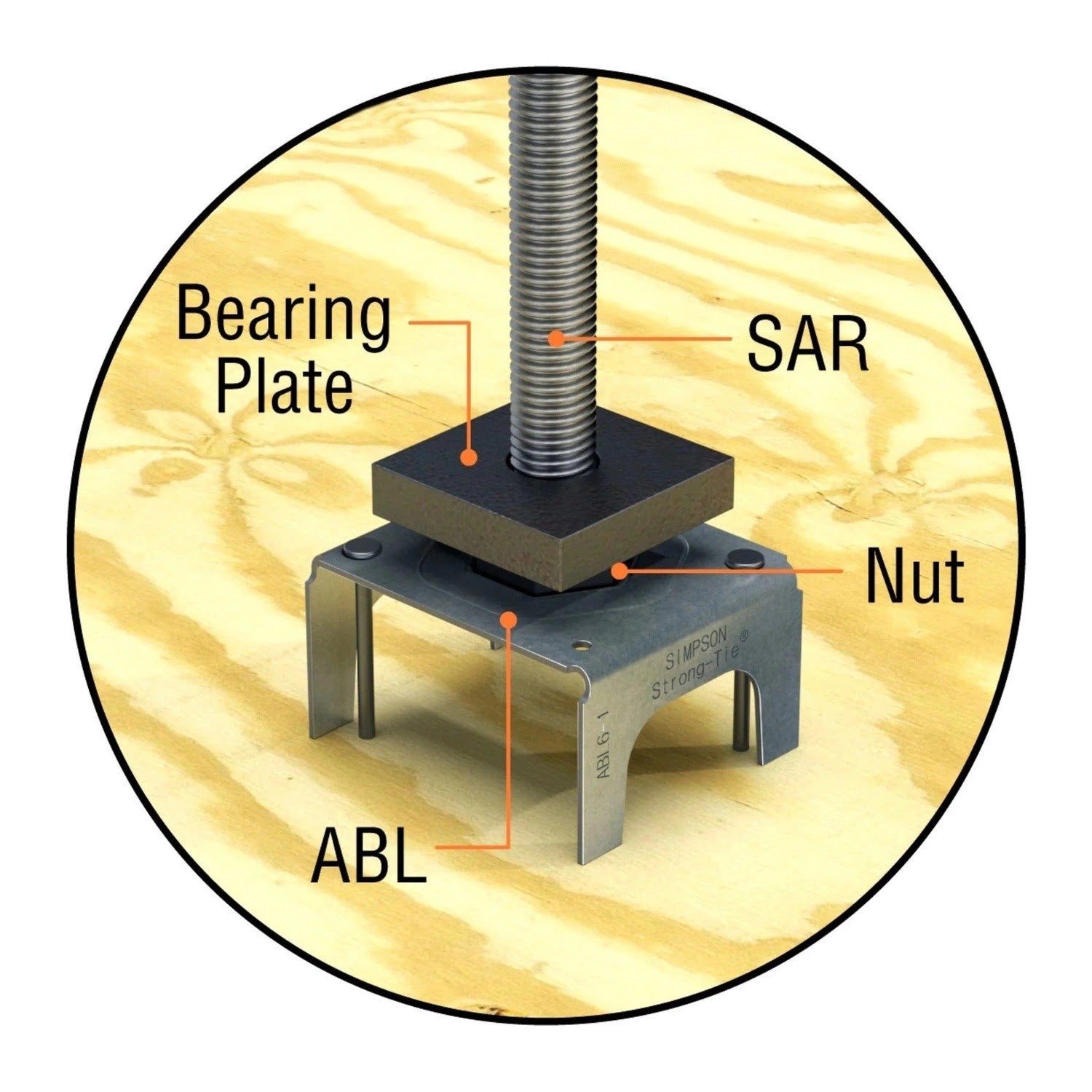

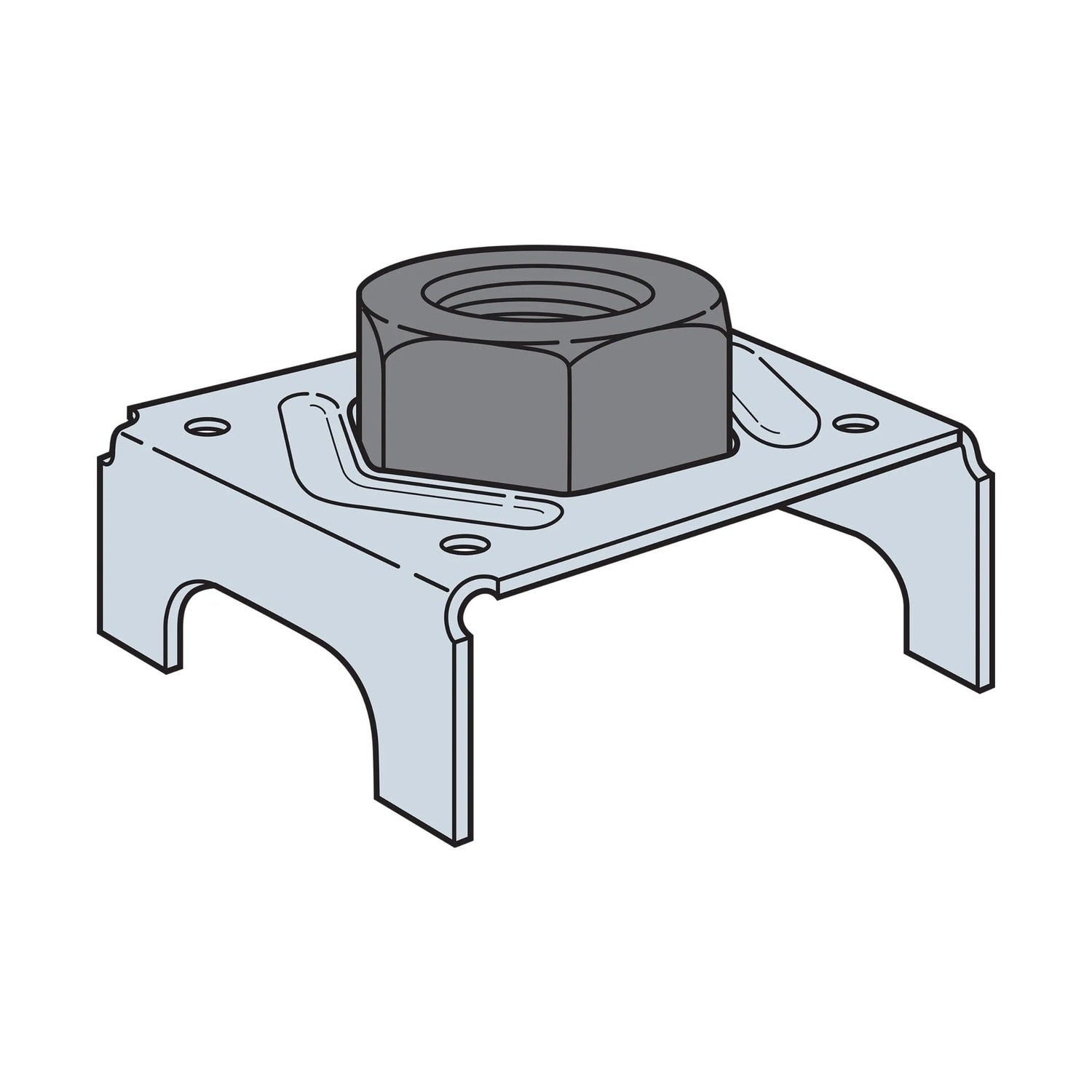

- Steel form stand with pre-attached nut for correct bolt height and alignment
- Compatible with HDG anchor bolts for enhanced durability
- Open design allows concrete to fully surround the bolt
- Meets 1" minimum standoff requirement for structural applications
Simpson Strong-Tie ABL10-1-OST Applications

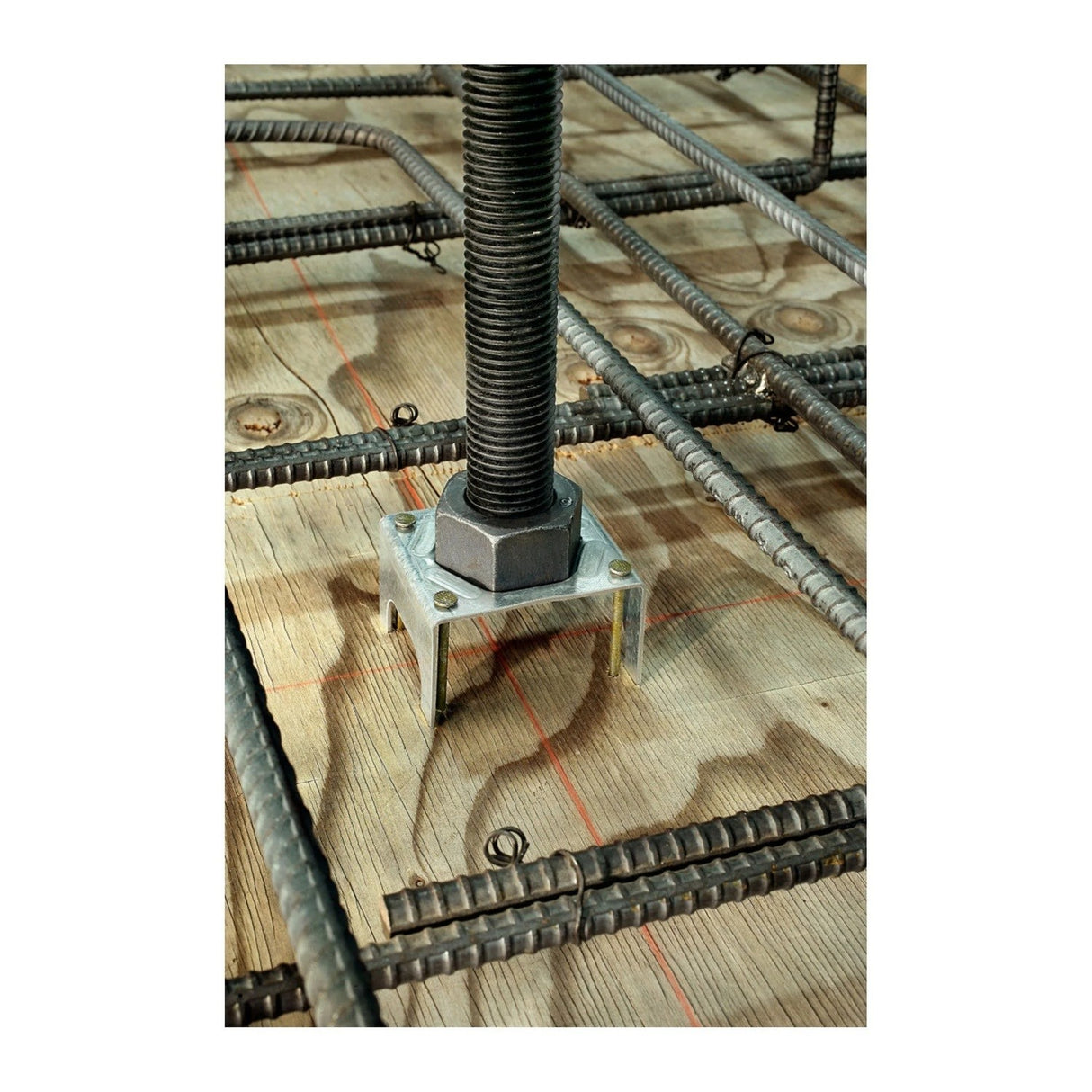

- Setting 1-1/4" diameter anchor bolts in concrete deck forms
- Structural steel column anchoring
- Holdown and base plate installations
- Projects requiring code-compliant anchor bolt standoff

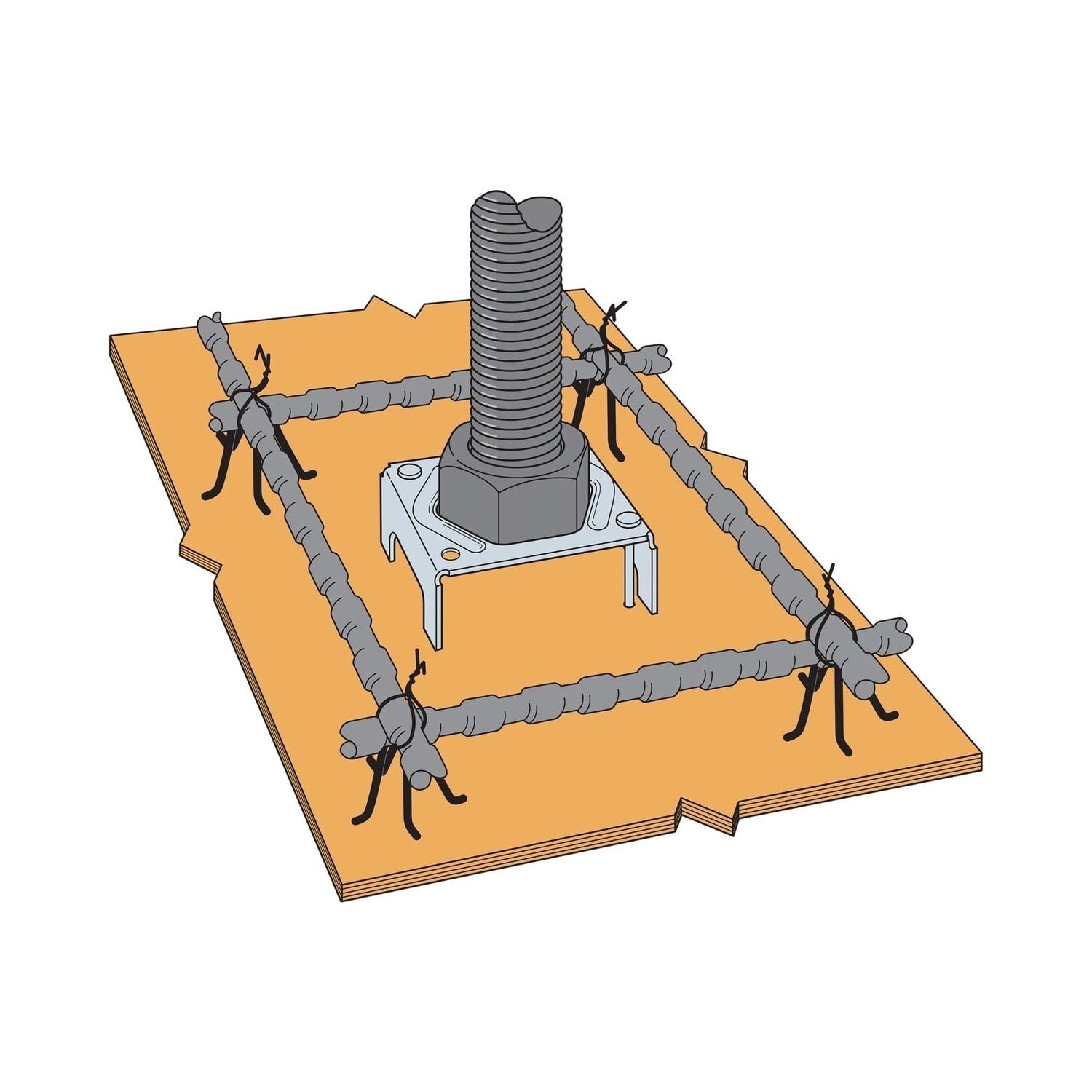

Simpson Strong-Tie ABL10-1-OST Installation Overview
- Attach the anchor bolt to the locator using the pre-installed structural nut
- Position the locator securely on the concrete form deck
- Confirm vertical alignment and ensure the locator base is stable
- Pour concrete as normal without the need for a bottom nut or secondary support
Simpson Strong-Tie ABL10-1-OST Specifications
| Material | Carbon Steel |
| Hole diameter | 1-1/4" |
| Weight | 1.3 lb |
