Simpson Anchors | SKU: SB5/8X24 | Barcode: 707392738701

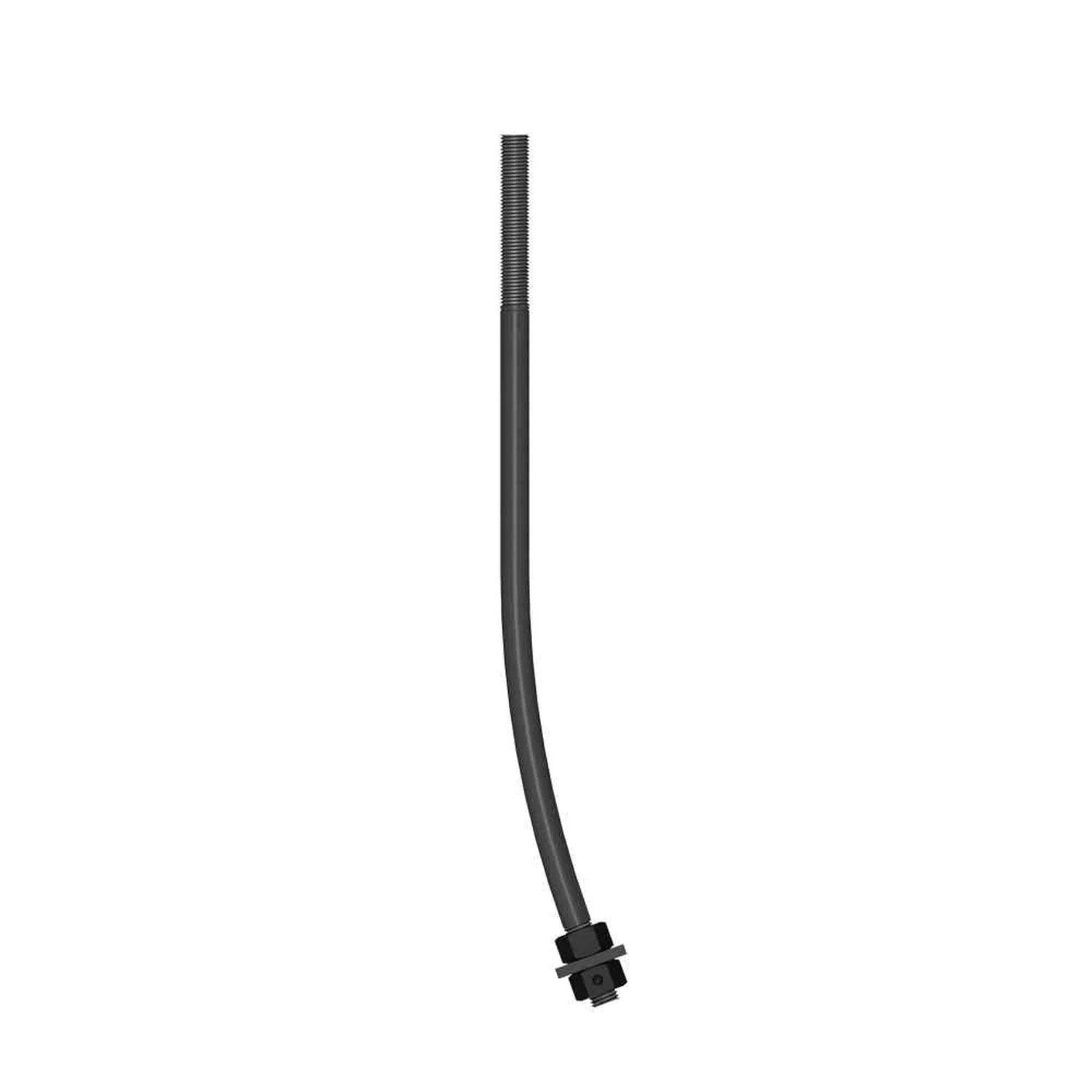

Simpson Strong-Tie SB5/8X24 (5/8" x 24") SB Anchor Bolt

Name: Simpson Strong-Tie SB5/8X24 (5/8" x 24") SB Anchor Bolt
Brand: Simpson Anchors
SKU: 683324
Price: 25.00 USD
Availability: InStock

$25.00

Shipping calculated at checkout.

Stock Up & Save

1-Pack

$25.00

10-Pack

10% OFF

$225.00

$250.00

10, 10,

default, percentage,

1, 10,

{ "Default Title":{"price":"2500","compare_at_price":"","id":"52010511237487","quantity":"10","inv_p":"continue","inv_m":"shopify"} }

{ "Default Title":{"price":"2500","compare_at_price":"","id":"52010511237487","quantity":"10","title":"Default Title","inventory_policy":"continue","inventory_management":"shopify"} }

{ "Default Title":{"id":"52010511237487"} }

Bulk Pricing Available

Need to place a large order? Request a quote

Key Specifications

Diameter: 5/8"

Length: 24"

Type: Anchor Bolt

Description

Simpson SB5/8X24 Description

The Simpson SB Anchor Bolt is designed for concrete applications, featuring a 5/8" diameter and 24" length for reliable anchorage.

Simpson SB5/8X24 Includes

(1) Anchor Bolt with 5/8" Diameter and 24" Length

Simpson SB5/8X24 Features

Identification on the bolt head showing embedment angle and model
Sweep geometry to optimize position in form
Rolled thread for higher tensile capacity
Hex nuts and plate washer fixed in position
Available in HDG for additional corrosion resistance

Simpson SB5/8X24 Applications

Concrete anchorage for holdowns
Structural reinforcement in poured concrete
Secure attachment in construction projects

Simpson SB5/8X24 Installation Overview

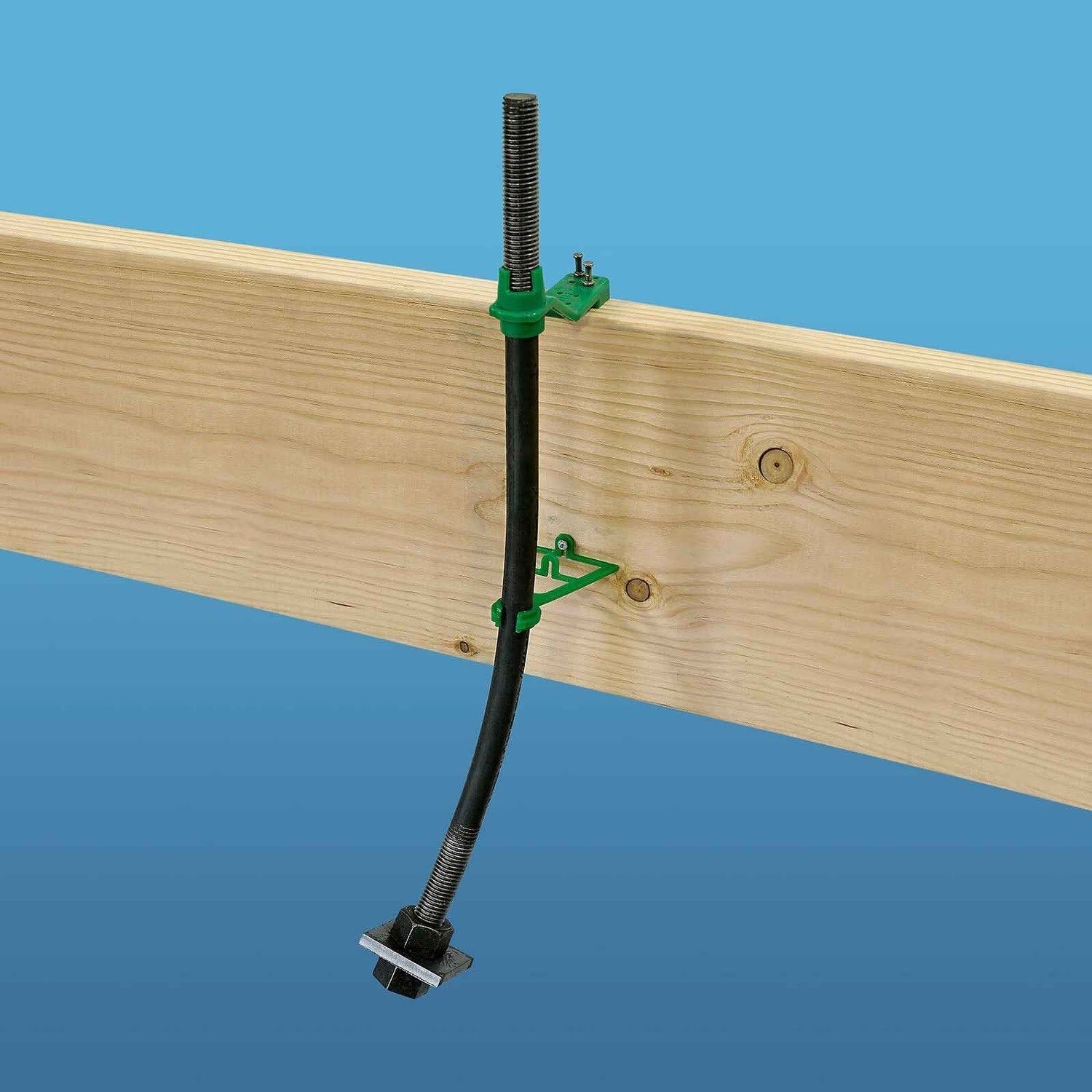

Install SB before the concrete pour using AnchorMate® anchor bolt holders.
Follow the plan view detail for accurate placement.
Ensure minimum concrete compressive strength of 2,500 psi.
Use overtapped products for HDG SB anchors as per ASTM A563.
Top nuts and washers for holdown attachment are not supplied; install standard nuts, couplers, and/or washers as required.

Simpson SB5/8X24 Specifications

Diameter	5/8"
Length	24"
Material	ASTM F-1554, Grade 36
Finish	None. May be ordered HDG.

NOTE: Ensure proper installation using AnchorMate® holders and follow the plan view detail for optimal performance.
