Simpson Strong-Tie SSTB24 (5/8 in. x 25-5/8 in.) Anchor Bolt for Concrete Applications
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SSTB24 (5/8 in. x 25-5/8 in.) Anchor Bolt for Co...
Key Specifications
Description
Description
Simpson SSTB24 Description

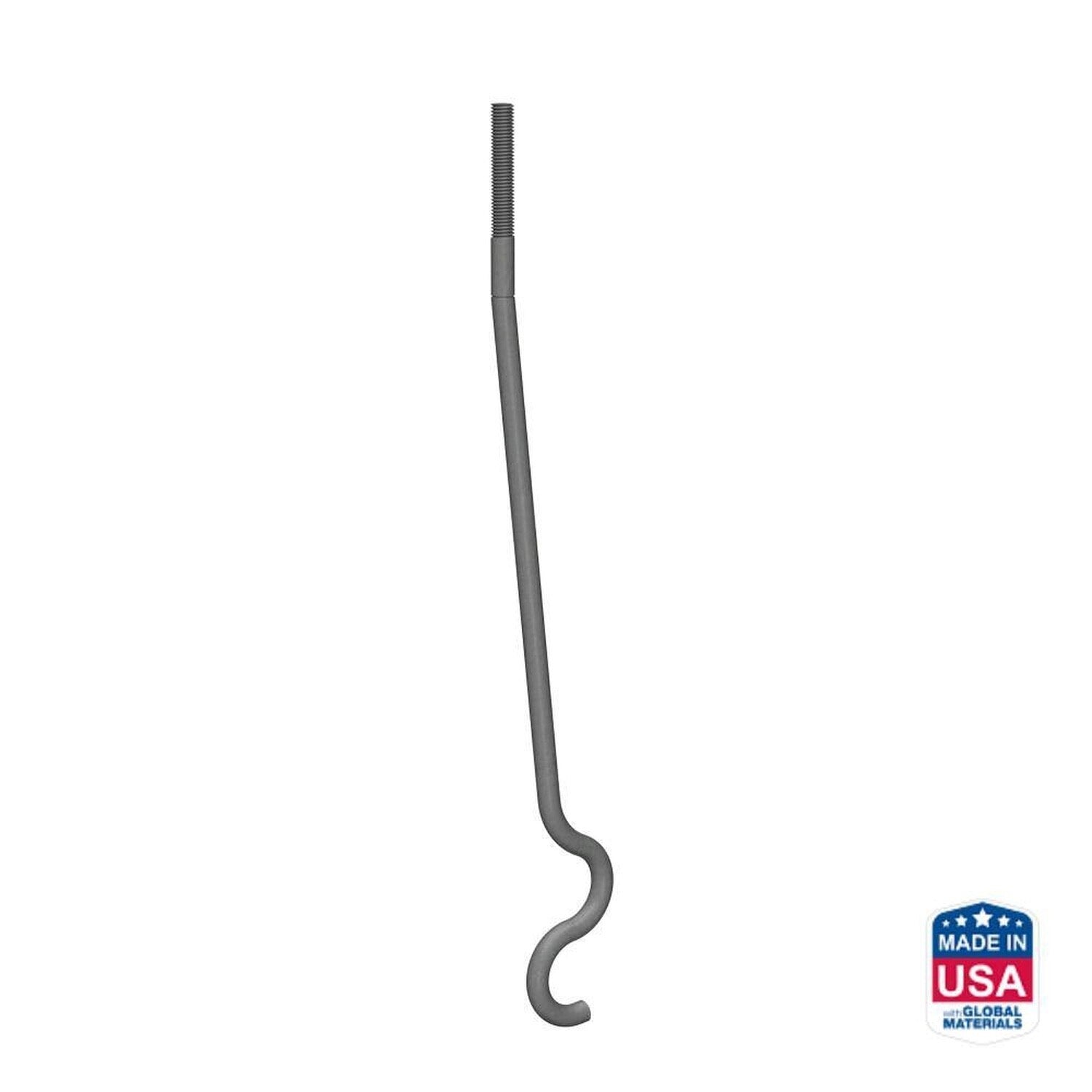

The SSTB24 Anchor Bolt is designed for concrete applications, offering high tensile capacity and corrosion resistance.
Simpson SSTB24 Includes
- (1) Anchor Bolt for Concrete Applications
Simpson SSTB24 Features

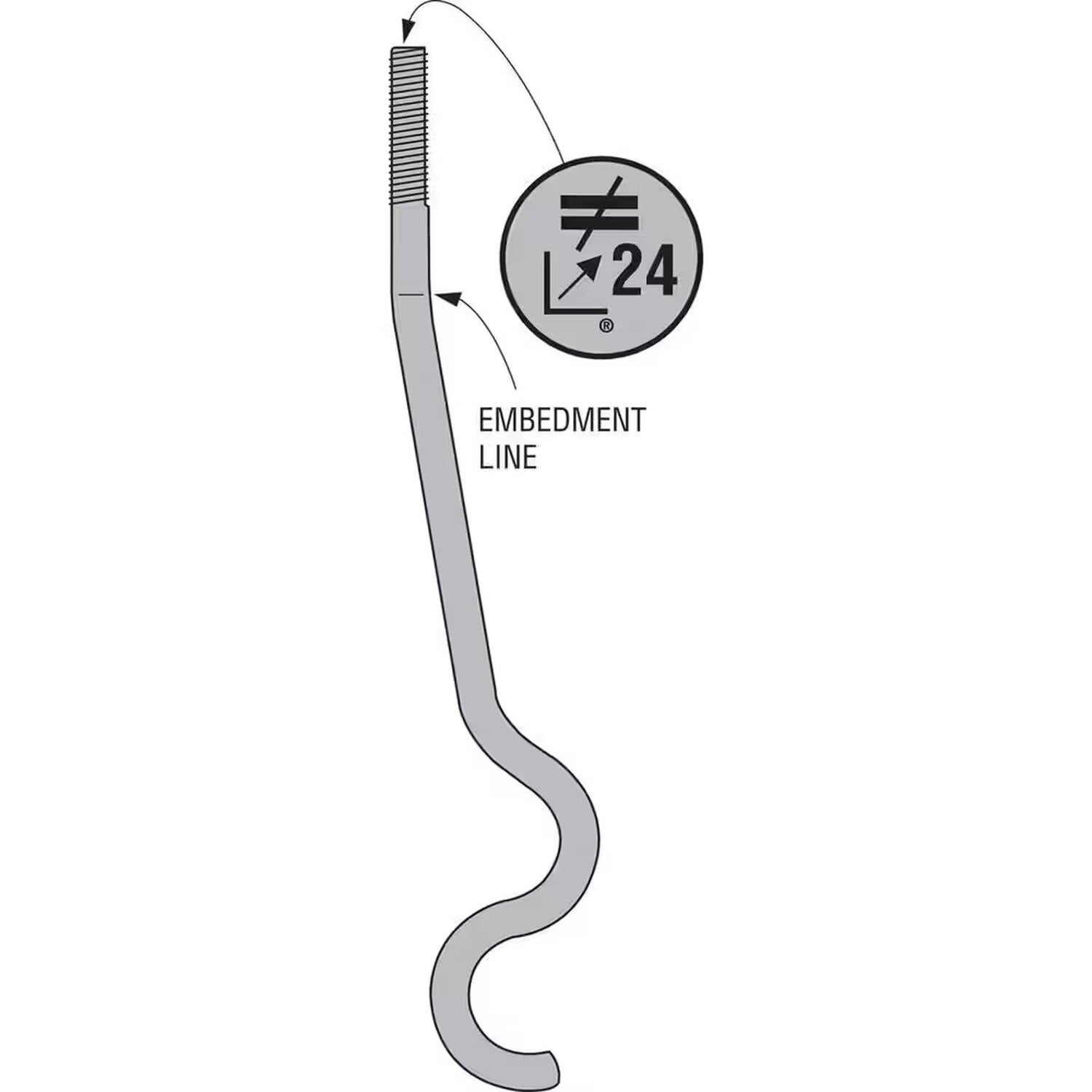

- Identification on the bolt head showing embedment angle and model
- Offset angle reduces side bursting and provides more concrete cover
- Rolled thread for higher tensile capacity
- Stamped embedment line aids installation
- Available in HDG for additional corrosion resistance
Simpson SSTB24 Applications

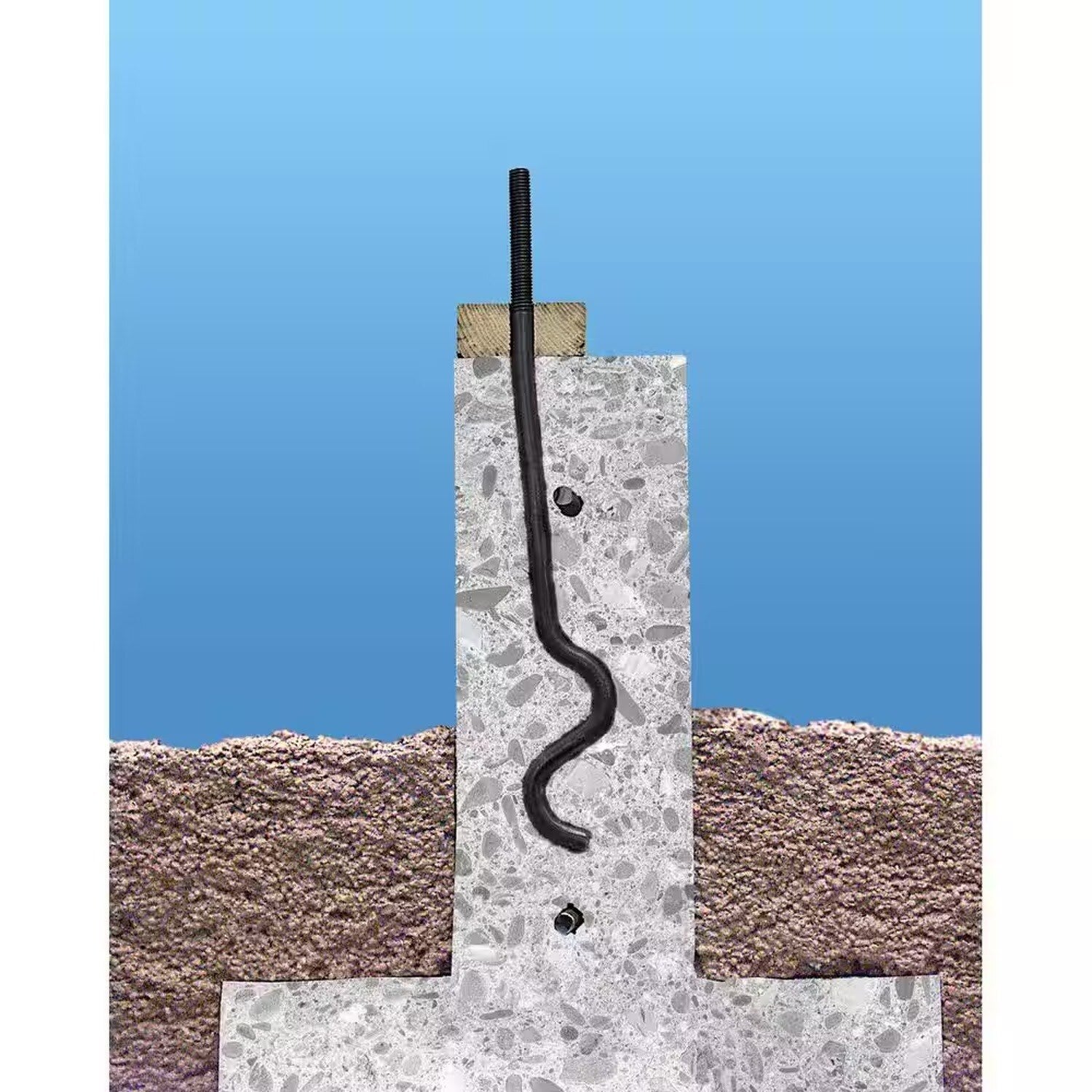

- Concrete foundations requiring secure anchoring

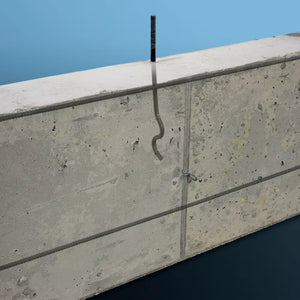

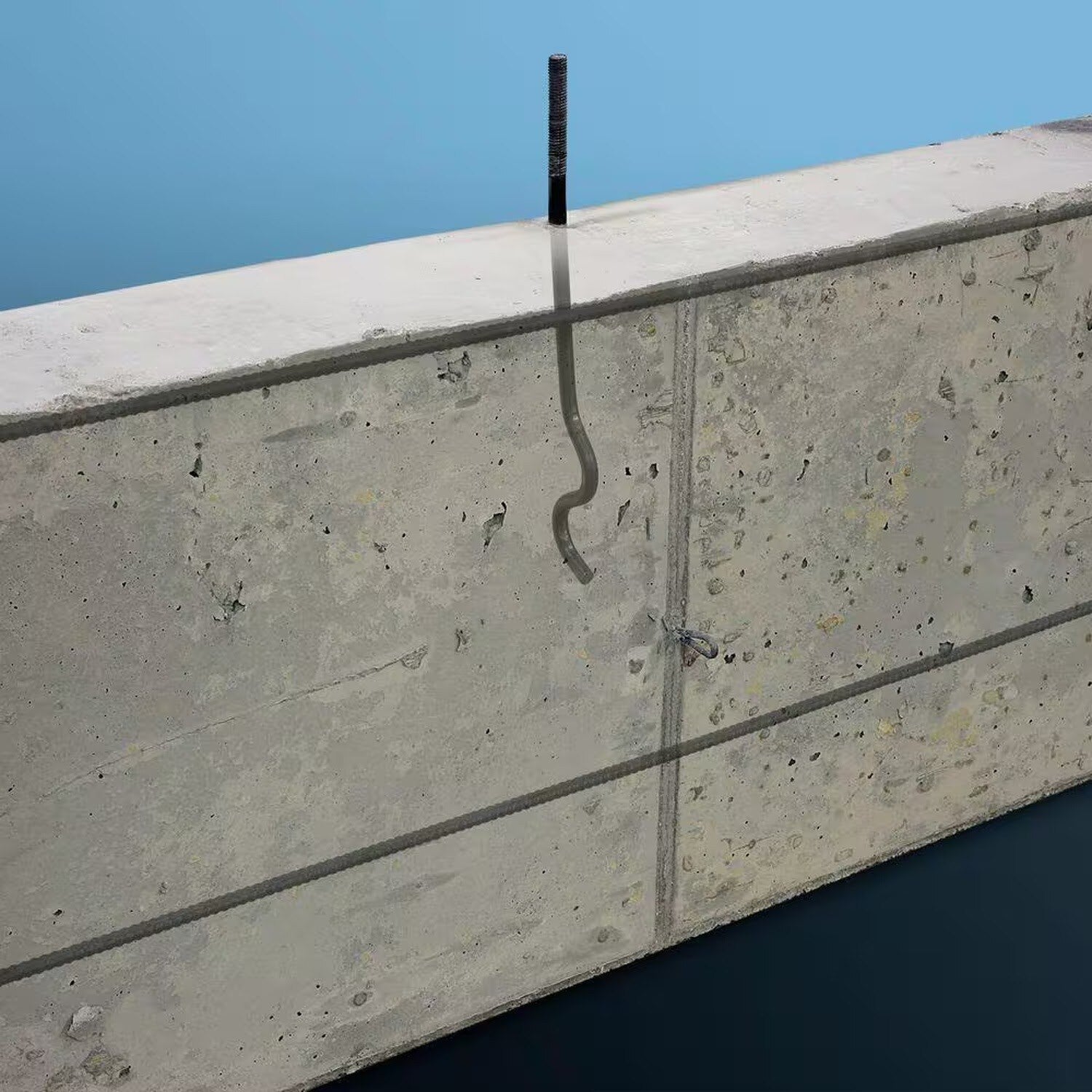

- Monolithic and two-pour concrete applications

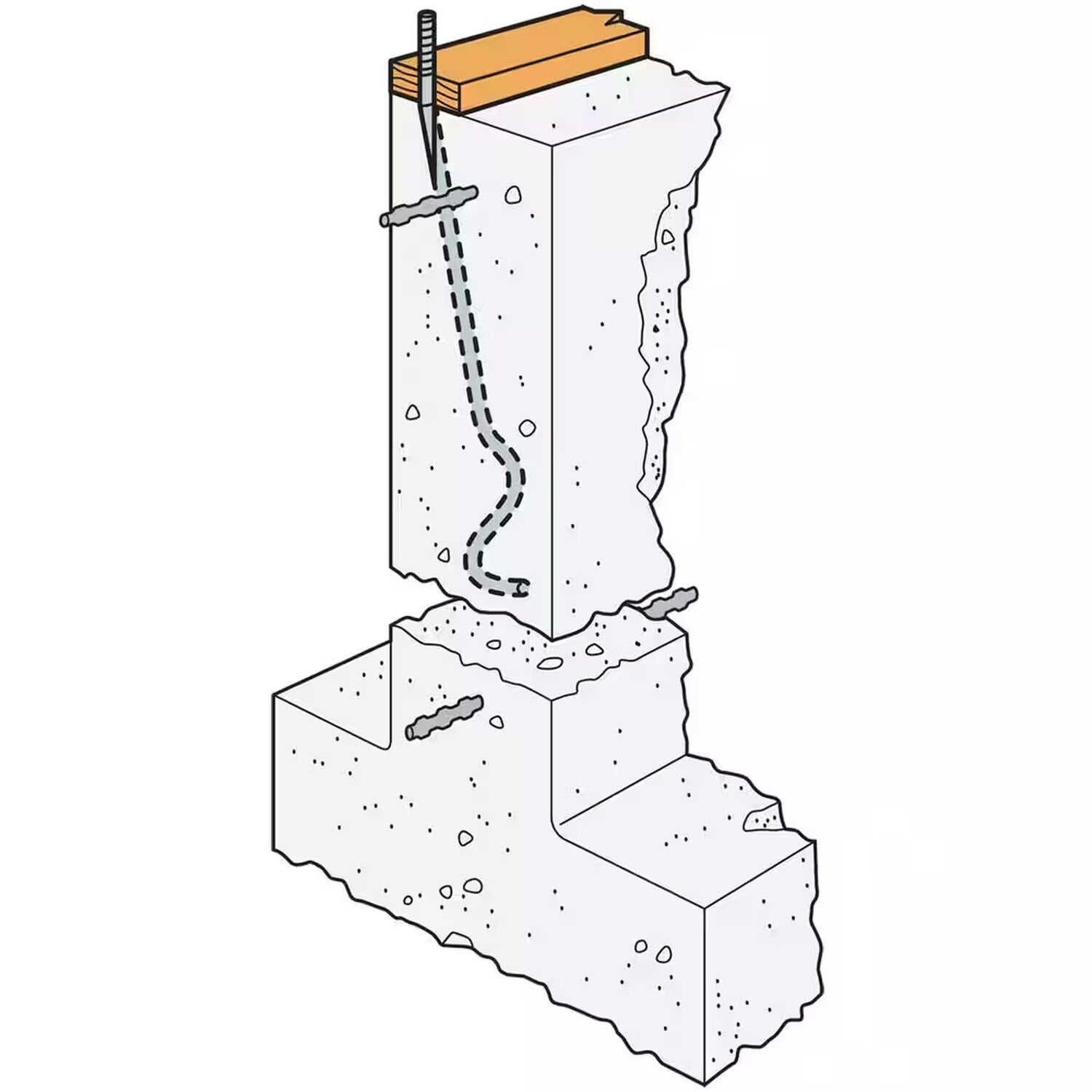

- Grout-filled concrete masonry units (GFCMU) installations

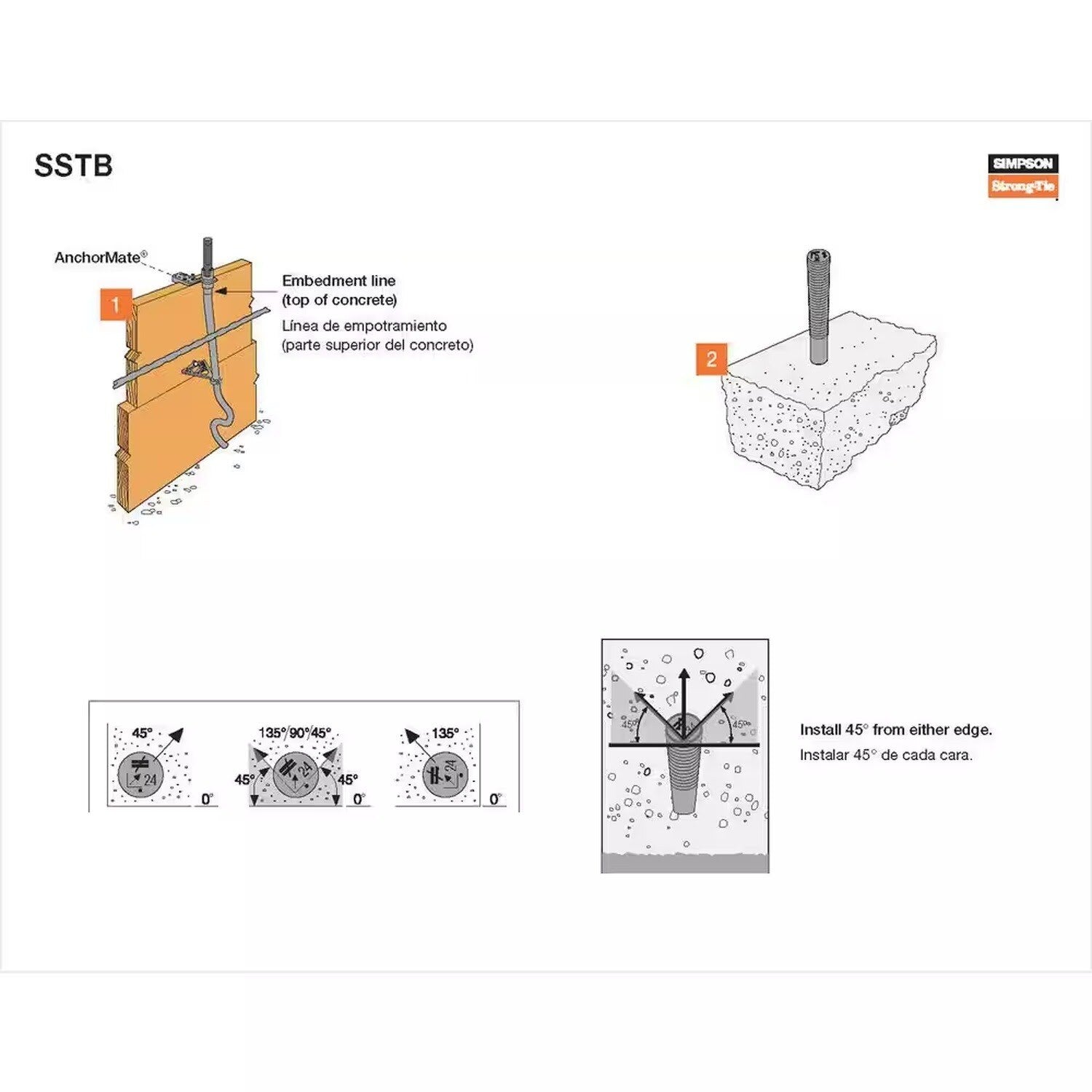

Simpson SSTB24 Installation Overview
- Verify the embedment angle and model identification on the bolt head.
- Install SSTB before the concrete pour using AnchorMate anchor bolt holders.
- Ensure minimum concrete compressive strength of 2,500 psi.
- Follow plan view details for proper placement.
- Use standard nuts, couplers, and washers as required.
Simpson SSTB24 Specifications
| Material | ASTM F-1554, Grade 36 |
| Finish | None. May be ordered HDG. |
| Application | Concrete |
NOTE: Ensure the correct fasteners are installed in the correct position to achieve published load values
