Simpson Strong-Tie LTP4Z (3 in. x 4-1/4 in.) Lateral Tie Plate for Shear Force Transfer
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie LTP4Z (3 in. x 4-1/4 in.) Lateral Tie Plate for ...
Key Specifications
Description
Description
Simpson Strong-Tie LTP4Z Description

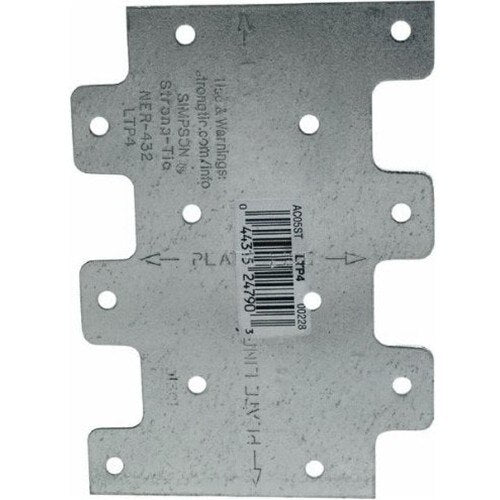

The LTP4Z Lateral Tie Plate is designed to transfer shear forces for top plate-to-rim joist or blocking connections, featuring a ZMAX galvanized finish for corrosion resistance.
Simpson Strong-Tie LTP4Z Includes
- (1) LTP4Z Lateral Tie Plate
Simpson Strong-Tie LTP4Z Features
- Load rated for shear resistance
- Staggered nail patterns to minimize wood splitting
- Can be installed over plywood sheathing
- Compatible with nails and SD screws
Simpson Strong-Tie LTP4Z Applications
- Top plate-to-rim joist connections
- Blocking connections
- General framing applications
Simpson Strong-Tie LTP4Z Installation Overview
- Use all specified fasteners
- Install over plywood sheathing if required
- Ensure proper alignment and secure fastening
Simpson Strong-Tie LTP4Z Specifications
| Material | 20 ga (33 mil) |
| Finish | ZMAX Galvanized |
| Dimensions | 3 in. x 4-1/4 in. |
| Weight | 0.1 lb |
| Fasteners Required | (12) 0.131" x 1-1/2" nails |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
