Simpson Strong-Tie CS16Z (16-Gauge 150 ft) ZMAX Galvanized Coiled Strap
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CS16Z (16-Gauge 150 ft) ZMAX Galvanized Coiled S...
Key Specifications
Description
Description
Simpson CS16Z Description
The Simpson Strong-Tie CS16Z strap is a continuous utility strap designed for maximum versatility, featuring a G185 ZMAX galvanized finish for added corrosion resistance.
Simpson CS16Z Includes

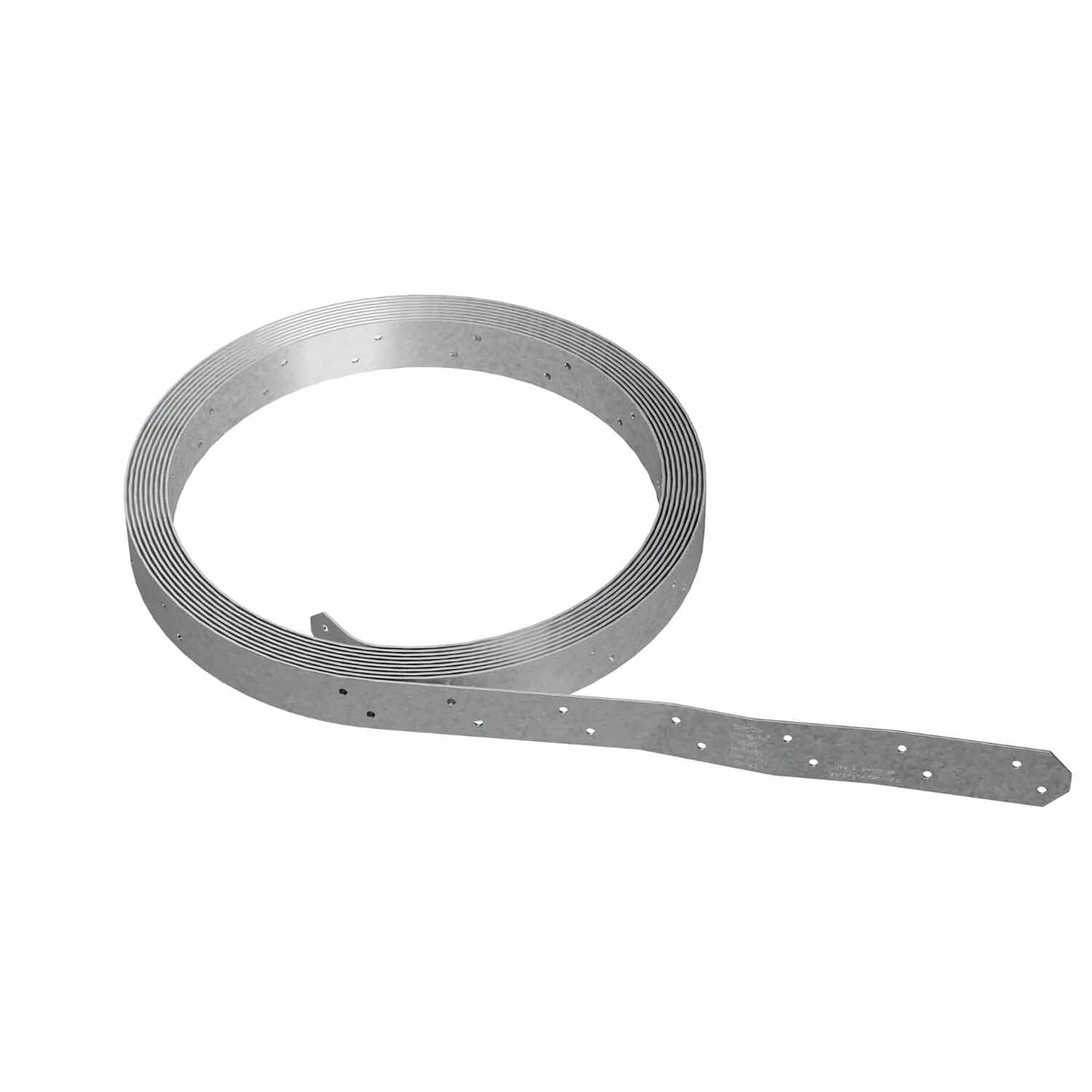

- (1) 16-Gauge ZMAX Galvanized Coiled Strap, 150 ft.
Simpson CS16Z Features
- Continuous utility strap for versatile applications
- G185 ZMAX galvanized finish for corrosion resistance
- Can be cut to length on the job site
- Lightweight carton packaging for easy handling
Simpson CS16Z Applications

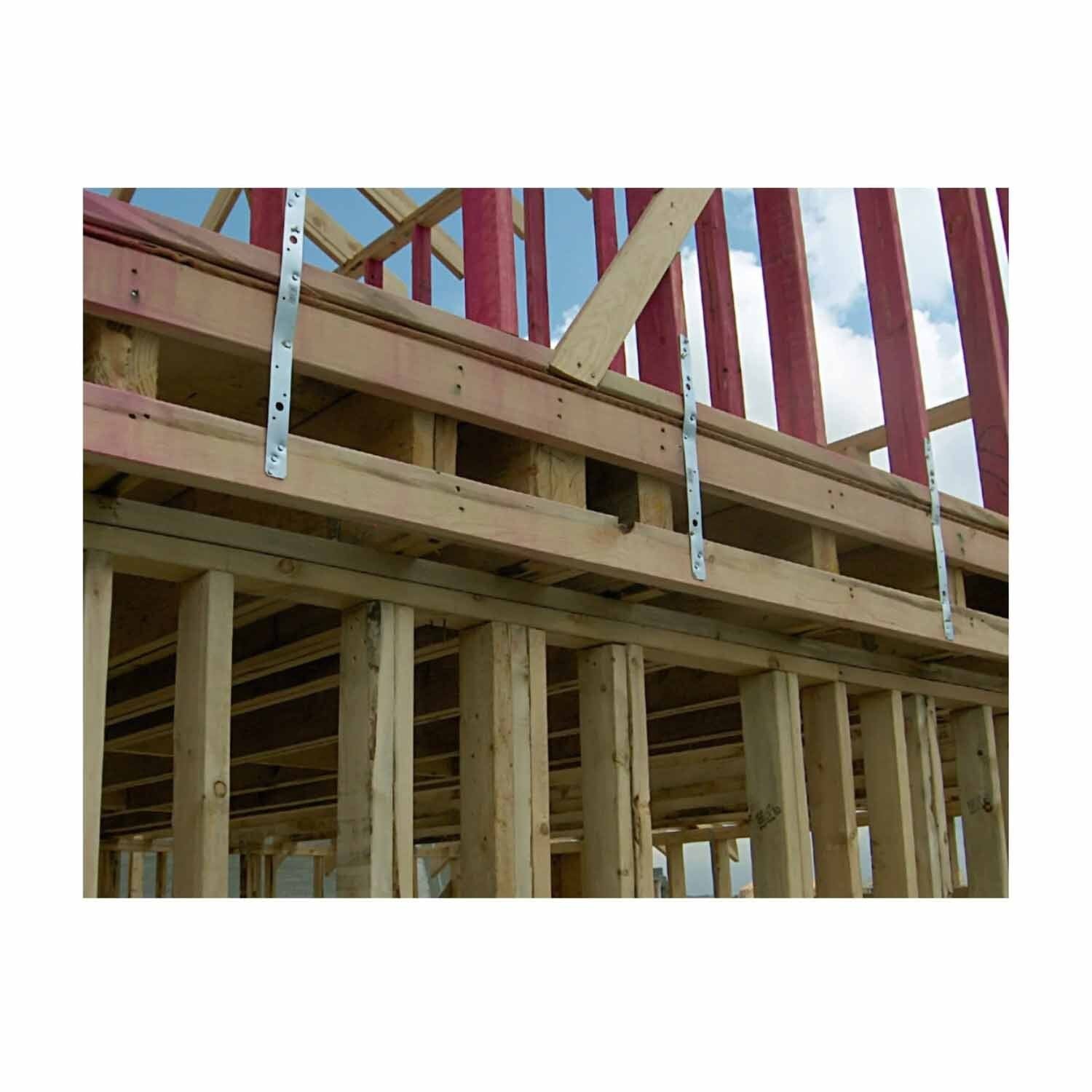

- Roof uplift resistance
- Shear wall overturning resistance
- Wood-to-wood fastening
Simpson CS16Z Installation Overview
- Use all specified fasteners
- Ensure minimum nail penetration and wood edge/end distances
- Cut strap length to twice the 'End Length' plus clear span dimension
- Account for wood shrinkage to prevent buckling

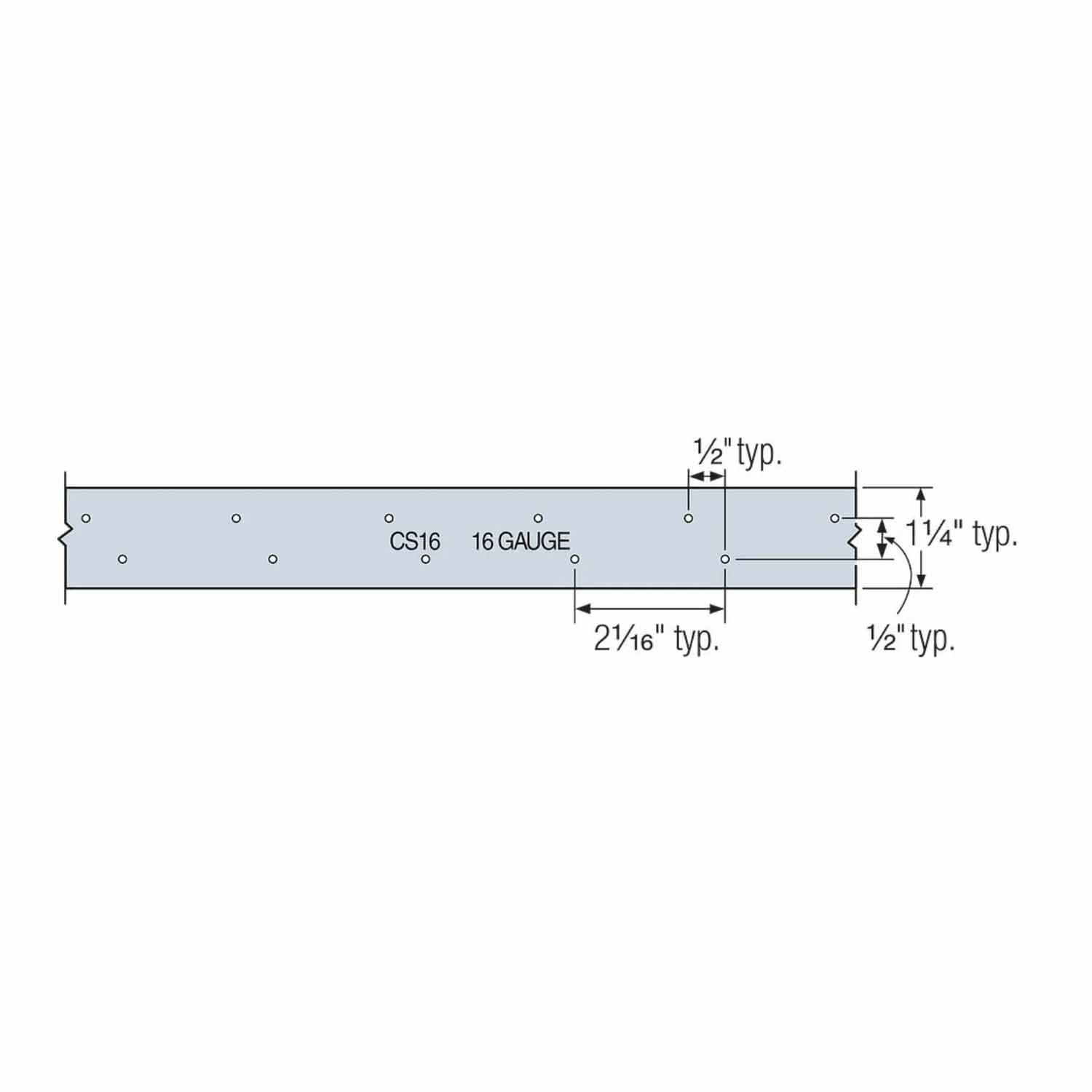

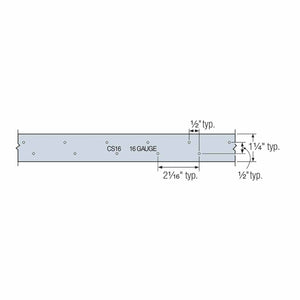

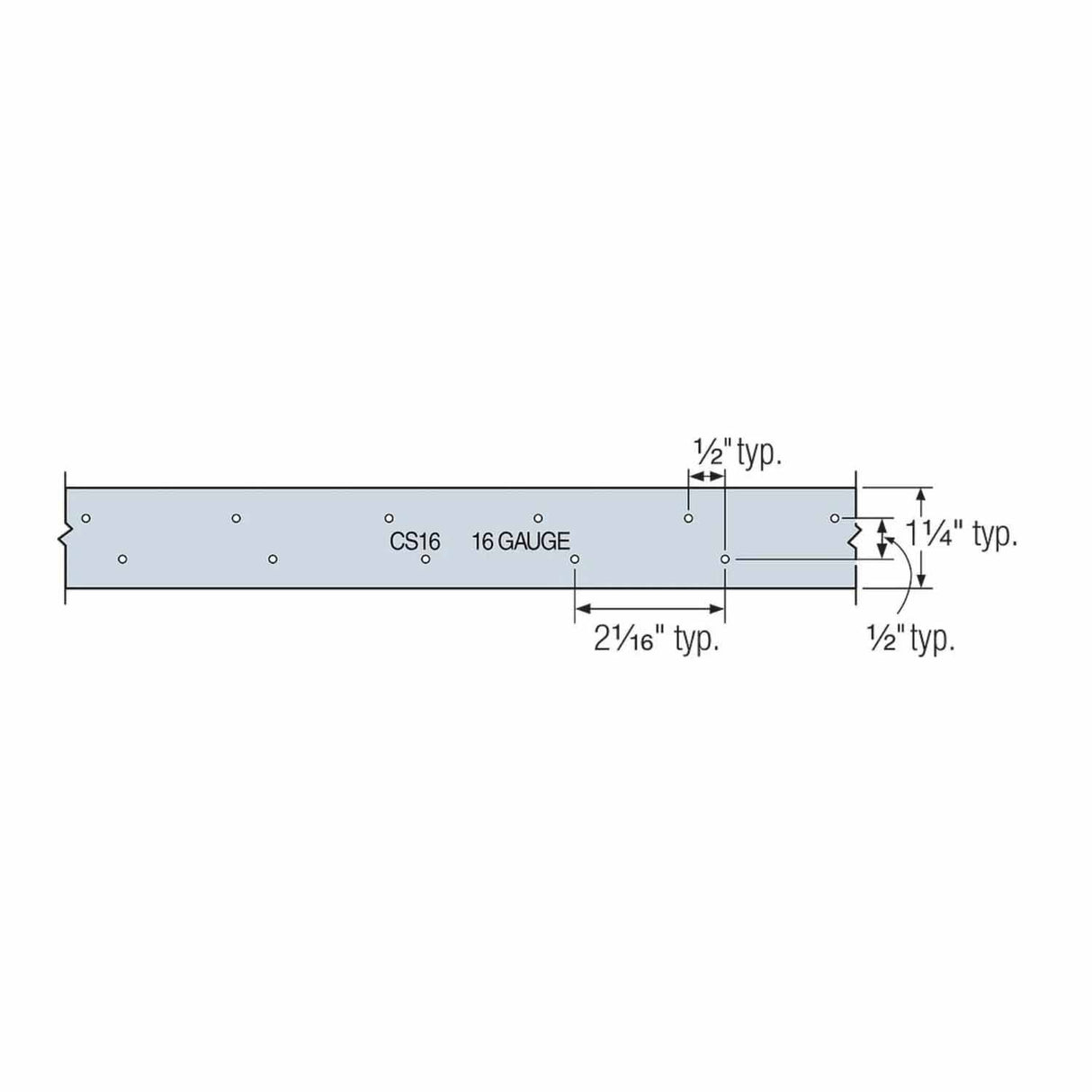

Simpson CS16Z Specifications
| Gauge | 16 |
| Width | 1 1/4" |
| Length | 150 ft. |
| Finish | G185 ZMAX Galvanized |
| Weight | 37.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
