Simpson Strong-Tie HWSC362-KT (3-7/16") Head-of-Wall Slide-Clip Connector with Screws (50 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HWSC362-KT (3-7/16") Head-of-Wall Slide-Cli...
Description
Description
Simpson Anchors HWSC362-KT Description

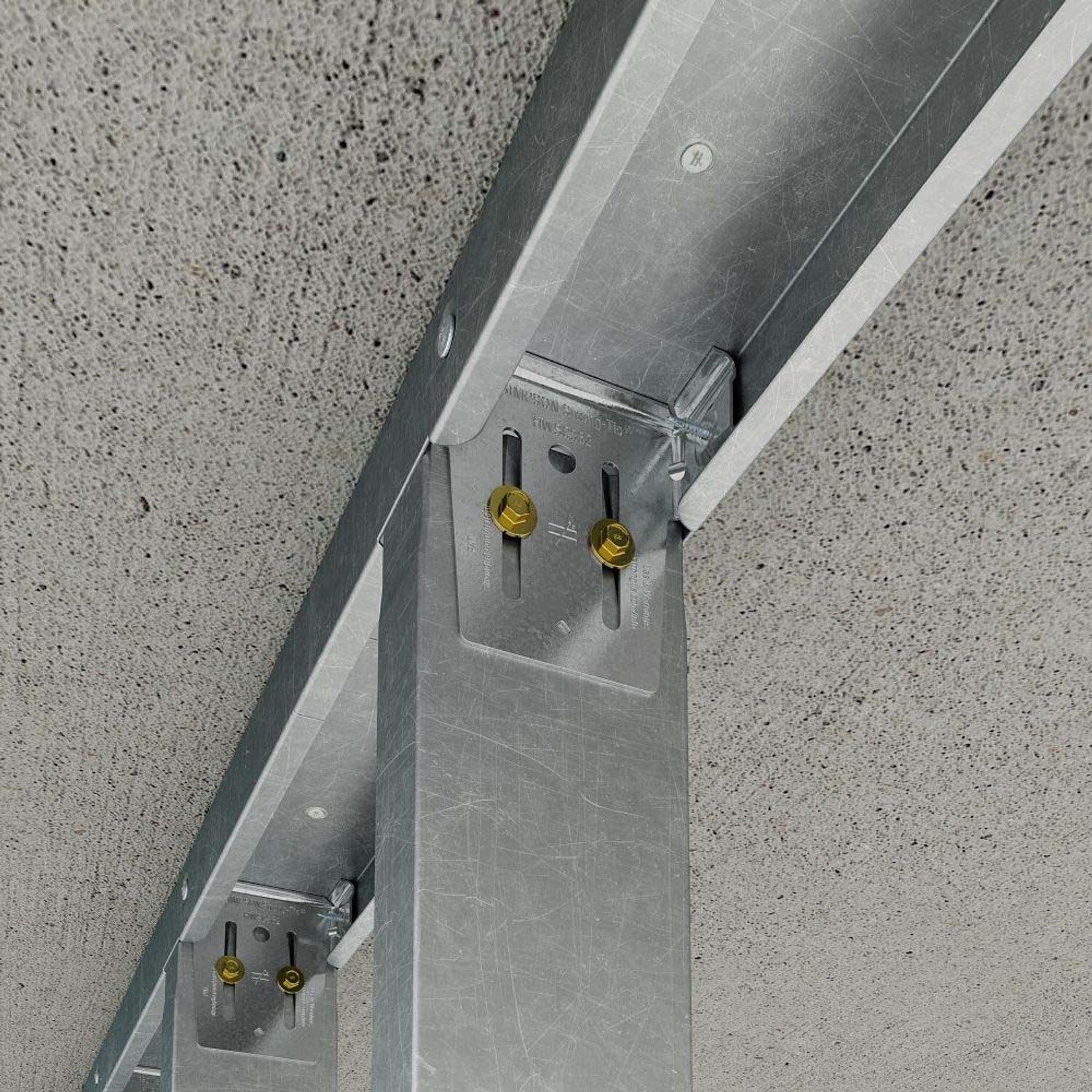

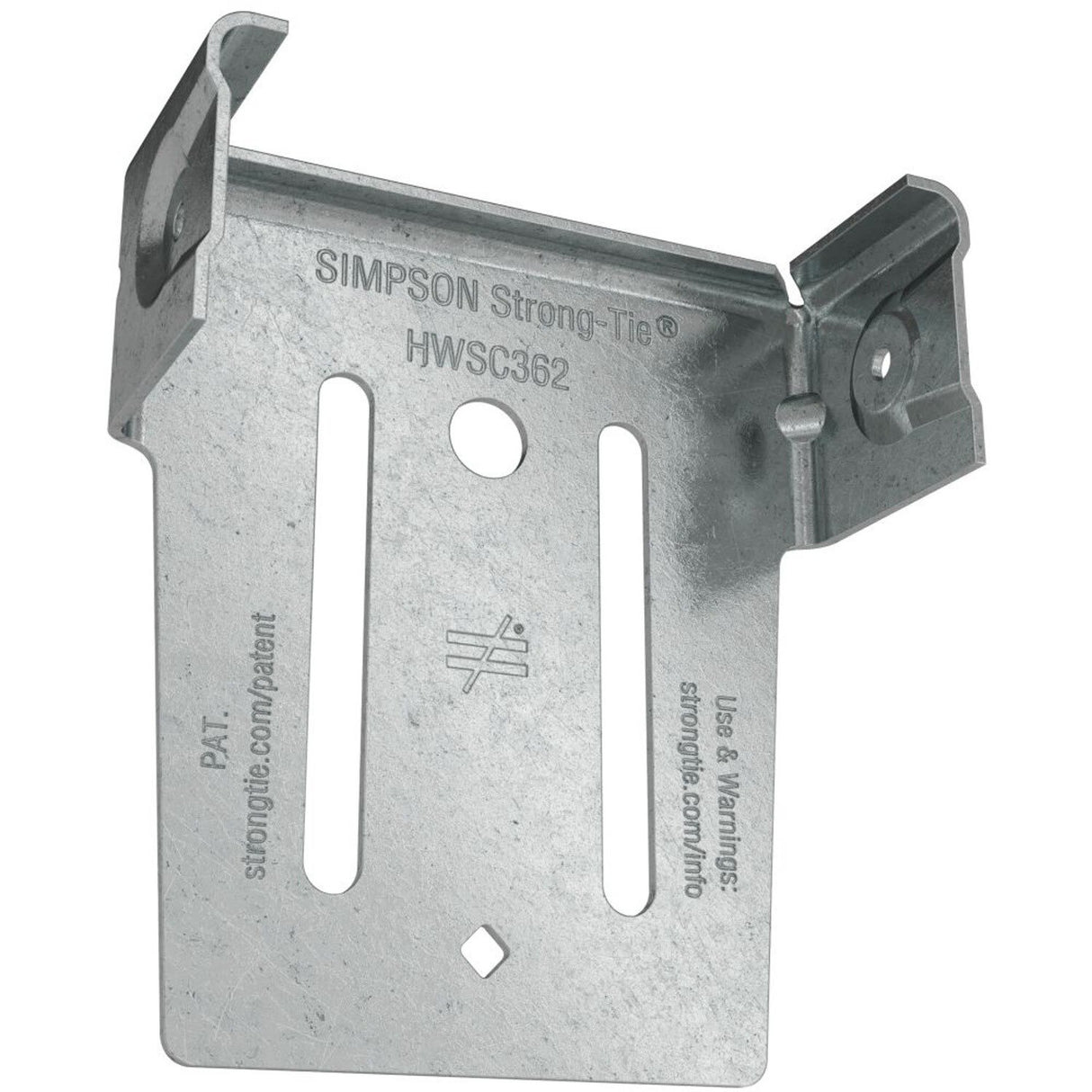

The HWSC362-KT is a head-of-wall slide-clip connector designed for curtain-wall construction, providing up to 1 inch of movement and featuring a galvanized finish for durability.
Simpson Anchors HWSC362-KT Includes
- (50) HWSC362 connectors
- (110) XLSH78B1414 #14 shouldered screws
Simpson Anchors HWSC362-KT Features
- Edge stiffener rolled into the web and flange for added strength
- Unique cone-shaped dimple for alignment and locking
- Replaces slotted track for easier panelization
- Allows up to 1 inch of movement up and down
Simpson Anchors HWSC362-KT Applications
- Curtain-wall construction for structural support
Simpson Anchors HWSC362-KT Installation Overview
- Install with (1) #10-16 screw into each track flange to each flange of clip.
- Use (2) XLSH78B1414 #14 shoulder screws (included). Install screws into the center of the slot at No-Equal logo.

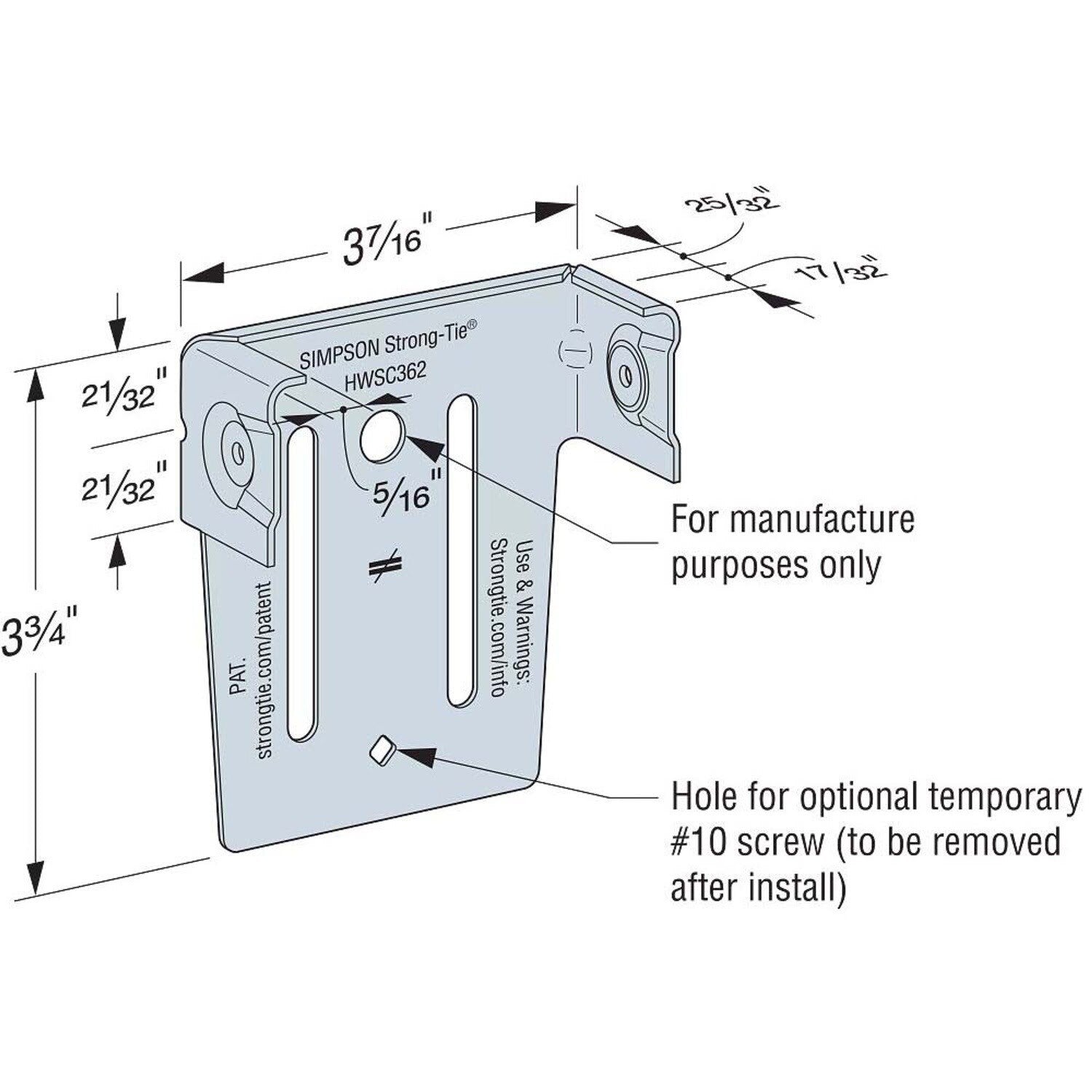

- Use an optional #10 screw to lock deflection gap during panel construction. Remove after installation is complete.
Simpson Anchors HWSC362-KT Specifications
| Material | 54 mil (16 ga.), 50 ksi |
| Finish | Galvanized (G90) |
| Packaging Quantity | 50 |
NOTE: The HWSC connector is specifically designed for use with printed studs and tracks such as FrameCAD, Arkitech, Howick and Pinnacle. Not intended for use with typical manufactured studs and tracks.
