Simpson Strong-Tie RCKW5.5S-R10 (5.5") Kneewall Connector Stiffener (10 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie RCKW5.5S-R10 (5.5") Kneewall Connector Stif...
Key Specifications
Description
Description
Simpson RCKW5.5S-R10 Description

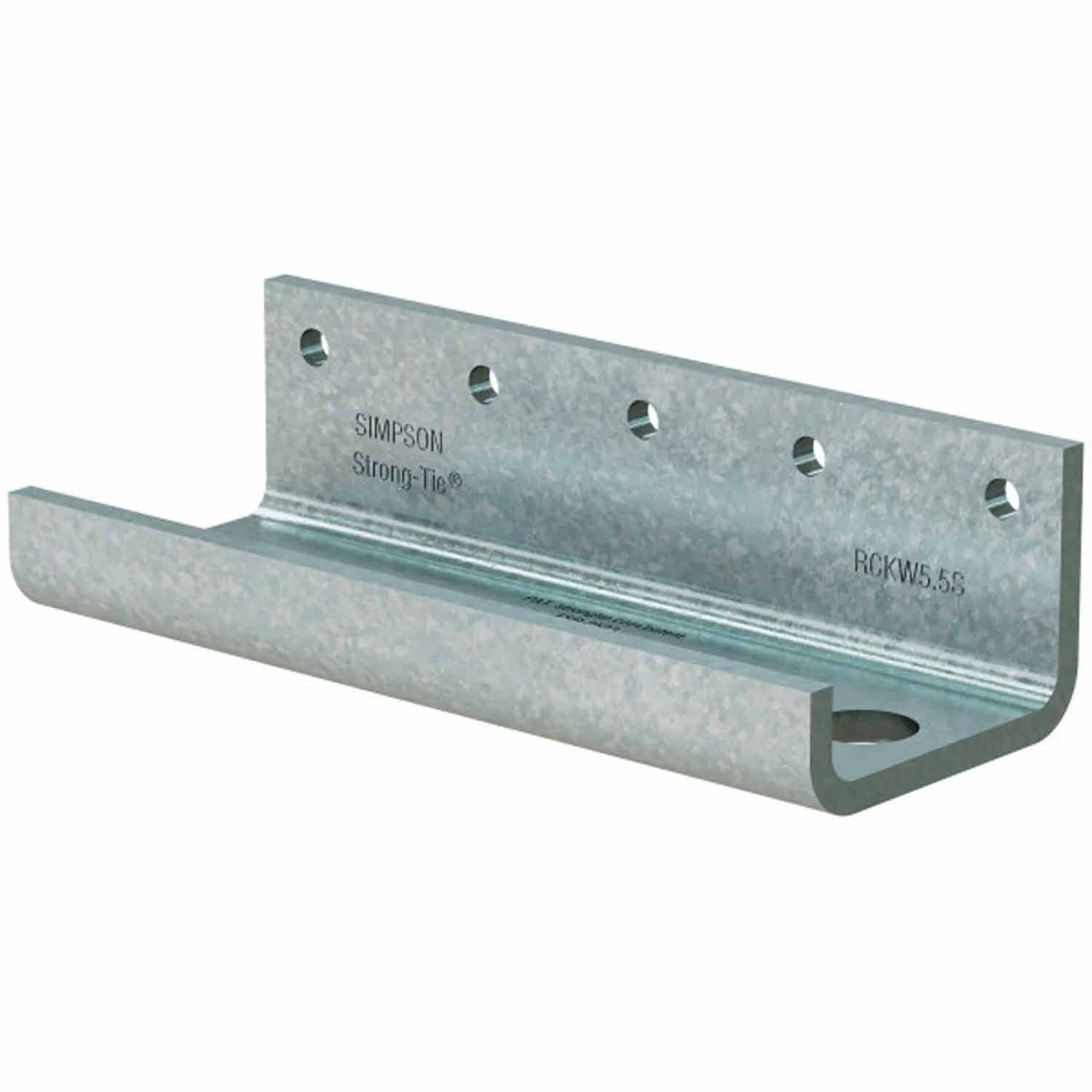

The Simpson Strong-Tie RCKW5.5S-R10 Rigid Kneewall Connector Stiffener is designed to resist overturning moments at the base of kneewalls and parapets, offering versatile anchorage options for concrete and structural steel.
Simpson RCKW5.5S-R10 Includes
- (10) Rigid Kneewall Connector Stiffener
Simpson RCKW5.5S-R10 Features
- Resists overturning moments at the base of kneewalls and parapets
- Compatible with both concrete and structural steel anchorage
- Includes large-diameter anchor holes for 1/2"-diameter concrete screws
- Features stiffened flanges for improved resistance
- Galvanized finish for durability
Simpson RCKW5.5S-R10 Applications
- Cold-Formed Steel Construction
- Exterior kneewalls and parapets
- Interior partial-height walls

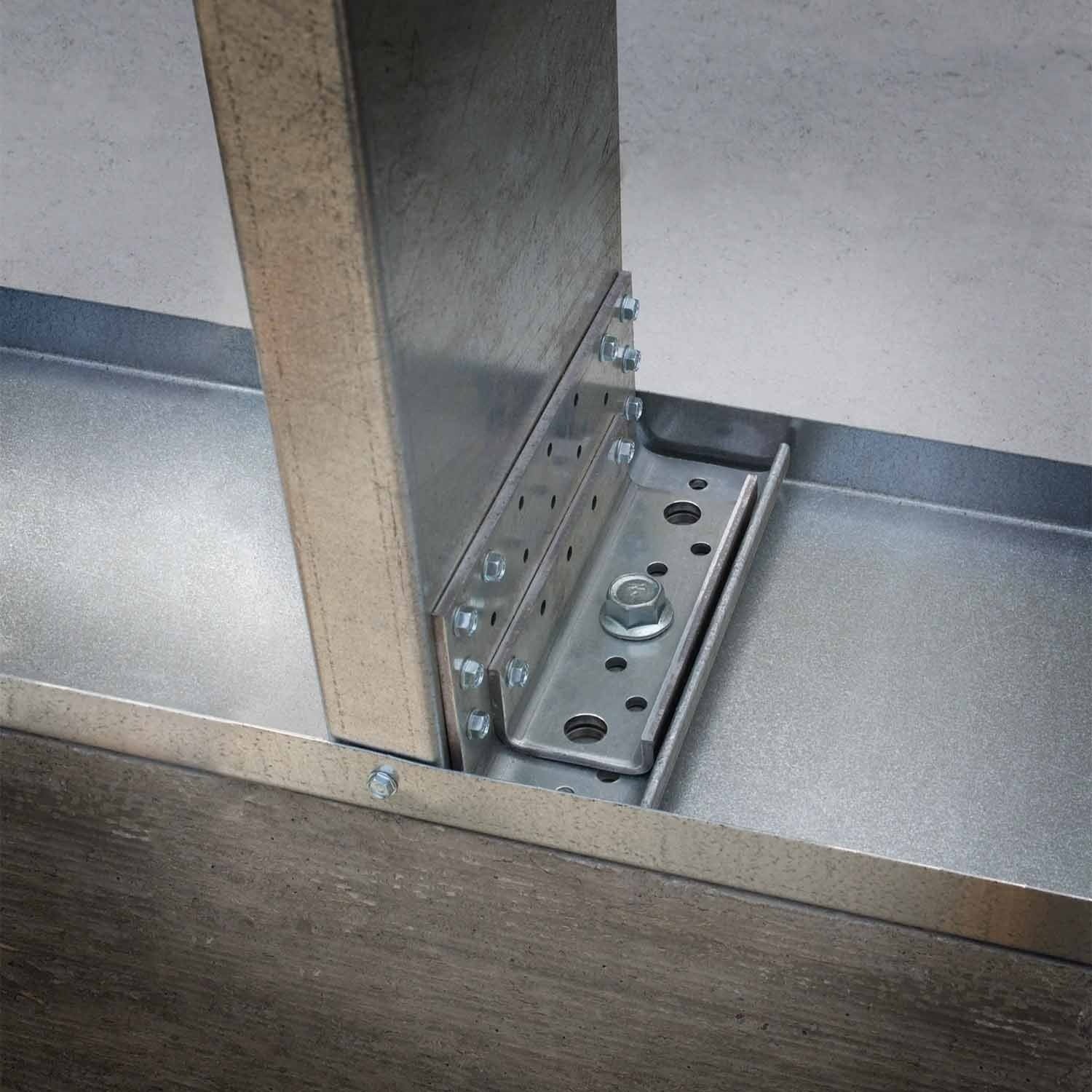

Simpson RCKW5.5S-R10 Installation Overview
- Use all specified screw fasteners to achieve tabulated load values
- Secure the stiffener to the clip with specified screws
- Ensure screws are at least 1" long with a minimum of three exposed threads
- Use specified anchors with installation torque of at least 17 ft.-lb.
- Pre-drill or punch bottom track with a 3/4"-diameter hole for 1/2"-diameter anchors
Simpson RCKW5.5S-R10 Specifications
| Material | Galvanized Steel |
| Finish | G90 Galvanized |
| Depth | 2-1/8" |
| Height | 1-1/2" |
| Width | 5-1/2" |
| Thickness | 171 mil (7 ga.) |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
