Simpson Strong-Tie RCKW7.5-R10 (7.5") Kneewall Connector Clip G90 Galvanized (10 Pack)
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie RCKW7.5-R10 (7.5") Kneewall Connector Clip ...
Key Specifications
Description
Description
Simpson RCKW7.5-R10 Description

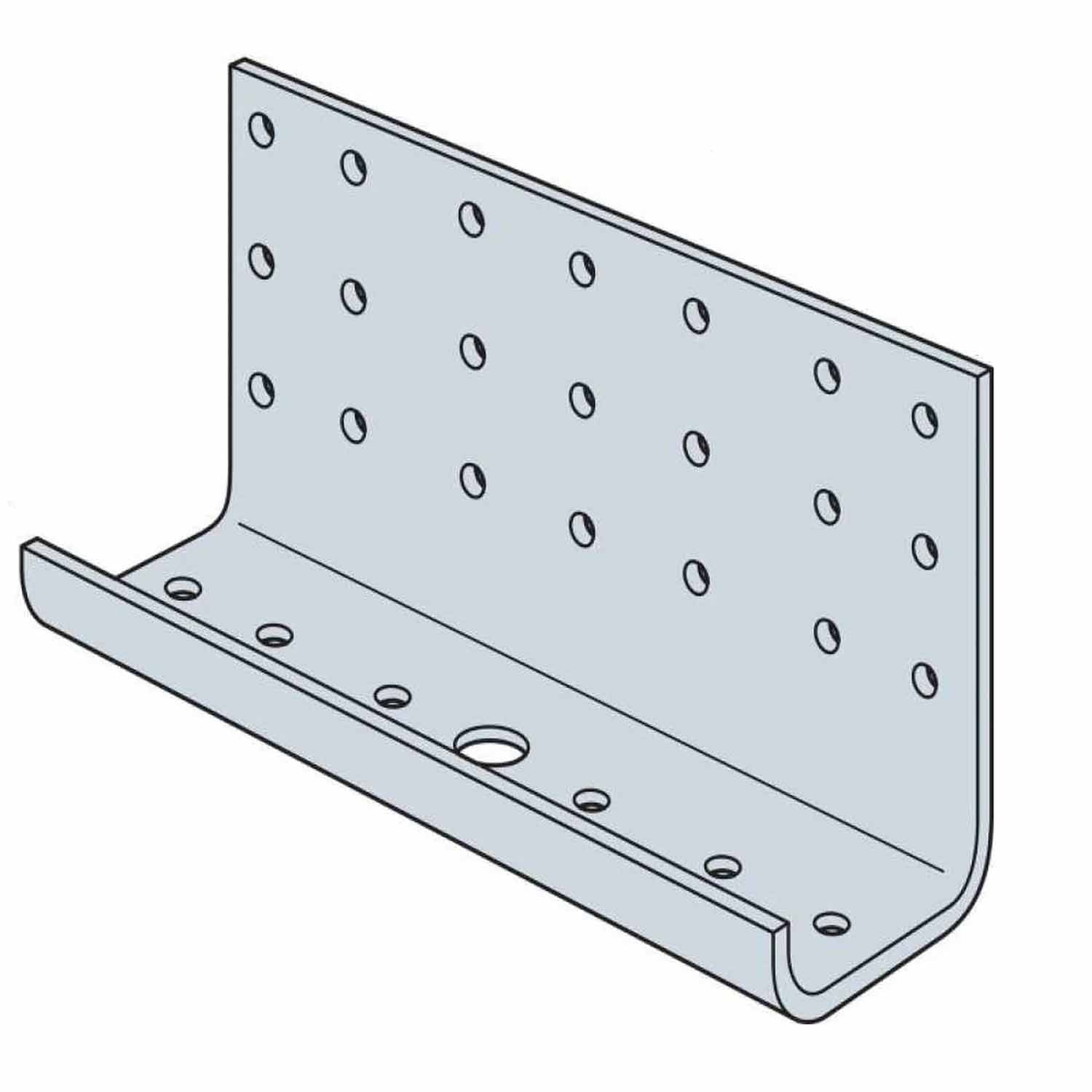

The RCKW7.5-R10 Rigid Kneewall Connector Clip is designed for cold-formed steel construction, providing reliable anchorage and resistance to overturning moments.
Simpson RCKW7.5-R10 Includes
- (10) Rigid Kneewall Connector Clip
Simpson RCKW7.5-R10 Features
- Designed for cold-formed steel construction
- Provides resistance to overturning moments
- Compatible with concrete and structural steel anchorage
- Includes large-diameter anchor holes for 1/2"-diameter concrete screws
- Galvanized finish for durability
Simpson RCKW7.5-R10 Applications
- Cold-formed steel construction
- Exterior kneewalls and parapets
- Interior partial-height walls
Simpson RCKW7.5-R10 Installation Overview
- Use all specified screw fasteners to achieve tabulated load values.
- Secure the stiffener to the clip with specified screw fasteners when using the RCKWS.
- Ensure anchors meet specified torque requirements.
- Predrill or punch bottom track with a 3/4"-diameter hole for larger anchor holes.
Simpson RCKW7.5-R10 Specifications
| Material | Galvanized Steel |
| Finish | G90 Galvanized |
| Height | 3-1/2" |
| Thickness | 171 mil (7 ga.) |
| Dimensions | 2 13/16 x 3 1/2 |
| Packaging Quantity | 10 |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
