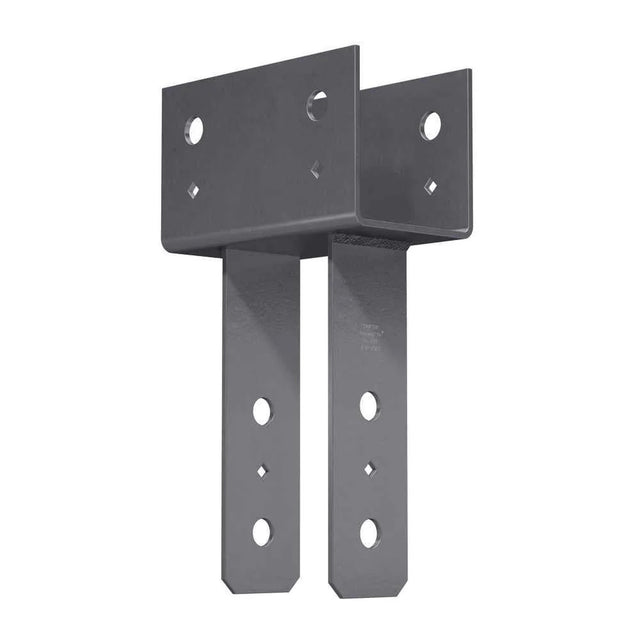

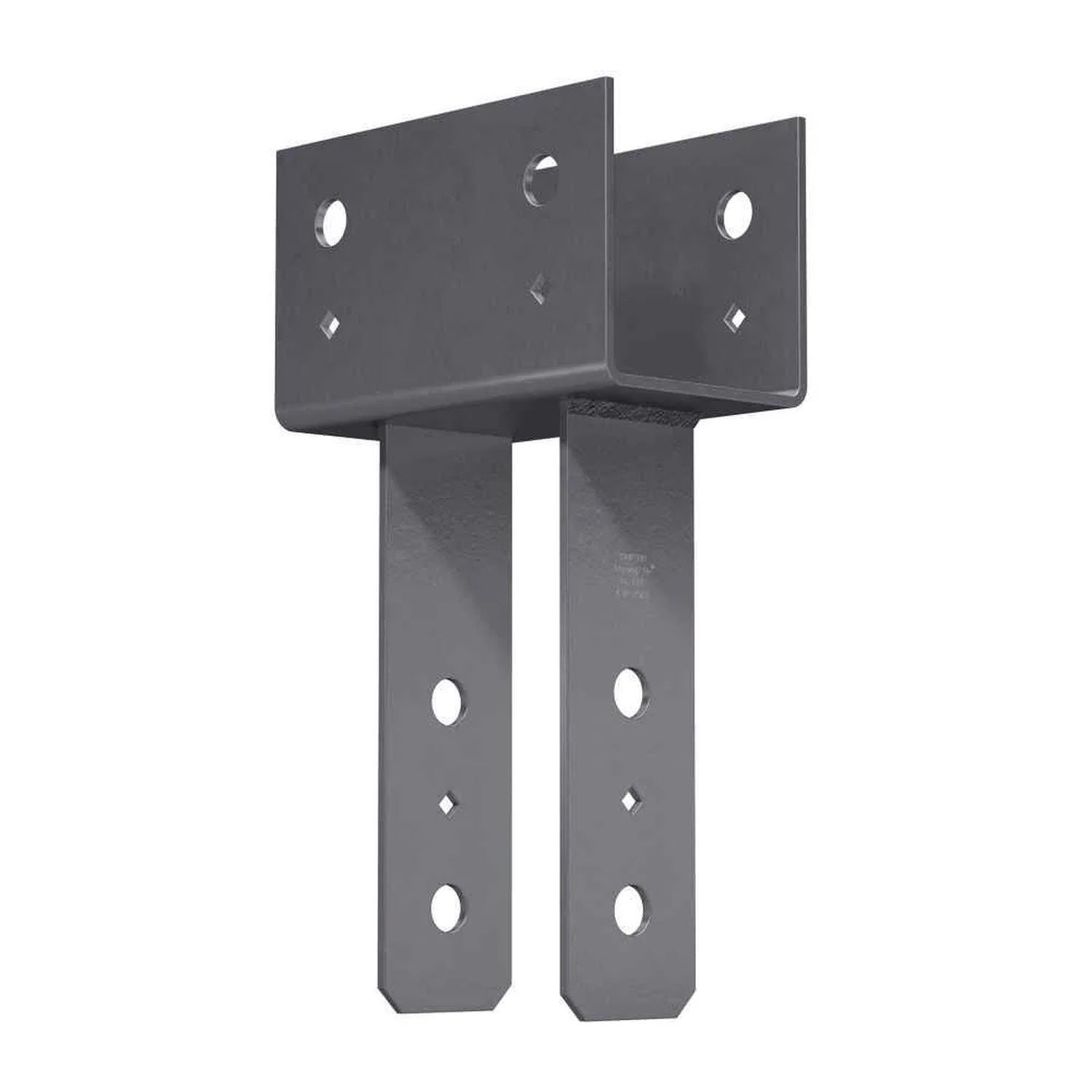

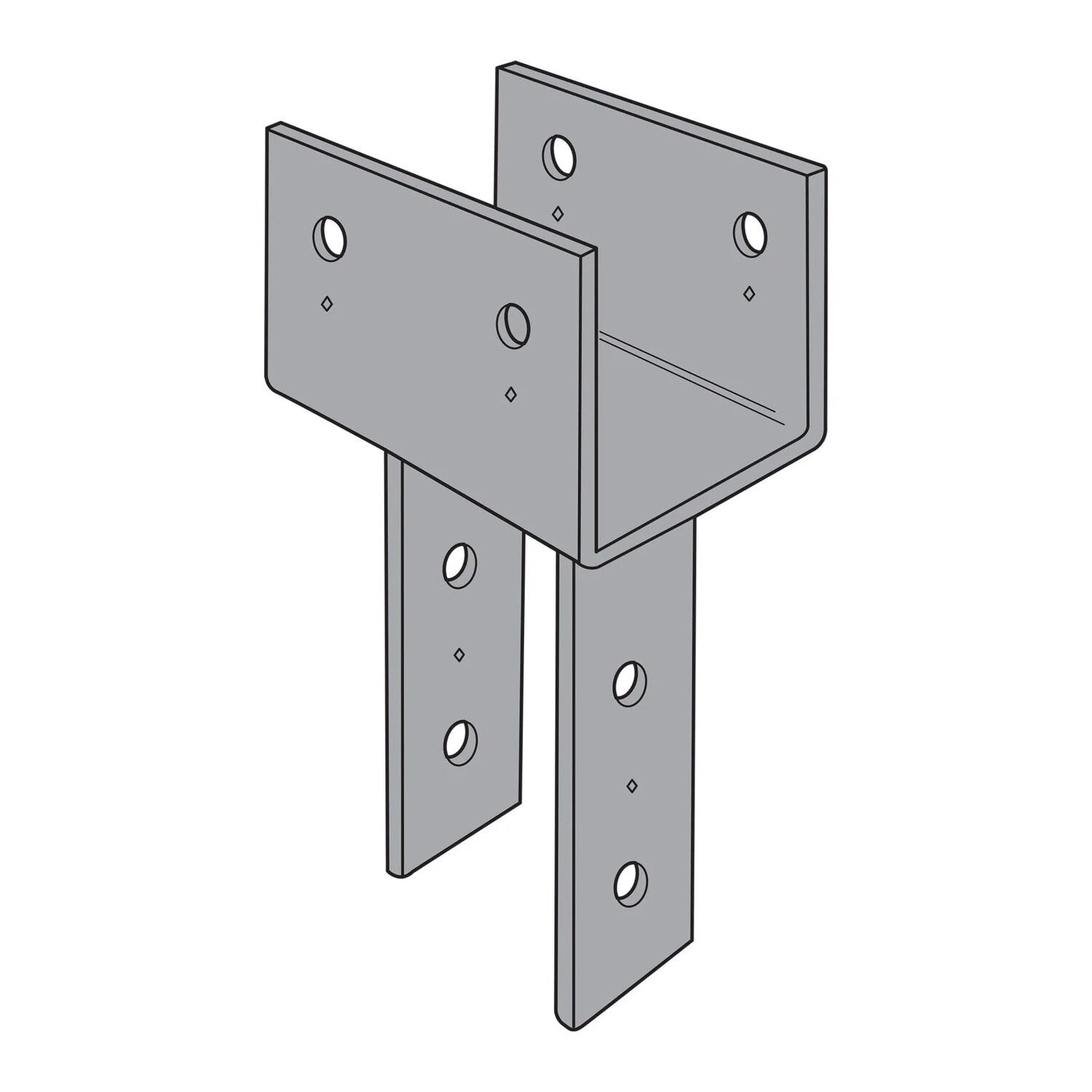

Simpson Strong-Tie CC44HDG Column Cap for 4x Beam and 4x Post
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CC44HDG Column Cap for 4x Beam and 4x Post
Key Specifications
Description
Description
Simpson Strong-Tie CC44HDG Description
The Simpson CC44HDG Column Cap enhances the strength and stability of your construction projects, providing strong column-to-beam connections in wood construction.
Simpson Strong-Tie CC44HDG Includes
- (1) Column Cap for 4x Beam and 4x Post
Simpson Strong-Tie CC44HDG Features
- Provides strong column-to-beam connection
- Extended column seat area for additional load distribution
- Made from heavy-gauge steel for durability
- Hot Dip Galvanized finish for corrosion resistance
- Certified welds for increased strength and loading
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie CC44HDG Applications
- Column-to-beam connections in wood construction
- Use with 4x posts or columns
- Suitable for earthquake or wind loading scenarios

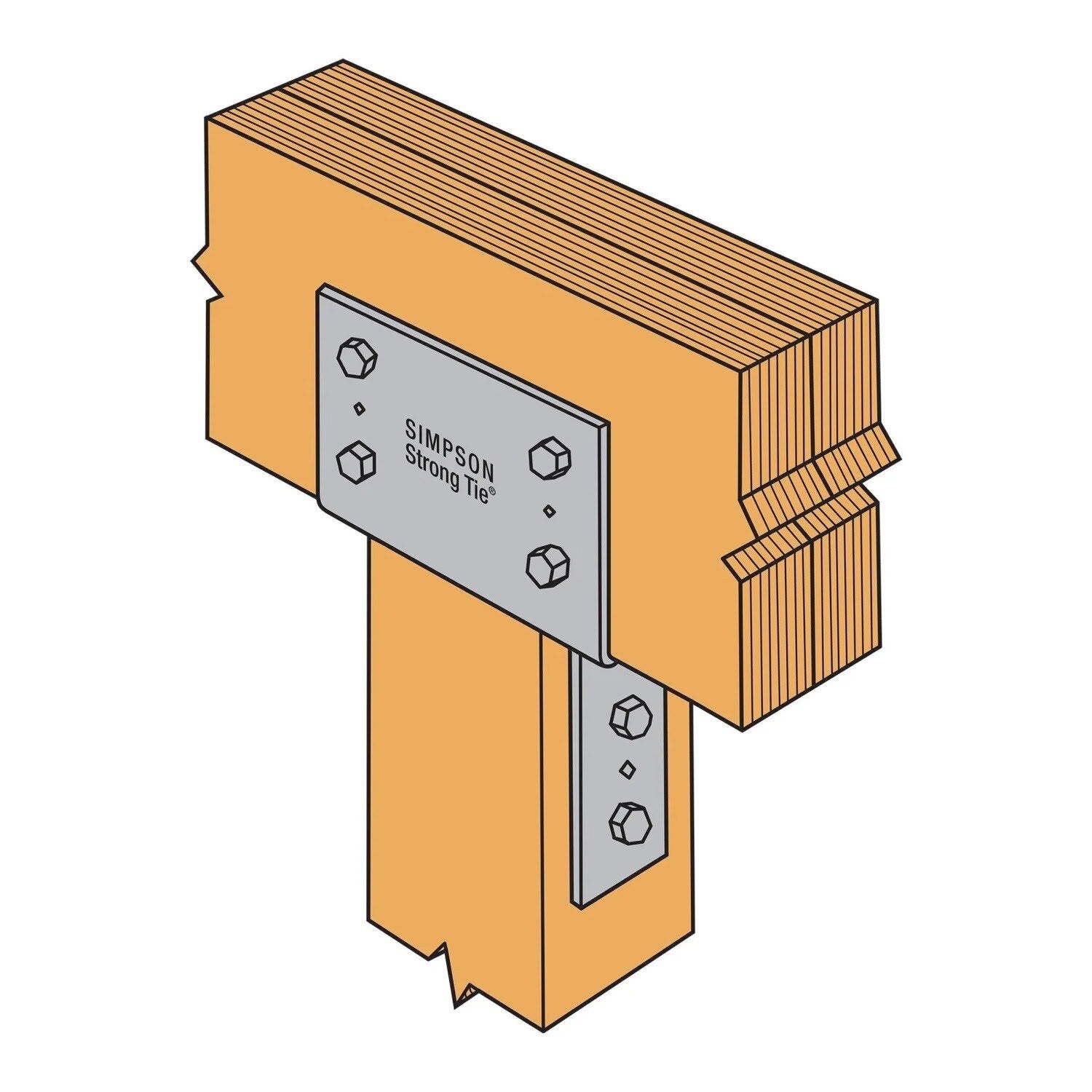

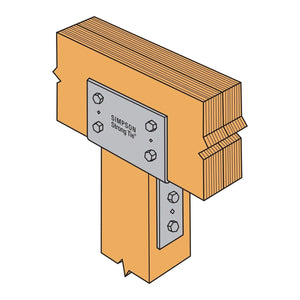

Simpson Strong-Tie CC44HDG Installation Overview
- Align the column cap with the beam and post.
- Secure temporarily using the diamond holes.
- Fasten using (2) 5/8" machine bolts for the beam and (2) 5/8" machine bolts for the post.
- Ensure bolt spacing meets NDS code requirements.
Simpson Strong-Tie CC44HDG Specifications
| Finish | Hot Dip Galvanized |
| Material | Heavy Gauge Steel |
| Beam size | 4x |
| Fasteners required | Beam - (2) 5/8" Machine Bolts, Post - (2) 5/8" Machine Bolts |
| For Treated Lumber | Yes |
| Post size | 4x |
| Thickness | 7 Gauge |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
