Simpson Strong-Tie CC7 1/8-4 Heavy-Gauge Steel Column Cap for 7" Beam to 4x Post Connection
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie CC7 1/8-4 Heavy-Gauge Steel Column Cap for 7&quo...
Key Specifications
Description
Description
Simpson Strong-Tie CC7 1/8-4 Description

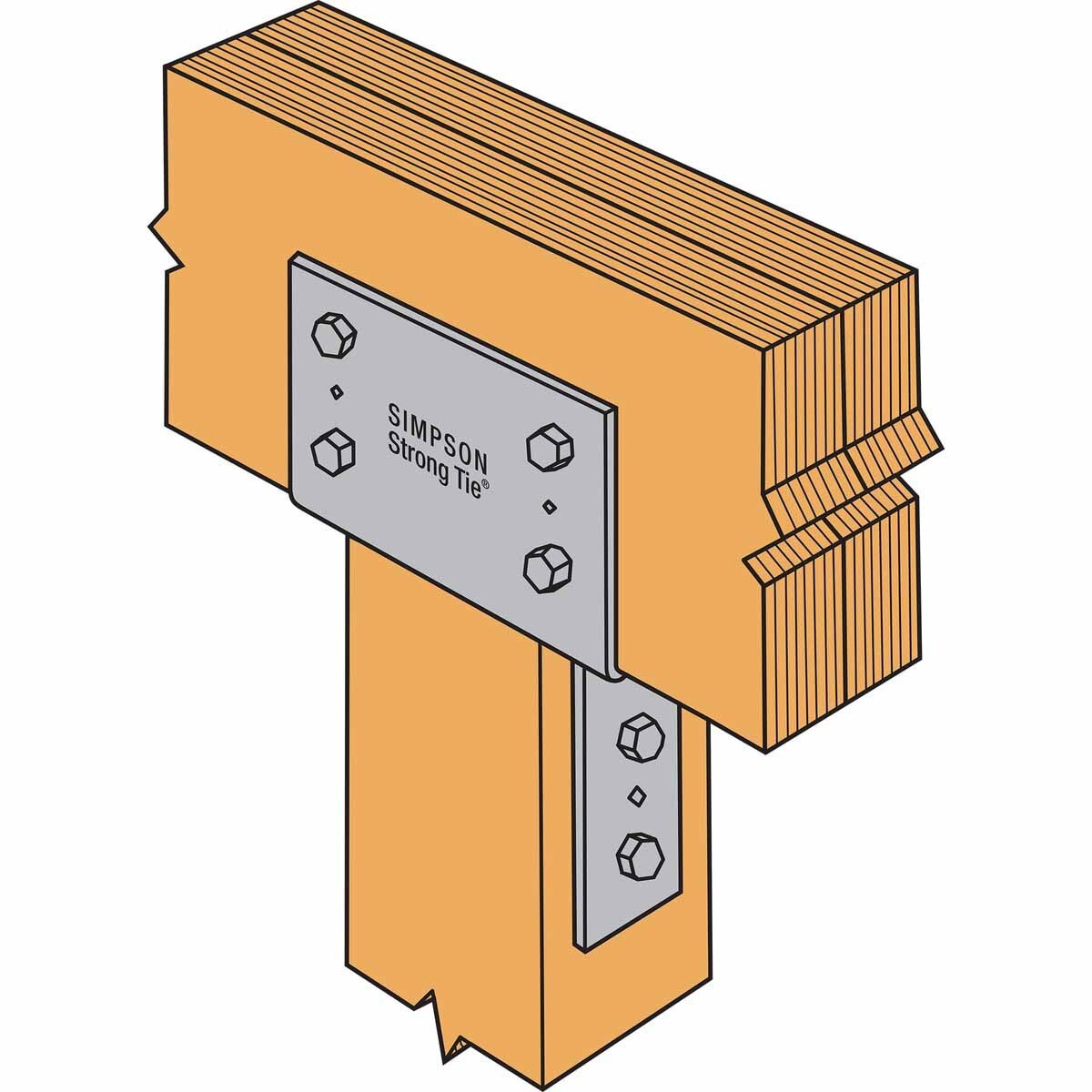

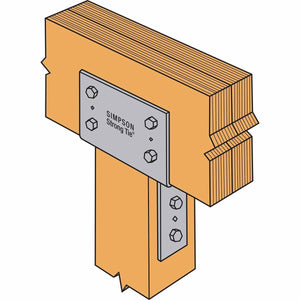

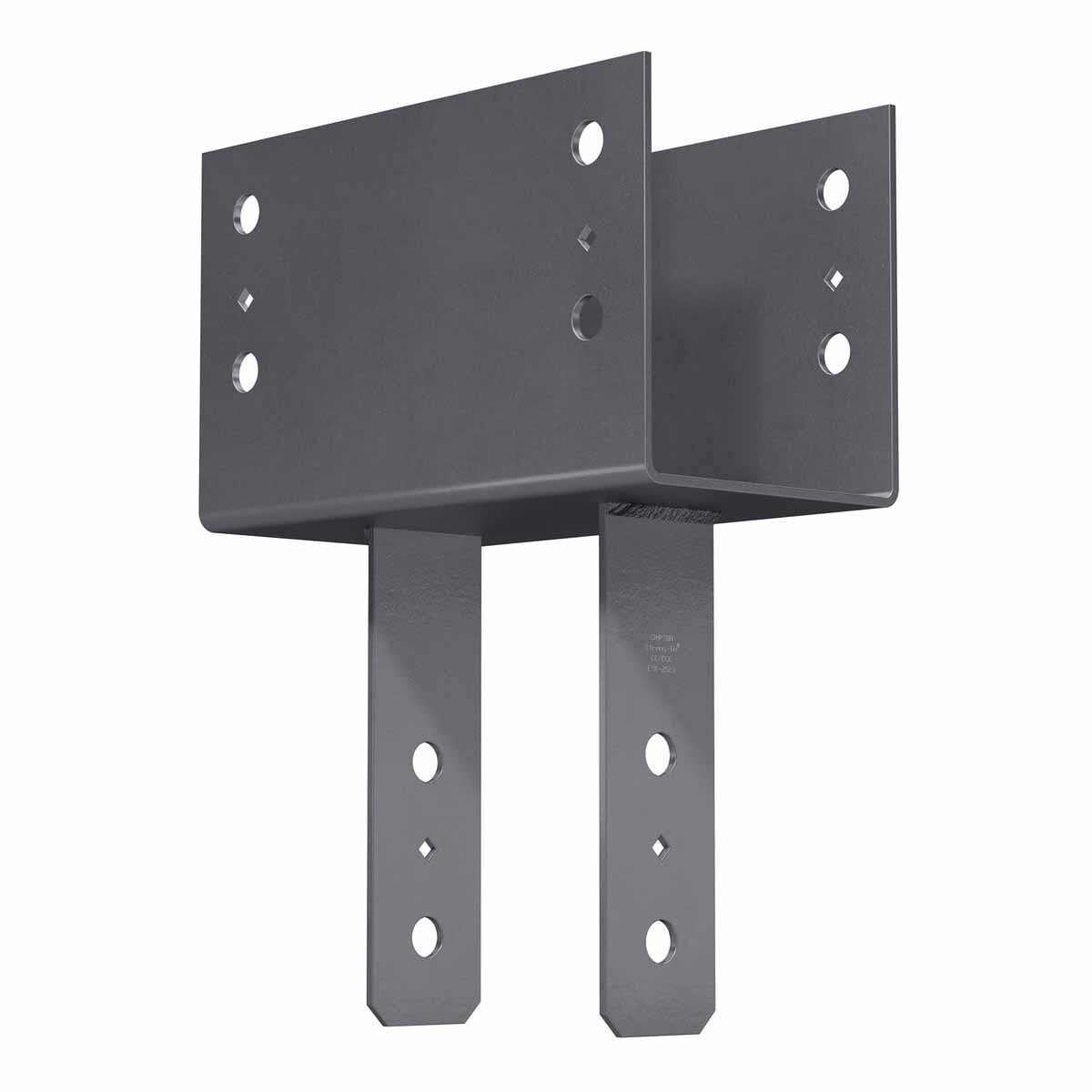

The Simpson CC7 1/8-4 Column Cap enhances the strength and stability of your construction projects, providing durable column-to-beam connections in wood construction.
Simpson Strong-Tie CC7 1/8-4 Includes
- (1) Strong-Tie Heavy-Gauge Steel Column Cap for 7" Beam to 4x Post Connection
Simpson Strong-Tie CC7 1/8-4 Features
- Certified welds for confidence in strength and loading
- Uplift loads increased for earthquake or wind loading
- Bolt spacing that meets NDS code requirements to ensure optimal performance
- Diamond holes to provide temporary fastening
Simpson Strong-Tie CC7 1/8-4 Applications
- Wood construction requiring column-to-beam connections
- Projects needing enhanced load distribution and stability
Simpson Strong-Tie CC7 1/8-4 Installation Overview
- Use all specified fasteners; see General Notes
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter
- Bolt holes should be drilled from one side all the way through the beam to maintain hole tolerances
- Contact engineered wood manufacturers for connections that are not through the wide face
Simpson Strong-Tie CC7 1/8-4 Specifications
| Finish | Gray Paint |
| Material | Heavy Gauge Steel |
| Beam size | 7x |
| Fasteners required | Beam - (4) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
