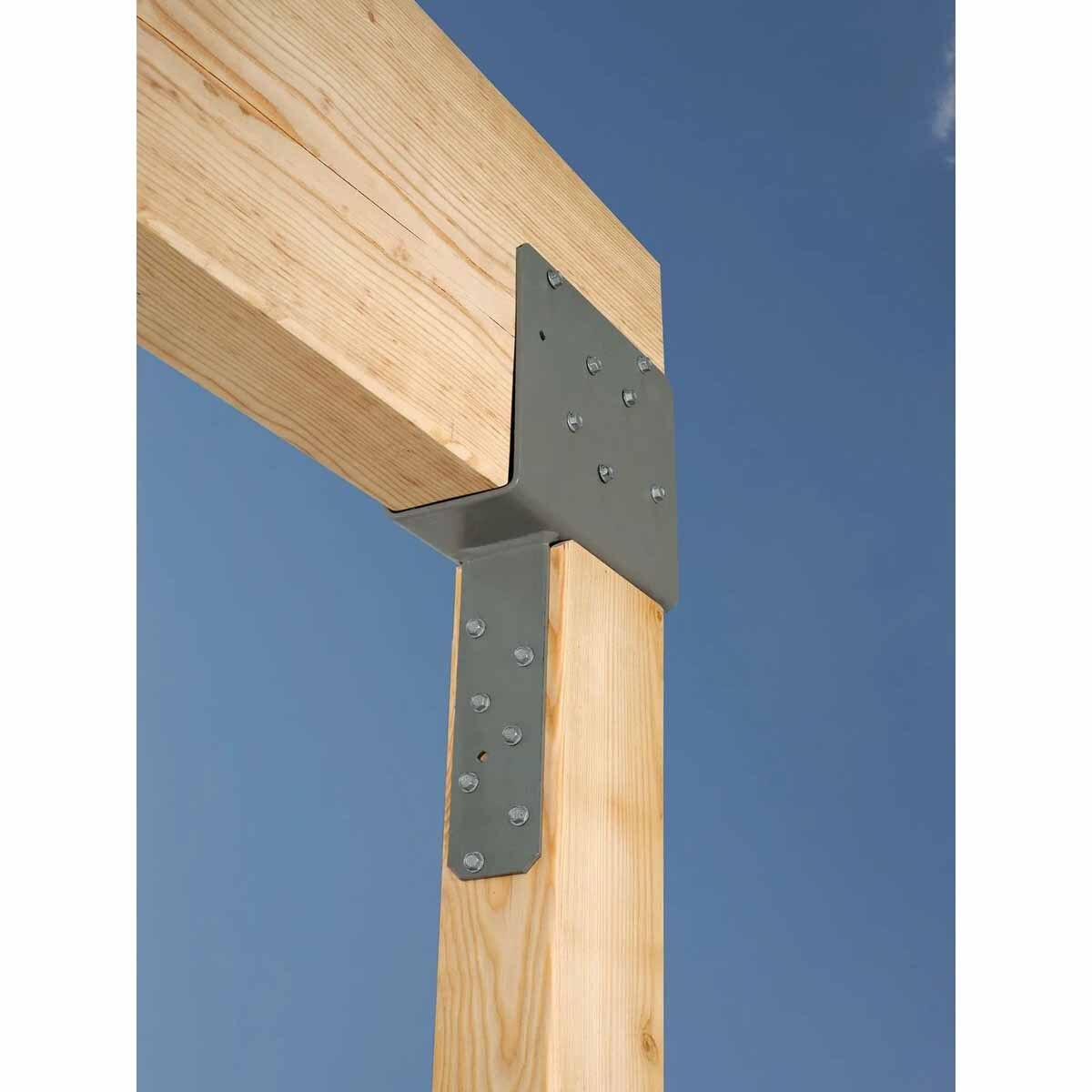

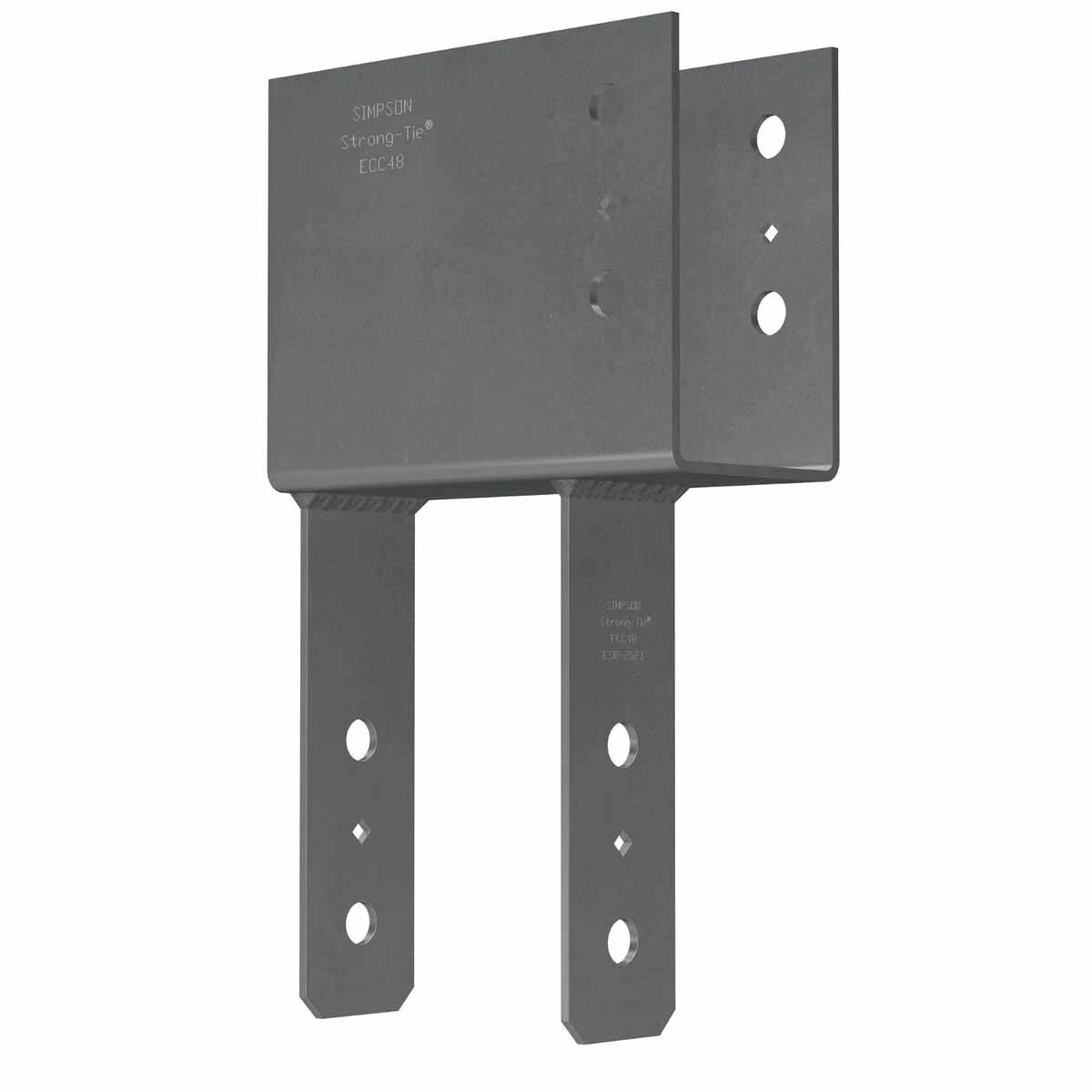

Simpson Strong-Tie ECC5 1/4-4 End Column Cap for 5-1/8" Beam to 4x Post Connection
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC5 1/4-4 End Column Cap for 5-1/8" Beam t...
Key Specifications
Description
Description
Simpson Strong-Tie ECC5 1/4-4 Description
The Simpson ECC5 1/4-4 End Column Cap enhances the strength and stability of your construction projects, providing reliable column-to-beam connections for wood construction.
Simpson Strong-Tie ECC5 1/4-4 Includes
- (2) 3/4" Machine Bolts for Beam
- (2) 3/4" Machine Bolts for Post
Simpson Strong-Tie ECC5 1/4-4 Features
- Provides strong end-of-beam connection for column-to-beams.
- Extended area of the column seat offers additional surface area of bearing to distribute the load.
- Intended for use with 5-1/8x beams and 4x posts/columns.
- Made from Steel for durability and finished with Gray Paint coating.
- Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
- Features diamond holes for temporary fastening during installation.
- Bolt spacing meets NDS code requirements.
Simpson Strong-Tie ECC5 1/4-4 Applications
- Column-to-beam connections in wood construction.
- End-of-beam applications requiring enhanced support.
- Projects requiring increased uplift loads for earthquake or wind loading.

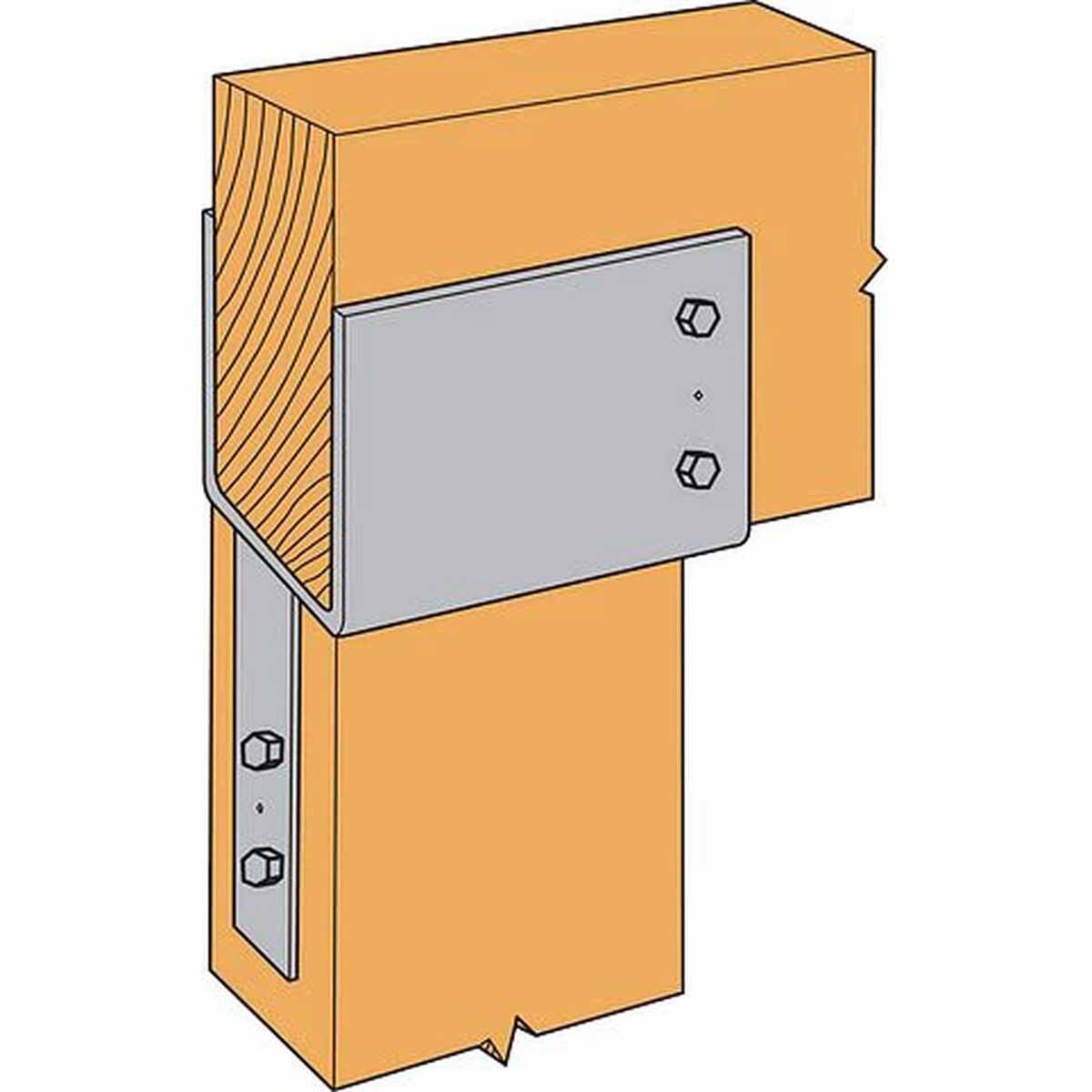

Simpson Strong-Tie ECC5 1/4-4 Installation Overview
- Align the column cap with the beam and post.
- Secure temporarily using diamond holes.
- Fasten using specified machine bolts for beam and post connections.
- Ensure bolt spacing meets NDS code requirements.
- Verify the stability and alignment of the connection.
Simpson Strong-Tie ECC5 1/4-4 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 5-1/8x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Manufacturer name | Simpson Strong-Tie |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
