Simpson Strong-Tie ECC68 End Column Cap for 6x Beam to 8x Post Connection
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC68 End Column Cap for 6x Beam to 8x Post Conn...
Key Specifications
Description
Description
Simpson Strong-Tie ECC68 Description

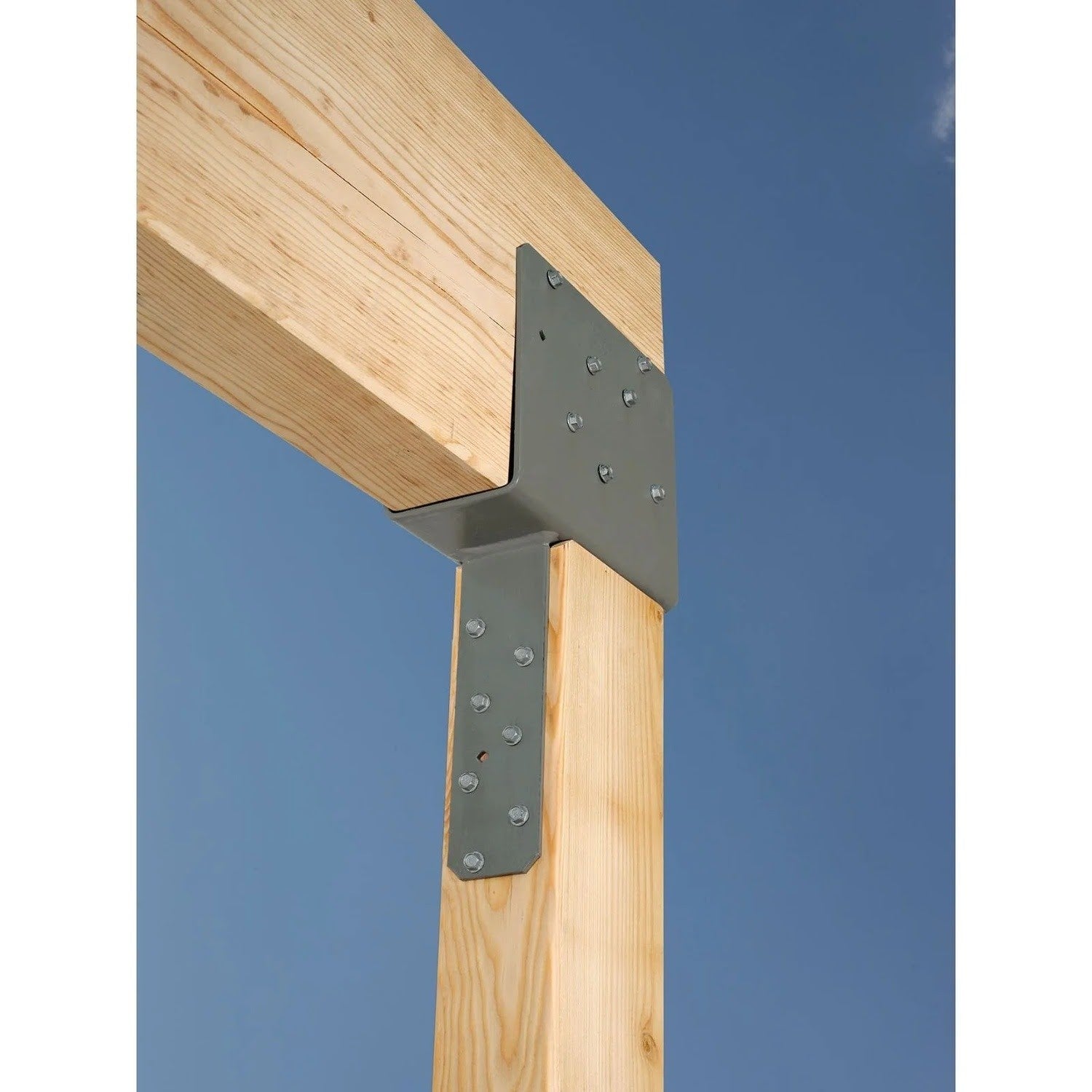

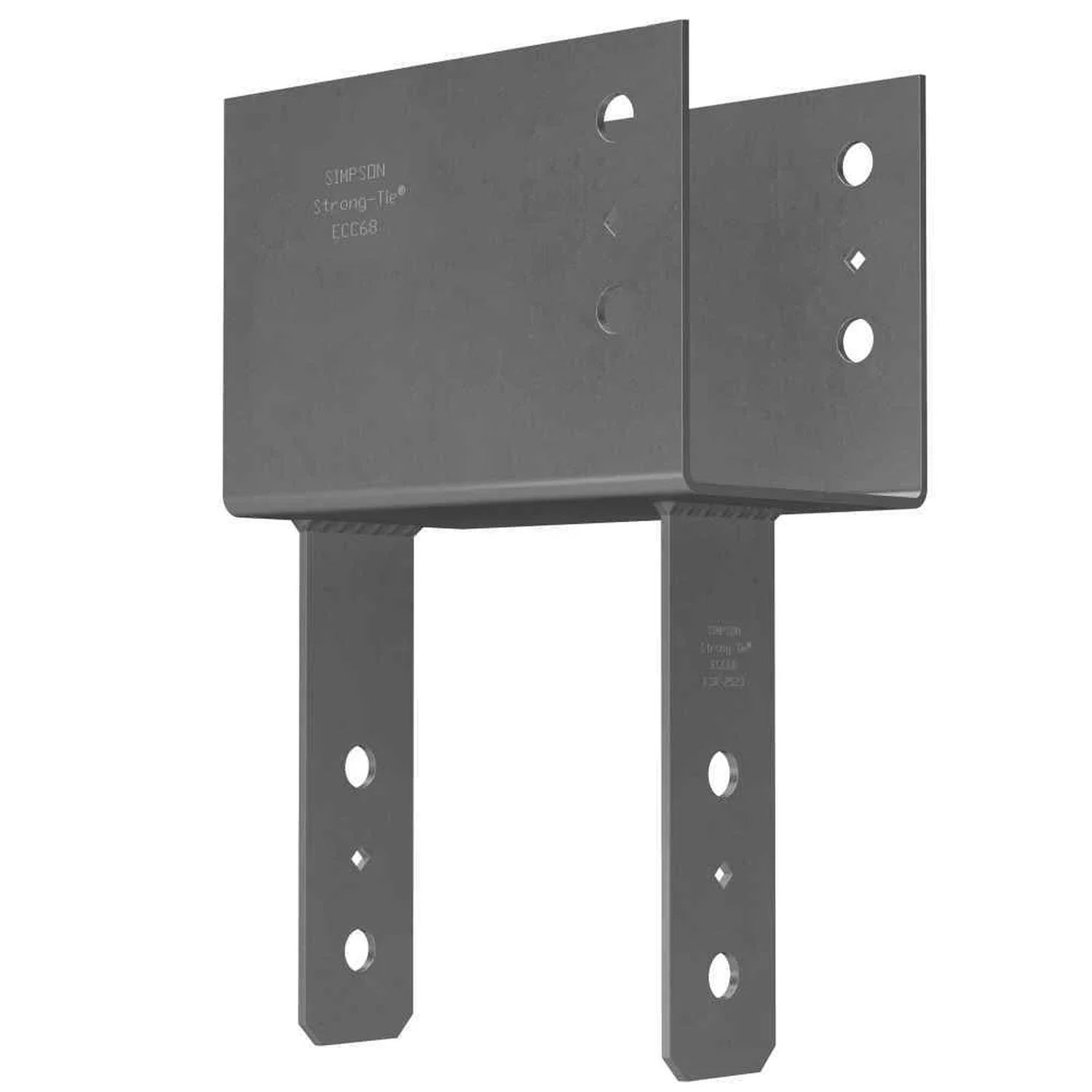

The Simpson ECC68 End Column Cap enhances the strength and stability of your construction projects, designed for 6x beams and 8x posts.
Simpson Strong-Tie ECC68 Includes
- (1) End Column Cap
Simpson Strong-Tie ECC68 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC68 Applications
- Wood construction projects requiring column-to-beam connections
- End-of-beam applications for enhanced structural support
Simpson Strong-Tie ECC68 Installation Overview
- Align the column cap with the beam and post
- Secure using the specified fasteners
- Ensure proper alignment and secure fastening
Simpson Strong-Tie ECC68 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 6x |
| Post size | 8x |
| Thickness | 7 Gauge |
| Fasteners required | Beam - (2) 5/8" Machine Bolts; Post - (2) 5/8" Machine Bolts |
NOTE: This item is made to order and is non-returnable.
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
