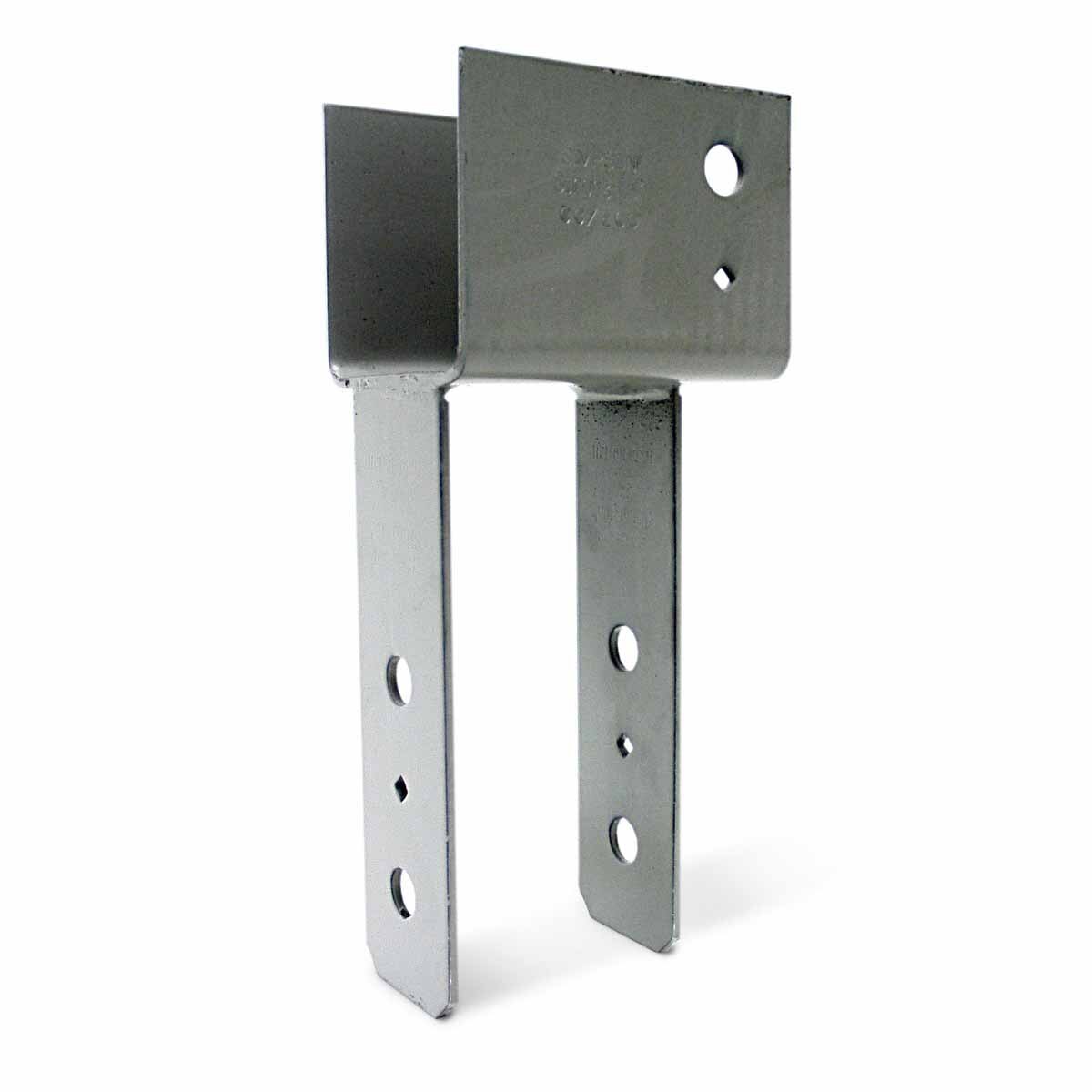

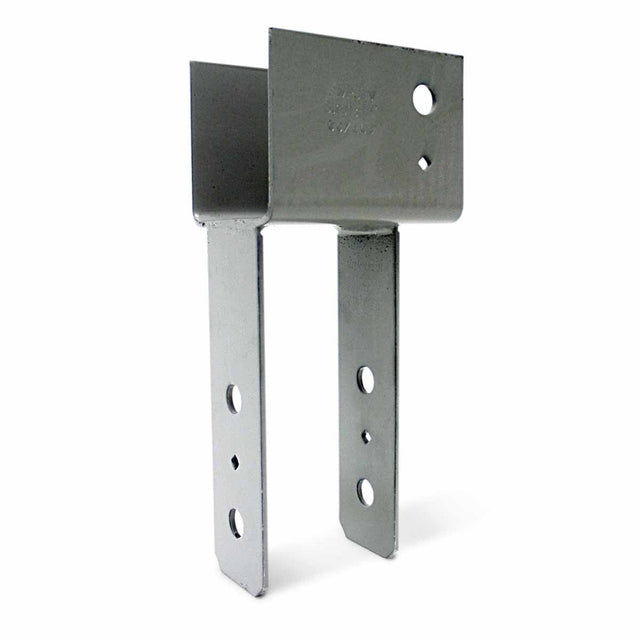

Simpson Strong-Tie ECC7 1/8-4 End Column Cap for 7x Beam to 4x Post Connection, Gray Paint
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECC7 1/8-4 End Column Cap for 7x Beam to 4x Post...
Key Specifications
Description
Description
Simpson Strong-Tie ECC7 1/8-4 Description
The Simpson ECC7 1/8-4 End Column Cap enhances the strength and stability of your construction projects, providing a durable and reliable column-to-beam connection.
Simpson Strong-Tie ECC7 1/8-4 Includes
- (2) 3/4" Machine Bolts for Beam
- (2) 3/4" Machine Bolts for Post
Simpson Strong-Tie ECC7 1/8-4 Features
- Provides strong end-of-beam connection for column-to-beams
- Extended area of the column seat offers additional surface area of bearing to distribute the load
- Made from Steel for durability
- Finished with Gray Paint coating
- Certified welds for strength and loading
- Increased uplift loads for earthquake or wind loading
- Features diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECC7 1/8-4 Applications
- End-of-beam applications for wood construction
- Column-to-beam connections in structural projects
- Use with 7x beams and 4x posts/columns

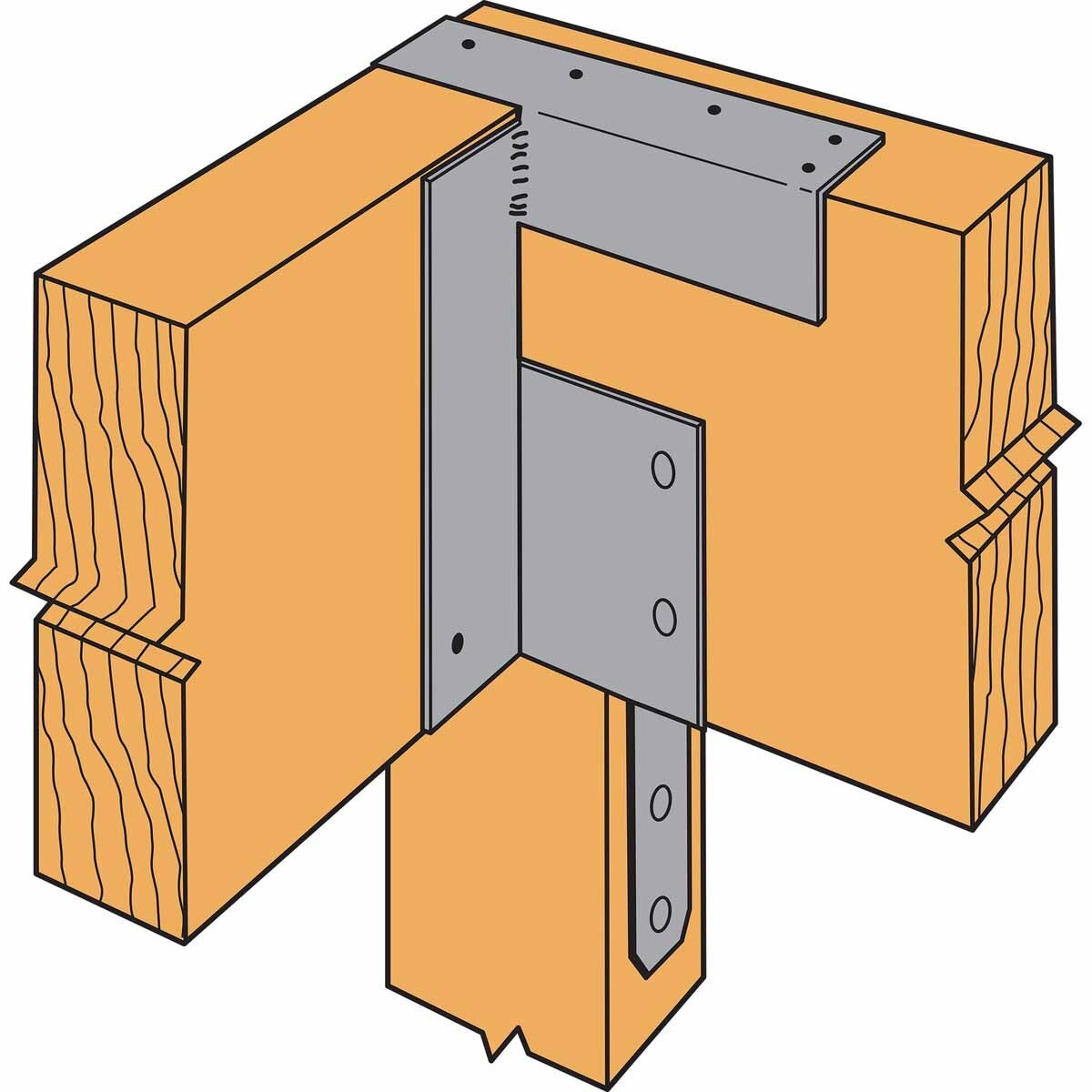

Simpson Strong-Tie ECC7 1/8-4 Installation Overview
- Align the column cap with the beam and post
- Secure temporarily using the diamond holes
- Fasten using the specified bolts for beam and post connections
- Ensure bolt spacing complies with NDS code requirements
Simpson Strong-Tie ECC7 1/8-4 Specifications
| Finish | Gray Paint |
| Material | Steel |
| Beam size | 7x |
| Fasteners required | Beam - (2) 3/4" Machine Bolts, Post - (2) 3/4" Machine Bolts |
| For Treated Lumber | No |
| Post size | 4x |
| Thickness | 3 Gauge |
NOTE: This item is made to order and is non-returnable.
