Simpson Strong-Tie ECCO7 1/8 End Column Cap 3 Gauge for 7-1/8" Beams
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ECCO7 1/8 End Column Cap 3 Gauge for 7-1/8"...
Key Specifications
Description
Description
Simpson Strong-Tie ECCO7 1/8 Description

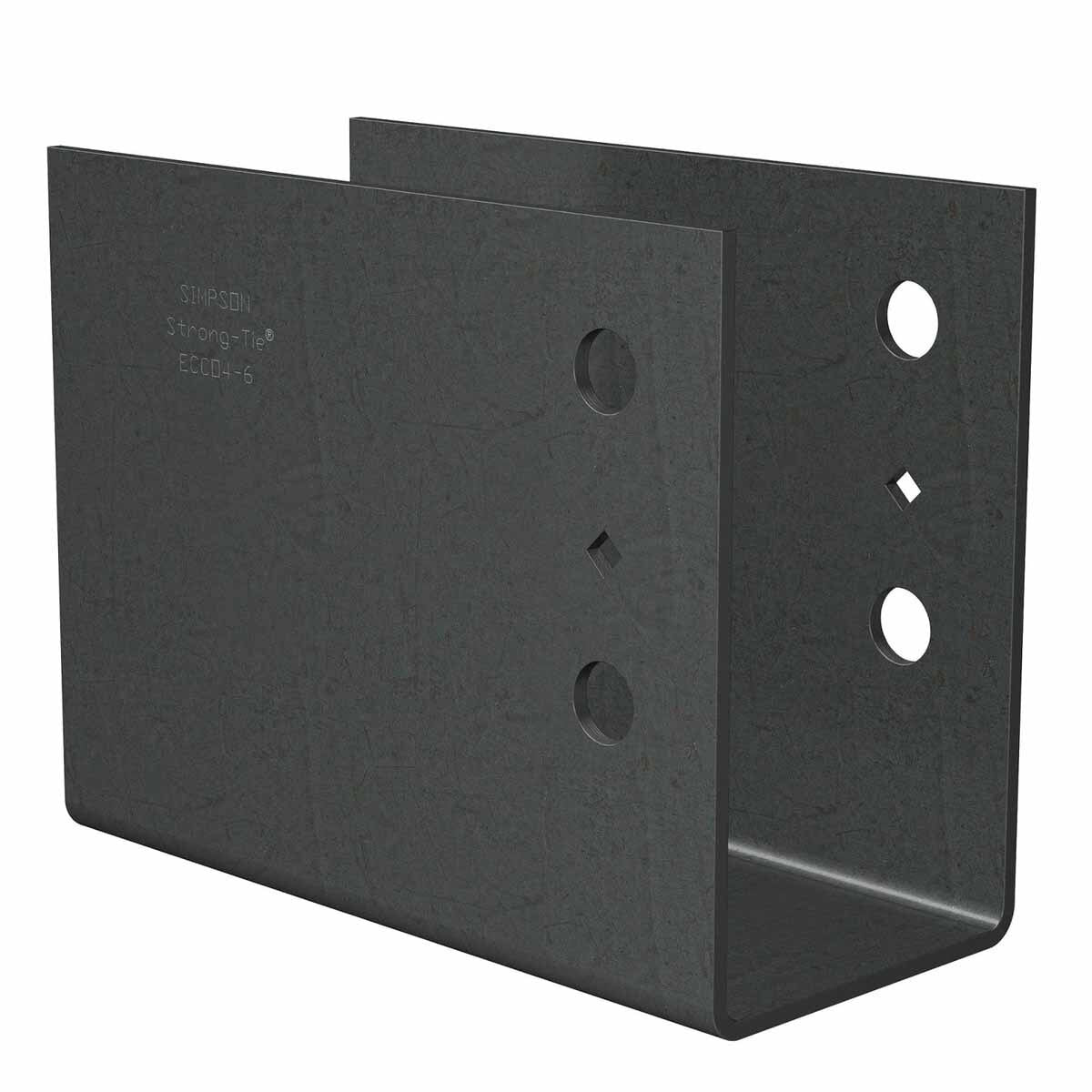

The Simpson ECCO7 1/8 End Column Cap is a durable steel connector designed for strong column-to-beam connections in wood construction, featuring a strapless design for field welding and enhanced load distribution.
Simpson Strong-Tie ECCO7 1/8 Includes
- (1) Simpson ECCO7 1/8 End Column Cap
Simpson Strong-Tie ECCO7 1/8 Features
- Provides strong column-to-beam connection
- Strapless design for field welding to steel columns
- Made from durable steel with a gray paint finish
- Extended surface area for enhanced load distribution
- Diamond holes for temporary fastening during installation
- Bolt spacing meets NDS code requirements
Simpson Strong-Tie ECCO7 1/8 Applications
- Column-to-beam connections in wood construction
- Field welding to steel columns
Simpson Strong-Tie ECCO7 1/8 Installation Overview
- Position the column cap on the column and beam as per the design.
- Use diamond holes for temporary fastening during installation.
- Ensure bolt spacing meets NDS code requirements.
- Secure the connection by welding or using specified fasteners.

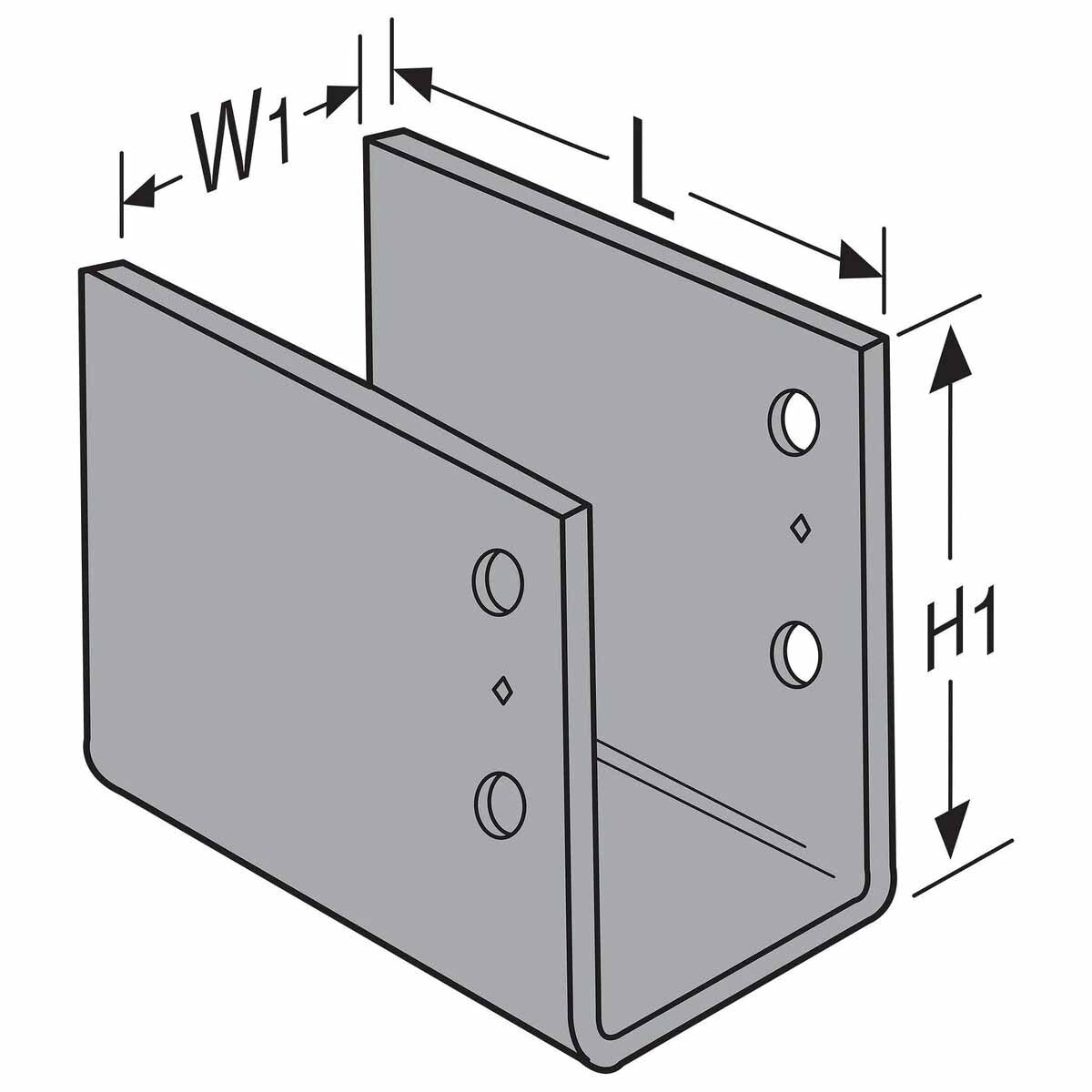

Simpson Strong-Tie ECCO7 1/8 Specifications
| Finish | Gray Paint |
| Length | 10-1/2" |
| Material | Steel |
| Beam size | 7-1/8x |
| Fasteners required | Use all specified fasteners; see spec sheet. |
| Manufacturer name | Simpson Strong-Tie |
| Thickness | 3 Gauge |
| Width | 8" |
