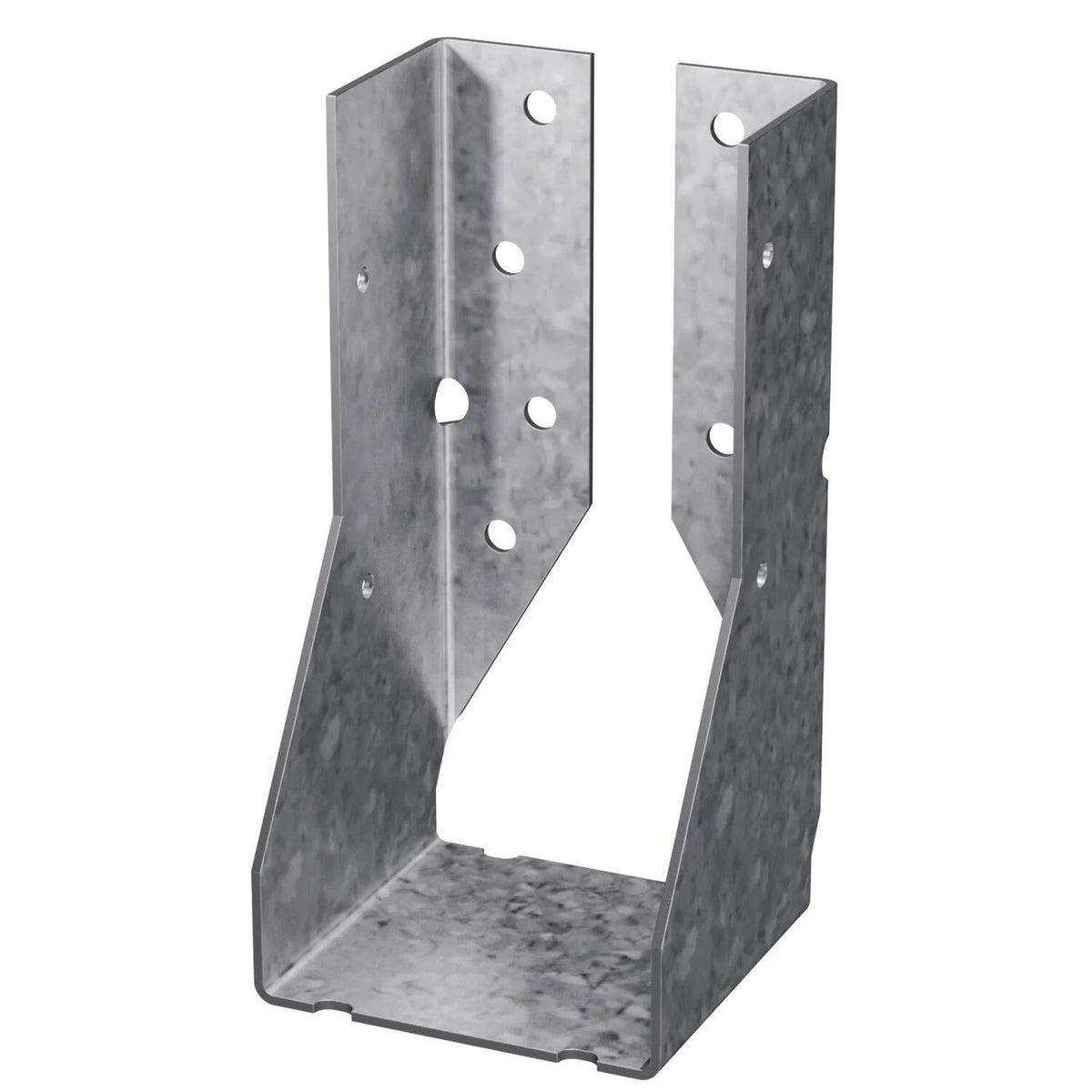

Simpson Strong-Tie HUC36 Description
The Simpson Strong-Tie HUC36 is a concealed flange heavy-duty face-mount hanger designed for 3x6 joists, featuring a G90 galvanized finish for durability.
Simpson Strong-Tie HUC36 Includes
- (1) HUC36 Concealed Flange Heavy Face-Mount Hanger
Simpson Strong-Tie HUC36 Features
- Concealed flange design for a clean look
- G90 galvanized coating for corrosion resistance
- Heavy-duty construction for structural applications
- Compatible with 3x6 joists
- Tested and code compliant
Simpson Strong-Tie HUC36 Applications
- Structural framing requiring concealed flange hangers
- Schools and buildings needing additional strength and safety
- Wood construction connectors for engineered wood

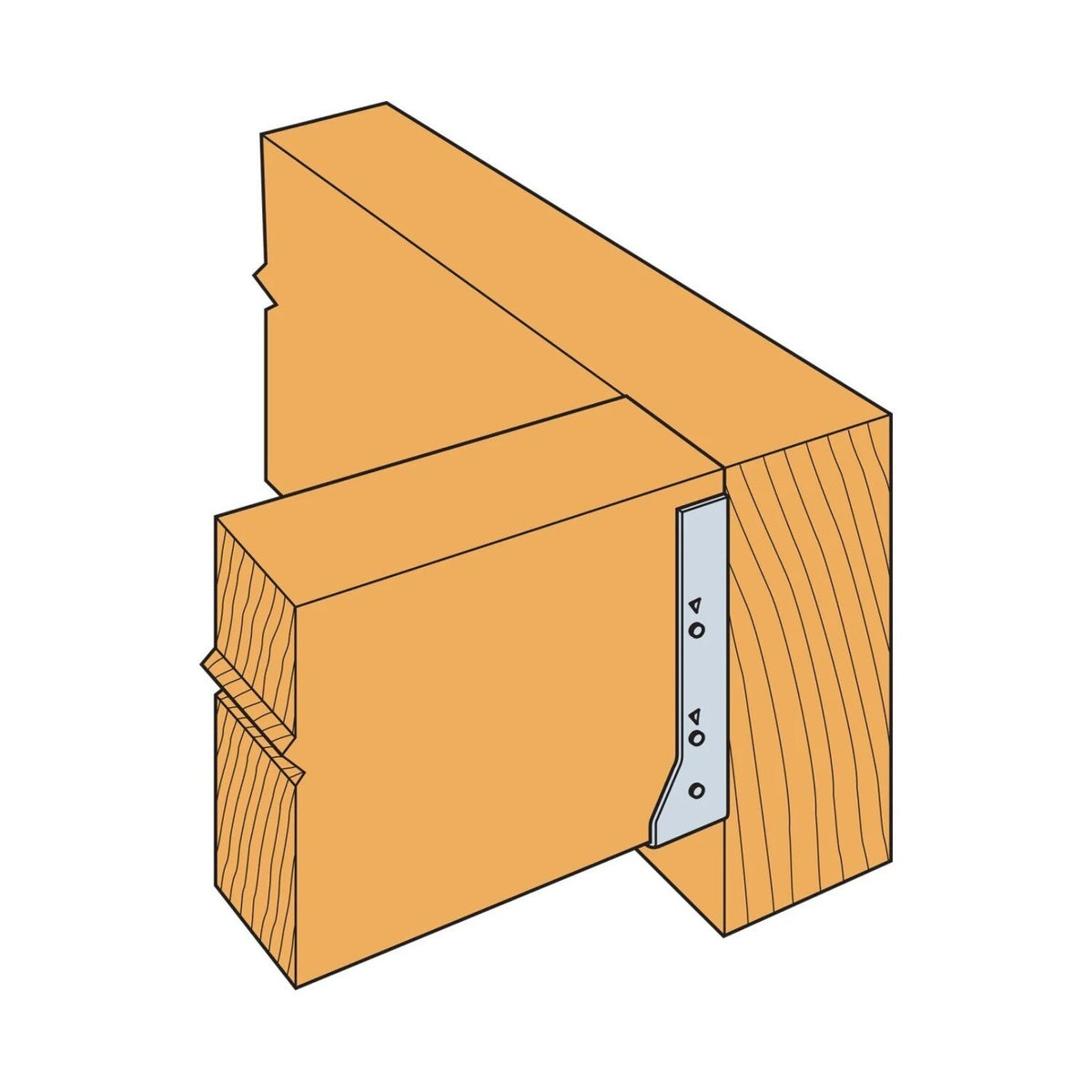

Simpson Strong-Tie HUC36 Installation Overview
- Use all specified fasteners
- Fill round and triangle holes for maximum load values
- Joists sloped up to 1/4:12 achieve table loads

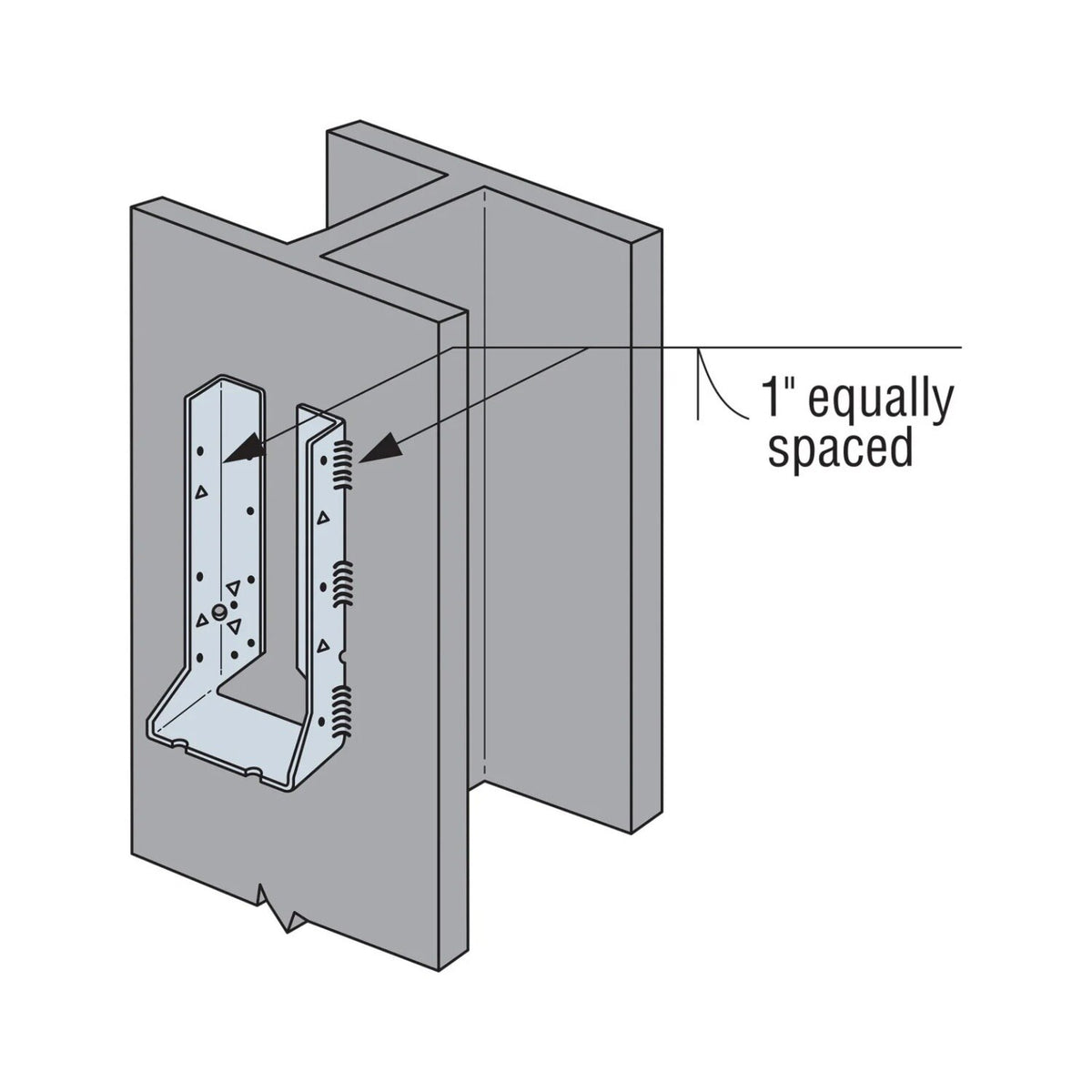

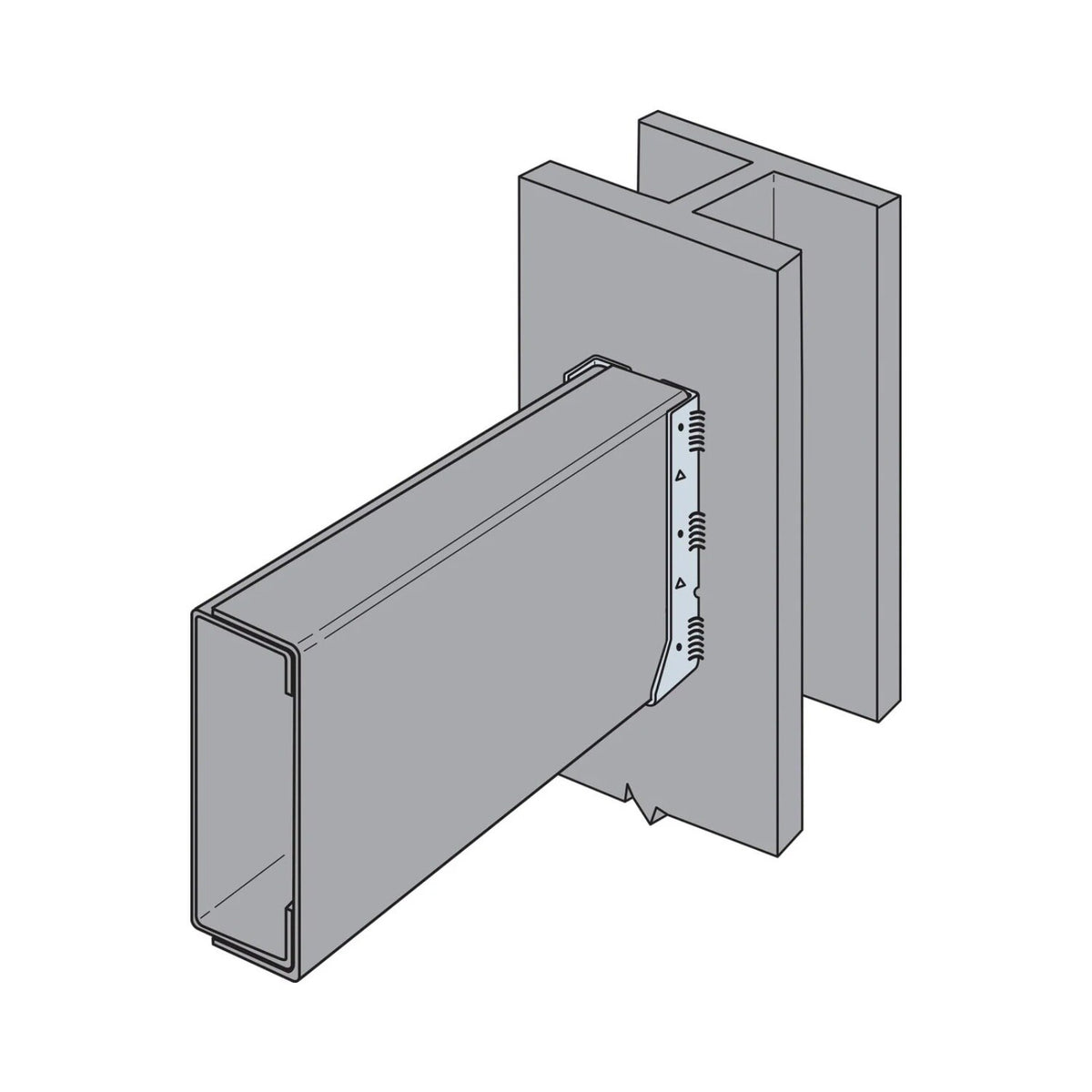

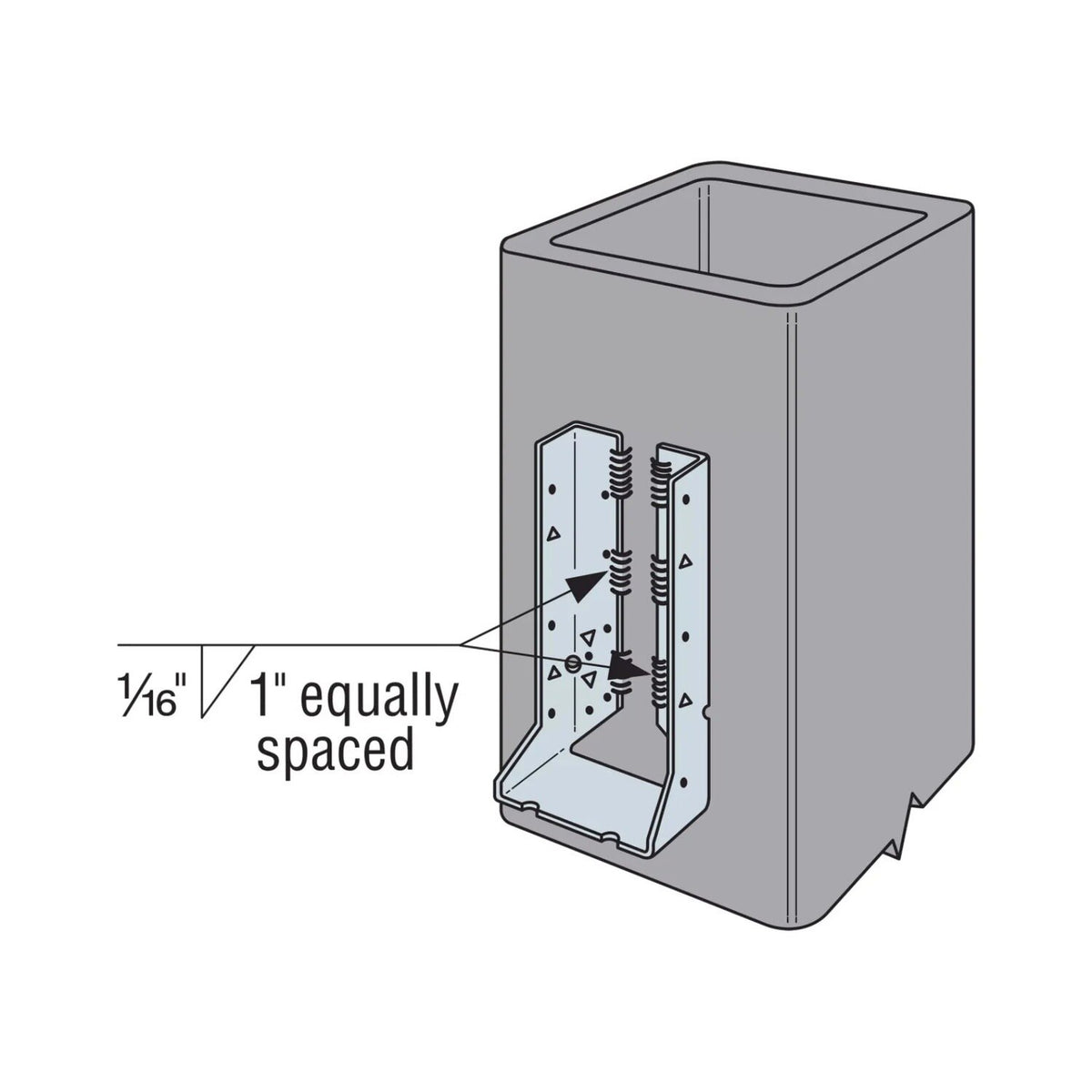

- Can be welded to steel members following guidelines
- Web stiffeners required for I-joist applications
Simpson Strong-Tie HUC36 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 2-9/16" |
| Height | 5-1/4" |
| Joist size | 3" X 6" |
| Fasteners required | Face - (8) 0.162" x 3-1/2" Nails, Joist - (4) 0.148" x 1-1/2" Nails |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
