Simpson Strong-Tie ACBH3X15.37-R1 (3" x 15-3/8") Conceale...
Key Specifications
Description
Description
Simpson Strong-Tie ACBH3X15.37-R1 Description
The ACBH3X15.37-R1 is a concealed joist-to-beam hanger designed for engineered wood, offering high capacity and architectural aesthetics.
Simpson Strong-Tie ACBH3X15.37-R1 Includes

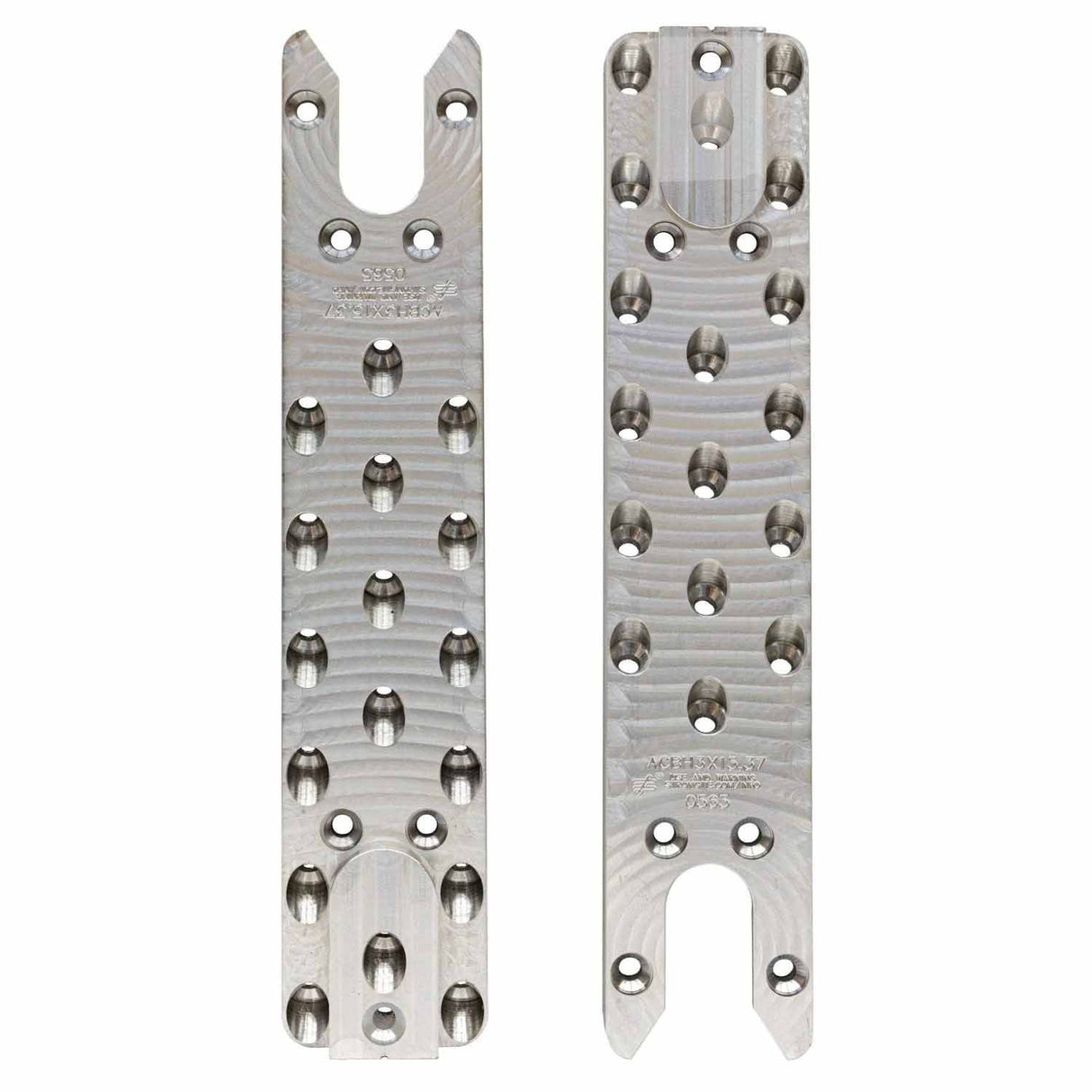

- (2) ACBH 3x15.37 Concealed Beam Hanger Backplates
Simpson Strong-Tie ACBH3X15.37-R1 Features
- High capacity
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
- Multiple router options to suit jobsite needs
- +/- 1/16" beam length tolerance on each end enables easier installation
Simpson Strong-Tie ACBH3X15.37-R1 Applications

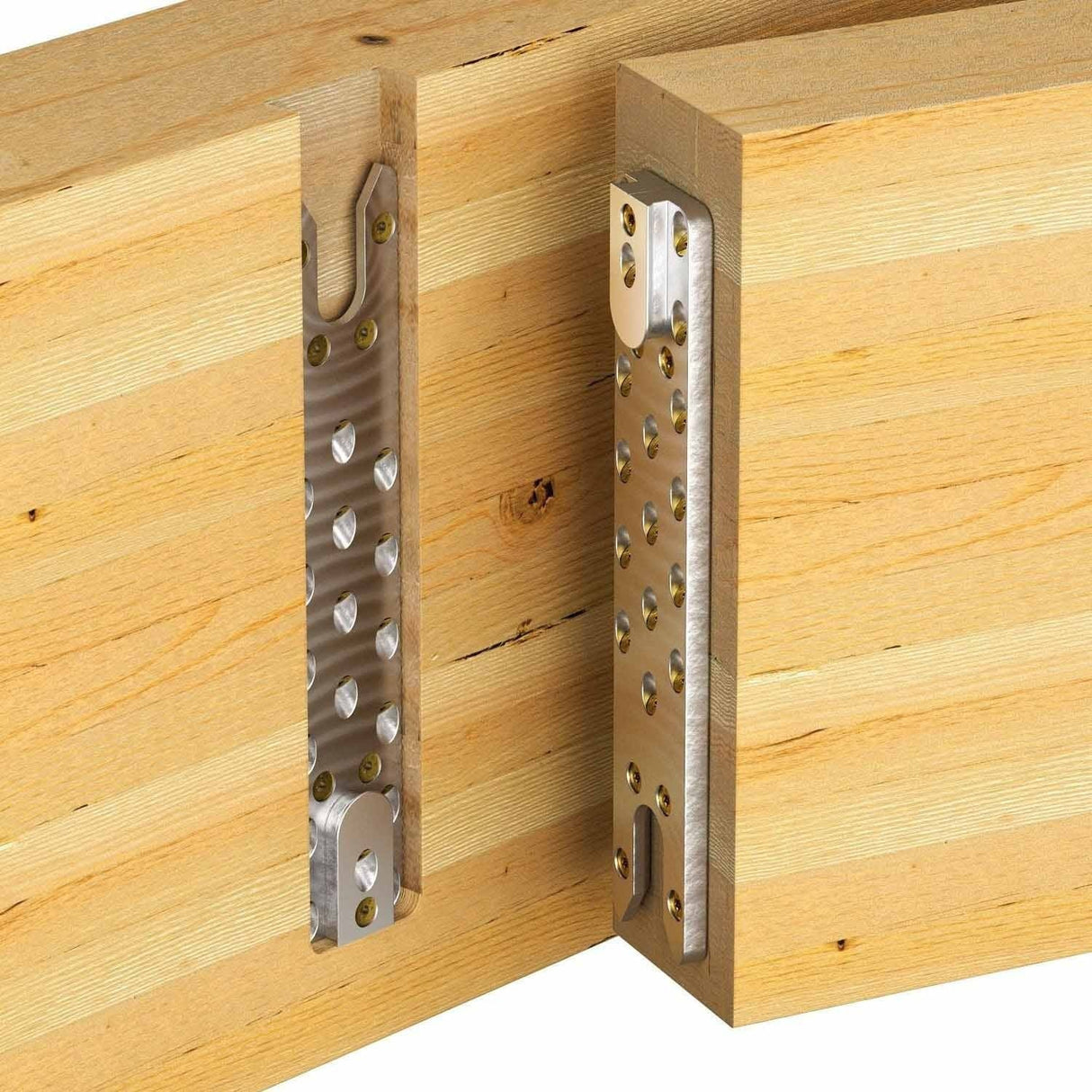

- Mass timber and engineered wood beam-to-column connections
- Architectural and exposed-framing projects where visible hardware is undesirable
- Residential, commercial, and institutional buildings using concealed timber joinery

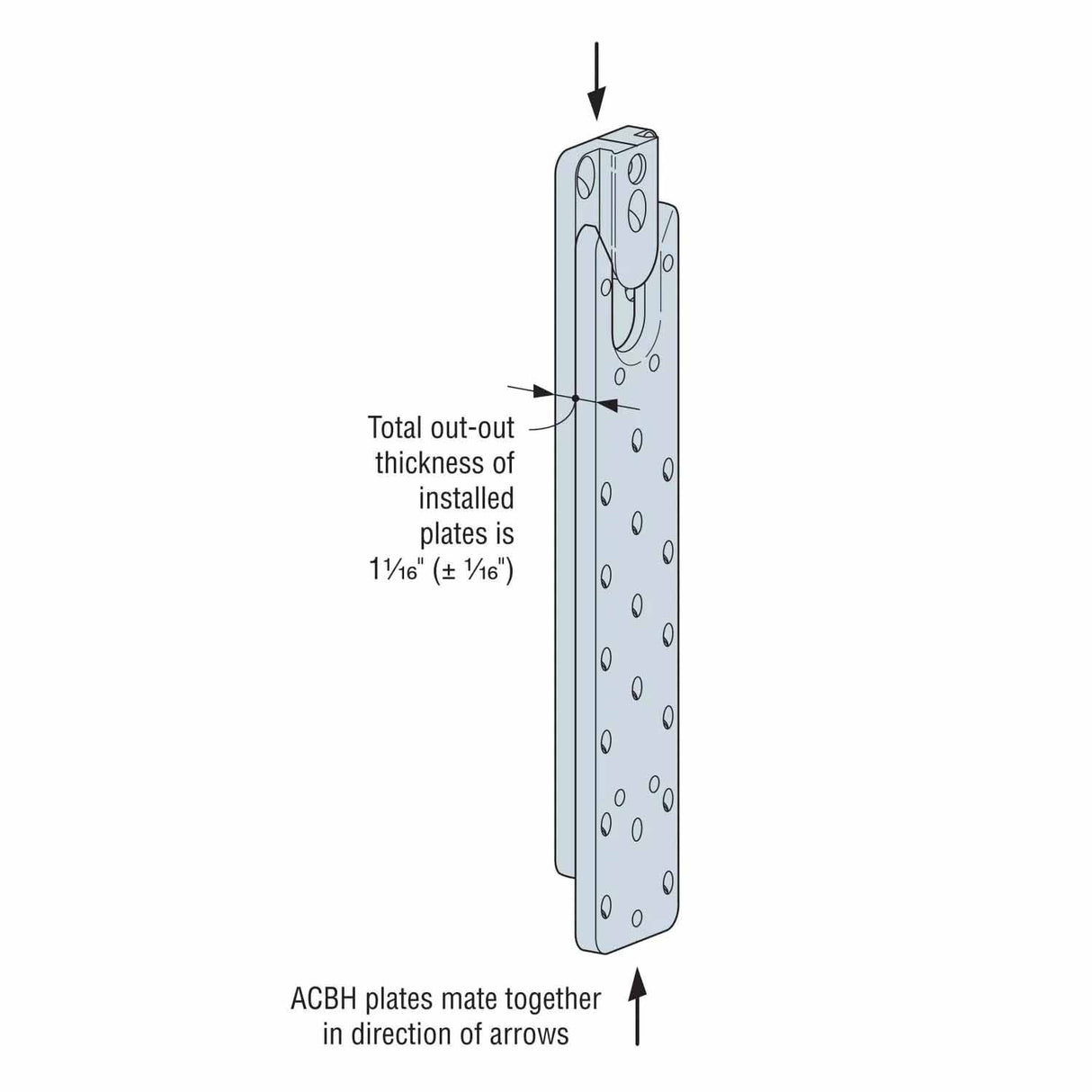

Simpson Strong-Tie ACBH3X15.37-R1 Installation Overview
- Use all specified fasteners; install horizontal screws first, then inclined screws.
- Centerline notch at the top of the part can be used to help locate the connector on the wood member.
- Do not overdrive SDCF screws during installation of fasteners. Predrilling lead holes for the SDCF screws is recommended if wood members tend to split or if driving the SDCF fasteners at the proper angle is difficult due to wood grain resistance.
- Rout carried and/or carrying member according to application needs. The minimum recommended rout width and length is 1/16" larger than the tabulated part dimensions.
- A 1/8" minimum to 1/4" maximum gap is recommended between the carried and carrying members to prevent wood-wood binding during field assembly.
- When attaching to the end grain of glulam members with multiple piece laminations across the width, refer to the manufacturer's guidelines for more information.
Simpson Strong-Tie ACBH3X15.37-R1 Specifications
| Material | Aluminum |

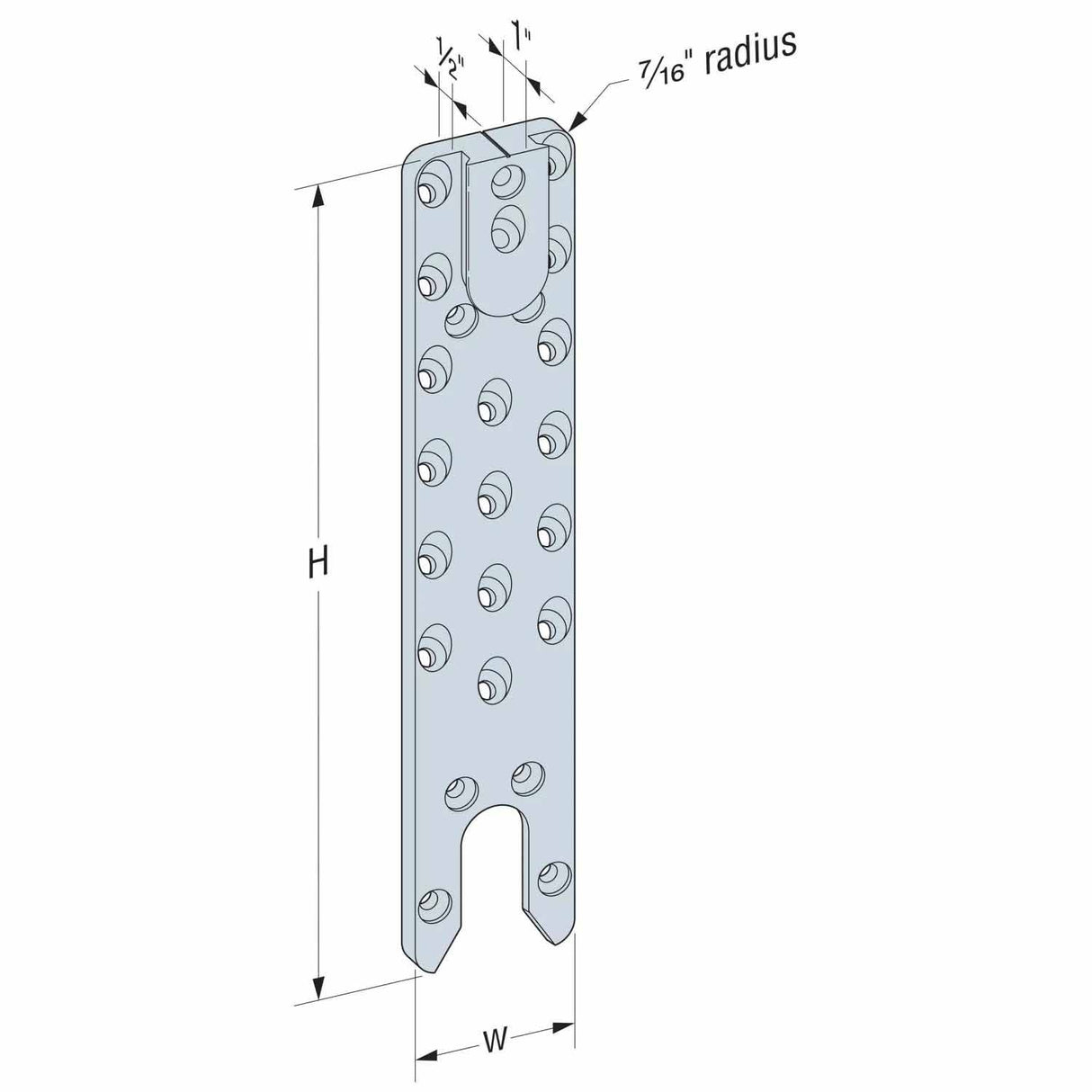

| Height | 15-3/8" |
| Width | 3" Each |
| Fasteners required | SDCF22614 screws |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
