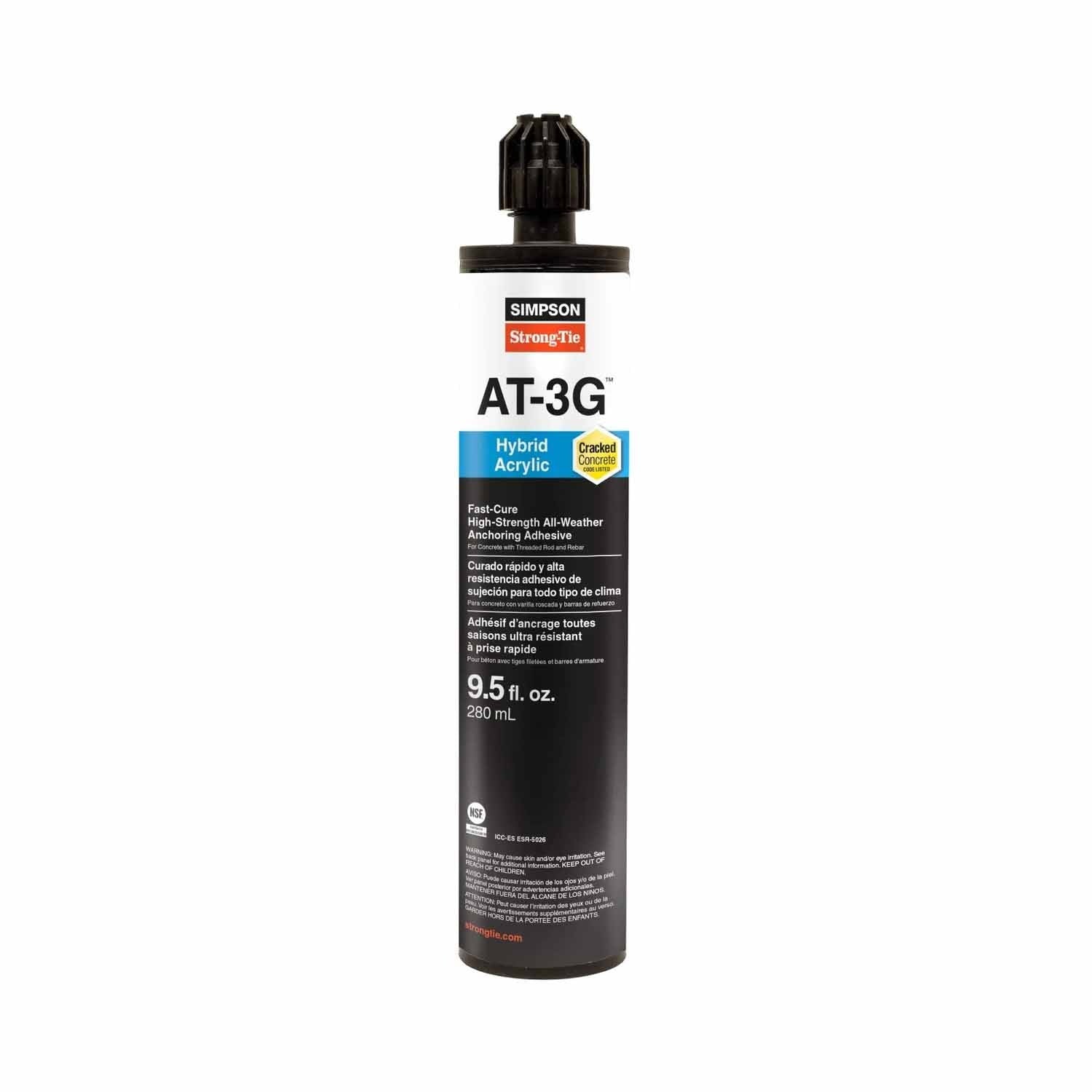

Simpson Strong-Tie AT3G10 (9.5-oz) High-Strength Acrylic Anchoring Adhesive Cartridge
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie AT3G10 (9.5-oz) High-Strength Acrylic Anchoring ...
Key Specifications
Description
Description
Simpson AT3G10 Description
The AT3G10 is a high-strength hybrid acrylic adhesive cartridge designed for anchoring threaded rods and rebar into concrete. It offers rapid curing, cold weather suitability, and compliance with ICC-ES AC308 standards.
Simpson AT3G10 Includes
- (1) High-Strength Acrylic Anchoring Adhesive Cartridge
- (1) AMN19Q Mixing Nozzle
Simpson AT3G10 Features
- Excellent for use in cold weather conditions or applications where fast cure is required
- Recognized per ICC-ES AC308 for threaded rod and rebar anchoring
- Conventional blow-brush-blow hole cleaning technique using a wire brush
- Base material installation temperatures down to 0°F (-18°C)
- Use in grout-filled CMU construction
- Installation into oversized holes
- Installation in holes drilled with diamond core bits
Simpson AT3G10 Applications
- Threaded rod anchor and rebar dowel installations in cracked and uncracked concrete
- Installation in downward, horizontal, and upwardly inclined orientations
- Qualified for use in structures assigned to Seismic Design Categories A through F

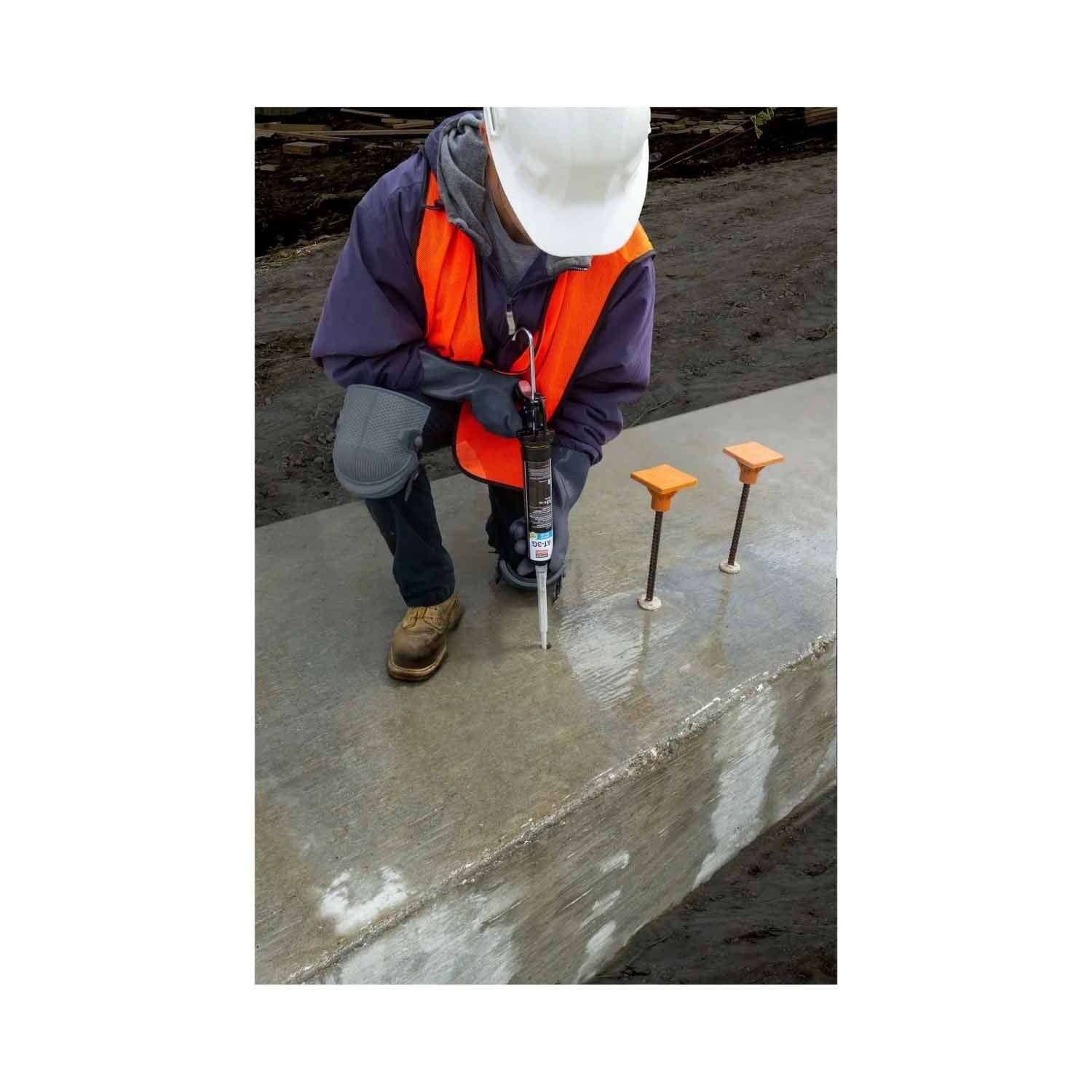

Simpson AT3G10 Installation Overview
- Ensure surfaces to receive adhesive are clean per approved hole cleaning method.
- Base-material temperatures must be 23°F (-5°C) or above at the time of installation.
- Store cartridges in a warm, uniformly heated area to warm cold adhesive.
- Use only Simpson Strong-Tie mixing nozzles as per instructions.
- Mixed material in nozzle can harden in 2-3 minutes at temperatures of 70°F (21°C) and above.
Simpson AT3G10 Specifications
| Mix Ratio/Type | 10:1 hybrid-acrylic |
| Mixed Color | Gray |
| Base Materials | Concrete — cracked and uncracked |
| Base Material Conditions | Dry, water-saturated, water-filled holes |
| Anchor Type | Threaded rod or rebar |
| Substrate Installation Temperature | 23°F (-5°C) to 104°F (40°C) |
| In-Service Temperature Range | -40°F (-40°C) to 320°F (160°C) |
| Storage Temperature | 41°F (5°C) and 77°F (25°C) |
| Shelf Life | 18 months |
| Volatile Organic Compound (VOC) | 41 g/L |
NOTE: Ensure the adhesive is conditioned to a minimum temperature of 65°F (18°C) for installation in concrete temperatures between 0°F and 23°F (-18°C and -5°C).
