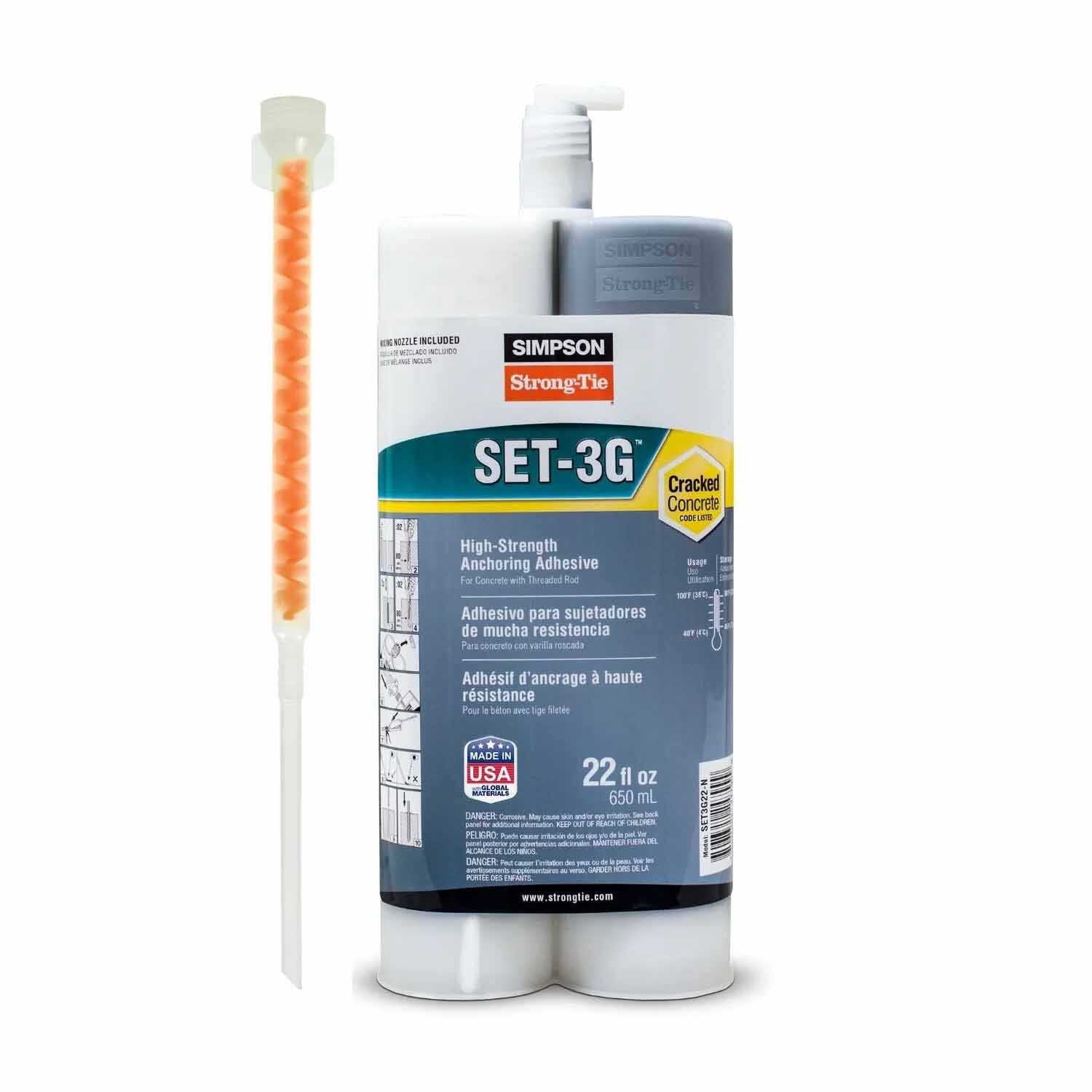

Simpson Strong-Tie SET3G22-N High-Strength Epoxy Adhesive Anchoring Threaded Rod Rebar
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie SET3G22-N High-Strength Epoxy Adhesive Anchoring...
Key Specifications
Description
Description
Simpson Anchors SET3G22-N Description
SET-3G is the latest innovation in epoxy anchoring adhesives with high design strength and proven performance. SET-3G is a 1:1 ratio, two-component, anchoring adhesive for concrete (cracked and uncracked). SET-3G installs and performs in a variety of environmental conditions and temperature extremes.
Simpson Anchors SET3G22-N Includes
- (1) Epoxy
- (1) Nozzle
Simpson Anchors SET3G22-N Features
- Exceptional performance - superior bond strengths permit ductile solutions in high seismic areas.
- Design flexibility - improved sustained load performance at elevated temperature.
- Jobsite versatility - can be specified for all base material conditions when in-service temperatures range from -40°F (-40°C) to 176°F (80°C).
- Recognized per ICC ES AC308 for post-installed rebar development and splice length design provisions.
- Approved for installation with multiple vacuum-drill bit systems without further hole cleaning. See Code Report (ESR-4057) and Engineering Letter for approved systems.
- Wire brush hole-cleaning system for conventional blow-brush-blow cleaning method for anchoring.
- With higher bond strengths, ductile solutions can often be achieved with SET-3G in high seismic areas.
- Low-odor formulation.
- Manufactured in the USA using global materials.
- During the installation of SET-3G, when the correct installation processes are followed, there is no performance difference between water-saturated concrete, water-filled holes, or submerged concrete.
- For use with potable water.
Simpson Anchors SET3G22-N Specifications
| Mix Ratio/Type | 1 |
| Mixed Color | Gray |
| Base Materials | Concrete - Cracked & Uncracked |
| Base Material Conditions | Dry, Water-Saturated, Water-Filled & Submerged |
| Anchor Type | Threaded Rod or Rebar |
| Substrate Installation Temperature | 40°F (4°C) to 100°F (38°C) |
| In-Service Temperature Range | -40°F (-40°C) to 176°F (80°C) |
| Storage Temperature | 45°F (7°C) and 90°F (32°C) |
| Shelf Life | 24 Months |
| Volatile Organic Compound (VOC) | 2 g/L |
| Capacity | 22 oz. |
