Simpson Strong-Tie ABU1212RZ Adjustable Post Base for Rough 12x12 Lumber
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie ABU1212RZ Adjustable Post Base for Rough 12x12 L...
Key Specifications
Description
Description
Simpson Strong-Tie ABU1212RZ Description

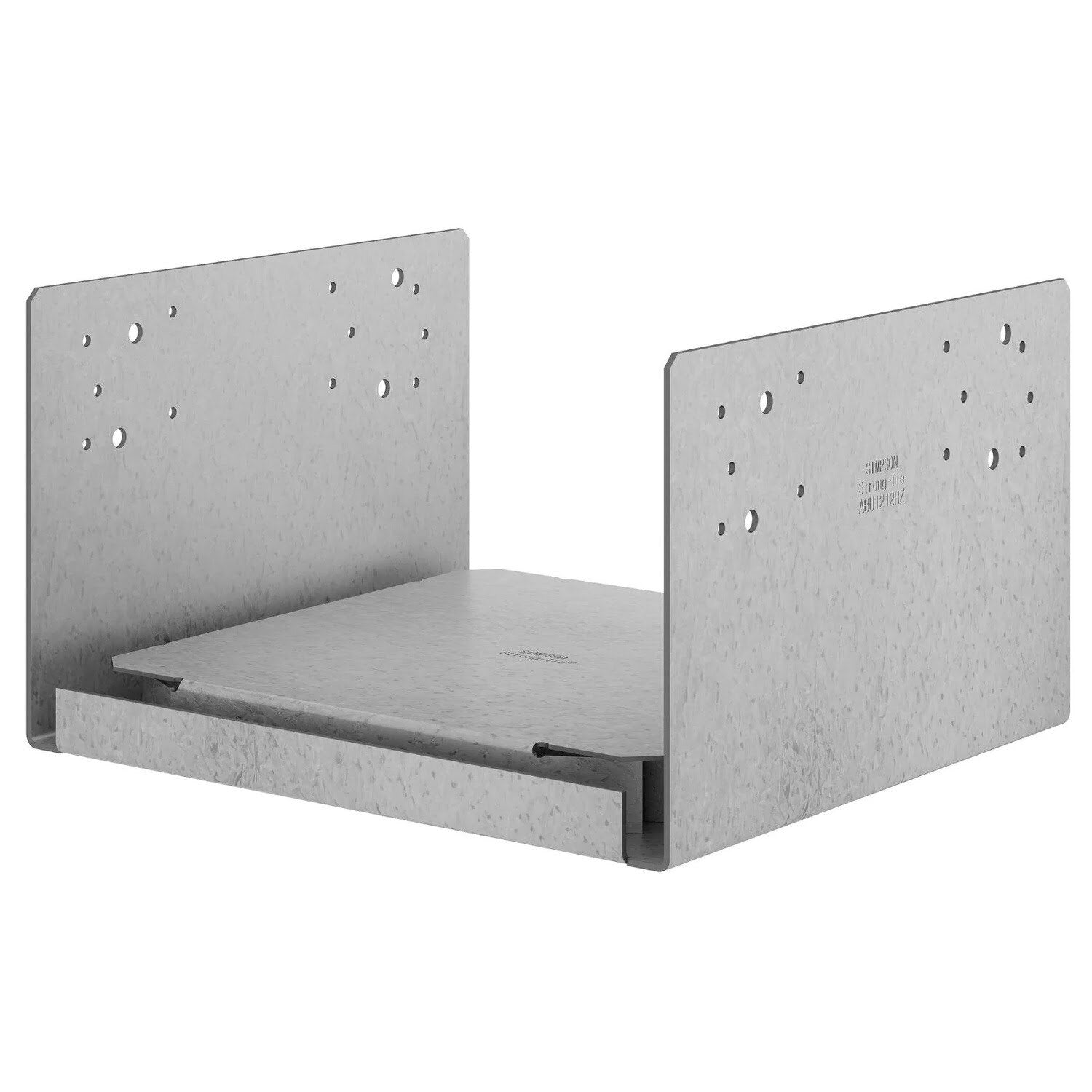

The ABU1212RZ Adjustable Post Base is designed for rough 12x12 lumber, featuring a ZMAX coating for enhanced corrosion resistance and a 1-inch standoff to meet code requirements.
Simpson Strong-Tie ABU1212RZ Includes
- (1) Adjustable Post Base for Rough 12x12 Lumber
Simpson Strong-Tie ABU1212RZ Features
- 1-inch standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- ZMAX coating for enhanced corrosion resistance
- Increased uplift loads for earthquake or wind loading
- Slot in the base enables flexibility around the anchor bolt, making precise post placement easier
Simpson Strong-Tie ABU1212RZ Applications
- Decks: Post-to-footings connections
- Structural posts in basements or exposed to weather or water splash
Simpson Strong-Tie ABU1212RZ Installation Overview
- Place the base, cut washer(s) or load transfer plate(s) and nut(s) on the anchor bolt(s). Make any necessary adjustments to post placement and tighten the nut securely on the anchor bolt.
- Place the standoff base and then the post in the ABU.
- Fasten the post using nails or Strong-Drive SD Connector screws or bolts.
Simpson Strong-Tie ABU1212RZ Specifications
| Material | 12 Gauge Steel |
| Finish | ZMAX Coating |
| Nominal Post Size | Rough 12x12 |
| Width | 12 in. |
| Length | 11 in. |
| Height | 7 in. |
NOTE: Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
