Simpson Strong-Tie ATHC-R30 Description
The Simpson ATHC-R30 Attic Truss Heel Hinge Connector is designed for efficient attic truss construction using 2-1/2" wide I-joist flanges, offering structural reliability and improved logistics.
Simpson Strong-Tie ATHC-R30 Includes
- (30) Attic Truss Heel Hinge Connector
Simpson Strong-Tie ATHC-R30 Features

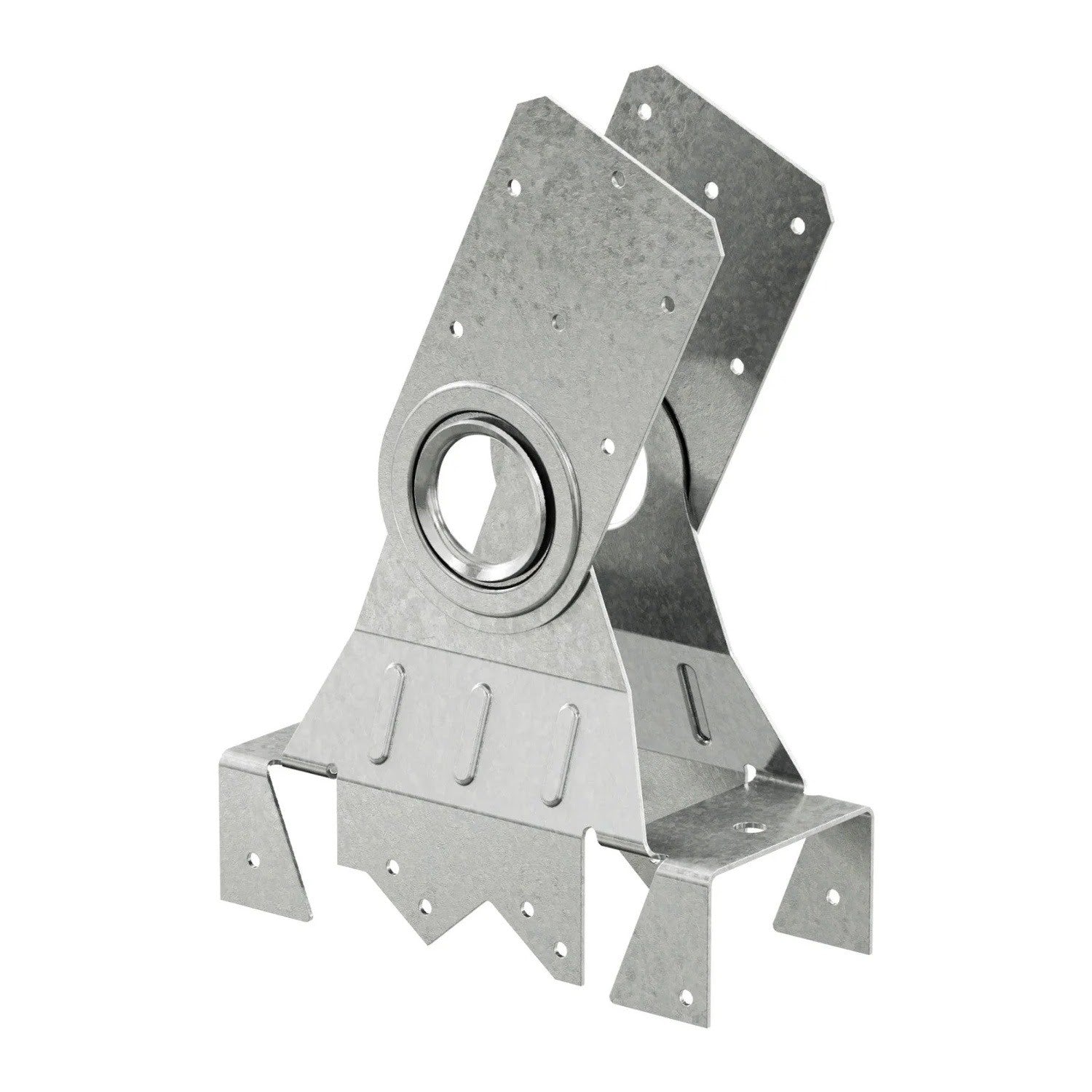

- One-piece design simplifies hinge placement and provides installation efficiencies.
- Works with 2-1/2" wide OPENJOIST and I-joist floor joists.

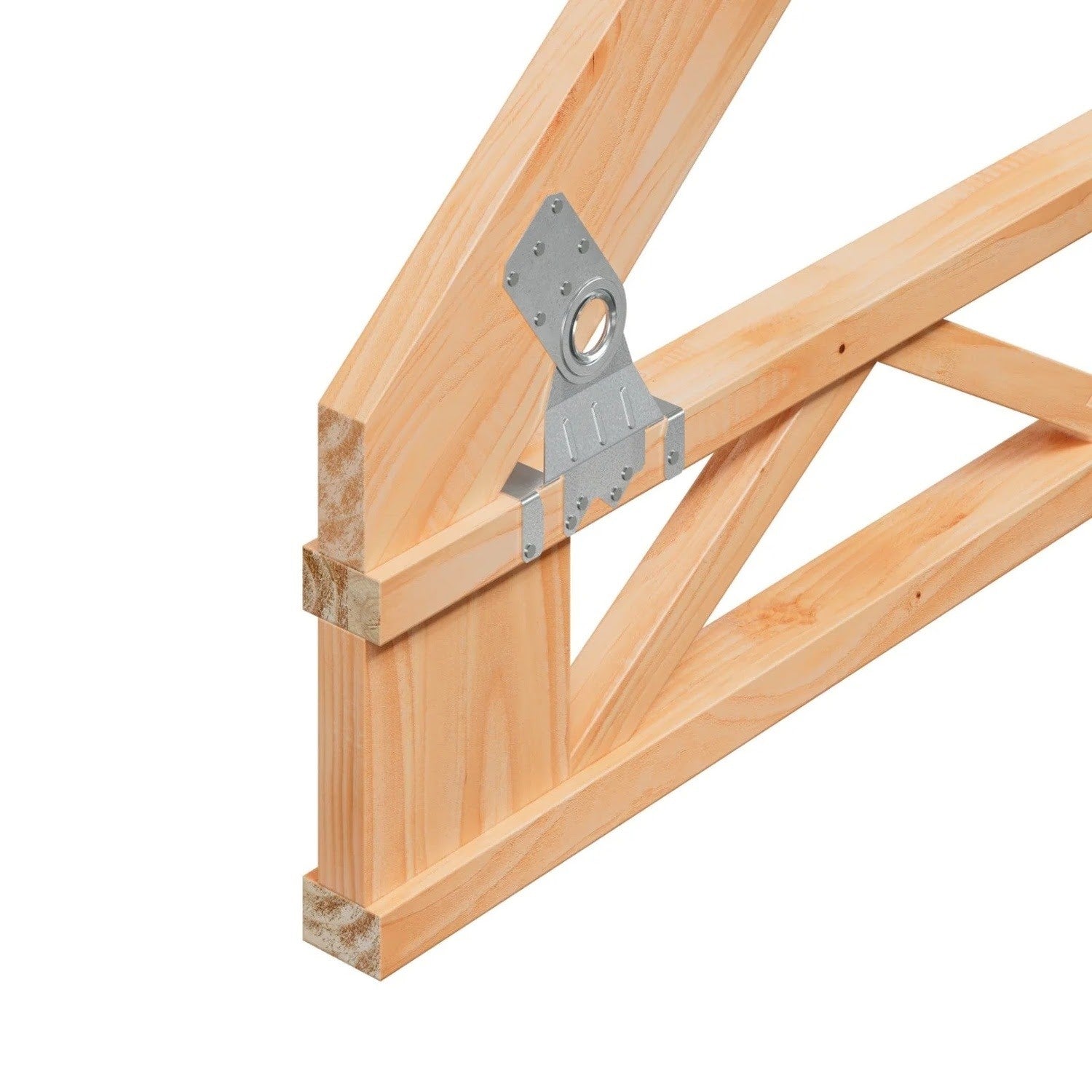

- Accommodates roof pitches between 5:12 and 12:12.
- Folded design allows flat shipment and compact storage.
- Eliminates the need for conventional metal-plate-connected trusses.
- Durable 16-gauge steel construction.
- G90 galvanized finish for corrosion resistance.
Simpson Strong-Tie ATHC-R30 Applications
- Attic truss construction using 2-1/2" wide I-joist flanges.
- Projects requiring adjustable roof pitch support.
- Efficient structural performance in engineered wood applications.
Simpson Strong-Tie ATHC-R30 Installation Overview

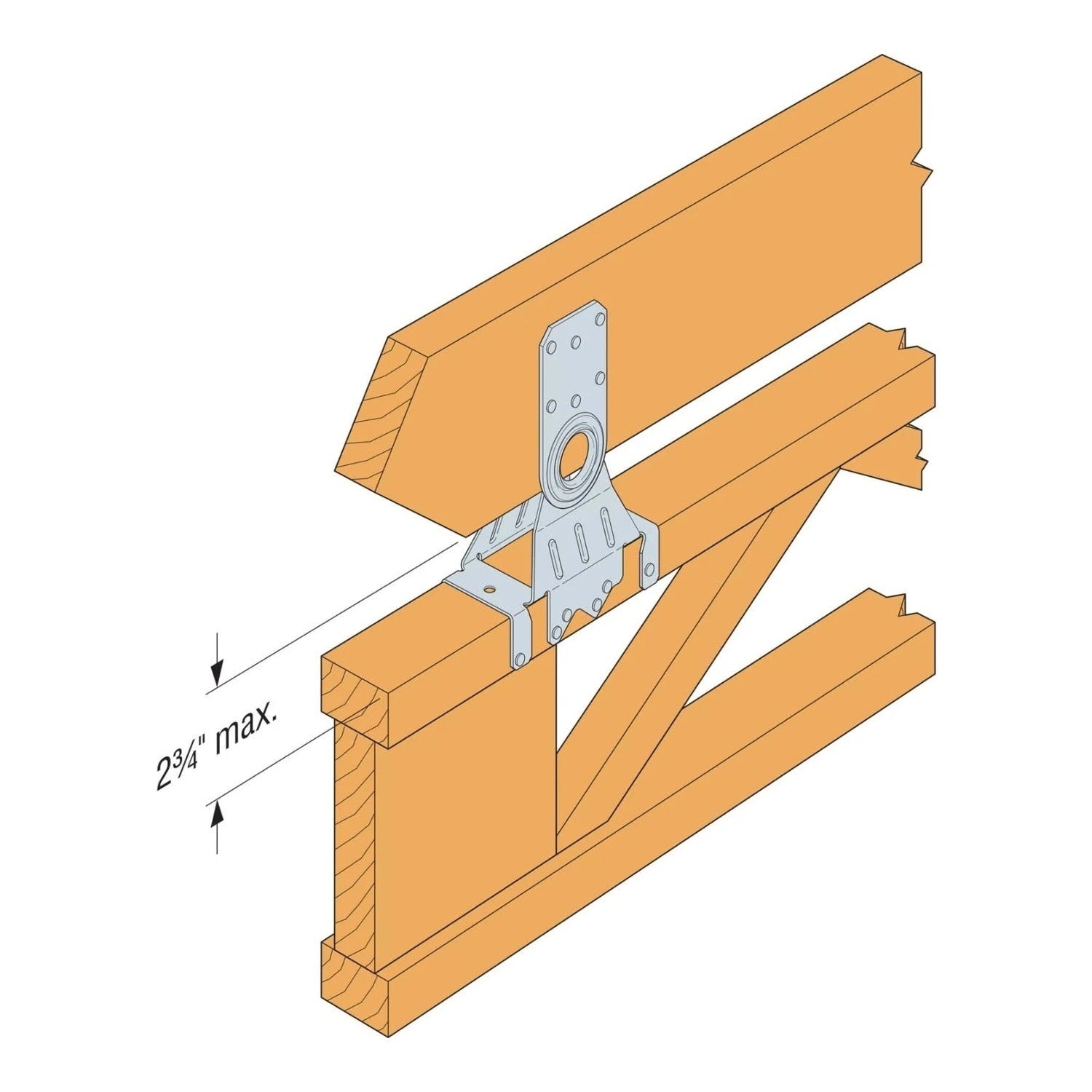

- Use a minimum of a 2x6 roof rafter, 2-1/2" wide OPENJOIST or I-joist floor joists, and 2x3 knee brace.
- Arrange cut-to-length members and position ATHC in the desired open or folded position using a jig.
- Install with specified fasteners.

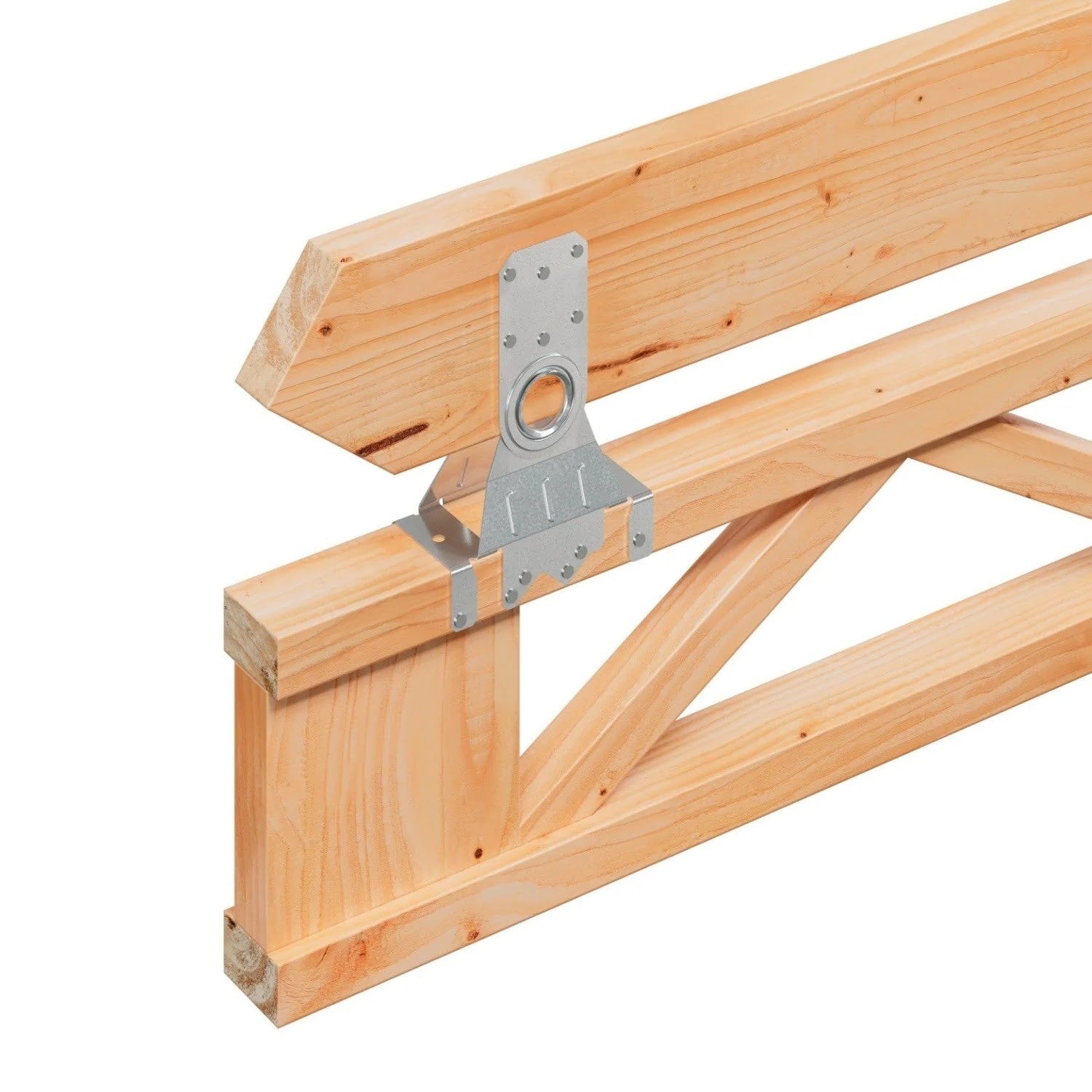

- Fold components for transportation and unfold at the jobsite.

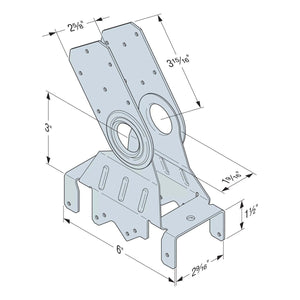

Simpson Strong-Tie ATHC-R30 Specifications
| Material | Carbon Steel |
| Finish | G90 Galvanized |
| Thickness | 16 Gauge |
| Fasteners required | (12) 0.148 in. x 1-1/2 in. nails |
| Quantity | 30 |
NOTE: Ensure proper installation using specified fasteners to achieve published load values.
