Simpson CTS218 Description
The Simpson CTS218 Compression and Tension Strap is designed to repair wood members such as top plates, studs, and trusses, handling both tension and compression loads.
Simpson CTS218 Includes

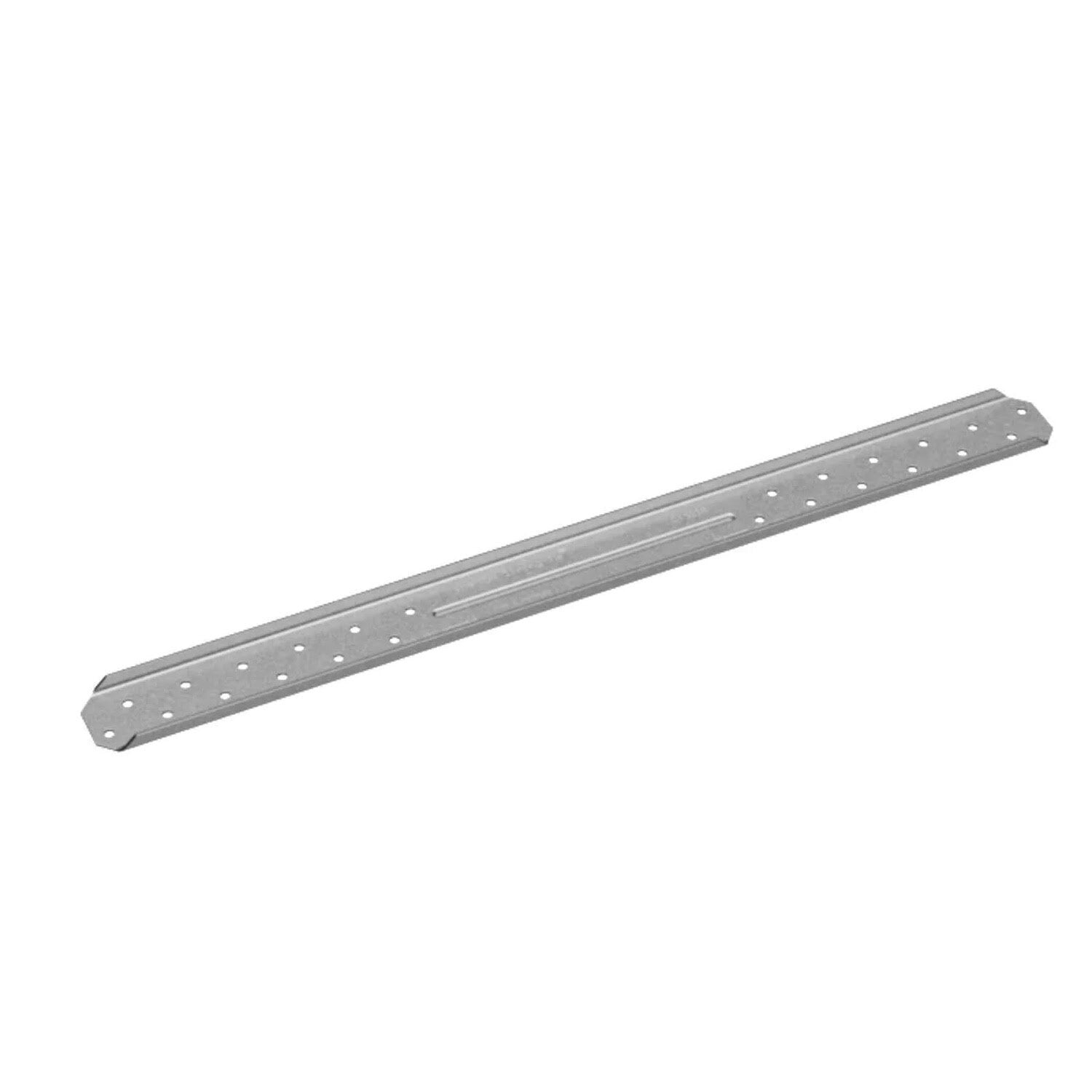

- (1) Compression and Tension Strap for Wood Repair
Simpson CTS218 Features
- Handles both tension and compression loads
- Rolled edges allow spanning gaps up to 4-1/2"
- 1-1/2" width enables installation on narrow faces of 2x lumber
- Made from 14-gauge galvanized steel for durability
Simpson CTS218 Applications
- Repairing wood members such as top plates, studs, and trusses
- Handling tension and compression loads in wood construction
Simpson CTS218 Installation Overview
- Use all specified fasteners as per guidelines

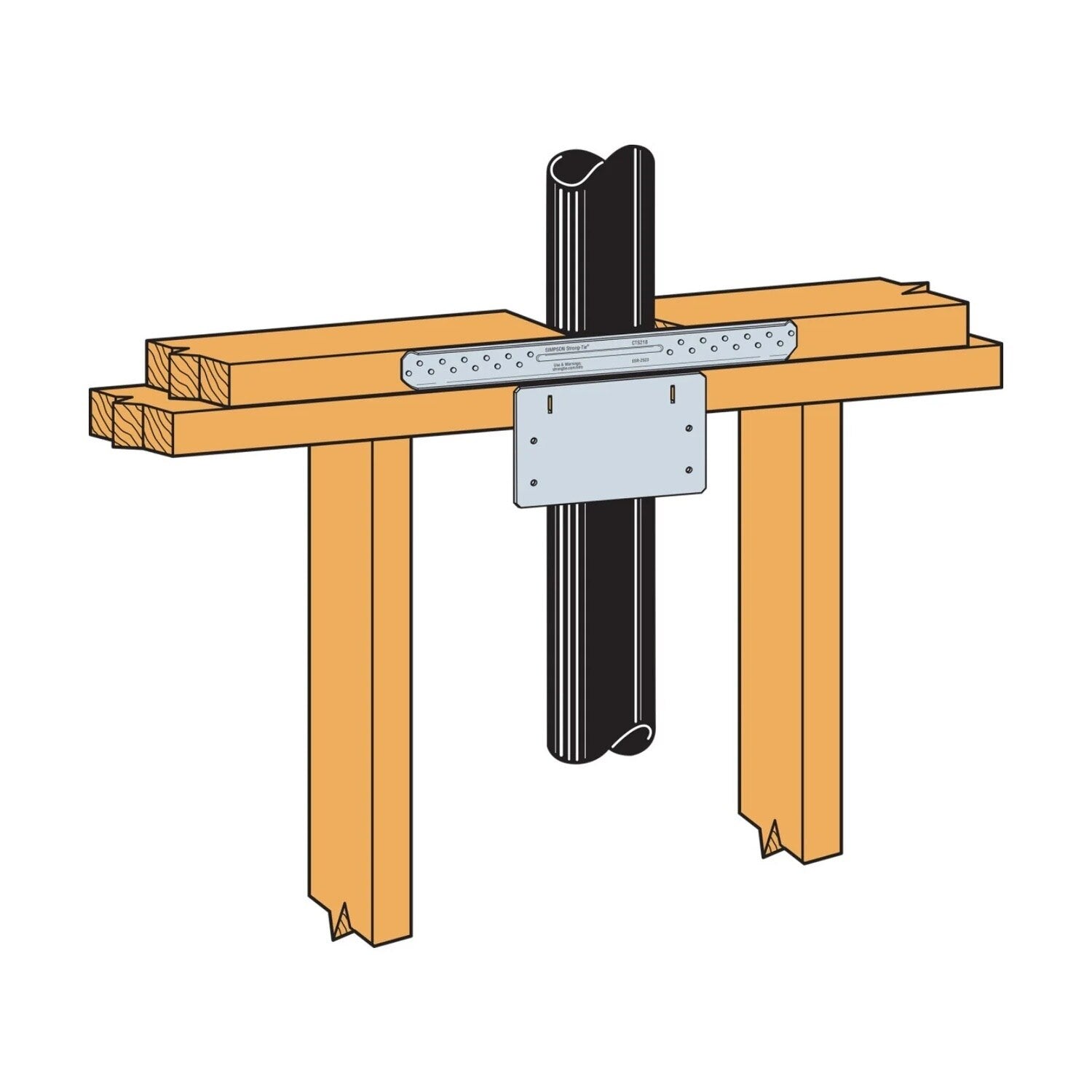

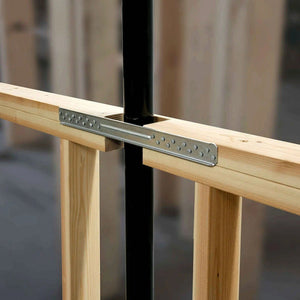

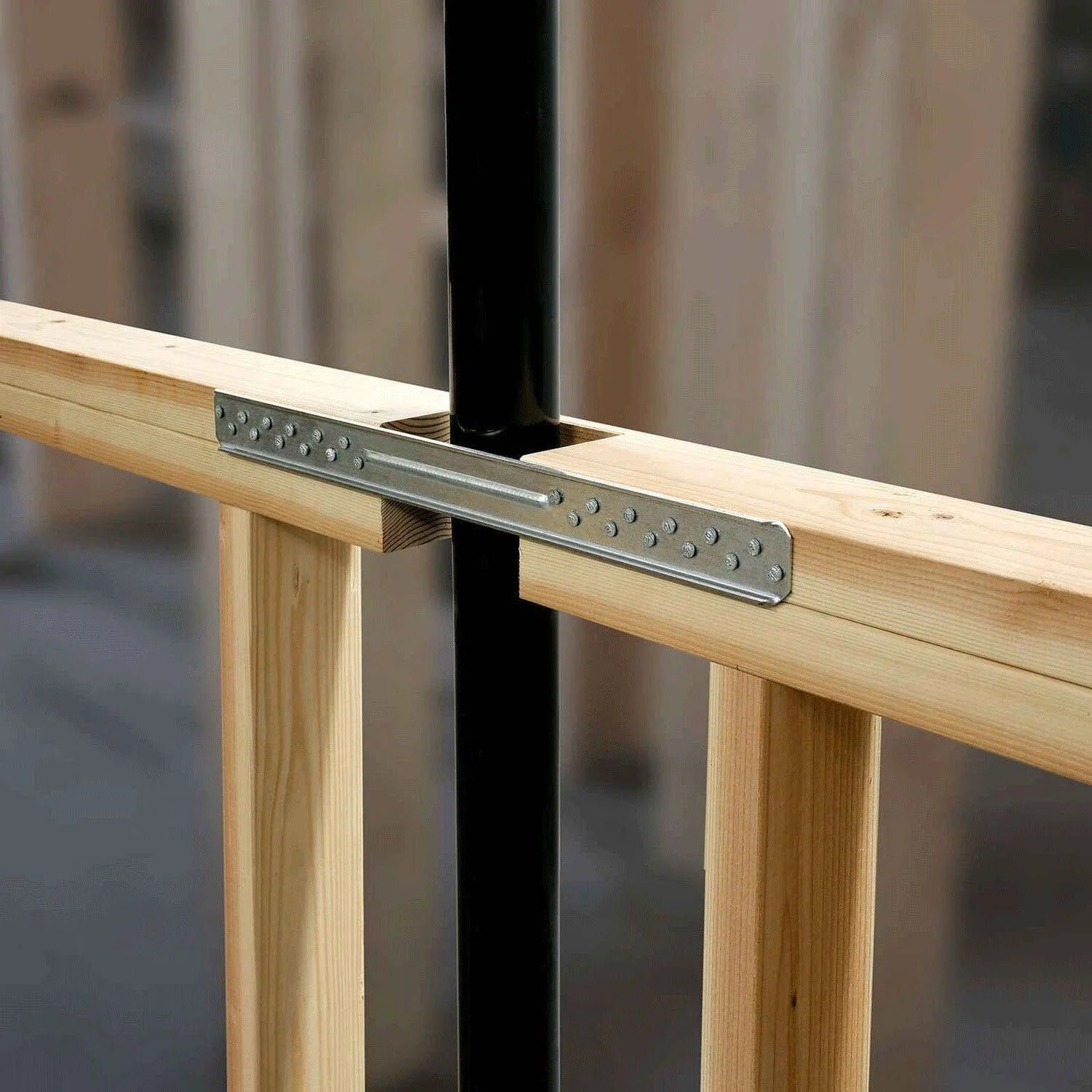

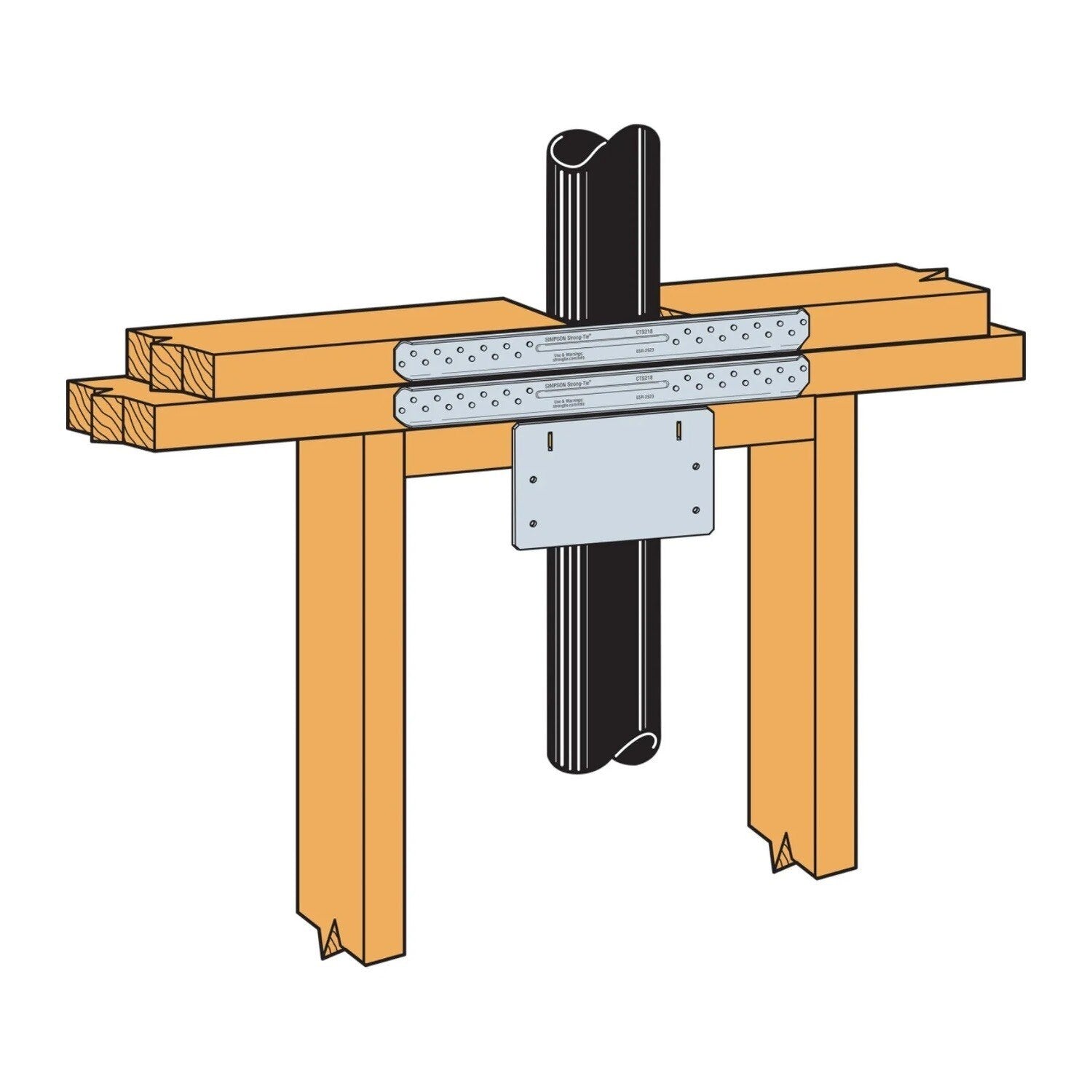

- Install one or two CTS straps on the same side for one-sided installations

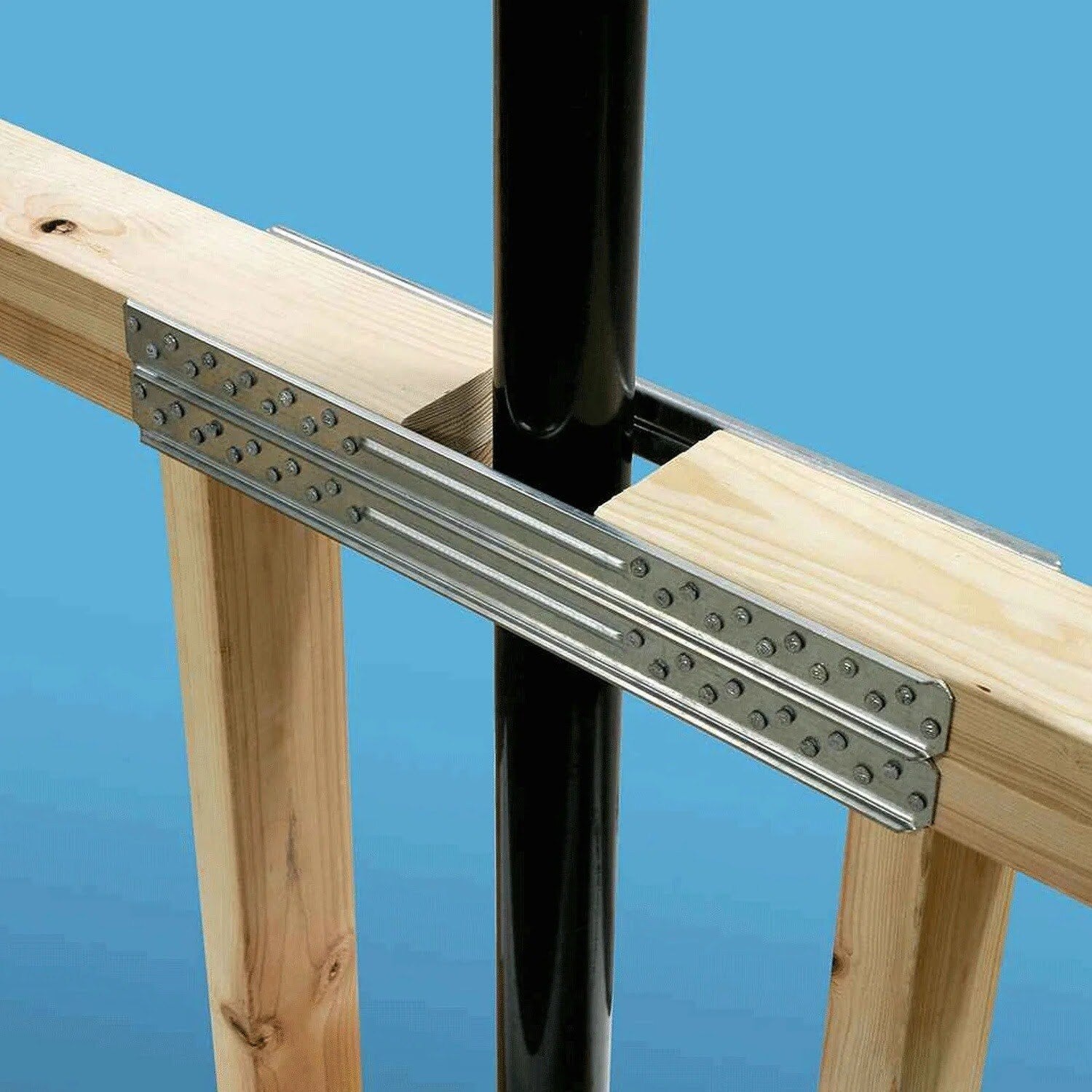

- For two-sided installations, place straps on opposite sides of the member
- For three-part installations, install two parts on one side and one part on the opposite side

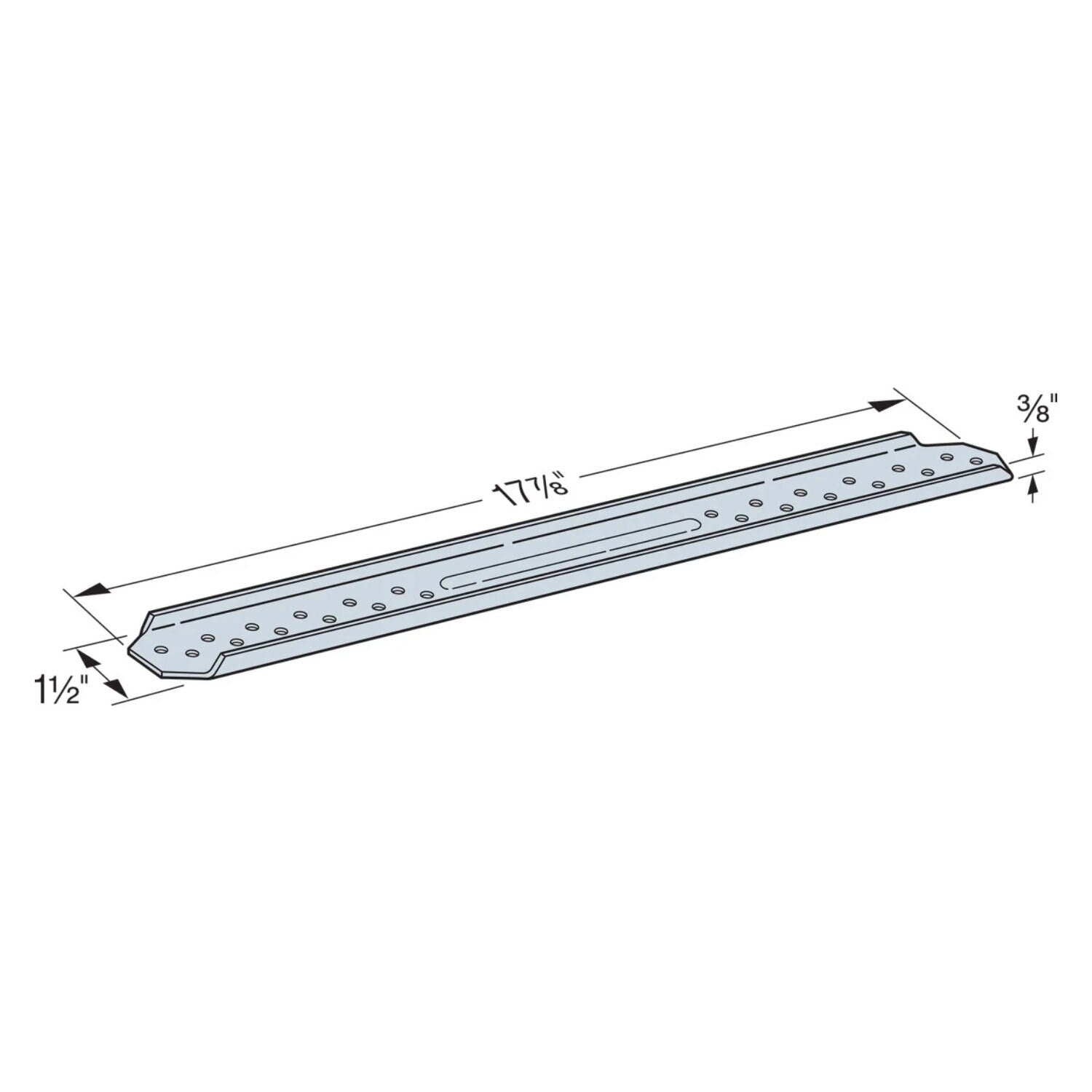

Simpson CTS218 Specifications
| Material | Galvanized Steel |
| Finish | G90 Galvanized |
| Thickness | 14 Gauge |
| Width | 1-1/2" |
| Length | 17-7/8" |
| Fasteners Required | (24) 0.148 x 1 ½" or (24) #9 x 1 ½" SD |
NOTE: Ensure all specified fasteners are used and installed correctly to achieve published load values
