Simpson Strong-Tie ETB230A-SCRB Description
The ETB230A-SCRB Hidden Timber Connector is designed for efficient and secure glulam beam connections, featuring a flush installation and corrosion-resistant screws.
Simpson Strong-Tie ETB230A-SCRB Includes
- (1) ETB230 Hidden Timber Connector
- (1) Set of SCRB screws
Simpson Strong-Tie ETB230A-SCRB Features
- Faster than other time-consuming methods and requires removal of less beam material
- Three sizes address common beam sizes from 4x6 through 6x12
- Connector can be routed into the beam end for a completely flush installation
- Templates available to make accurate installation more efficient
Simpson Strong-Tie ETB230A-SCRB Applications
- Glulam beam connections in architectural and structural projects
- Indoor architectural applications requiring hidden connectors
Simpson Strong-Tie ETB230A-SCRB Installation Overview
- Use all specified fasteners as per guidelines.

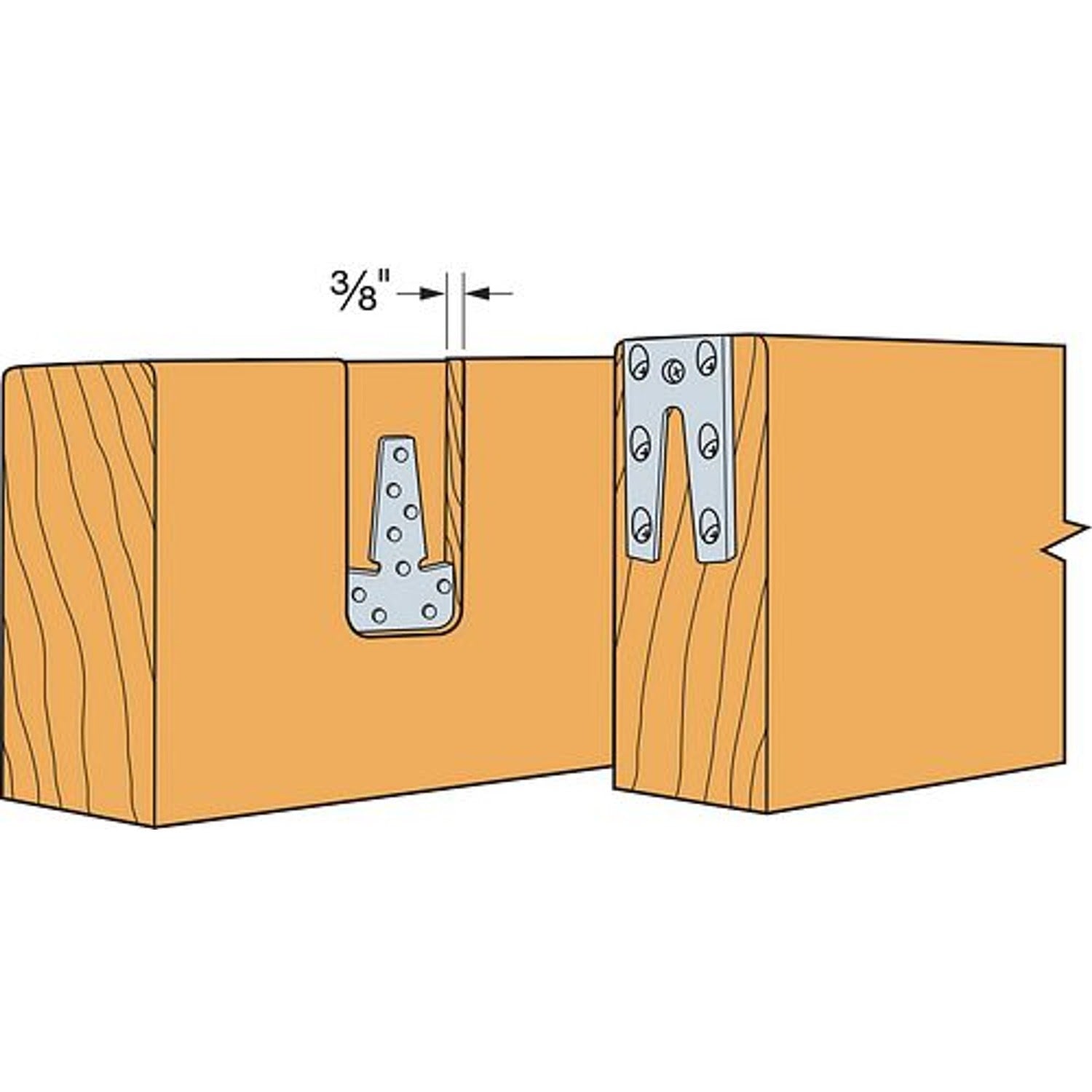

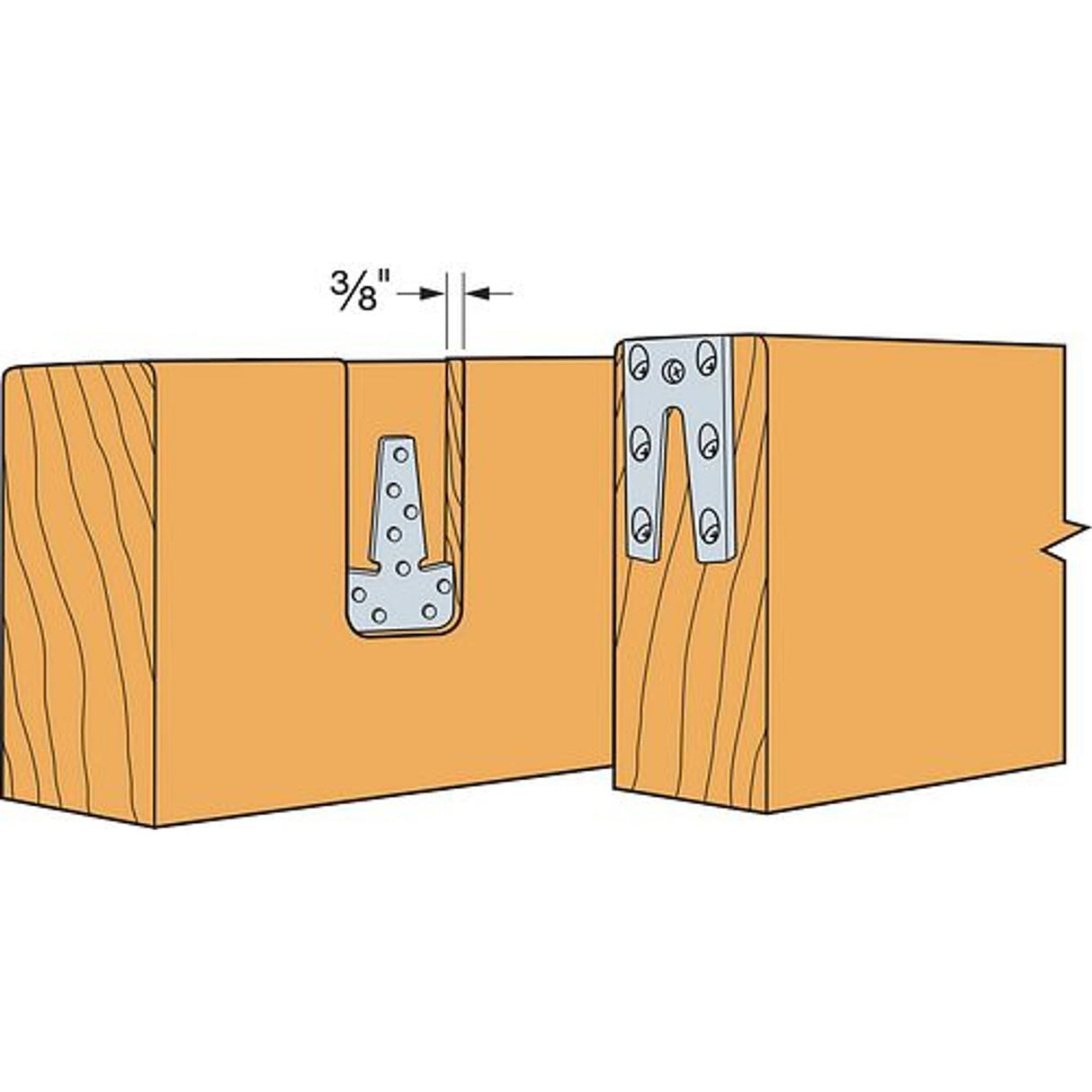

- Rout a 3/8" deep pocket into the side of the supporting beam for the lower plate.
- Install the lower plate with 16d hot-dip galvanized nails (not included).

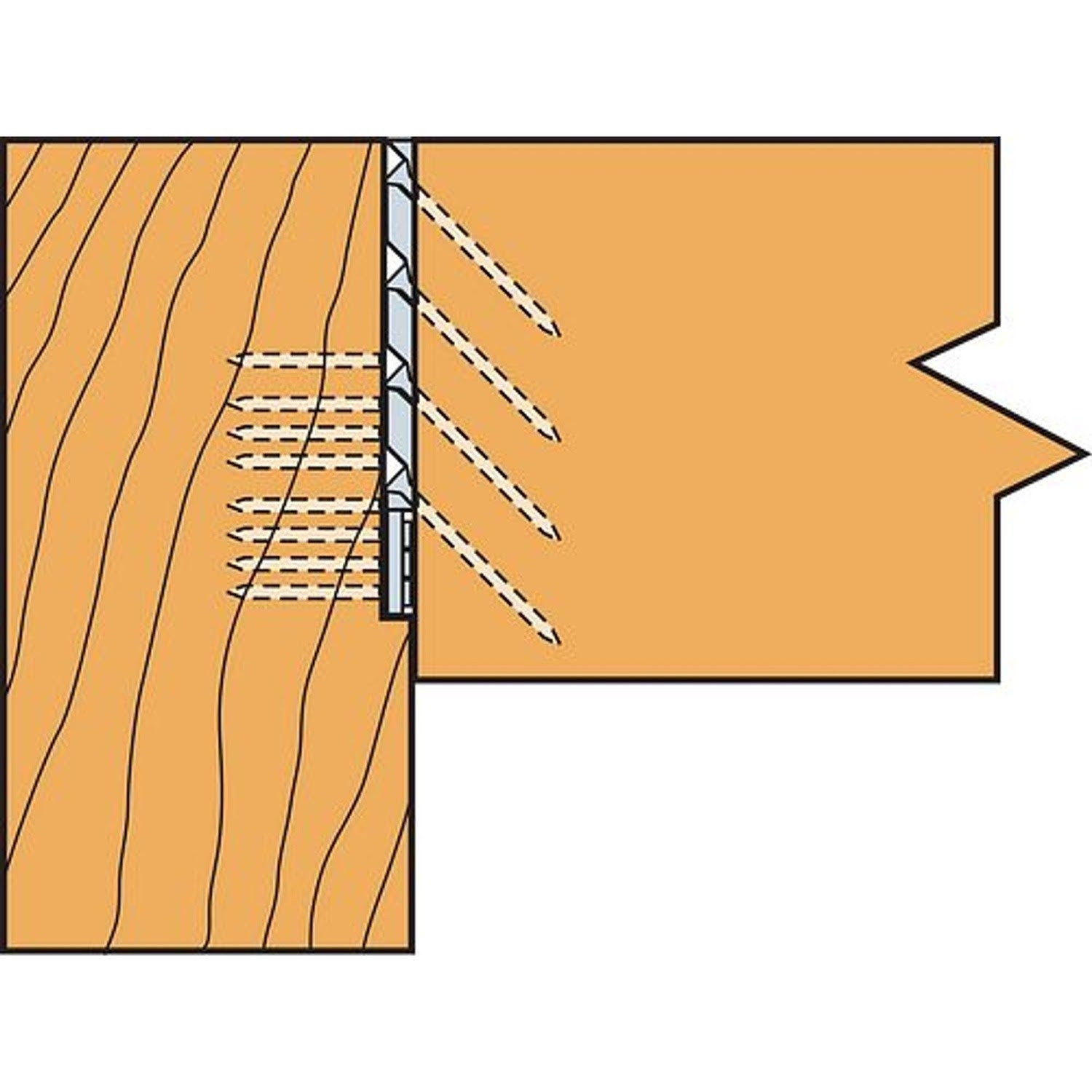

- Attach the horseshoe plate to the supported beam end using the supplied SCRB screws at a downward angle.
- Ensure all components are securely fastened and aligned.
Simpson Strong-Tie ETB230A-SCRB Specifications
| Material | Plates — Aluminum 6082-T6 |
| Finish | Plates — none; screws — Dacromet corrosion-resistant coating |
| Application | Glulam |
NOTE: Do not use ETB connectors with preservative-treated woods.
