Simpson Strong-Tie HGUS412 (4x12) 12Ga Heavy Girder Hanger with Double-Shear Nailing - G90 Galvanized
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HGUS412 (4x12) 12Ga Heavy Girder Hanger with Dou...
Key Specifications
Description
Description
Simpson HGUS412 Description
The Simpson HGUS412 Heavy Girder Hanger is designed to provide robust support for demanding structural applications, featuring double-shear nailing for enhanced strength and stability.
Simpson HGUS412 Includes

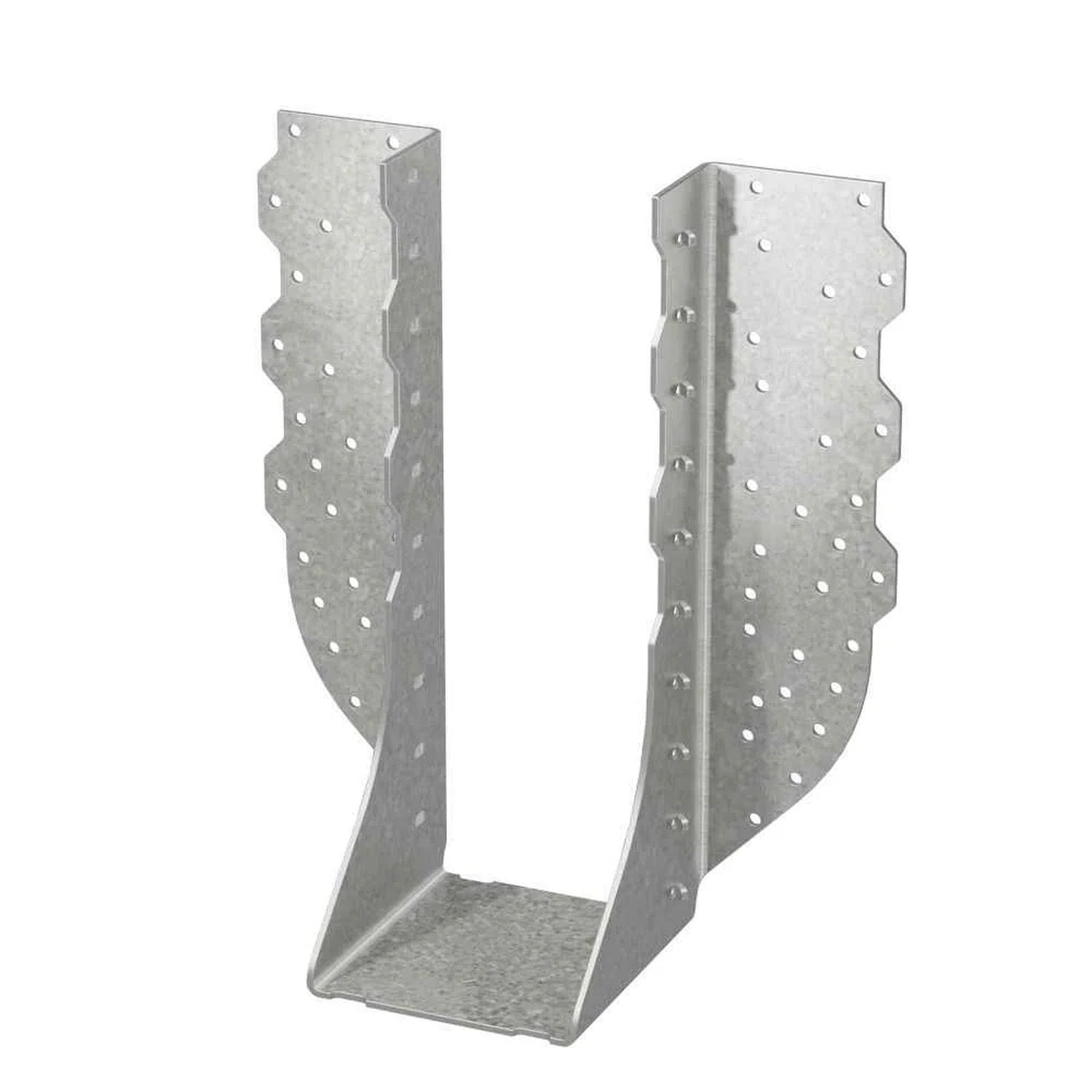

- (1) Heavy Girder Hanger for 4x12 Nominal Joist Size
Simpson HGUS412 Features
- High Load Capacity: Crafted to support substantial weights, making it ideal for heavy-duty projects.
- Double-Shear Nailing: Distributes the load through two points on each joist nail, providing greater strength.
- Versatile Installation: Can be installed after the beam is secured in place, offering flexibility during construction.
- Durable Construction: Manufactured from 12-gauge galvanized steel, ensuring durability and corrosion resistance.
Simpson HGUS412 Applications
- Residential Construction: Provides secure connections for beams and girders in homes, enhancing structural integrity.
- Commercial Projects: Supports heavy loads in commercial buildings, ensuring compliance with stringent building codes.
- Deck Construction: Offers reliable support for deck beams, contributing to the safety and longevity of outdoor structures.
- Timber Framing: Ideal for use in timber-framed structures, facilitating strong and stable joints.
Simpson HGUS412 Installation Overview
- Use all specified fasteners as per the manufacturer's guidelines.
- Drive joist nails at an angle through the joist or truss into the header to achieve the specified load capacities.
- Avoid using double-shear hangers with I-joists.
- For 3x carrying members, use specified nails into the header and joist with no load reduction.
Simpson HGUS412 Specifications
| Material | 12 Gauge |
| Finish | G90 Galvanized |
| Height | 10-7/16" |
| Width | 3-5/8" |
| Joist Size | 4" X 12" |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
