Simpson Strong-Tie HU48Z (4" x 8") Heavy-Duty Face-Mount Joist Hanger, ZMAX Finish
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HU48Z (4" x 8") Heavy-Duty Face-Mount ...
Key Specifications
Description
Description
Simpson Strong-Tie HU48Z Description

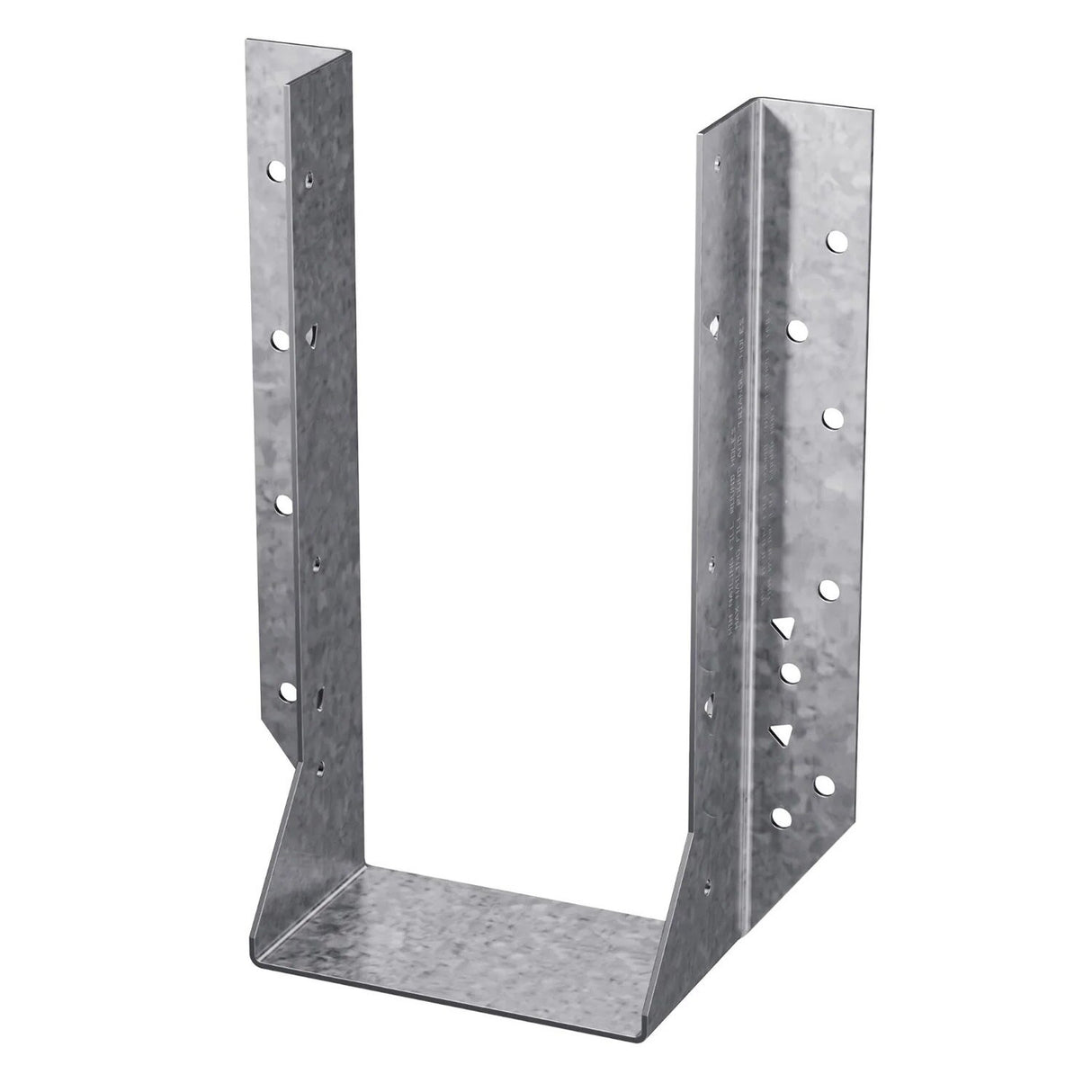

The Simpson Strong-Tie HU48Z is a heavy-duty face-mount joist hanger designed for 4x8 joists, featuring a ZMAX galvanized finish for enhanced corrosion resistance.
Simpson Strong-Tie HU48Z Includes
- (1) Face-Mount Joist Hanger for 4x8
Simpson Strong-Tie HU48Z Features
- Heavy-duty construction for robust support
- ZMAX galvanized coating for corrosion resistance
- Compatible with solid sawn lumber and engineered wood
- Suitable for masonry and concrete applications
- Code-compliant and load-rated
Simpson Strong-Tie HU48Z Applications
- Deck Construction: Securely supports deck joists and ledger board connections.
- Floor Framing: Ensures stability in wood-frame floor systems.
- Roof Framing: Strengthens rafter and beam connections.
- Post and Beam Structures: Ideal for pergolas and gazebos.
- Masonry and Concrete Applications: Can be installed with Titen HD screws for secure attachment.
Simpson Strong-Tie HU48Z Installation Overview
- Verify dimensions and alignment of joists and beams.
- Position the hanger and align it with the supporting member.
- Fasten using specified nails or screws.
- Ensure all holes are filled to achieve maximum load capacity.
- Check for proper seating and secure attachment.
Simpson Strong-Tie HU48Z Specifications
| Finish | ZMAX |
| Material | Carbon Steel |
| Fasteners required | Face - (14) 0.162" x 3-1/2" Nails, Joist - (6) 0.148" x 3" Nails |
| For Treated Lumber | Yes |
| Height | 6-13/16" |
| Joist size | 4" X 8" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 14 Gauge |
| Width | 3-9/16" |
NOTE: Ensure all fasteners are installed in the correct positions to achieve maximum load capacities.
