Simpson Strong-Tie HUS1.81/10 (1-3/4 in. x 9-1/2 in.) Galvanized Face-Mount Joist Hanger for Engineered Wood
Couldn't load pickup availability
Bulk Pricing Available
Bulk Pricing Available
Need to place a large order? Request a quote
Simpson Strong-Tie HUS1.81/10 (1-3/4 in. x 9-1/2 in.) Galvanized Fa...
Key Specifications
Description
Description
Simpson HUS1.81/10 Description

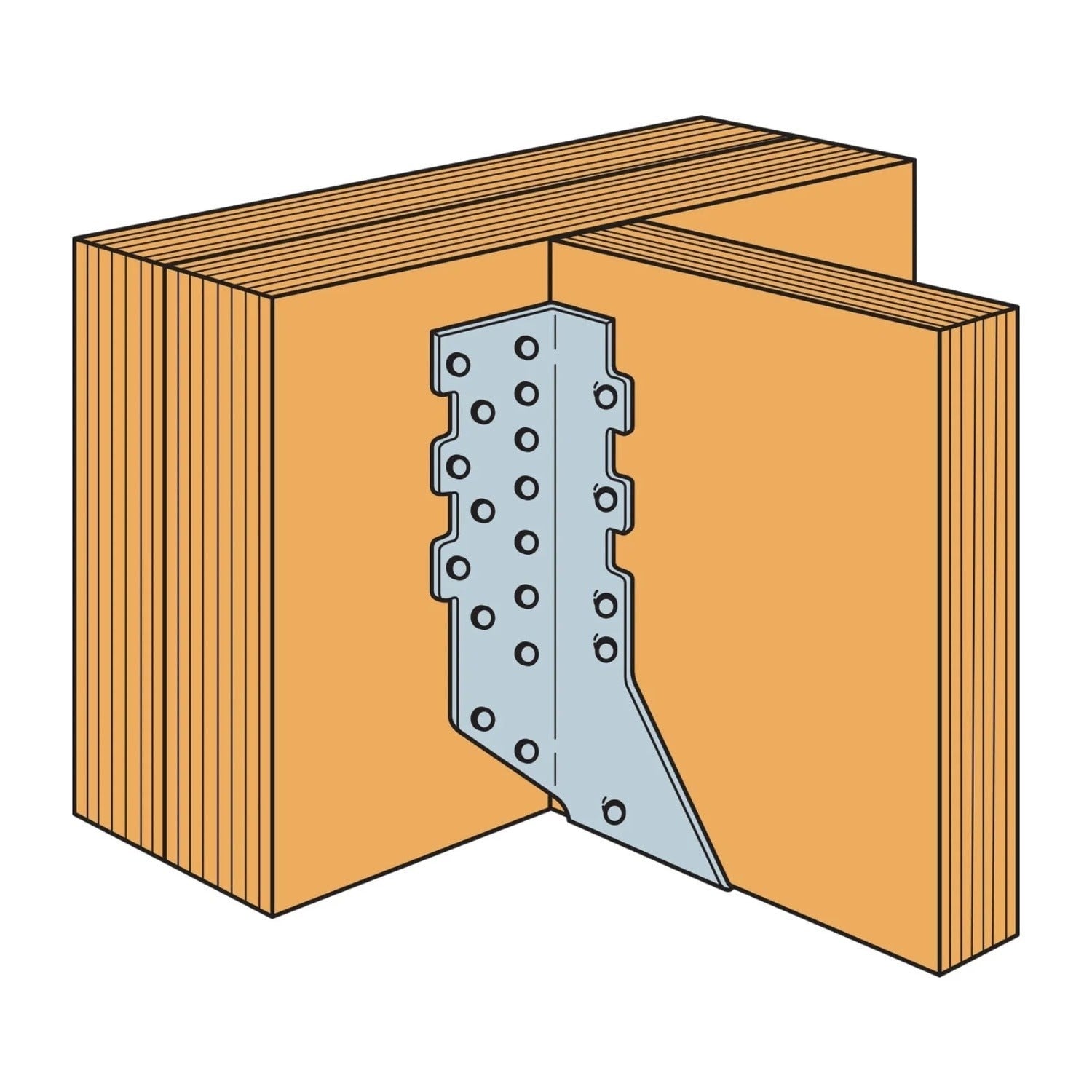

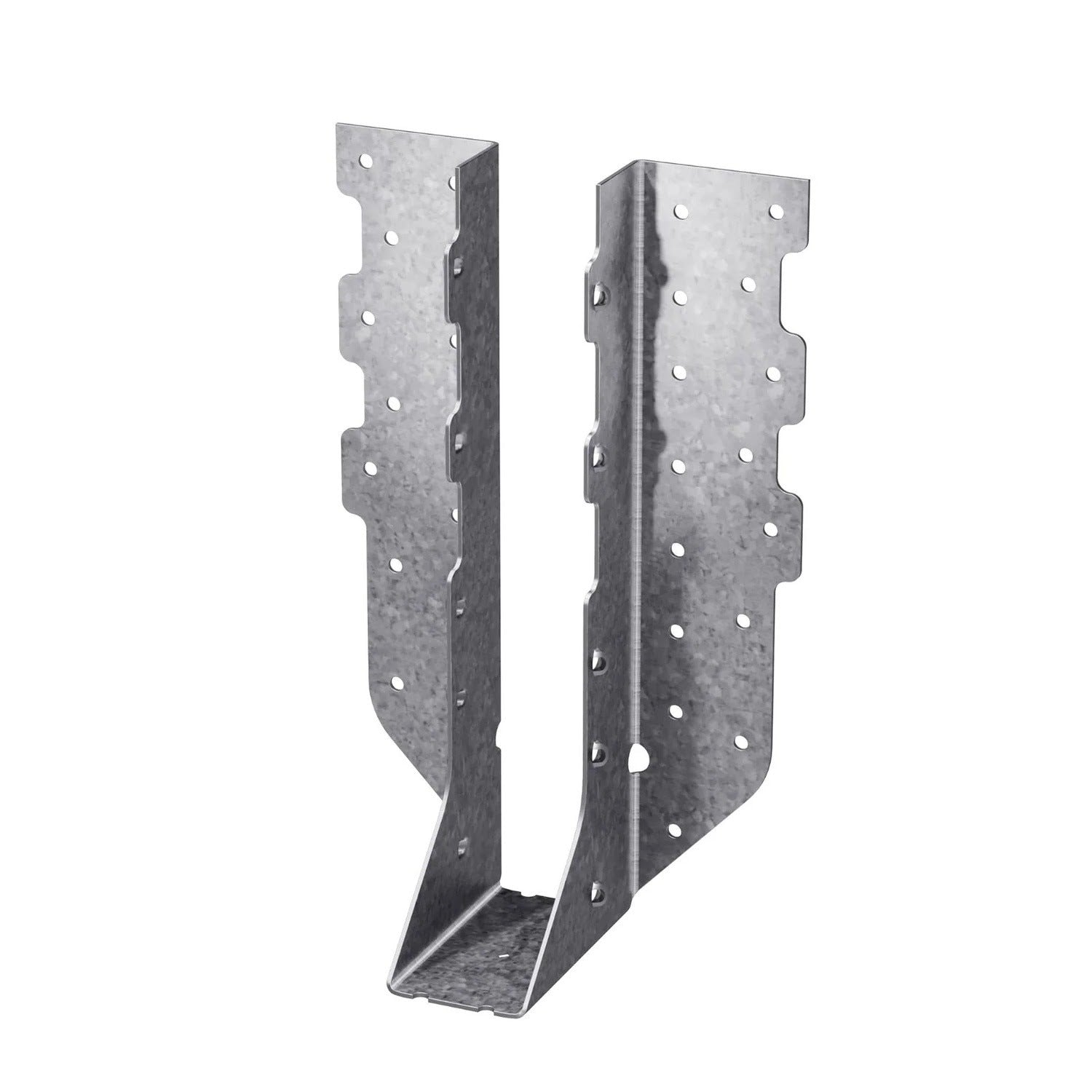

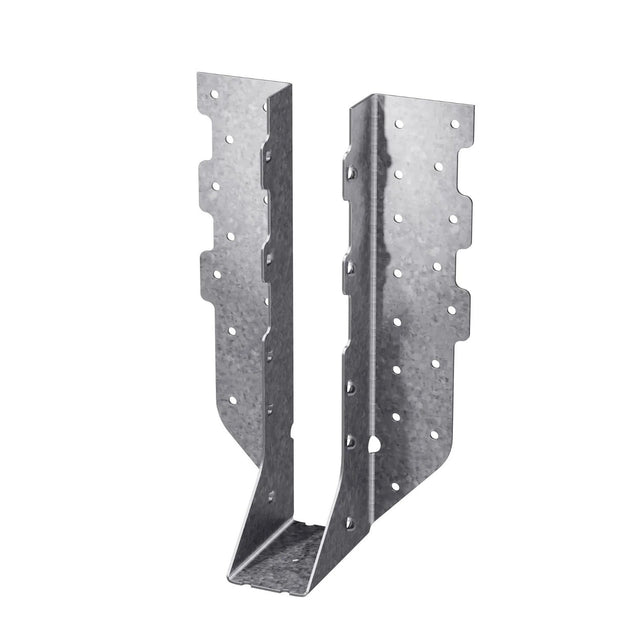

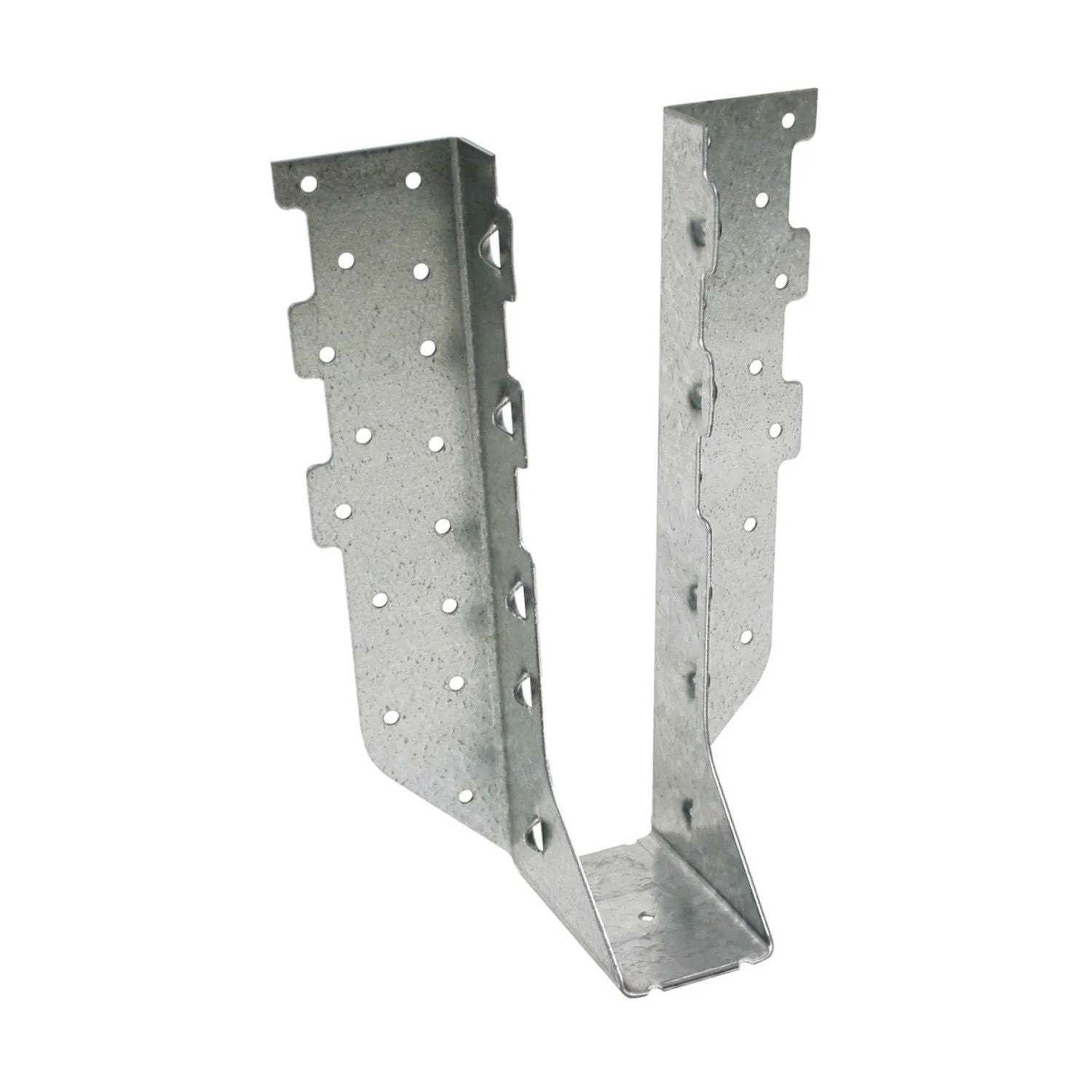

The Simpson HUS1.81/10 is a heavy-duty galvanized face-mount joist hanger designed for engineered wood applications, providing exceptional load capacity and corrosion resistance.
Simpson HUS1.81/10 Includes
- (1) Heavy-Duty Galvanized Face-Mount Joist Hanger
Simpson HUS1.81/10 Features
- Heavy-Duty Construction: Engineered to support high loads while maintaining structural integrity.
- G90 Galvanized Coating: Provides corrosion resistance for long-lasting durability in dry and damp environments.
- Versatile Installation: Compatible with solid sawn lumber, engineered wood, and plated trusses for diverse framing applications.
- Code-Compliant Design: Meets applicable building codes for safe and reliable performance.
- Precision Engineering: Enhances installation accuracy and ensures a snug, secure fit for optimal load transfer.
Simpson HUS1.81/10 Applications
- Floor and Roof Framing: Securing joists to beams or ledgers in deck, attic, and ceiling applications.
- Multi-Family and Commercial Construction: Providing strong, code-compliant support for load-bearing structures.
- Engineered Wood Installations: Supporting LVL, PSL, and LSL beams in framing systems.
- Truss-to-Beam Connections: Ensuring stability in plated truss configurations.

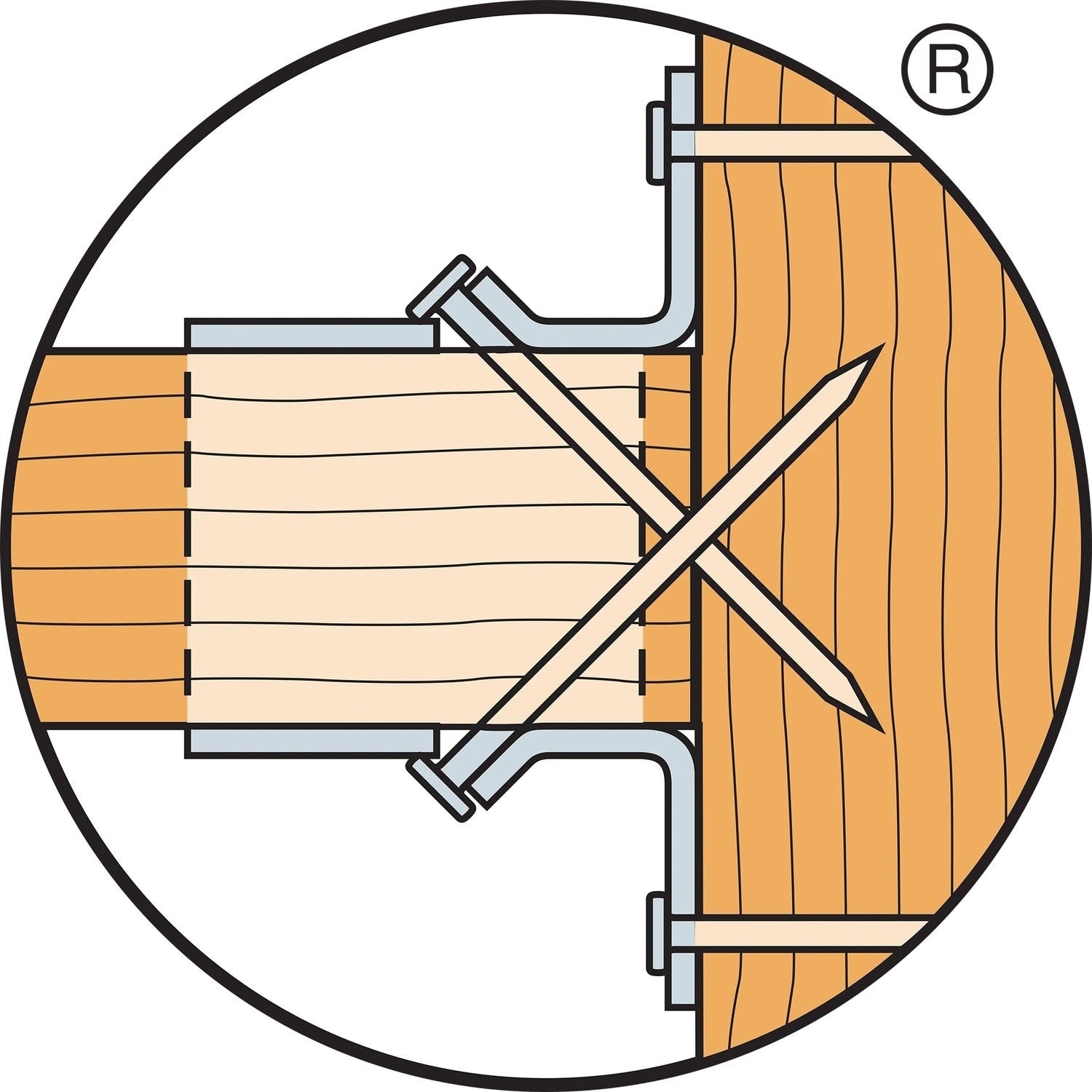

Simpson HUS1.81/10 Installation Overview
- Use 10d or 16d common nails for solid wood applications.
- For engineered wood connections, use Strong-Drive SD Structural Screws.
- Ensure full bearing contact between the joist and hanger seat.
- Use the correct fasteners in all designated holes to achieve listed load ratings.
Simpson HUS1.81/10 Specifications
| Finish | G90 Galvanized |
| Material | Carbon Steel |
| Fasteners required | Face - (30) 0.162" x 3-1/2" Nails, Joist - (10) 0.162" x 3-1/2" Nails |
| For Treated Lumber | No |
| Height | 8-7/8" |
| Joist size | 1-3/4" X 9-1/2" |
| Thickness | 16 Gauge |
| Width | 1-13/16" |
NOTE: Ensure full bearing contact between the joist and hanger seat and use the correct fasteners in all designated holes to achieve listed load ratings.
