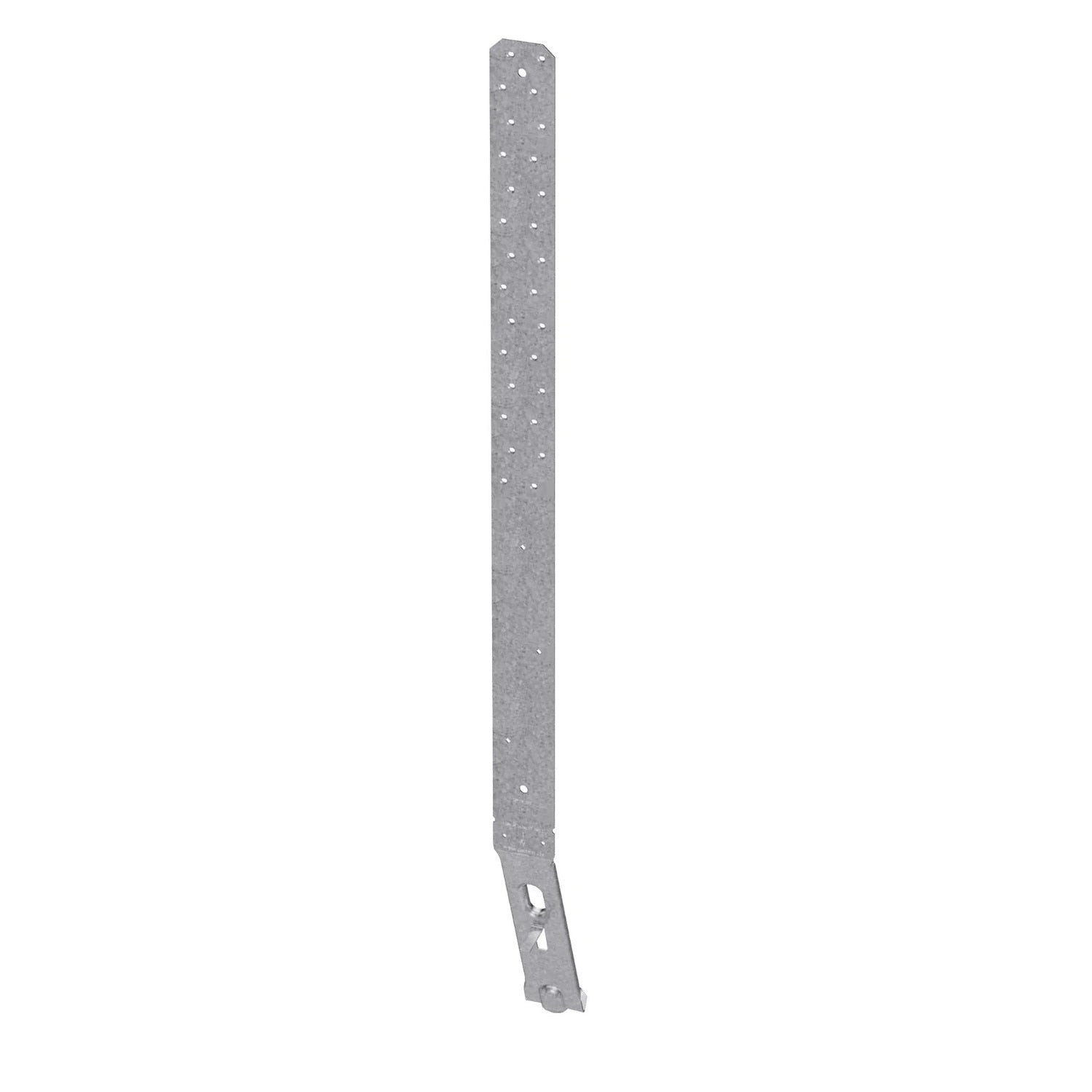

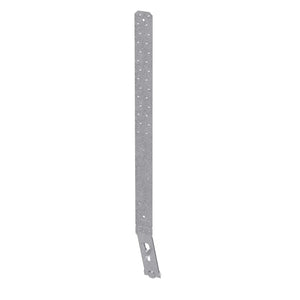

Simpson STHD10RJ Description
The STHD10RJ Rim Joist Strap-Tie Holdown is a galvanized steel holdown designed for high loads and accurate installation, featuring a staggered nail pattern and enhanced stability during concrete pours.
Simpson STHD10RJ Includes
- (1) Rim Joist Strap-Tie Holdown
Simpson STHD10RJ Features
- High load capacity
- Staggered nail pattern minimizes splitting
- Enhanced stability during concrete pours
- Slots below embedment line strengthen concrete bond
- Fits up to a 17" clear span without loss of strap nailing
- Galvanized finish for corrosion resistance
Simpson STHD10RJ Applications
- Securing rim joists in wood-framed construction
- Providing structural support in residential and commercial buildings
- Use in concrete and post-tension slab installations
Simpson STHD10RJ Installation Overview
- Verify dimensions and alignment before installation.
- Install before concrete pour using a StrapMate or similar device.
- Nail strap from bottom up, ensuring it is plumb.
- Strap may be bent for wall placement, with considerations for spalling.
- Protect exposed strap portions against corrosion.
- Avoid installation where horizontal cold joints exist within embedment depth.
- Additional studs may be required for wall sheathing nailing.
- Consider wood shrinkage effects post-installation.
- Refer to General Corrosion Risks for severe environments.
Simpson STHD10RJ Specifications
| Length | 38-1/8" |
| Material | Carbon Steel |
| Fasteners required | SEE PRODUCT GUIDE DOCUMENT |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Width | 3" |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
